Dufour 430 Standard
Sailboat specifications
The Dufour 430 is a 41’ (12.5m) cruising sailboat designed by Felci Yachts (Italy). She is built since 2019 by Dufour (France).
The Dufour 430 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Dufour 430 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Dufour 430's main features
- Model
- Dufour 430
- Version
- Standard
- Hull type
- Monohull
- Category
- Cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
- Hull: Single skin fiberglass
- Deck: Sandwich fiberglass polyester (injection molding process) - First built hull
- 2019
- Last built hull
- Still in production
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About195 000 €(2020)
Dufour 430's main dimensions
- Overall length
- 43’ 5”13.24 m
- Hull length
- 41’12.5 m
- Waterline length
- 38’ 5”11.69 m
- Beam (width)
- 14’ 1”4.3 m
- Draft
- 6’ 11”2.1 m
- Light displacement (MLC)
- 21385 lb9700 kg
- Ballast weight
- 5732 lb2600 kg

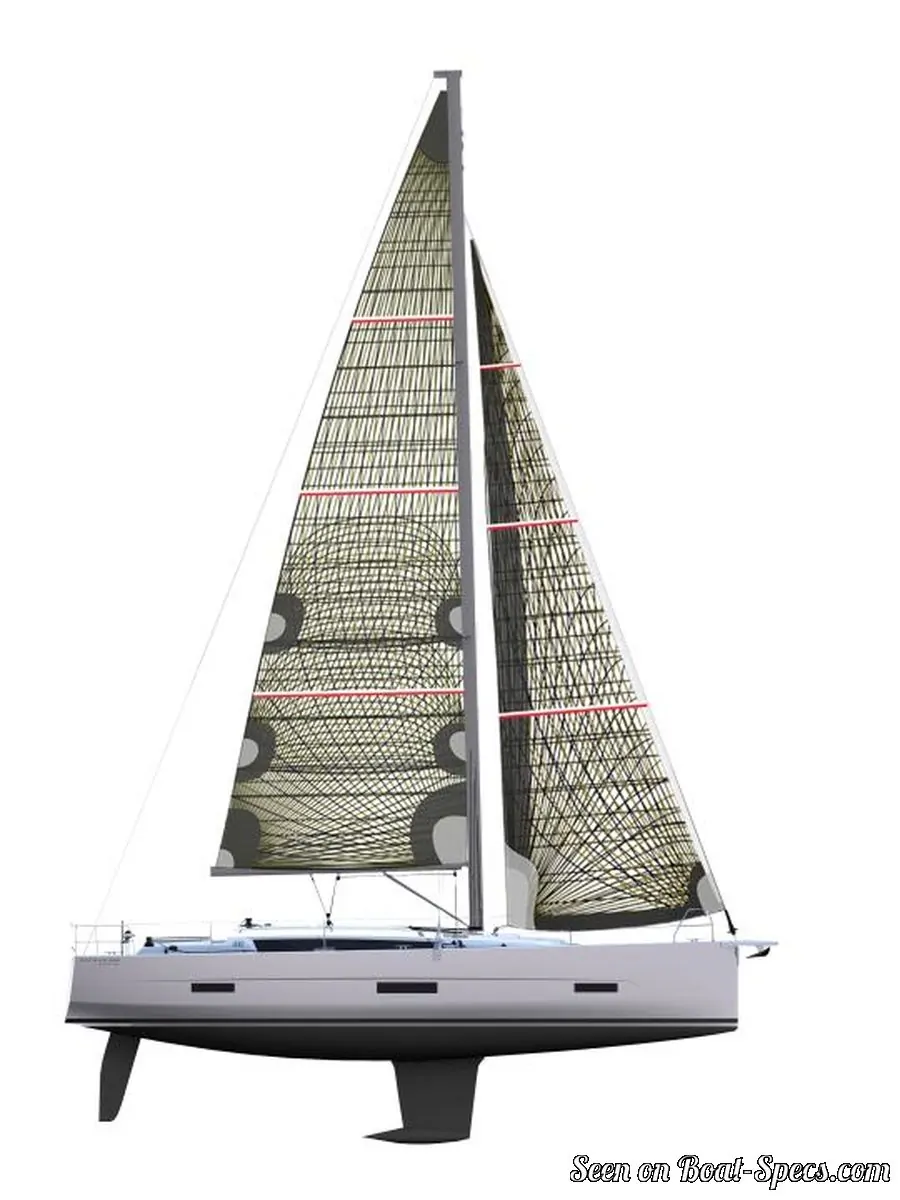

Dufour 430's rig and sails
- Upwind sail area
- 990 ft²92 m²
- Mainsail area
- 560 ft²52 m²
- Genoa area
- 431 ft²40 m²
- Rigging type
- Sloop Marconi 7/8
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire continuous
Dufour 430's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 218 ft²/T20.23 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 172
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 27 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.30 knots
Dufour 430's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 50 HP / 60 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 66 gal250 liters

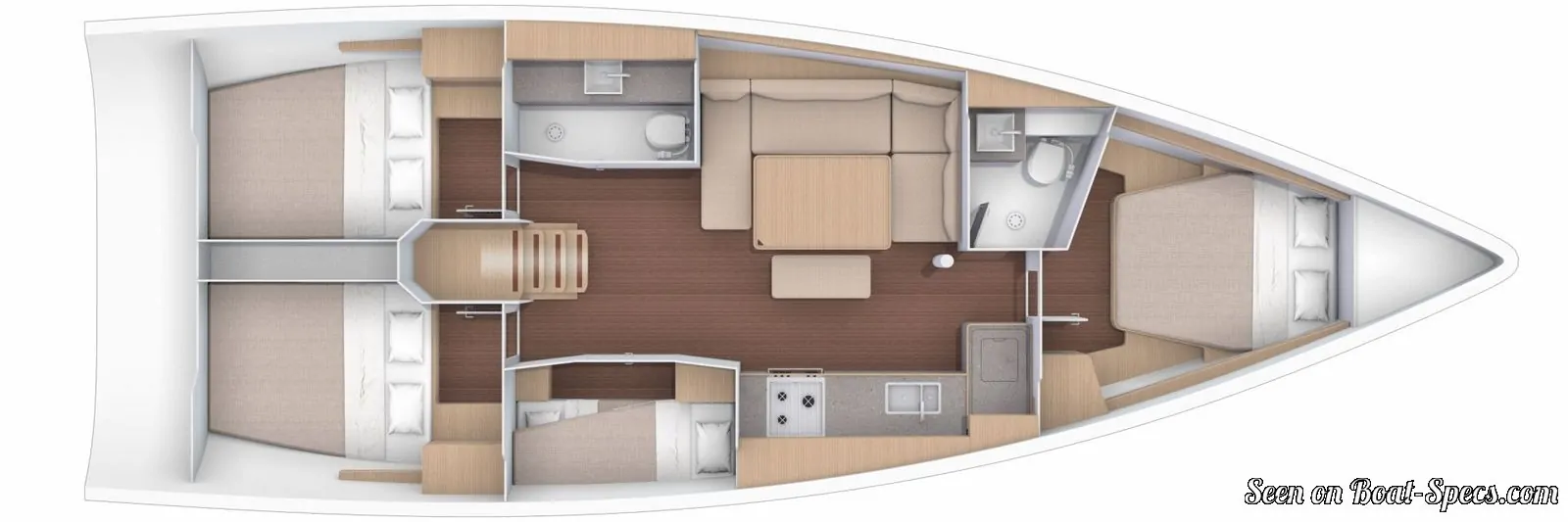

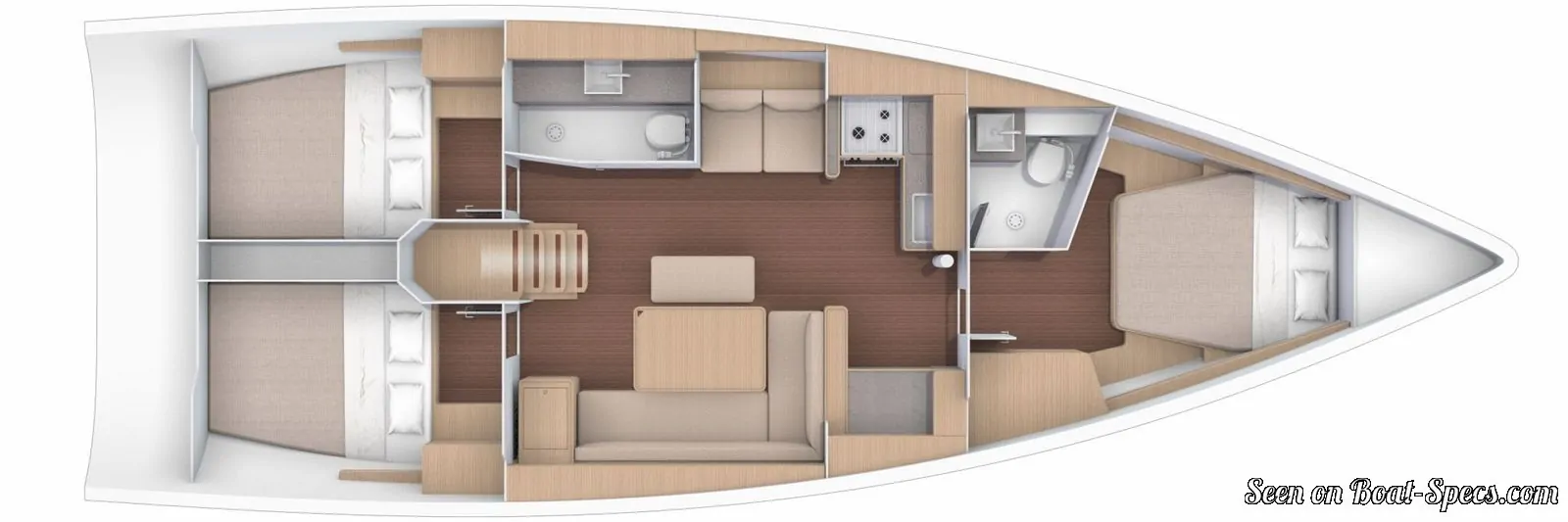

Dufour 430's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 10
- Head(s)
- 2
- Freshwater tank capacity
- 113.6 gal430 liters

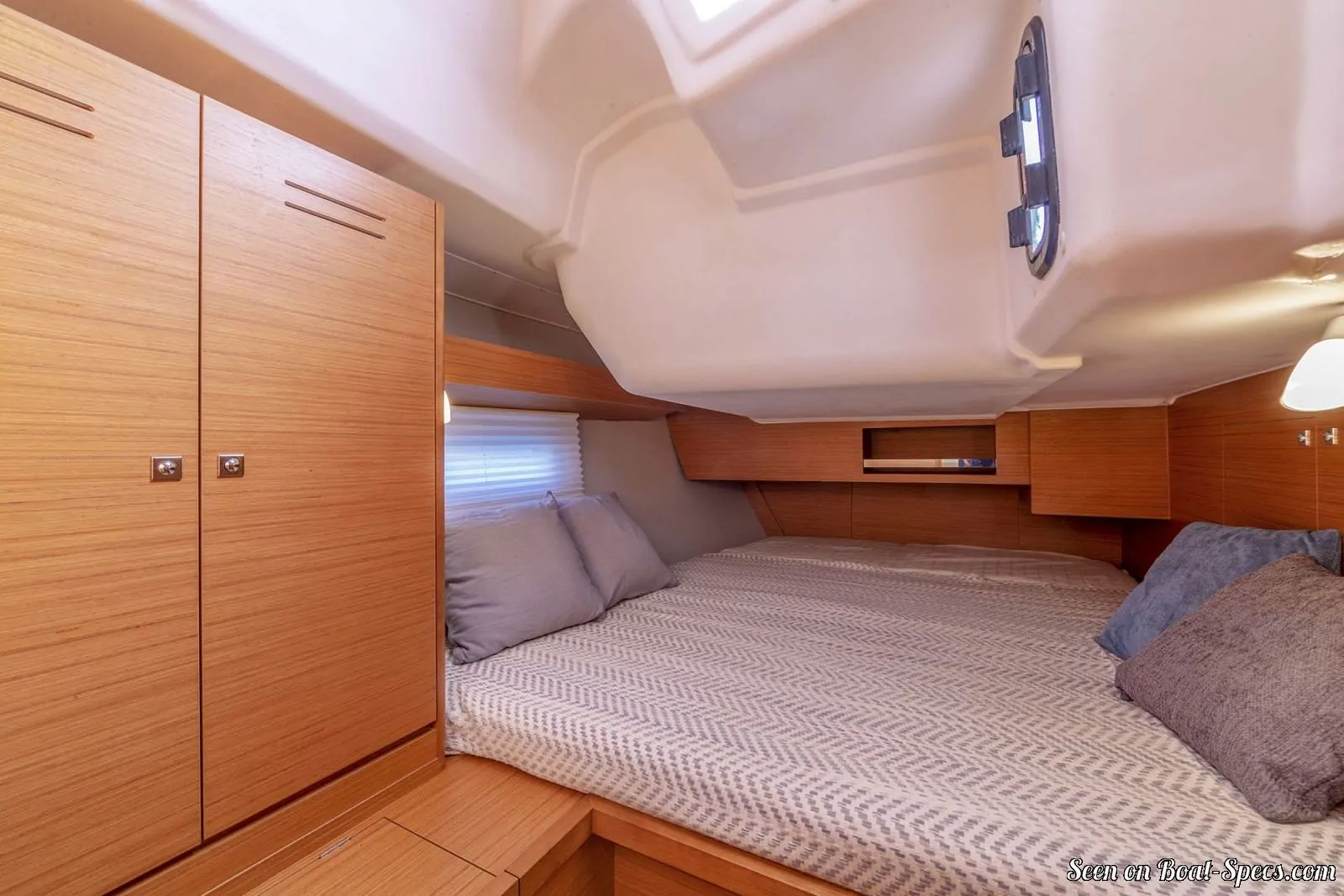

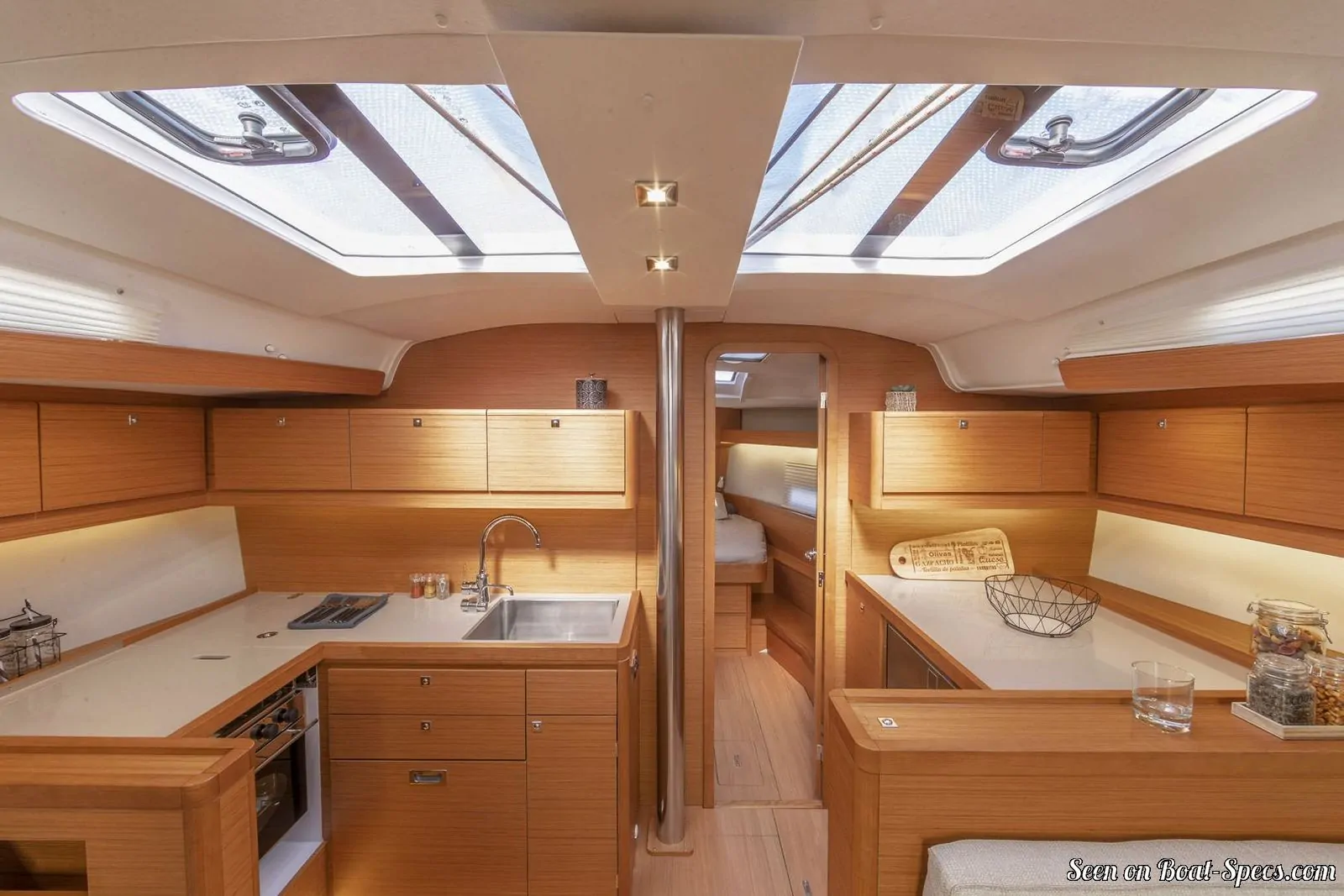

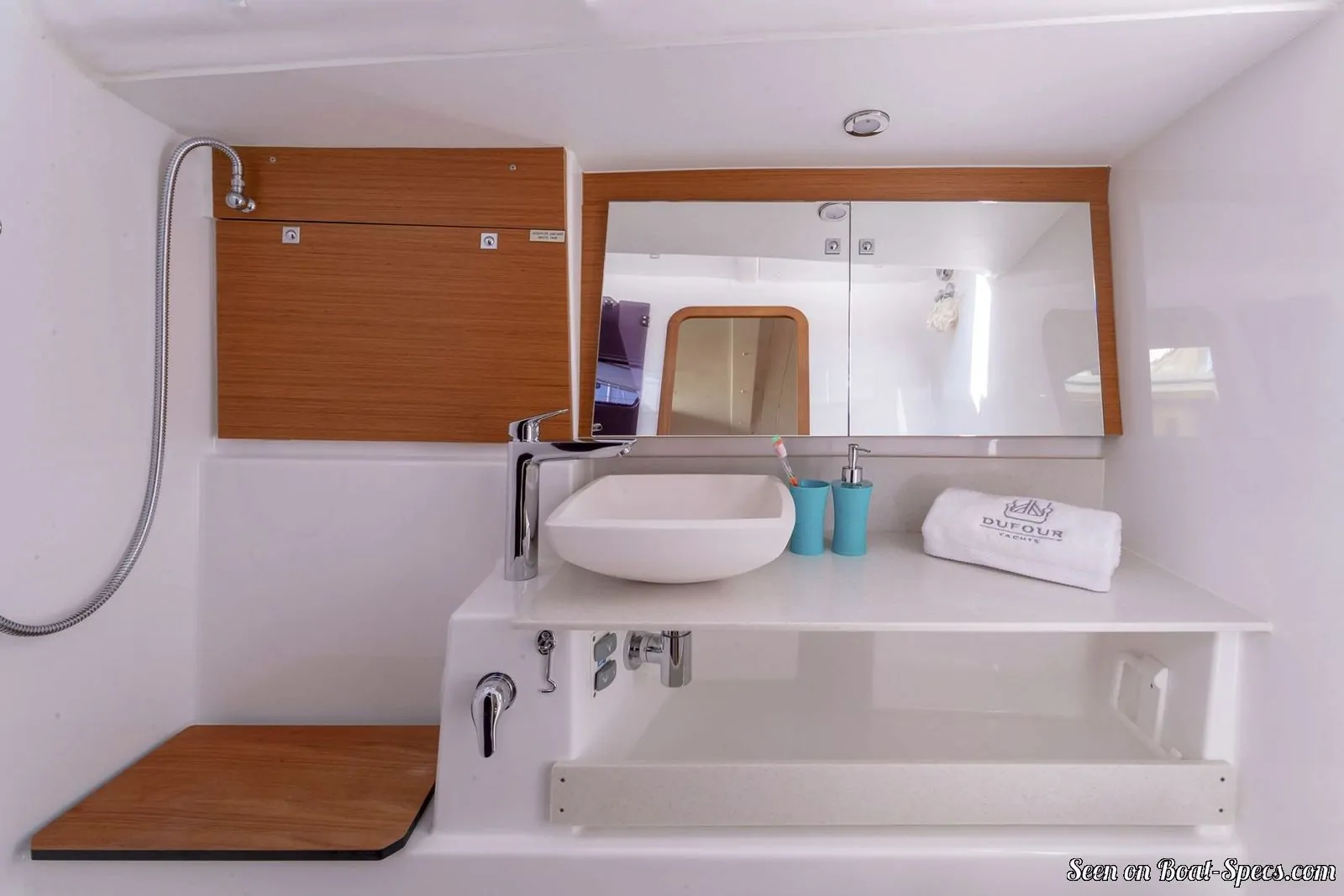

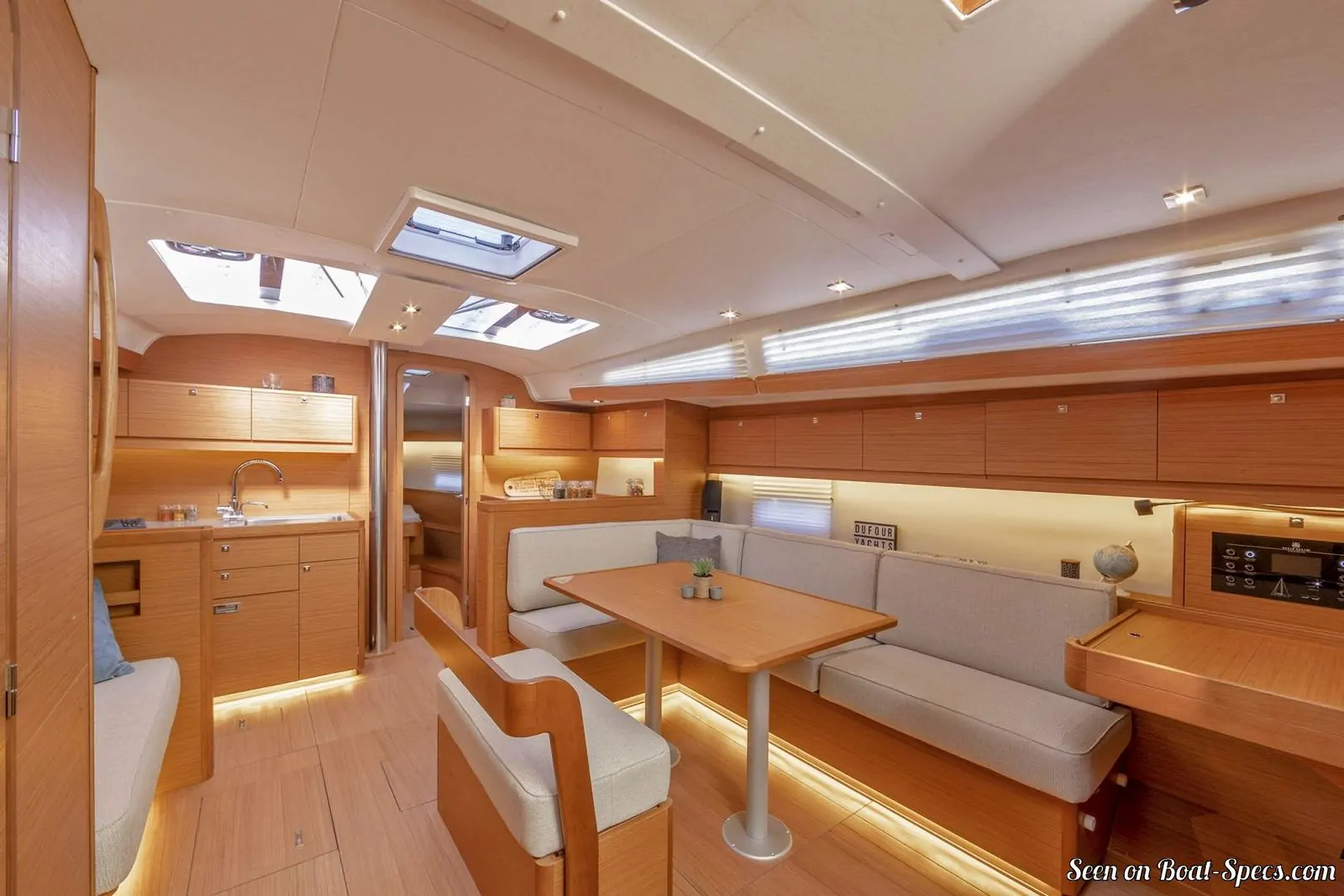

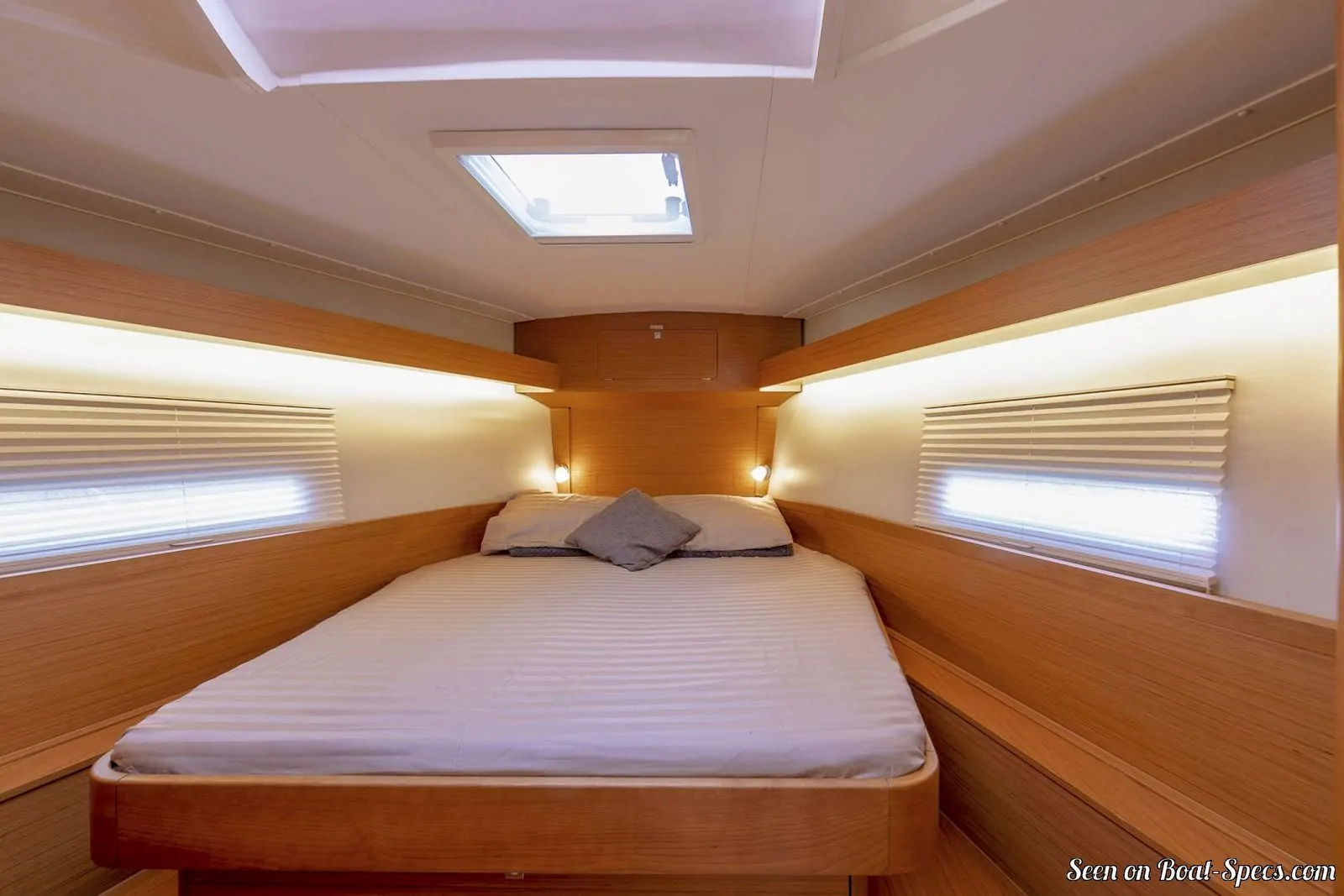

Dufour 430 interior and accommodations - - 11/15
Picture extracted from the commercial documentation © Dufour
Picture extracted from the commercial documentation © Dufour
Dufour 430 interior and accommodations - - 12/15
Picture extracted from the commercial documentation © Dufour
Picture extracted from the commercial documentation © Dufour
Dufour 430 interior and accommodations - - 13/15
Picture extracted from the commercial documentation © Dufour
Picture extracted from the commercial documentation © Dufour
Dufour 430 interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Dufour
Picture extracted from the commercial documentation © Dufour
Dufour 430 interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Dufour
Picture extracted from the commercial documentation © Dufour
