Dufour 36 Classic Shoal draft

Sailboat specifications

The Dufour 36 Classic is a 35’4” (10.75m) cruising sailboat designed by Mortain & Mavrikios Yacht Design (France). She was built between 1999 and 2004 by Dufour (France) with 470 hulls completed. The Shoal draft version features a shorter keel to grant access to shallow areas.

The Dufour 36 Classic is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).

Dufour 36 Classic's main features

Model: Dufour 36 Classic
Version: Shoal draft
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: Dufour
Sailboat designer: Mortain & Mavrikios Yacht Design
Country: France
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
Number of hulls built: 470
First built hull: 1999
Last built hull: 2004
Appendages: Keel : fin without bulb
Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Dufour 36 Classic's main dimensions

Overall length: 36’ 4”11.05 m
Hull length: 35’ 4”10.75 m
Waterline length: 30’ 1”9.17 m
Beam (width): 12’ 5”3.77 m
Draft: 4’ 10”1.45 m
Mast height from D_WL: 49’ 2”15 m
Light displacement (M_LC): 13007 lb5900 kg
Ballast weight: 3527 lb1600 kg
Ballast type: Cast iron
French customs tonnage: 13.00 Tx

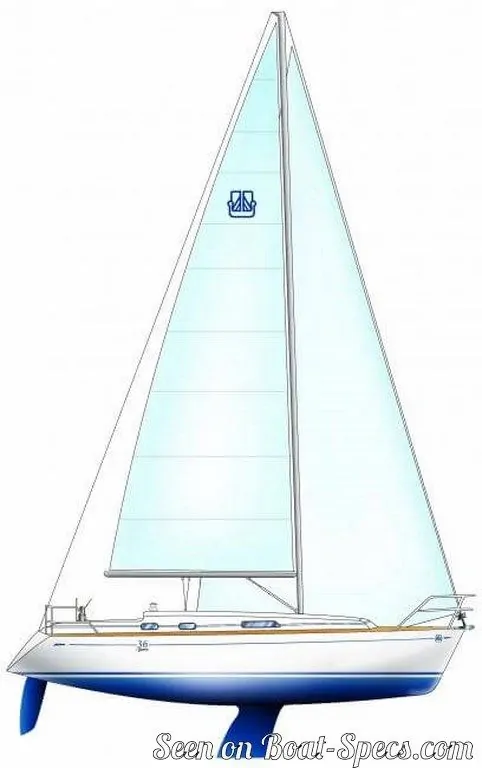

Dufour 36 Classic's rig and sails

Upwind sail area: 743 ft²69 m²
Downwind sail area: 1340 ft²124.5 m²
Mainsail area: 318 ft²29.5 m²
Genoa area: 425 ft²39.5 m²
Symmetric spinnaker area: 1023 ft²95 m²
I iFore triangle height (from mast foot to fore stay top attachment): 46’ 6”14.18 m
J iFore triangle base (from mast foot to bottom of forestay): 12’ 8”3.88 m
P iMainsail hoist measurement (from tack to head): 40’ 7”12.39 m
E iMainsail foot measurement (from tack to clew): 13’ 6”4.1 m
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars

Dufour 36 Classic's performances

HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 21.5
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 227 ft²/T21.13 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 410 ft²/T38.13 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 217
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 27 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.35 knots
