D-Zero
Sailboat specifications
The D-Zero is a 13’10” (4.2m) single handed dinghy designed by Dan Holman (United Kingdom). She is built since 2014 by Devoti Sailing (Czech Republic).
D-Zero's main features
- Model
- D-Zero
- Hull type
- Monohull
- Category
- Single handed dinghy
- Sailboat builder
- Sailboat designer
- Country
- Czech Republic
- Construction
- Fiberglass reinforced epoxy:
Sandwich PVC fiberglass epoxy - First built hull
- 2014
- Last built hull
- Still in production
- Appendages
- Centerboard : daggerboard
- Helm
- Single tiller
- Rudder
- Single transom hung rudder
- Unsinkable
- No
- Trailerable
- Yes
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - C
- Standard public price ex. VAT (indicative only)
- About5 850 €(2020)
D-Zero's main dimensions
- Hull length
- 13’ 10”4.2 m
- Beam (width)
- 4’ 8”1.42 m
- Draft when appendages up
- 12’ 6”3.8 m
- Light displacement (MLC)
- 95 lb43 kg
D-Zero's rig and sails
- Upwind sail area
- 87 ft²8.1 m²
- Mainsail area
- 87 ft²8.1 m²
- Rigging type
- Cat boat Marconi (square top mainsail)
- Mast configuration
- Mast foot integrated on deck
- Rotating spars
- Yes
- Spreaders angle
- No spreader
- Spars construction
- Carbon fiber spars
- Standing rigging
- Free standing mast: no standing rigging
D-Zero's performances
- PY (Portsmouth Yardstick) ratingiPortsmouth Yardstick is an empirical rating system allowing small sailboats (dinghies included), of different sizes and designs, to race each other fairly. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.
- 1040
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 710 ft²/T65.99 m²/T
D-Zero's auxiliary engine
- Engine(s)
- No engine
D-Zero's accommodations and layout
- Cockpit
- Open aft cockpit

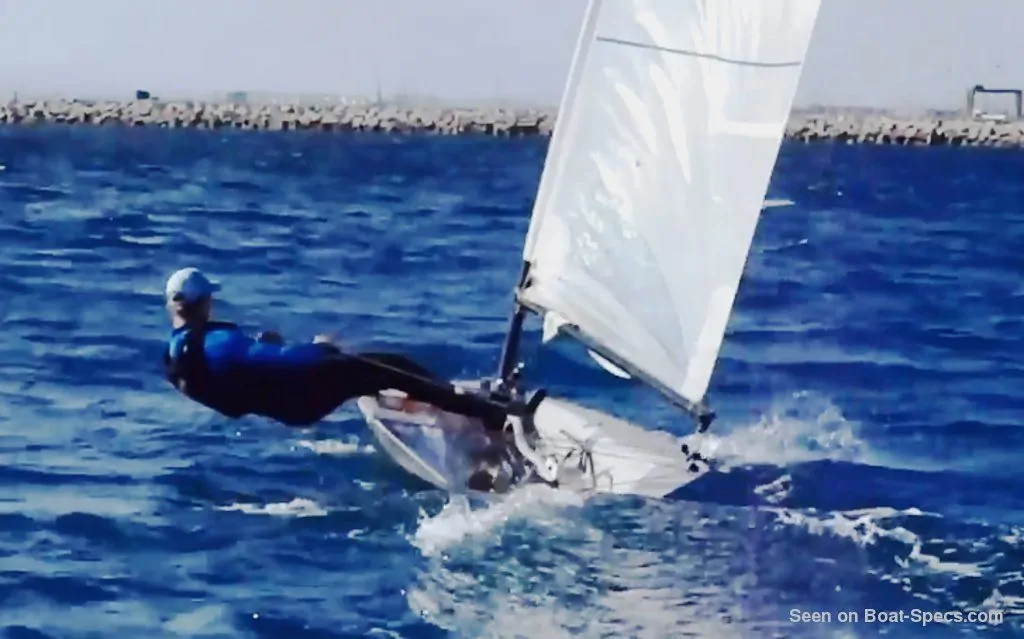

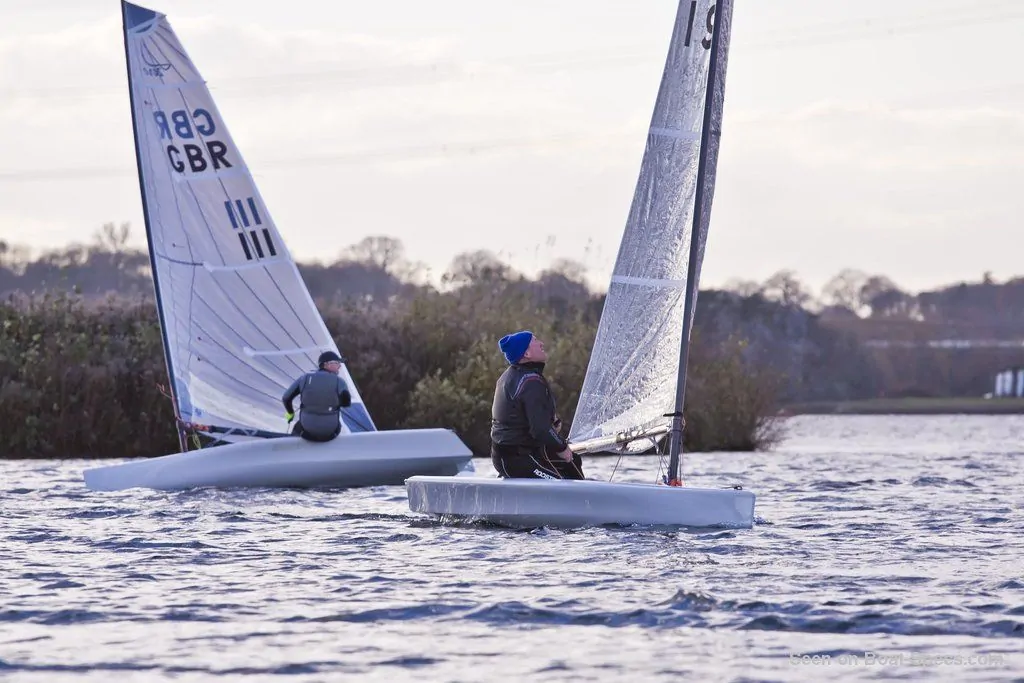

Devoti Sailing D-Zero sailing - - 2/6
Picture extracted from the commercial documentation © Devoti Sailing
Picture extracted from the commercial documentation © Devoti Sailing

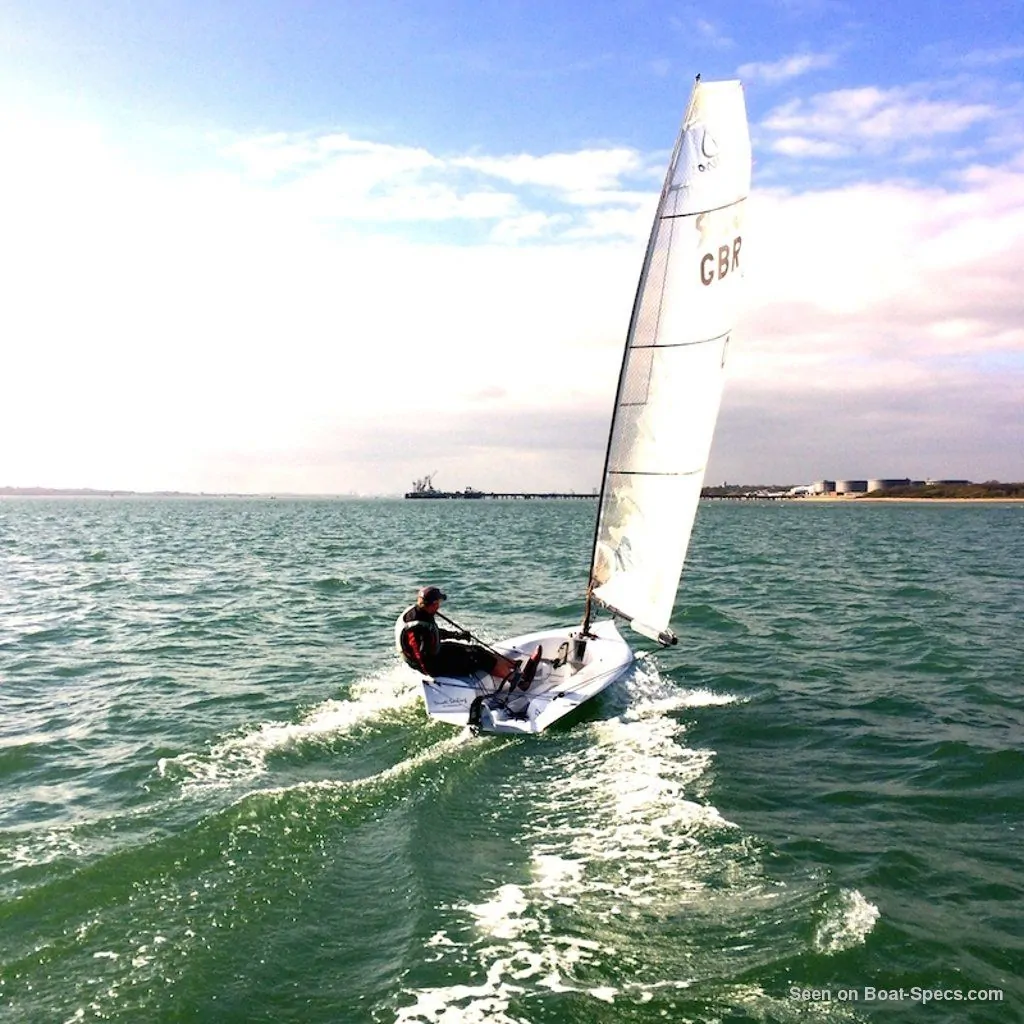

Devoti Sailing D-Zero sailing - - 3/6
Picture extracted from the commercial documentation © Devoti Sailing
Picture extracted from the commercial documentation © Devoti Sailing

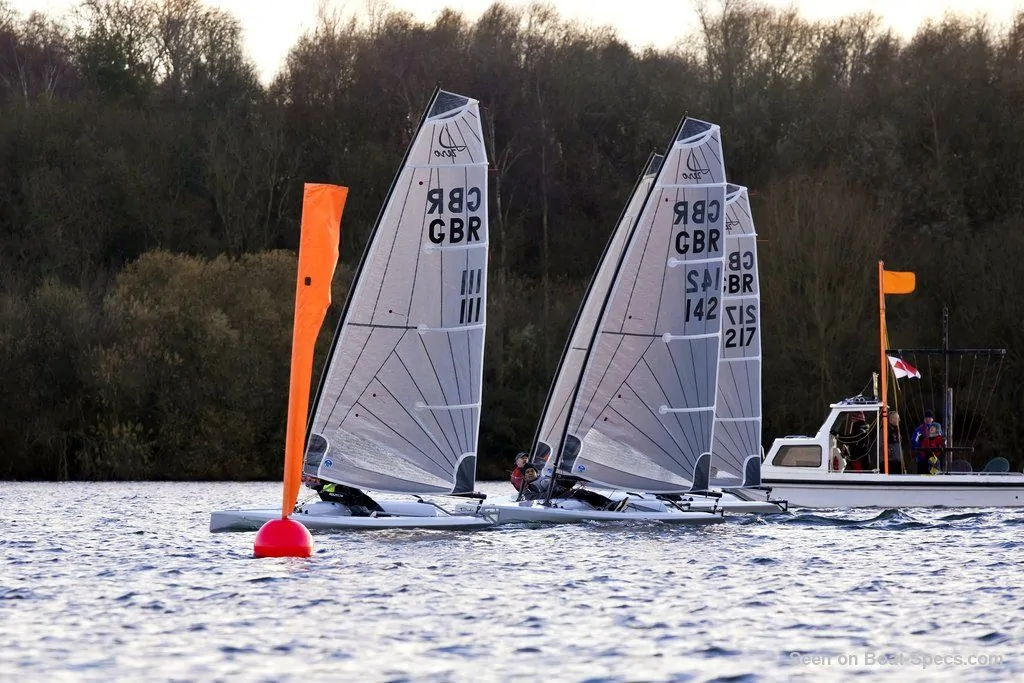

Devoti Sailing D-Zero sailing - - 4/6
Picture extracted from the commercial documentation © Devoti Sailing
Picture extracted from the commercial documentation © Devoti Sailing

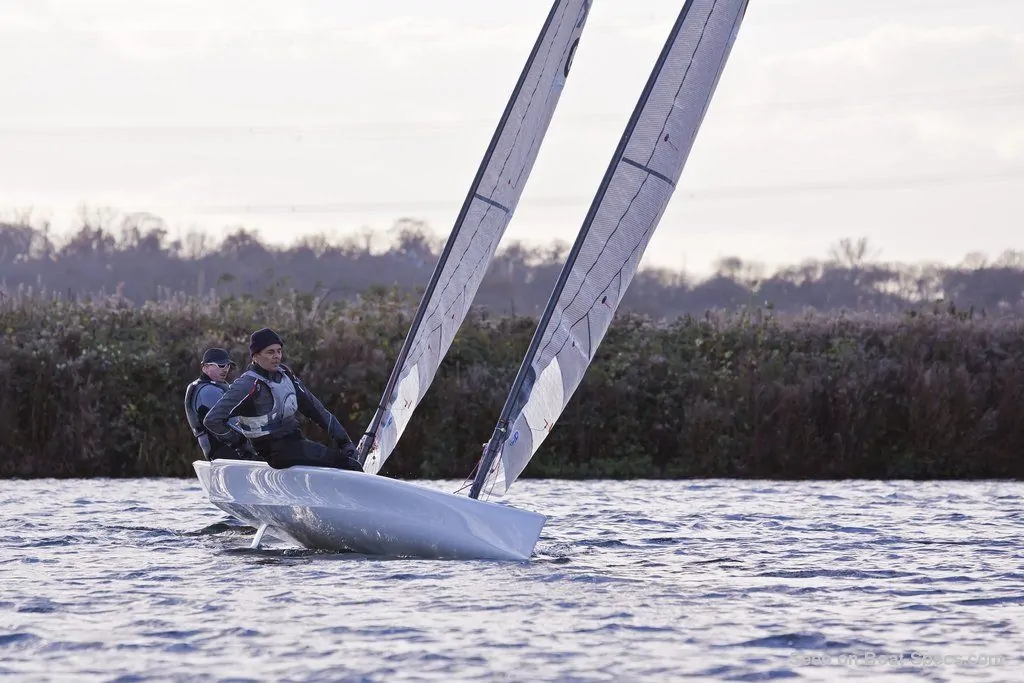

Devoti Sailing D-Zero sailing - - 5/6
Picture extracted from the commercial documentation © Devoti Sailing
Picture extracted from the commercial documentation © Devoti Sailing

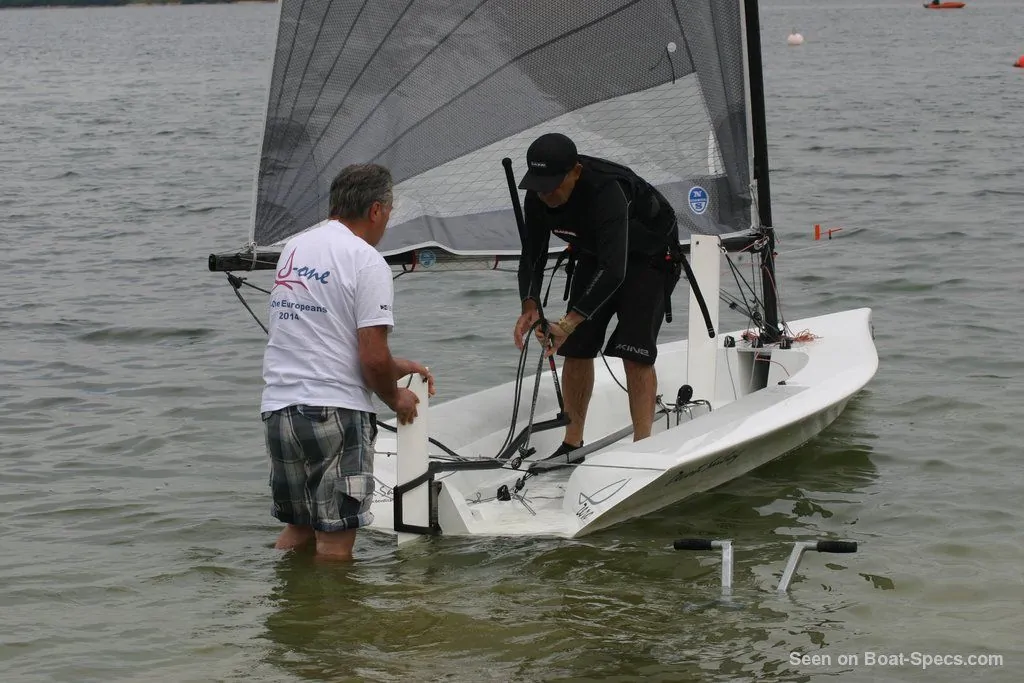

Devoti Sailing D-Zero detail - - 6/6
Picture extracted from the commercial documentation © Devoti Sailing
Picture extracted from the commercial documentation © Devoti Sailing
