Delphia 29 - 2015 Centerboard (Trunk)

Sailboat specifications

The Delphia 29 - 2015 is a 29’ (8.83m) cruising sailboat designed by Andrzej Skrzat (Poland). She was built between 2015 and 2017 by Delphia Yachts (Poland). The Centerboard (Trunk) version grants a minimal draft when the centerboard is lifted allowing beaching and easy access to shallow areas.

The Delphia 29 - 2015 is as well listed, on Boat-Specs.com, in Fin keel and Keel and centerboard version (see all the versions compared).

Delphia 29 - 2015's main features

Model: Delphia 29 - 2015
Version: Centerboard (Trunk)
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: Delphia Yachts
Sailboat designer: Andrzej Skrzat
Country: Poland
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
First built hull: 2015
Last built hull: 2017
Appendages: Centerboard : pivoting centerboard
Helm: Single tiller (helm wheel in option)
Rudder: Single transom hung rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: C
Standard public price ex. VAT (indicative only): About
59 500 €
(2016)

Delphia 29 - 2015's main dimensions

Overall length: 31’ 2”9.52 m
Hull length: 29’8.83 m
Beam (width): 9’ 8”2.95 m
Draft: 4’ 10”1.46 m
Draft when appendages up: 1’ 4”0.4 m
Mast height from D_WL: 42’ 8”13 m
Light displacement (M_LC): 6834 lb3100 kg
Ballast weight: 1984 lb900 kg
Ballast type: Cast iron interior ballast with glass-fiber/polyester centerboard

Delphia 29 - 2015's rig and sails

Upwind sail area: 405 ft²37.6 m²
Mainsail area: 211 ft²19.6 m²
Genoa area: 194 ft²18 m²
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Delphia 29 - 2015's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 190 ft²/T17.69 m²/T
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 29 %

Delphia 29 - 2015's auxiliary engine

Engine(s): 1 inboard engine
Engine(s) power: 20 HP
Fuel type: Diesel
Fuel tank capacity: 17.2 gal65 liters

Delphia 29 - 2015's accommodations and layout

Cockpit: Open aft cockpit
Cabin(s) (min./max.): 2 / 3
Berth(s) (min./max.): 4 / 8
Head(s): 1
Freshwater tank capacity: 26.4 gal100 liters
Holding tank capacity: 12.4 gal47 liters

Have you spotted incorrect data? You can report it in the forum or contact the webmaster

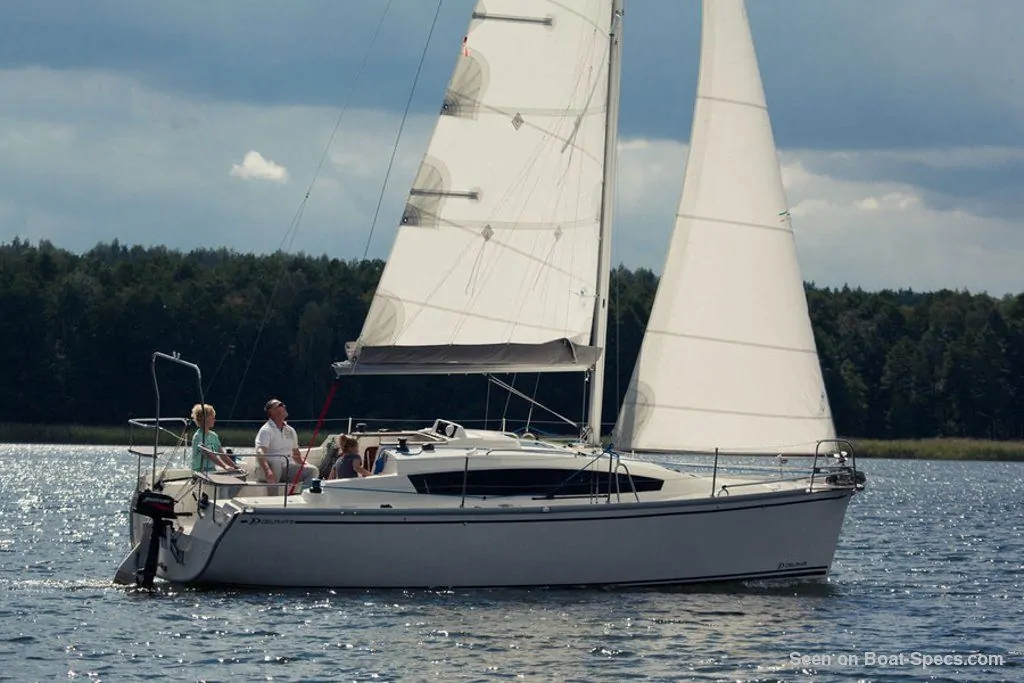

Delphia Yachts Delphia 29 - 2015 Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 - - 1/19
Picture extracted from the commercial documentation © Delphia Yachts

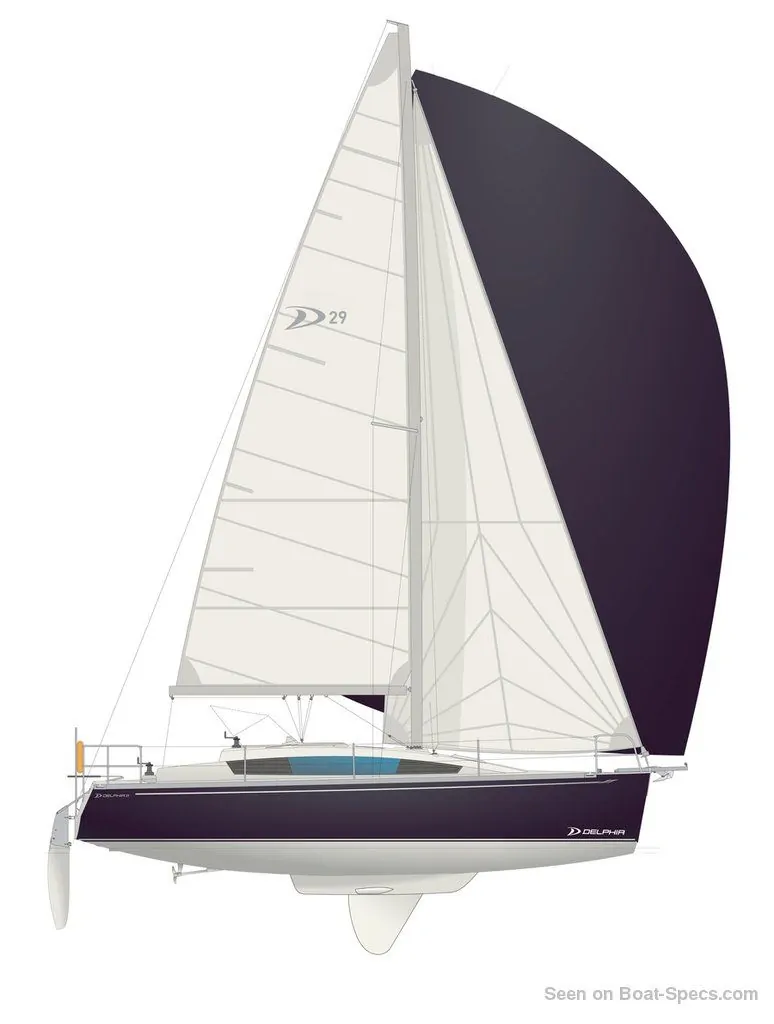

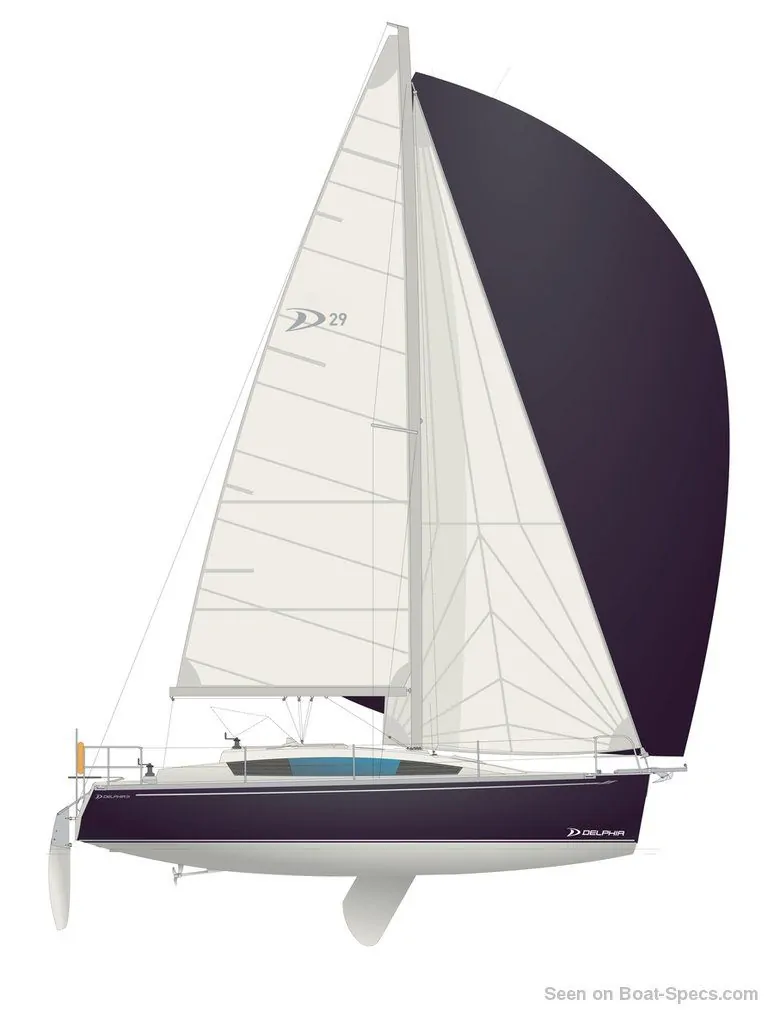

Delphia Yachts Delphia 29 - 2015 sailplan Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailplan - - 2/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailplan - - 3/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailplan - - 4/19
Picture extracted from the commercial documentation © Delphia Yachts

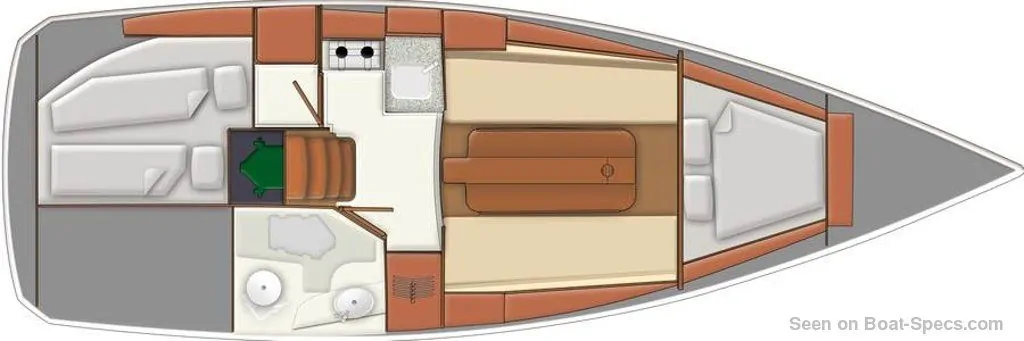

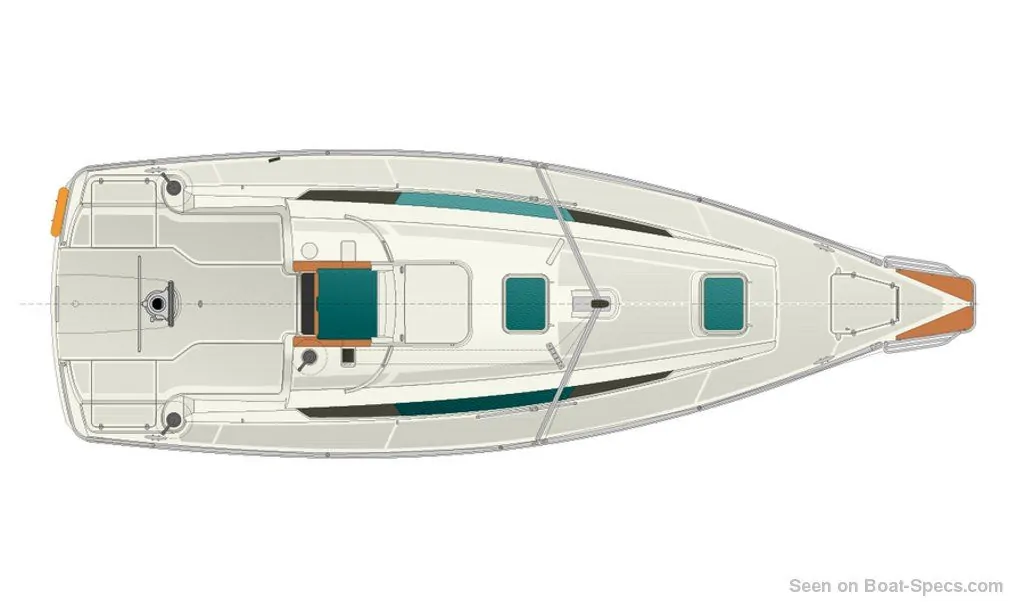

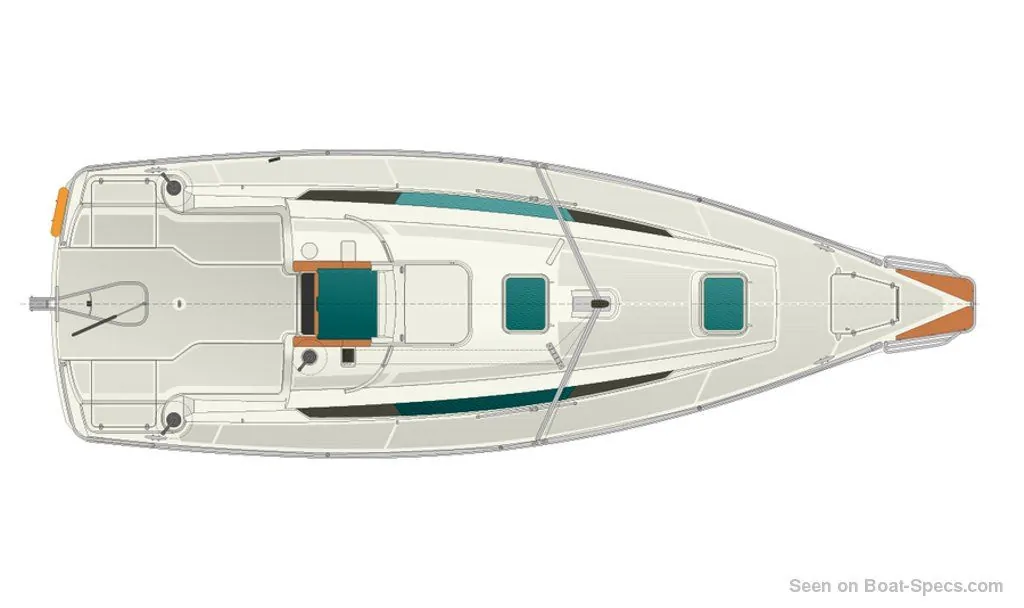

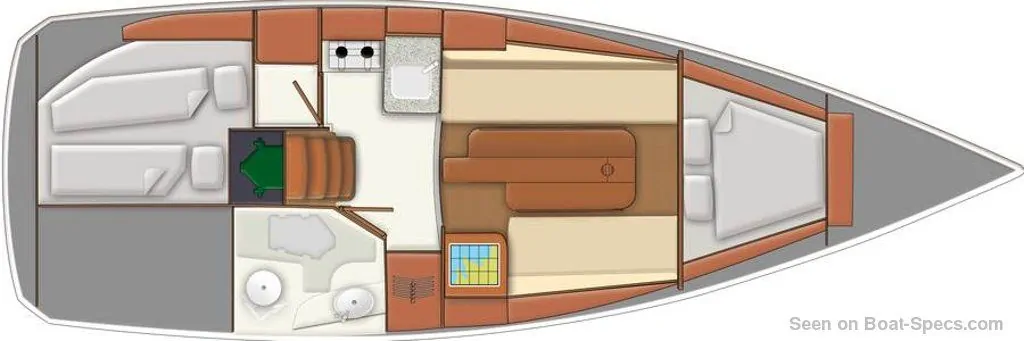

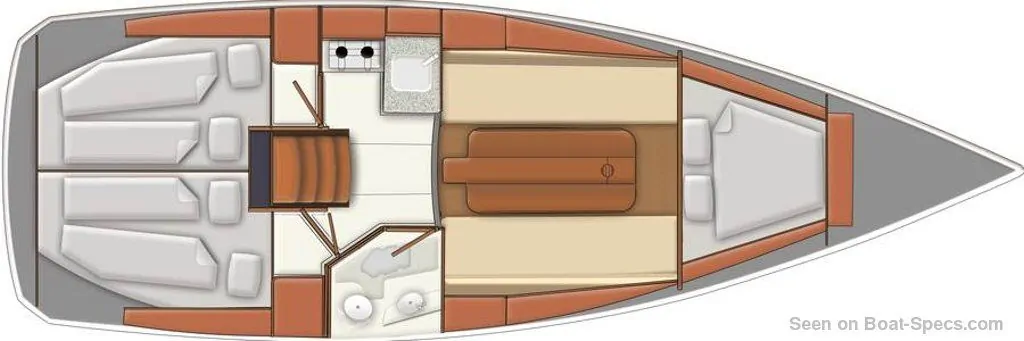

Delphia Yachts Delphia 29 - 2015 layout Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 layout - - 5/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 layout - - 6/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 layout - - 7/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 layout - - 8/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 layout - - 9/19
Picture extracted from the commercial documentation © Delphia Yachts

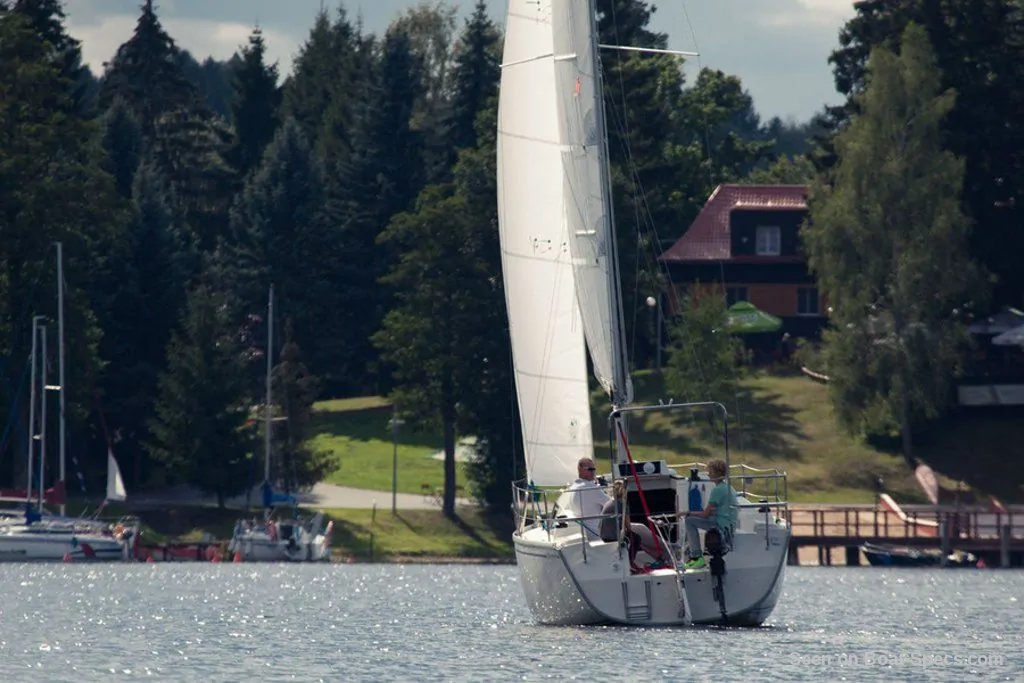

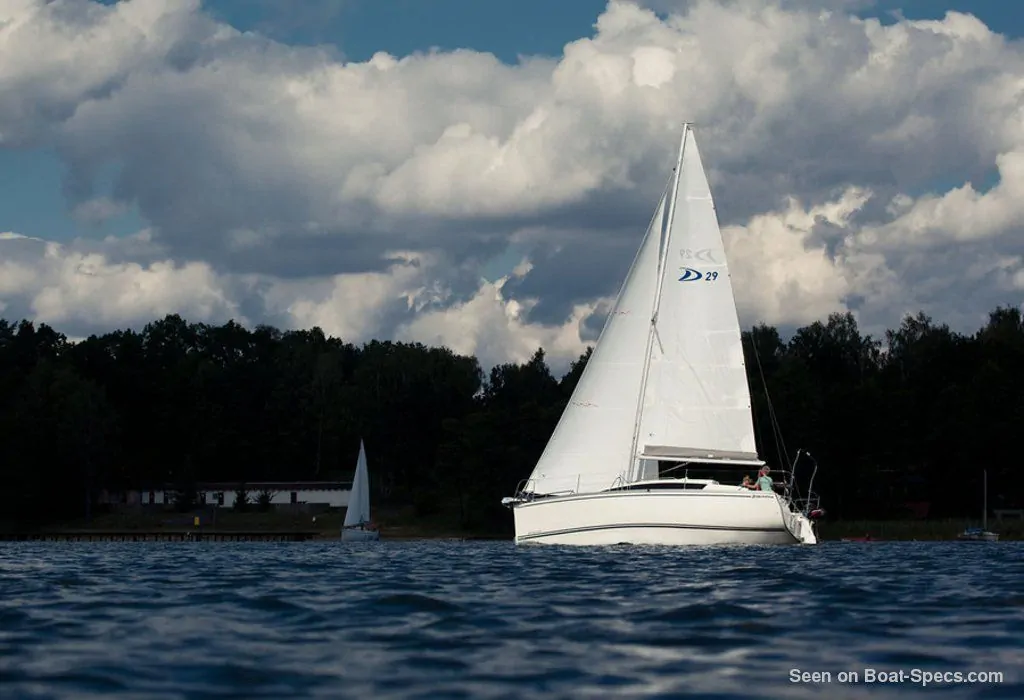

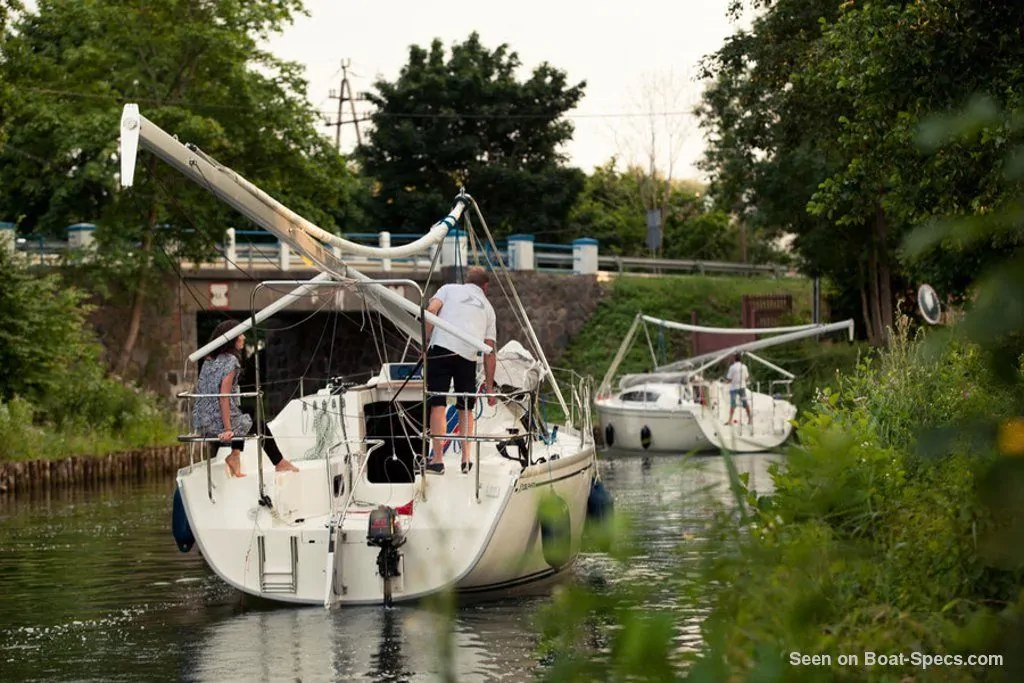

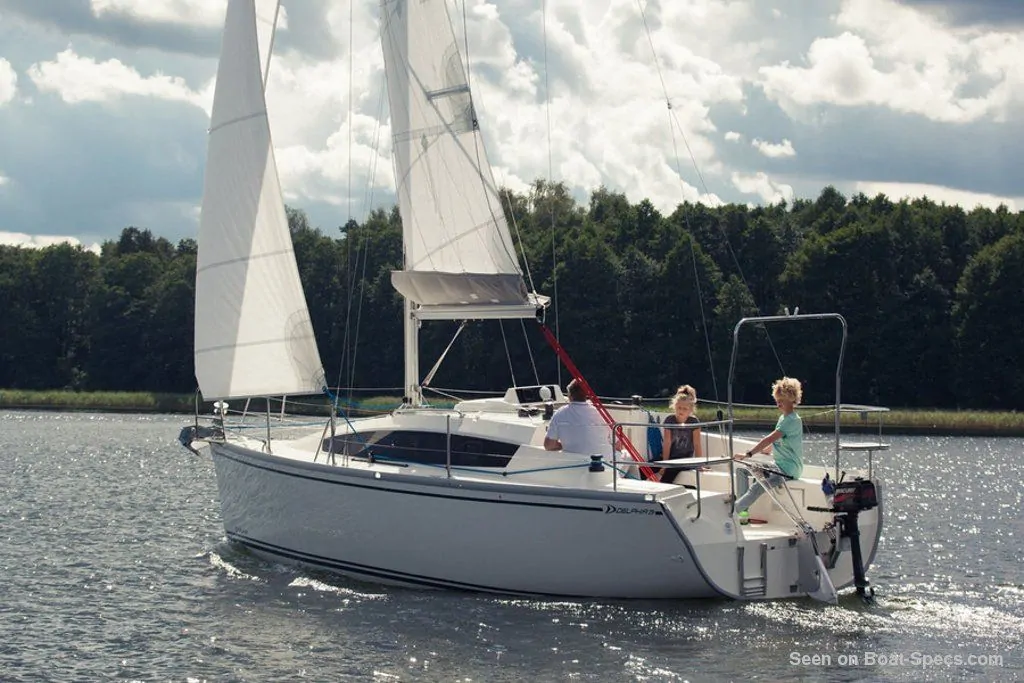

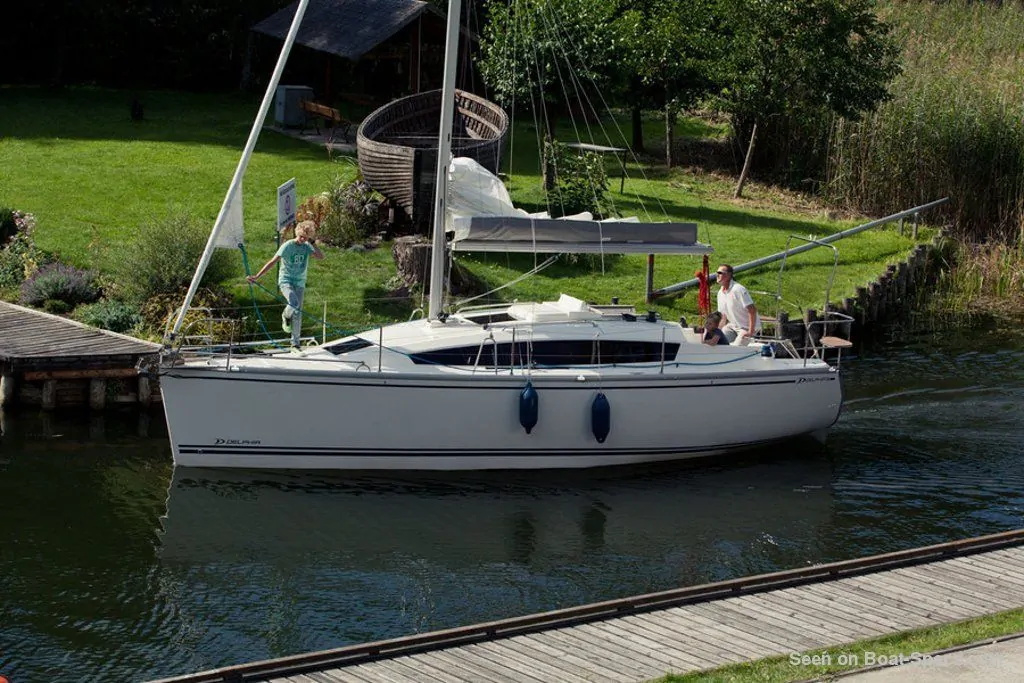

Delphia Yachts Delphia 29 - 2015 sailing Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailing - - 10/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailing - - 11/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailing - - 12/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailing - - 13/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 sailing - - 14/19
Picture extracted from the commercial documentation © Delphia Yachts

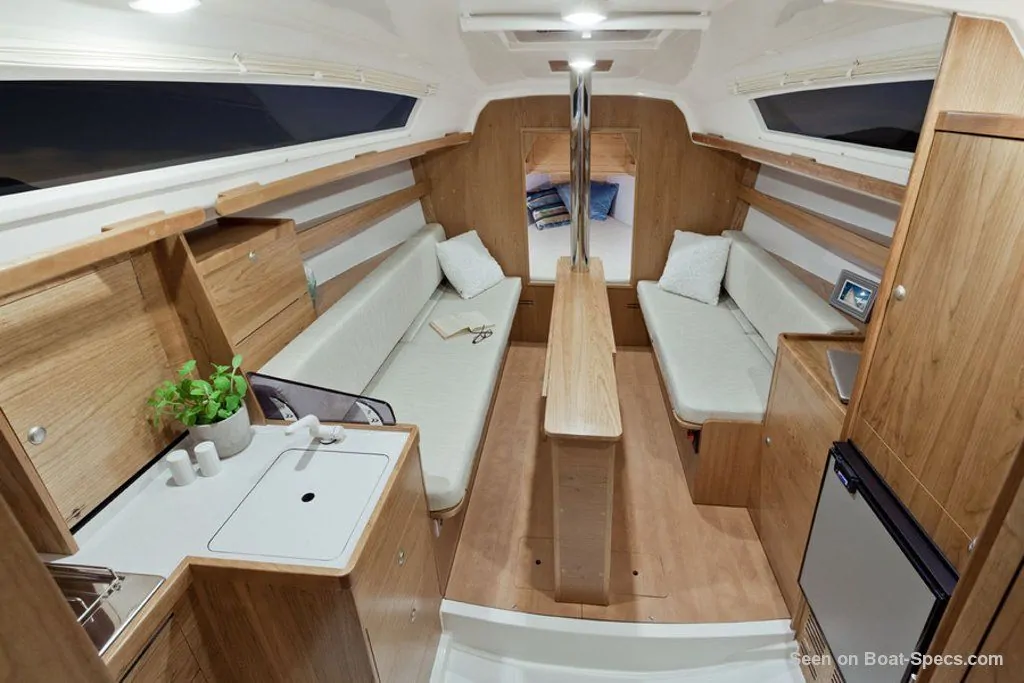

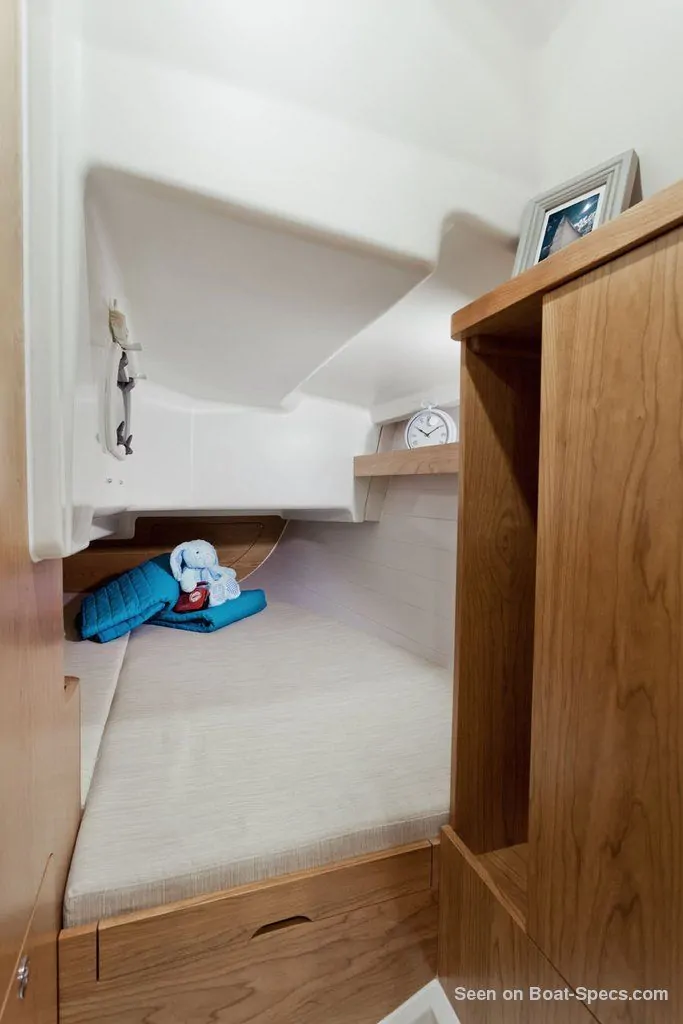

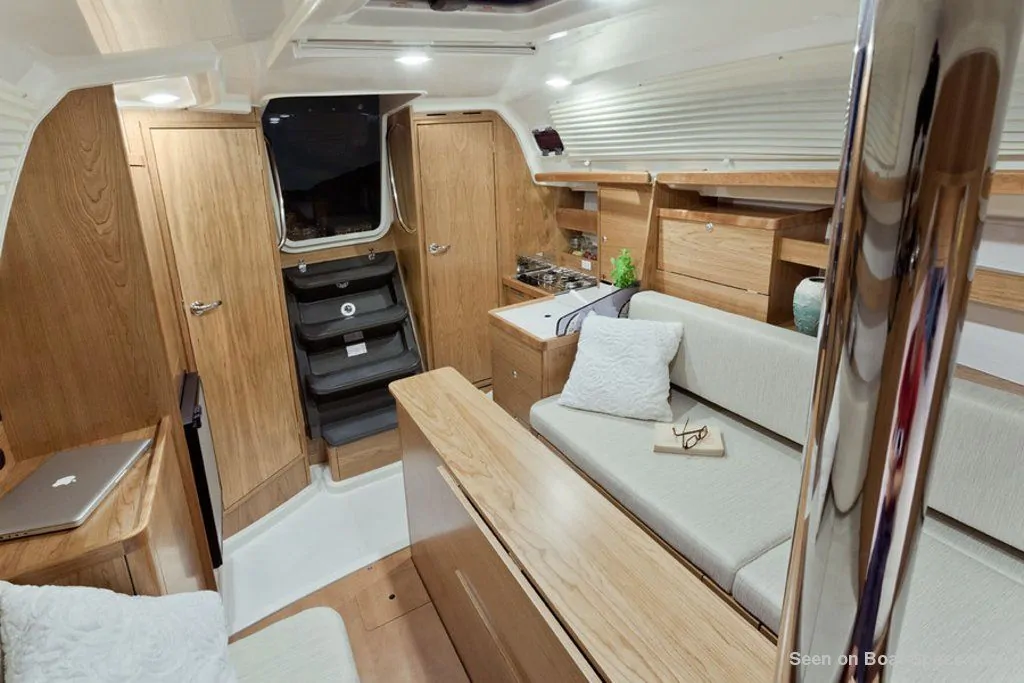

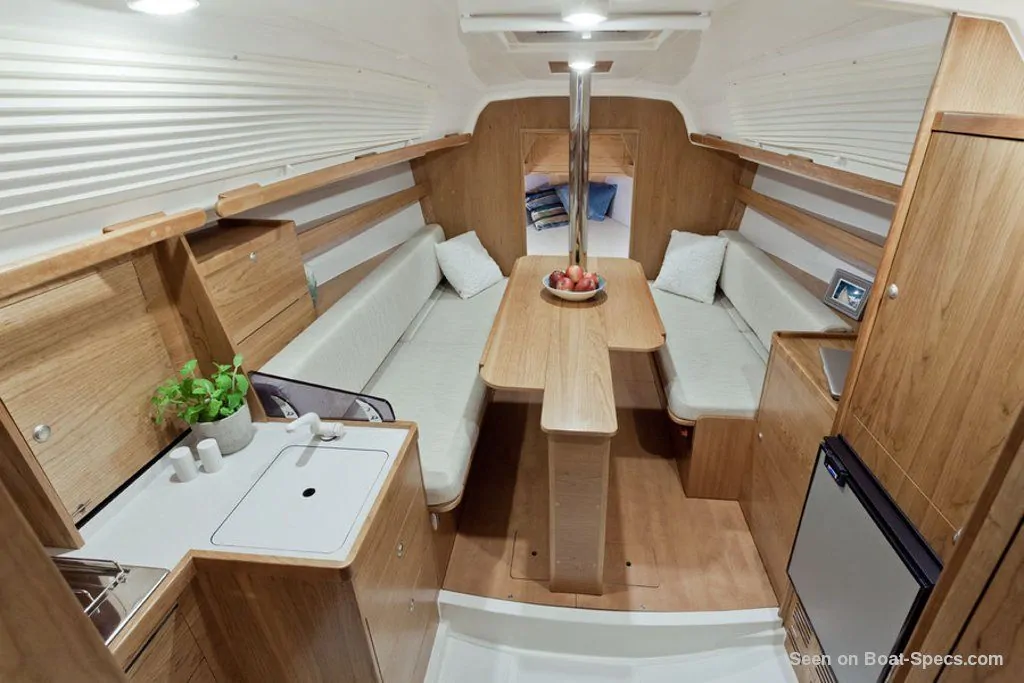

Delphia Yachts Delphia 29 - 2015 interior and accommodations Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 interior and accommodations - - 15/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 interior and accommodations - - 16/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 interior and accommodations - - 17/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 interior and accommodations - - 18/19
Picture extracted from the commercial documentation © Delphia Yachts

Delphia Yachts Delphia 29 - 2015 interior and accommodations - - 19/19
Picture extracted from the commercial documentation © Delphia Yachts
