Dehler 42 Standard
Sailboat specifications
The Dehler 42 is a 40’8” (12.42m) cruiser-racer sailboat designed by Judel/Vrolijk (Germany). She is built since 2016 by Dehler (Germany).
The Dehler 42 is as well listed, on Boat-Specs.com, in Shoal draft and Competition version (see all the versions compared).
The Dehler 42 is as well listed, on Boat-Specs.com, in Shoal draft and Competition version (see all the versions compared).
Dehler 42's main features
- Model
- Dehler 42
- Version
- Standard
- Hull type
- Monohull
- Category
- Cruiser-racer sailboat
- Sailboat builder
- Sailboat designer
- Country
- Germany
- Construction
- GRP (glass reinforced polyester):
Sandwich PVC fiberglass with carbon fiber reinforcements - First built hull
- 2016
- Last built hull
- Still in production
- Appendages
- Keel : fin with bulb
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About209 000 €(2020)
Dehler 42's main dimensions
- Overall length
- 42’ 1”12.84 m
- Hull length
- 40’ 8”12.42 m
- Waterline length
- 37’ 8”11.5 m
- Beam (width)
- 12’ 10”3.91 m
- Draft
- 7’ 1”2.15 m
- Mast height from DWL
- 64’19.5 m
- Light displacement (MLC)
- 18287 lb8295 kg
- Ballast weight
- 6603 lb2995 kg
- Ballast type
- Cast iron

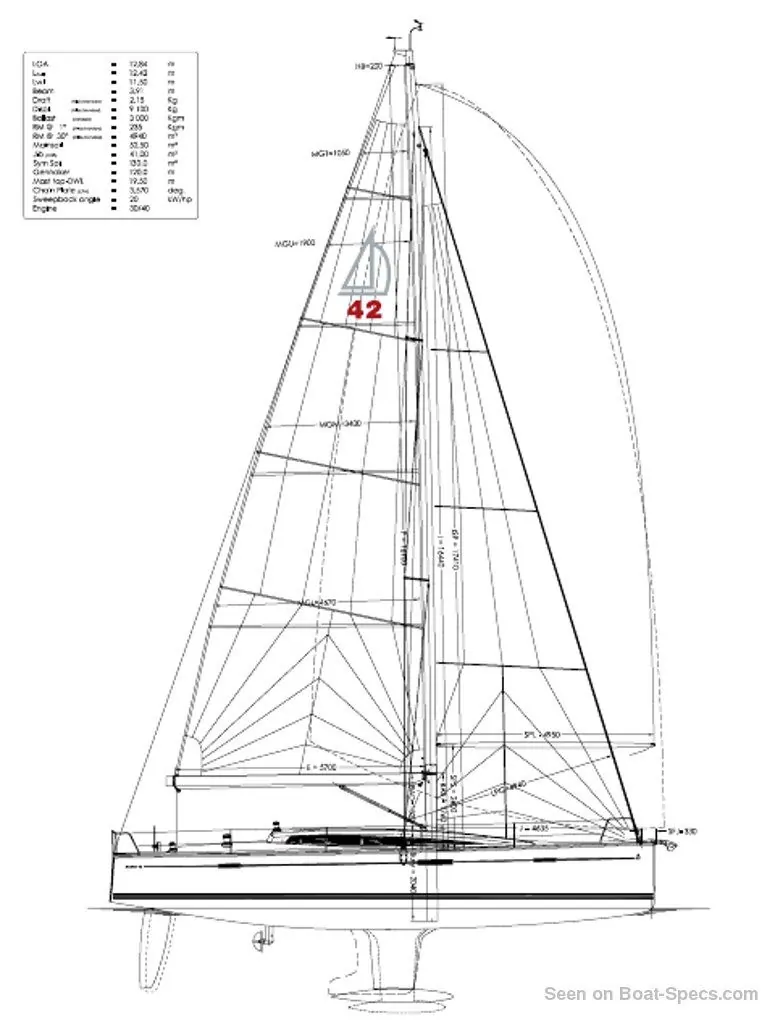

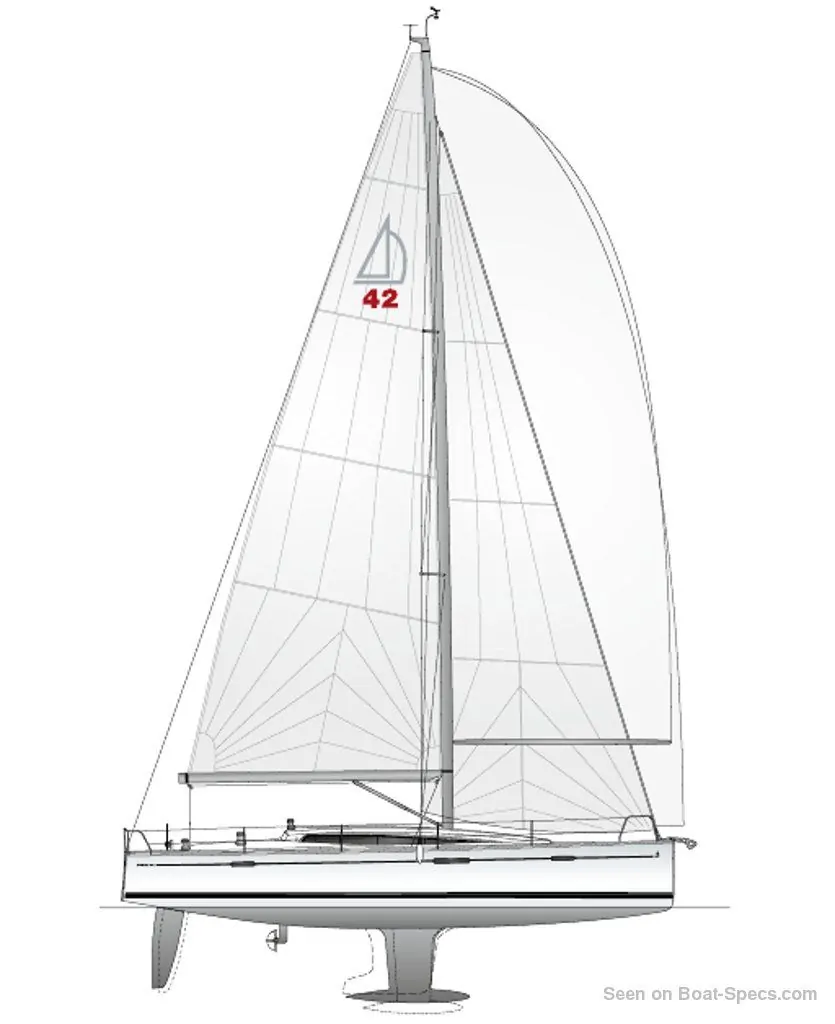

Dehler 42's rig and sails
- Upwind sail area
- 1001 ft²93 m²
- Downwind sail area
- 1959 ft²182 m²
- Mainsail area
- 560 ft²52 m²
- Genoa area
- 441 ft²41 m²
- Symmetric spinnaker area
- 1399 ft²130 m²
- Asymmetric spinnaker area
- 1292 ft²120 m²
- Code 0 area
- 775 ft²72 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 53’ 11”16.44 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 15’ 2”4.63 m
- PiMainsail hoist measurement (from tack to head)
- 52’ 10”16.1 m
- EiMainsail foot measurement (from tack to clew)
- 18’ 8”5.7 m
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
- Standing rigging
- Dyform
Dehler 42's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 244 ft²/T22.7 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 478 ft²/T44.41 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 154
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 36 %
- Righting moment @ 30°iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 36165 lb.ft5000 kg.m
- Maximum righting momentiThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability. - 41228 lb.ft5700 kg.m @ 50.00 °
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.23 knots
Dehler 42's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 38 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 42.3 gal160 liters

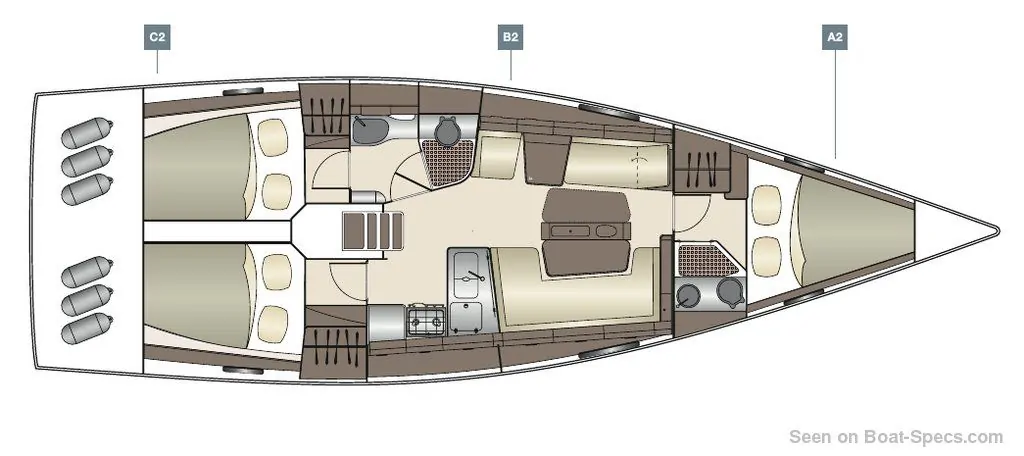

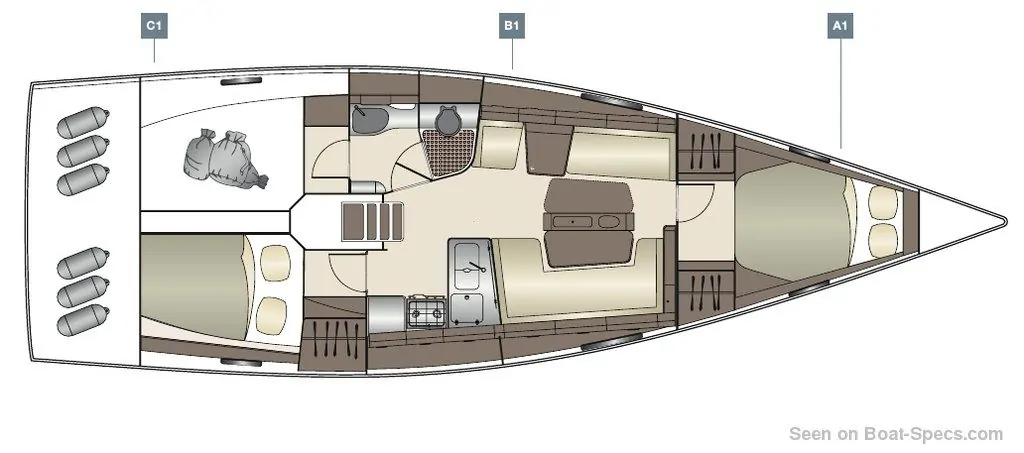

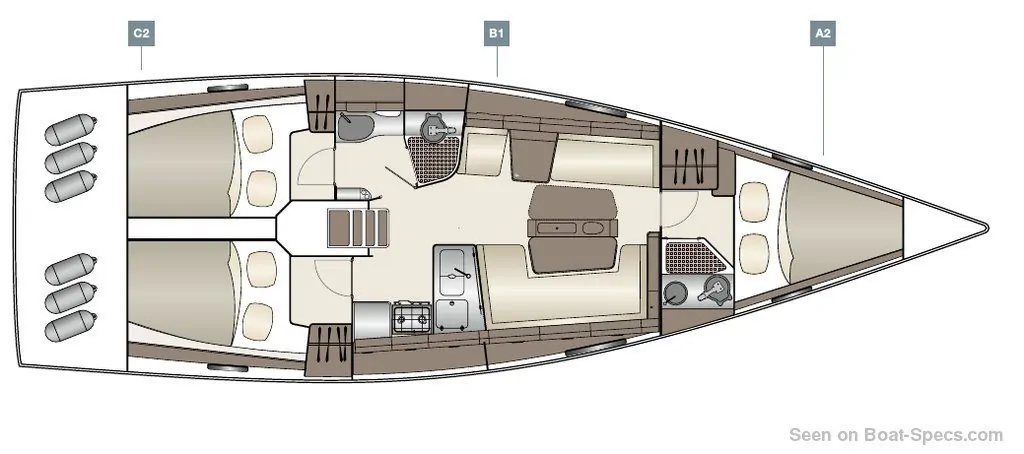

Dehler 42's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s) (min./max.)
- 2 / 3
- Berth(s) (min./max.)
- 4 / 8
- Head(s) (min./max.)
- 1 / 2
- Freshwater tank capacity
- 83.2 gal315 liters
- Fridge/ice-box capacity
- 34.3 gal130 liters
- Boiler capacity
- 5.3 gal20 liters

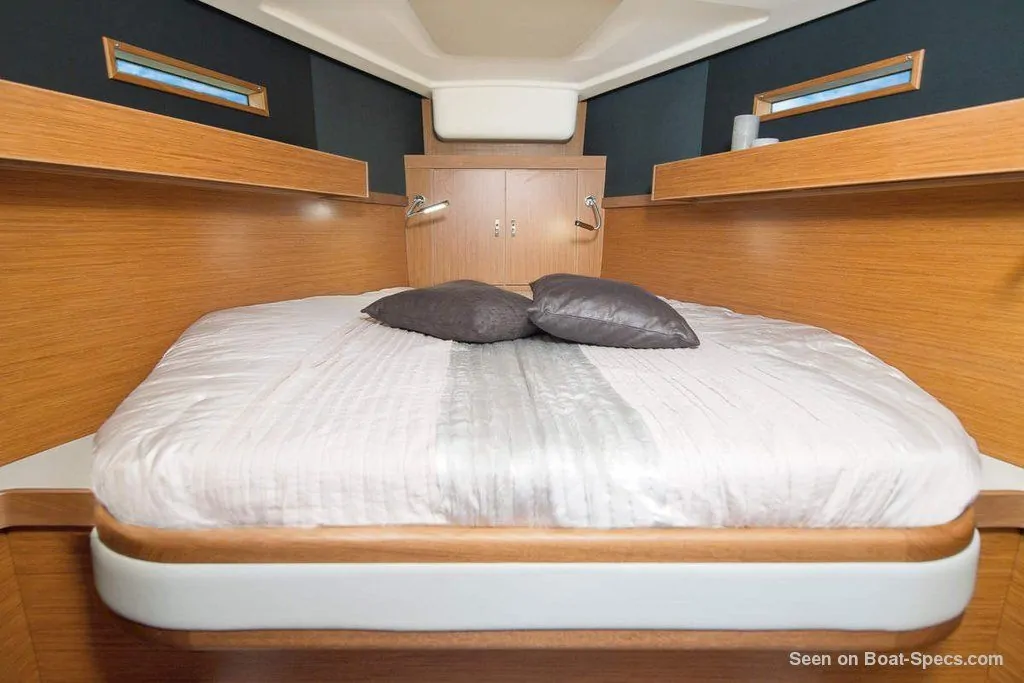

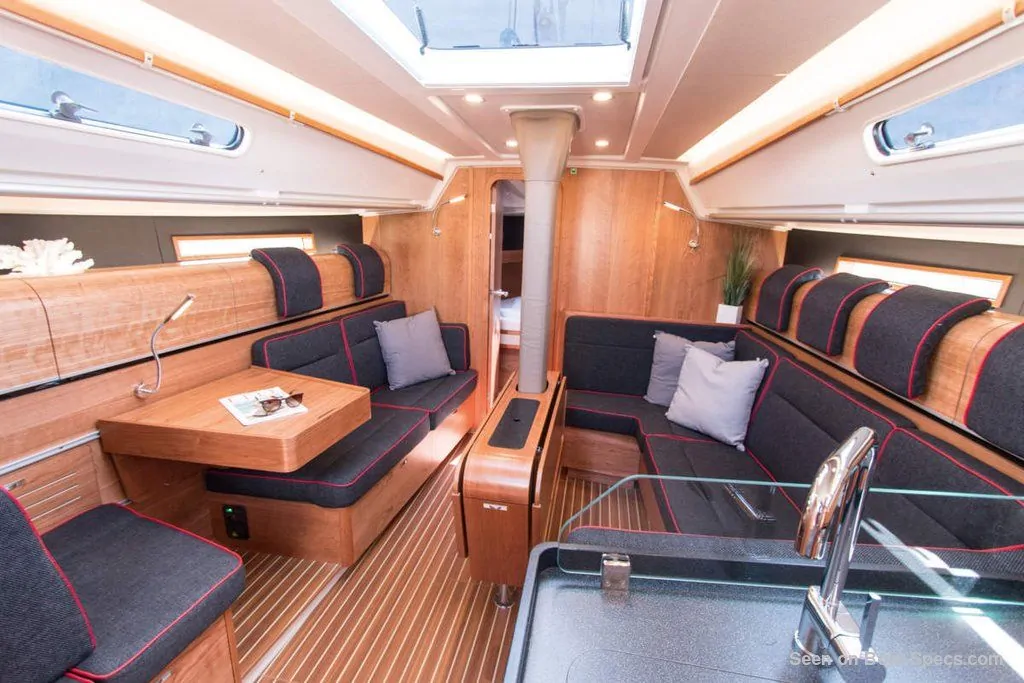

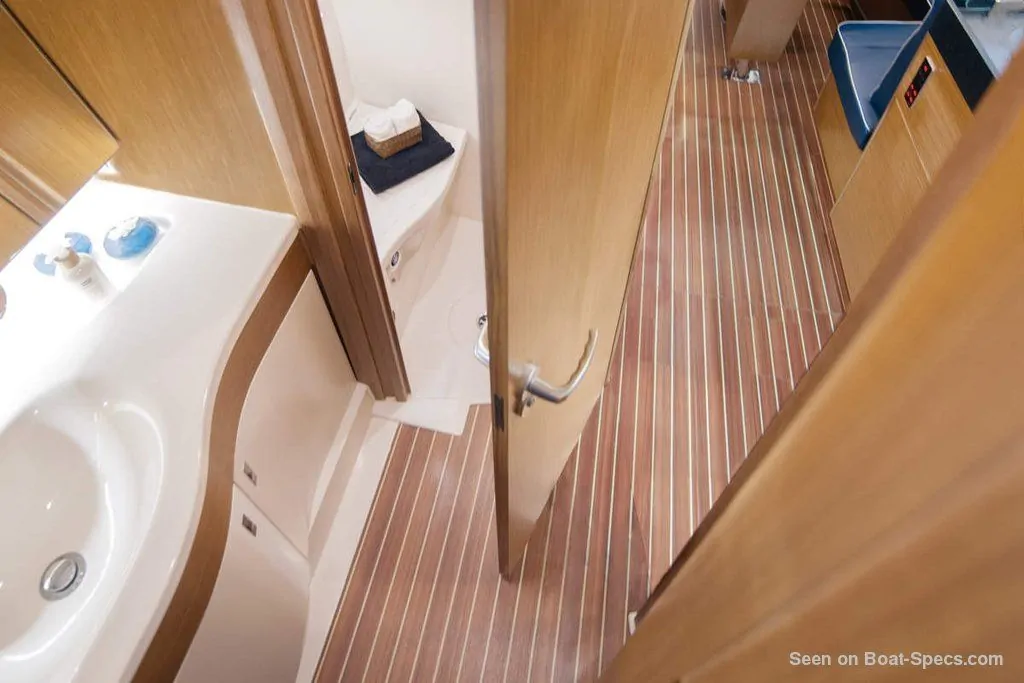

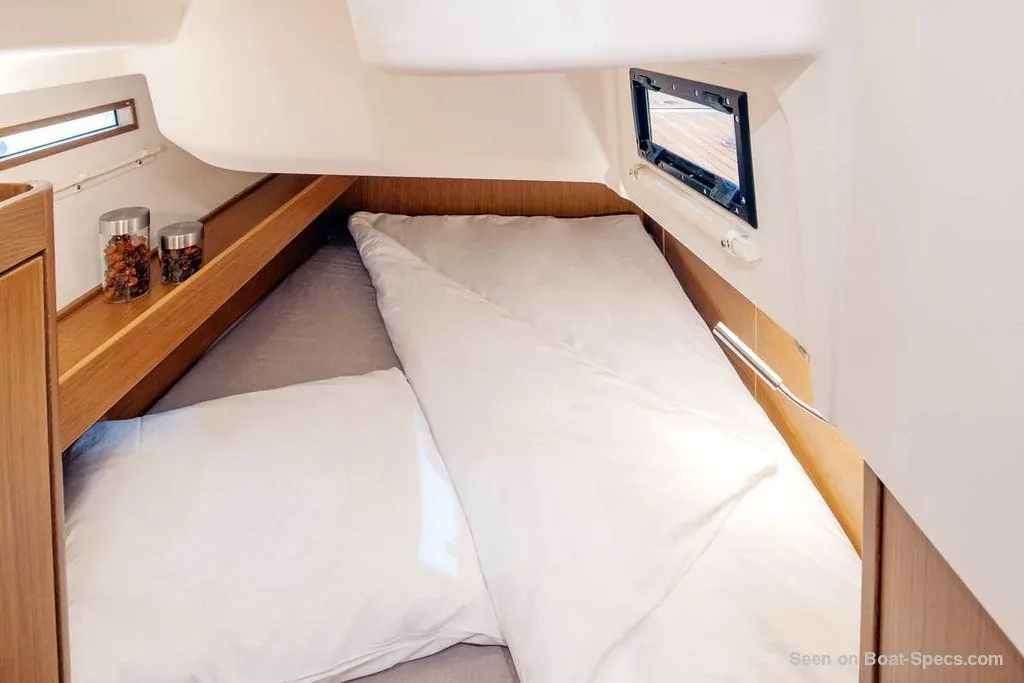

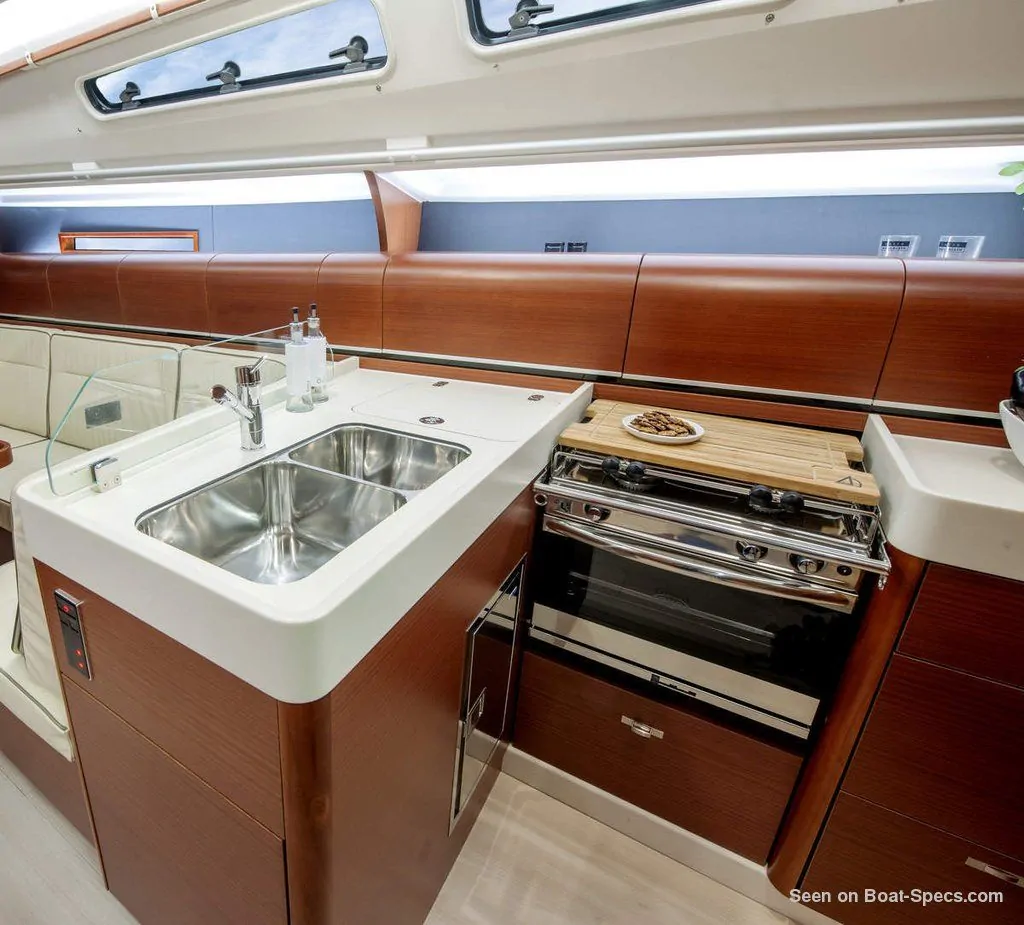

Dehler 42 interior and accommodations - - 14/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
Dehler 42 interior and accommodations - - 15/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
Dehler 42 interior and accommodations - - 16/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
Dehler 42 interior and accommodations - - 17/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
Dehler 42 interior and accommodations - - 18/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
Dehler 42 interior and accommodations - - 19/19
Picture extracted from the commercial documentation © Dehler
Picture extracted from the commercial documentation © Dehler
