Dash 750 MkII

Sailboat specifications

The Dash 750 MkII is a 24’2” (7.39m) fast cruising trimaran designed by Design Team Corsair (United States). She was built since 2013 (and now discontinued) by Corsair Marine (Vietnam).

Dash 750 MkII's main features

Model: Dash 750 MkII
Hull type: Trimaran
Category: Fast cruising trimaran
Sailboat builder: Corsair Marine
Sailboat designer: Design Team Corsair
Country: Vietnam
Construction: GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester
First built hull: 2013
Last built hull: Discontinued
Appendages: Centerboard : pivoting centerboard (main hull)
Helm: Single tiller
Rudder: Single transom hung rudder (main hull)
Unsinkable: No
Trailerable: Yes
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: C
Standard public price ex. VAT (indicative only): N/A €

Dash 750 MkII's main dimensions

Hull length: 24’ 2”7.39 m
Waterline length: 23’ 7”7.19 m
Beam (width): 17’ 11”5.46 m
Draft: 5’ 2”1.6 m
Draft when appendages up: 1’0.3 m
Folding type: Farrier's type, double-hinge with horizontal axis
Overall width folded: 8’ 2”2.5 m
Overall length folded: 24’ 2”7.39 m
Light displacement (M_LC): 1929 lb875 kg

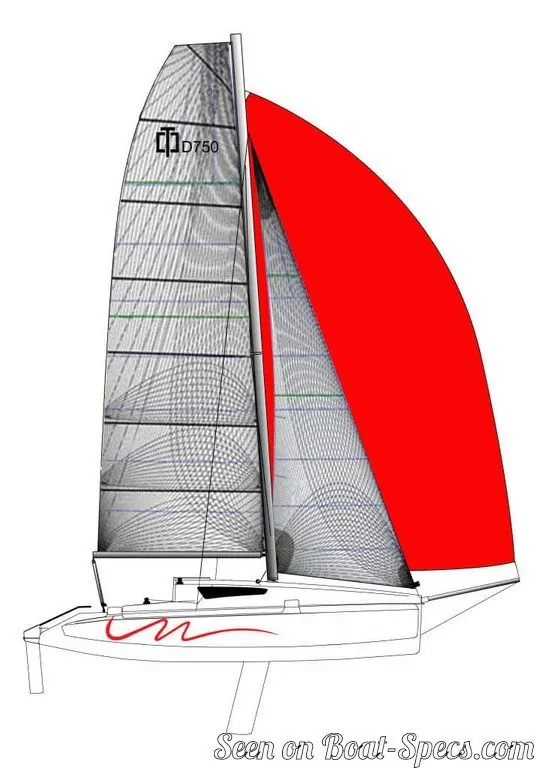

Dash 750 MkII's rig and sails

Upwind sail area: 411 ft²38.17 m²
Downwind sail area: 888 ft²82.52 m²
Mainsail area: 268 ft²24.87 m²
Jib area: 143 ft²13.3 m²
Asymmetric spinnaker area: 621 ft²57.65 m²
Code 0 area: 262 ft²24.33 m²
I iFore triangle height (from mast foot to fore stay top attachment): 29’ 4”8.92 m
J iFore triangle base (from mast foot to bottom of forestay): 10’ 10”3.29 m
P iMainsail hoist measurement (from tack to head): 32’ 4”9.84 m
E iMainsail foot measurement (from tack to clew): 10’ 8”3.27 m
Rigging type: Sloop Marconi fractional
Mast configuration: Deck stepped mast
Rotating spars: Yes
Number of levels of spreaders: 1
Spreaders angle: Swept-back (diamond)
Spars construction: Aluminum spars
Standing rigging: Textile rig, forestay 1x19 strand wire continuous

Dash 750 MkII's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 449 ft²/T41.72 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 971 ft²/T90.2 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 67
