Corsair F24 MkII

Sailboat specifications

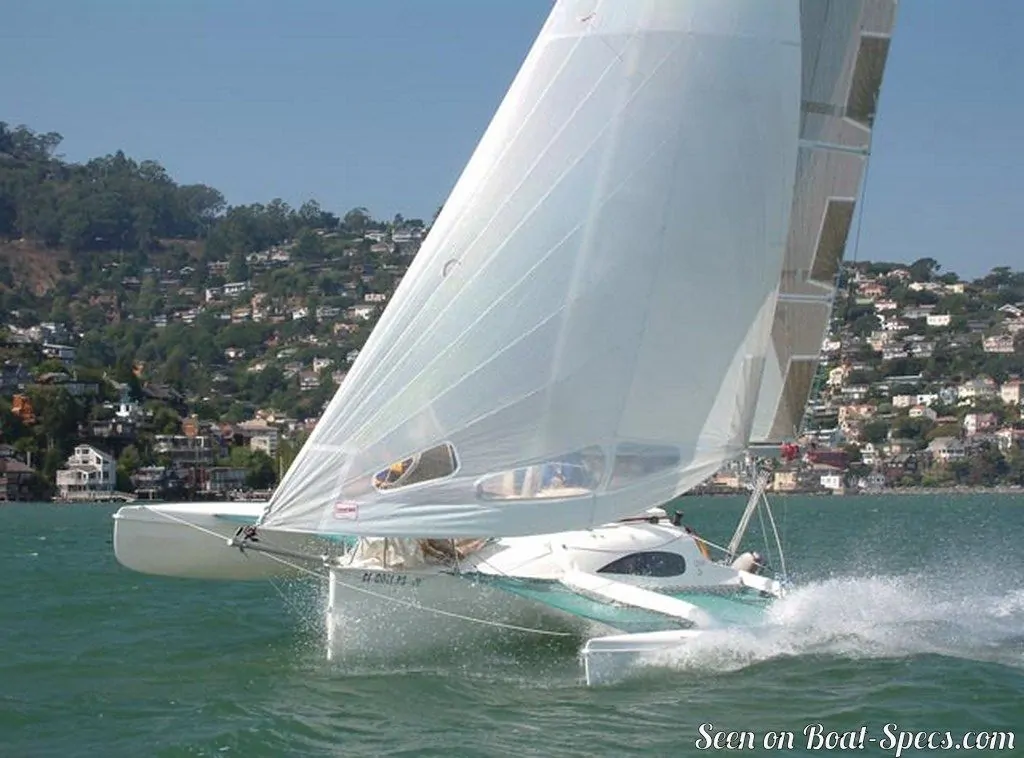

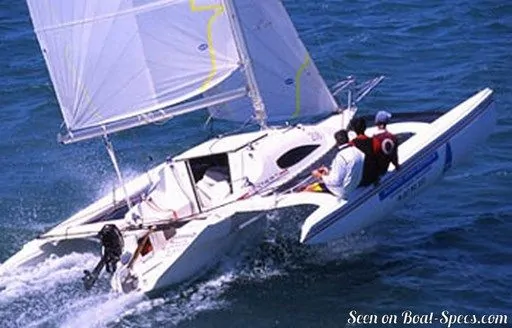

The Corsair F24 MkII is a 24’2” (7.38m) fast cruising trimaran designed by Farrier Marine (New Zealand). She was built between 1994 and 2005 by Corsair Marine (Vietnam).

Corsair F24 MkII's main features

Model: Corsair F24 MkII
Hull type: Trimaran
Category: Coastal fast cruising trimaran
Sailboat builder: Corsair Marine
Sailboat designer: Farrier Marine
Country: Vietnam
Construction: GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester
Number of hulls built: About 350
First built hull: 1994
Last built hull: 2005
Appendages: Centerboard : daggerboard (main hull)
Helm: Single tiller
Rudder: Single transom hung rudder
Unsinkable: Yes
Trailerable: Yes
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: C
Standard public price ex. VAT (indicative only): N/A €

Corsair F24 MkII's main dimensions

Hull length: 24’ 2”7.38 m
Waterline length: 23’ 7”7.19 m
Beam (width): 17’ 11”5.45 m
Draft: 1’0.3 m
Draft when appendages up: 4’ 7”1.41 m
Mast height from D_WL: 36’ 8”11.18 m
Folding type: Farrier's type, double-hinge with horizontal axis
Light displacement (M_LC): 1799 lb816 kg
French customs tonnage: 3.63 Tx

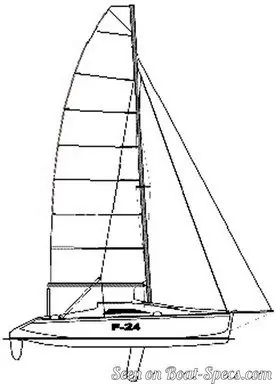

Corsair F24 MkII's rig and sails

Upwind sail area: 364 ft²33.8 m²
Mainsail area: 242 ft²22.5 m²
Jib area: 122 ft²11.3 m²
Rigging type: Sloop Marconi fractional
Mast configuration: Deck stepped mast
Rotating spars: Yes
Number of levels of spreaders: 1
Spreaders angle: Swept-back (diamond)
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Corsair F24 MkII's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 417 ft²/T38.71 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 62
