Corsair C50
Sailboat specifications
The Corsair C50 is a 49’7” (15.11m) fast cruising catamaran designed by Reichel/Pugh Yacht Design (United States) and Design Team Corsair (United States). She was built since 2009 (and now discontinued) by Corsair Marine (Vietnam).
Corsair C50's main features
- Model
- Corsair C50
- Hull type
- Catamaran
- Category
- Offshore fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- Vietnam
- Construction
- Carbon fiber reinforced epoxy:
Sandwich PVC carbon fiber epoxy - First built hull
- 2009
- Last built hull
- Discontinued
- Appendages
- Centerboard : twin daggerboards
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Corsair C50's main dimensions
- Hull length
- 49’ 7”15.11 m
- Beam (width)
- 25’ 11”7.9 m
- Draft
- 1’ 10”0.54 m
- Light displacement (MLC)
- 19842 lb9000 kg
- Maximum displacement (MLDC)
- 26455 lb12000 kg
Corsair C50's rig and sails
- Upwind sail area
- 1905 ft²177 m²
- Downwind sail area
- 2917 ft²271 m²
- Mainsail area
- 915 ft²85 m²
- Genoa area
- 990 ft²92 m²
- Symmetric spinnaker area
- 2002 ft²186 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Fore beam stepped mast
- Rotating spars
- Yes
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Corsair C50's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 440 ft²/T40.91 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 674 ft²/T62.63 m²/T
Corsair C50's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 35 HP
Corsair C50's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 8
- Head(s)
- 2

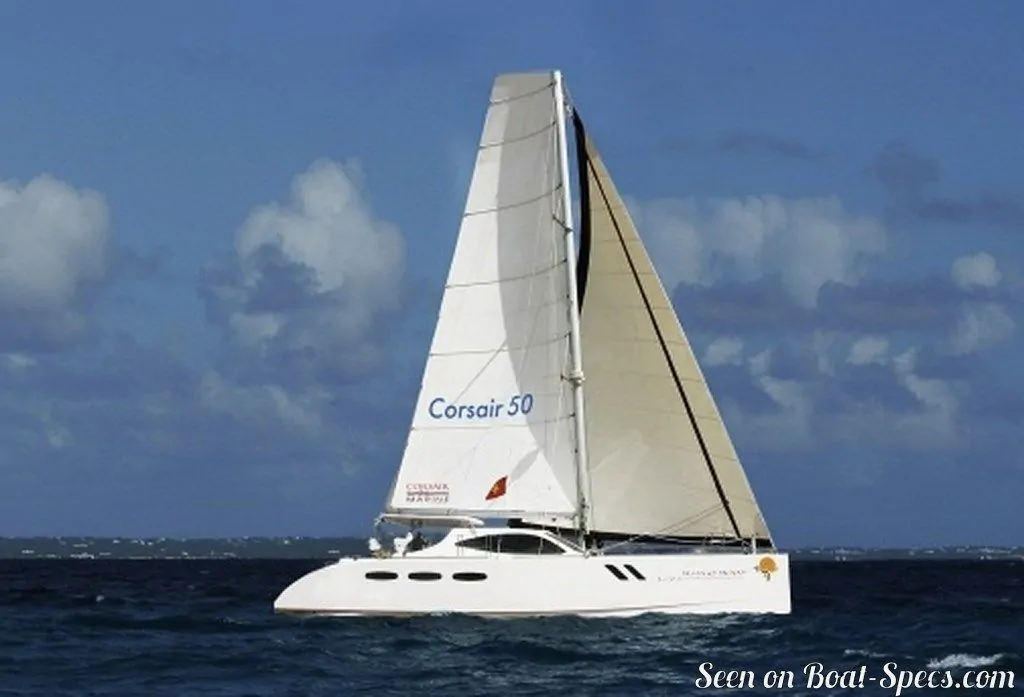

Corsair Marine Corsair C50 - - 1/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine

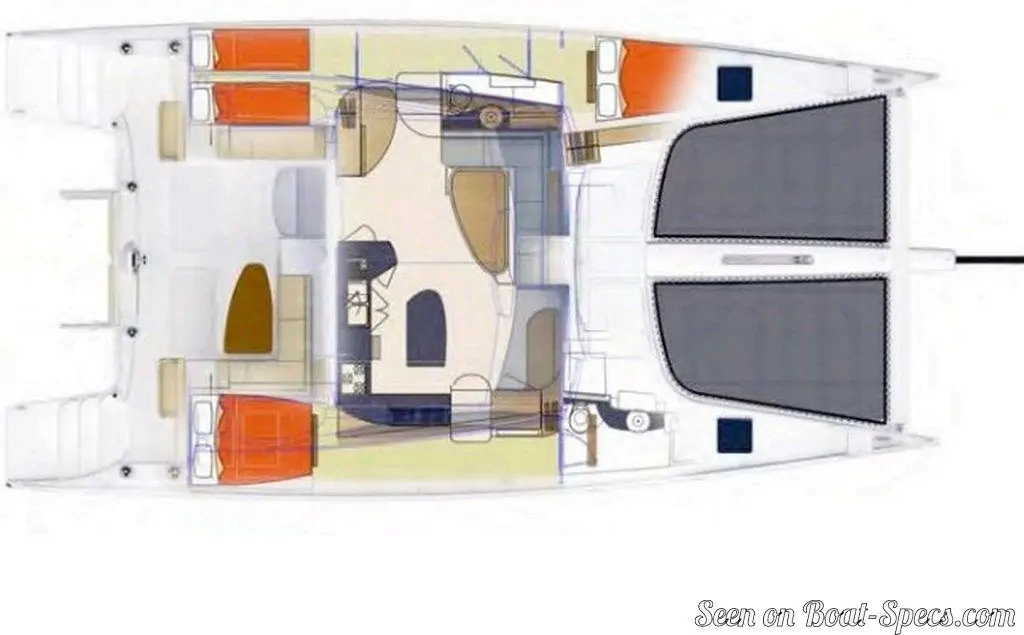

Corsair Marine Corsair C50 layout - - 2/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine

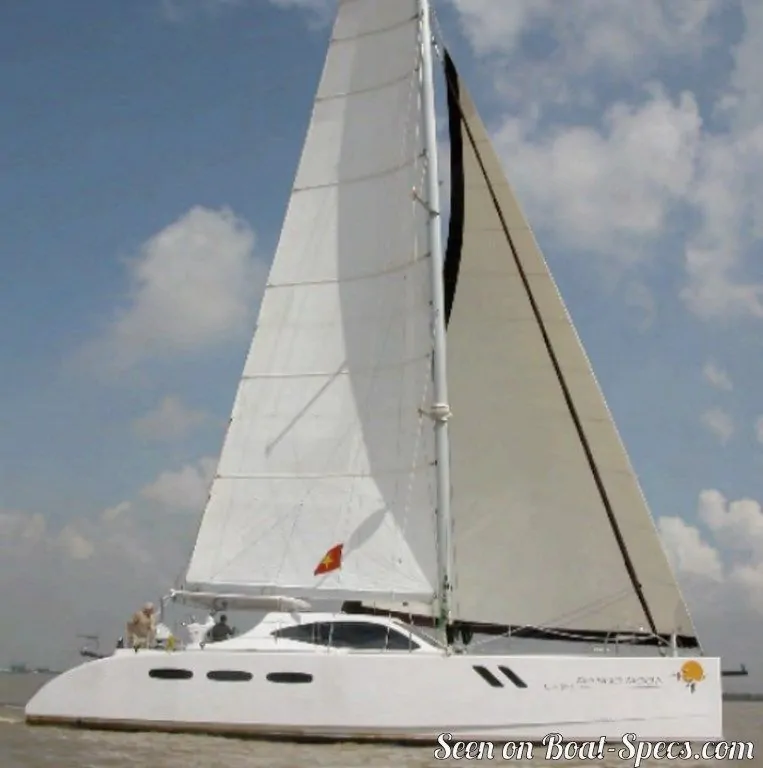

Corsair Marine Corsair C50 sailing - - 3/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine

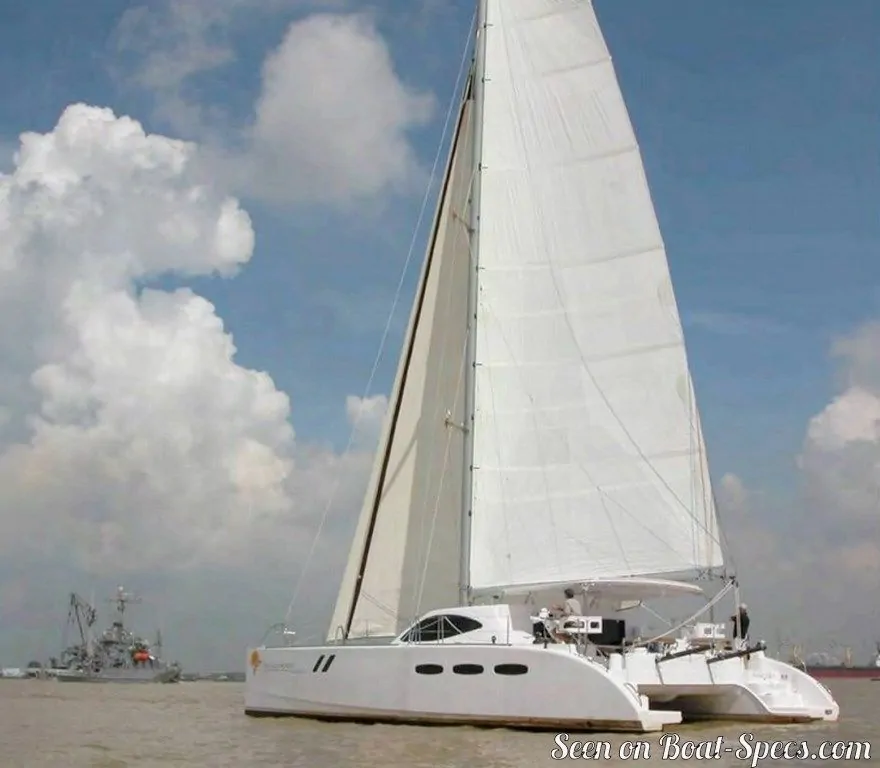

Corsair Marine Corsair C50 sailing - - 4/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine

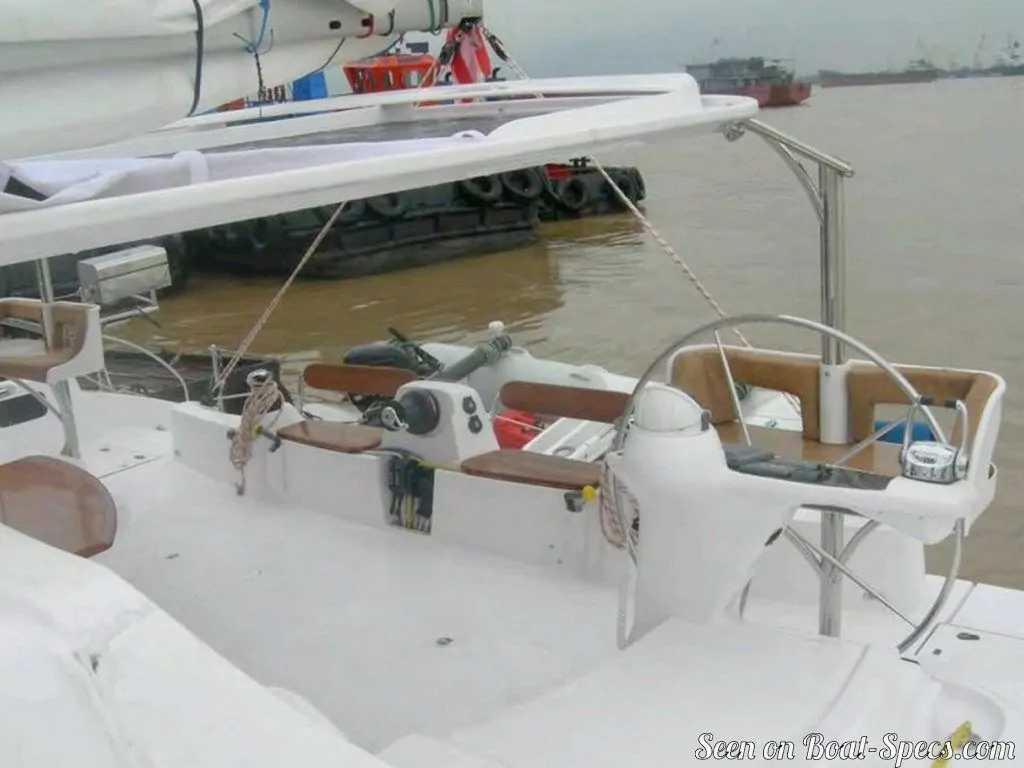

Corsair Marine Corsair C50 cockpit - - 5/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine

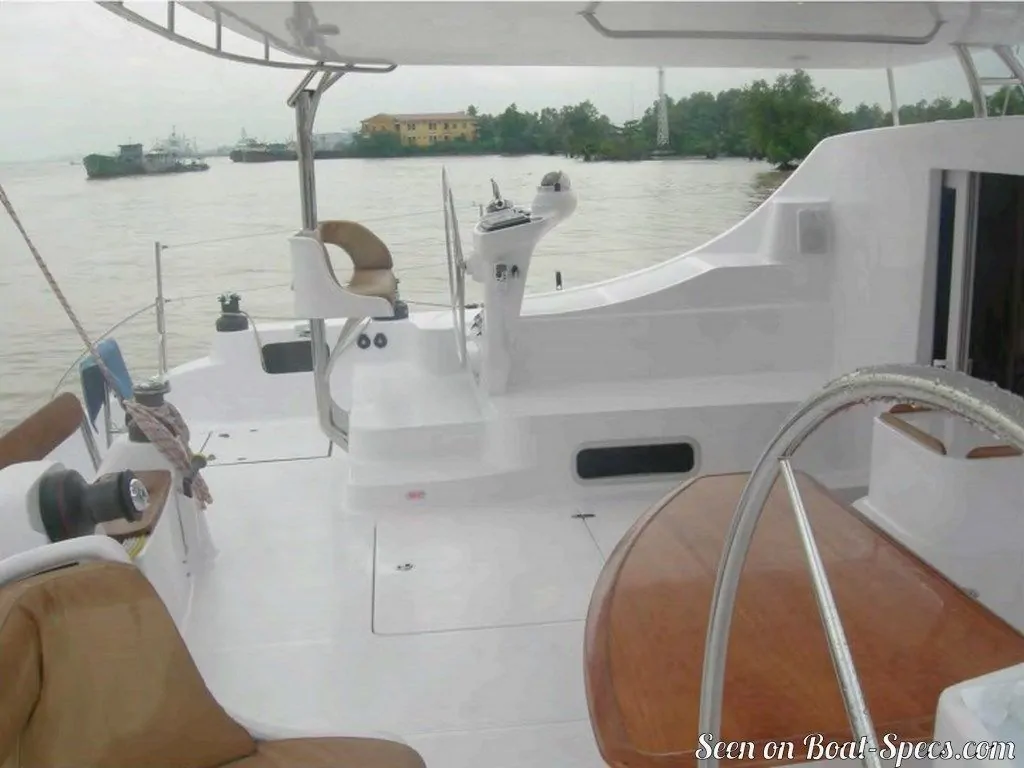

Corsair Marine Corsair C50 cockpit - - 6/6
Picture extracted from the commercial documentation © Corsair Marine
Picture extracted from the commercial documentation © Corsair Marine
