Corsair 760 Sport

Sailboat specifications

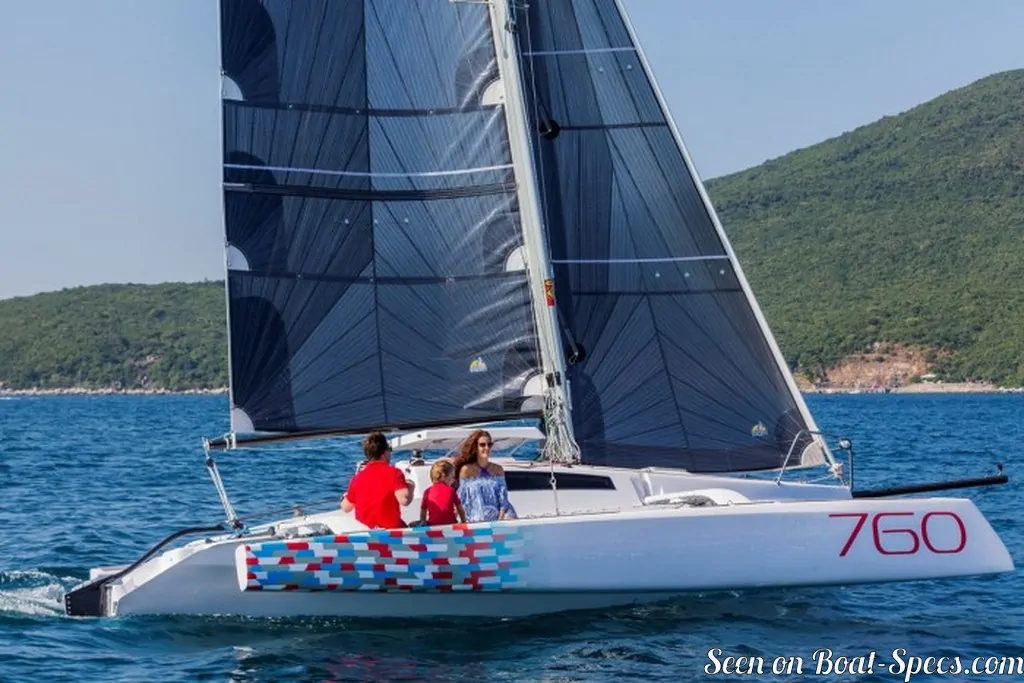

The Corsair 760 is a 24’2” (7.39m) fast cruising trimaran designed by Design Team Corsair (United States) and Pérus Yacht Design (France). She is built since 2016 by Corsair Marine (Vietnam). The Sport version comes as standard with lighter construction and carbon spars. She has been awarded "2018 - Multihull of the Year: Under 40 feet".

The Corsair 760 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Corsair 760's main features

Model

Corsair 760

Version

Sport

Hull type

Trimaran

Category

Fast cruising trimaran

Sailboat builder

Corsair Marine

Sailboat designer

Design Team Corsair & Pérus Yacht Design

Country

Vietnam

Construction

GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester

First built hull

2016

Last built hull

Still in production

Award(s)

2018: Multihull of the Year: Under 40 feet

Appendages

Centerboard : pivoting centerboard (main hull)

Helm

Single tiller

Rudder

Single transom hung rudder (main hull)

Unsinkable

Trailerable

Yes

Standard public price ex. VAT (indicative only)

About

81 500 €

(2020)

Corsair 760's main dimensions

Hull length: 24’ 2”7.39 m
Waterline length: 23’ 7”7.19 m
Beam (width): 17’ 11”5.46 m
Draft: 5’ 2”1.6 m
Draft when appendages up: 1’0.3 m
Mast height from D_WL: 34’ 5”10.5 m
Overall width folded: 8’ 2”2.5 m
Overall length folded: 24’ 2”7.39 m
Light displacement (M_LC): 1929 lb875 kg

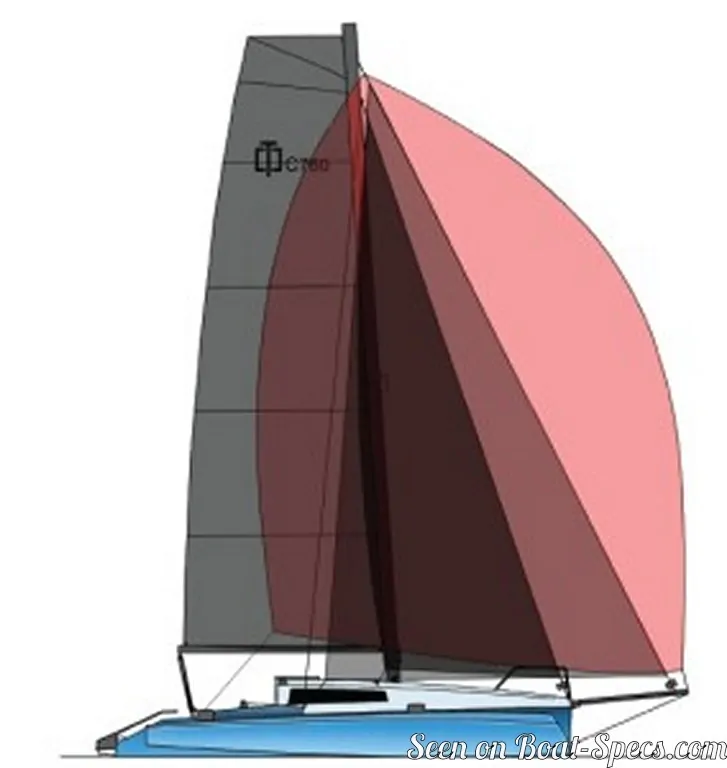

Corsair 760's rig and sails

Upwind sail area: 411 ft²38.17 m²
Downwind sail area: 888 ft²82.52 m²
Mainsail area: 268 ft²24.87 m²
Jib area: 143 ft²13.3 m²
Asymmetric spinnaker area: 621 ft²57.65 m²
Code 0 area: 262 ft²24.33 m²
I iFore triangle height (from mast foot to fore stay top attachment): 29’ 4”8.92 m
J iFore triangle base (from mast foot to bottom of forestay): 10’ 10”3.29 m
P iMainsail hoist measurement (from tack to head): 32’ 4”9.84 m
E iMainsail foot measurement (from tack to clew): 10’ 8”3.27 m
Rigging type: Sloop Marconi fractional
Mast configuration: Deck stepped mast
Rotating spars: Yes
Number of levels of spreaders: 1
Spreaders angle: Swept-back (diamond)
Spars construction: Carbon fiber spars
Standing rigging: Textile rig, forestay 1x19 strand wire continuous

Corsair 760's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 449 ft²/T41.72 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 971 ft²/T90.2 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 67
