Daïmio
Sailboat specifications
The Daïmio is a 20’4” (6.2m) cruising sailboat designed by François Sergent (France). She was built between 1973 and 1983 by Constructions Nautique du Sud-Ouest, CNSO (France).
Daïmio's main features
- Model
- Daïmio
- Hull type
- Monohull
- Category
- Cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- Number of hulls built
- About 800
- First built hull
- 1973
- Last built hull
- 1983
- Appendages
- Keel : fin without bulb
- Helm
- Single tiller
- Rudder
- Single transom hung rudder
- Unsinkable
- No
- Trailerable
- No
- Former French navigation category
- 3
- Standard public price ex. VAT (indicative only)
- N/A €
Daïmio's main dimensions
- Overall length
- 23’7 m
- Hull length
- 20’ 4”6.2 m
- Waterline length
- 18’ 11”5.75 m
- Beam (width)
- 7’ 11”2.4 m
- Waterline beam (width)
- 6’ 7”2 m
- Draft
- 3’ 7”1.1 m
- Light displacement (MLC)
- 3086 lb1400 kg
- Ballast weight
- 1389 lb630 kg
- French customs tonnage
- 3.80 Tx
Daïmio's rig and sails
- Upwind sail area
- 335 ft²31.15 m²
- Downwind sail area
- 608 ft²56.5 m²
- Mainsail area
- 124 ft²11.5 m²
- Genoa area
- 212 ft²19.65 m²
- Solent area
- 151 ft²14 m²
- Jib area
- 109 ft²10.15 m²
- Stormjib area
- 65 ft²6 m²
- Symmetric spinnaker area
- 484 ft²45 m²
- Rigging type
- Sloop Marconi masthead
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- 0 °
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Daïmio's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 268 ft²/T24.89 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 486 ft²/T45.15 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 209
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 45 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 5.82 knots
Daïmio's auxiliary engine
- Engine(s)
- 1 outboard or inboard engine
- Engine(s) power (min./max.)
- 4 HP / 9 HP
- Fuel type
- Diesel for inboard engine, gas for outboard
- Fuel tank capacity
- 6.6 gal25 liters
Daïmio's accommodations and layout
- Cockpit
- Closed aft cockpit
- Berth(s) (min./max.)
- 2 / 4
- Freshwater tank capacity
- 13.2 gal50 liters
- Maximum headroom
- 5’ 4”1.63 m

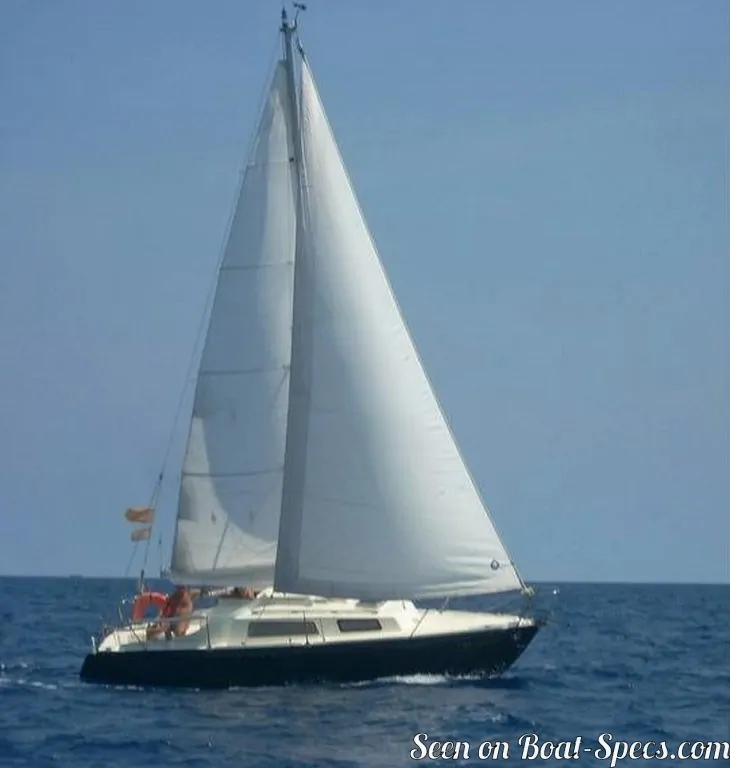

CNSO Constructions Nautique du Sud-Ouest Daïmio - - 1/4
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest

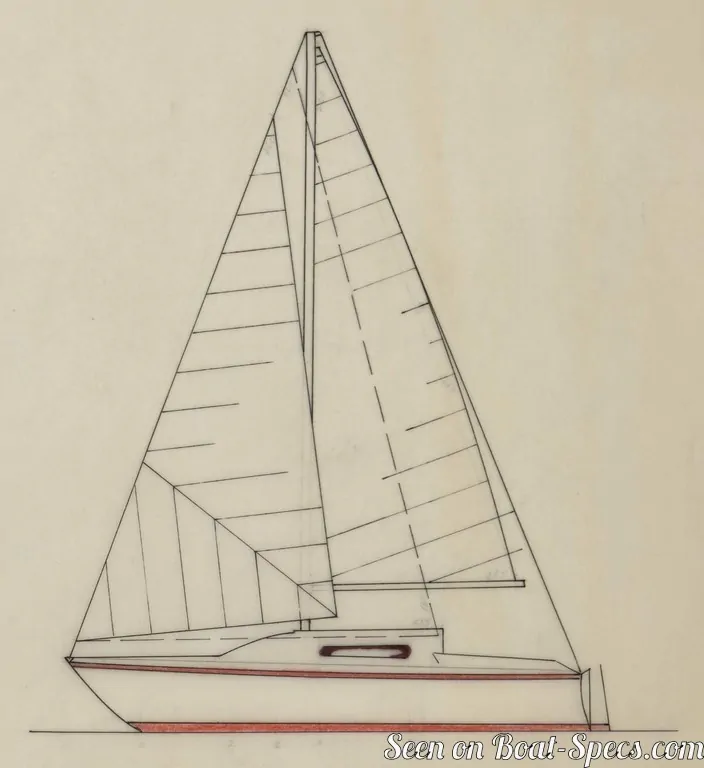

CNSO Constructions Nautique du Sud-Ouest Daïmio sailplan - - 2/4
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest

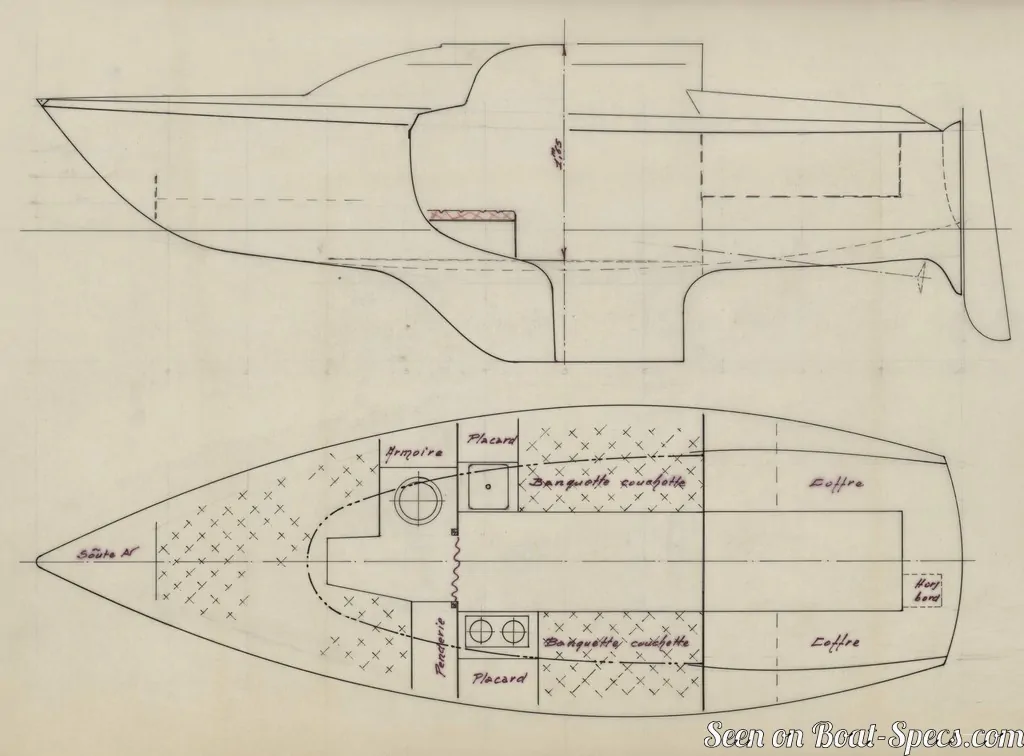

CNSO Constructions Nautique du Sud-Ouest Daïmio layout - - 3/4
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest

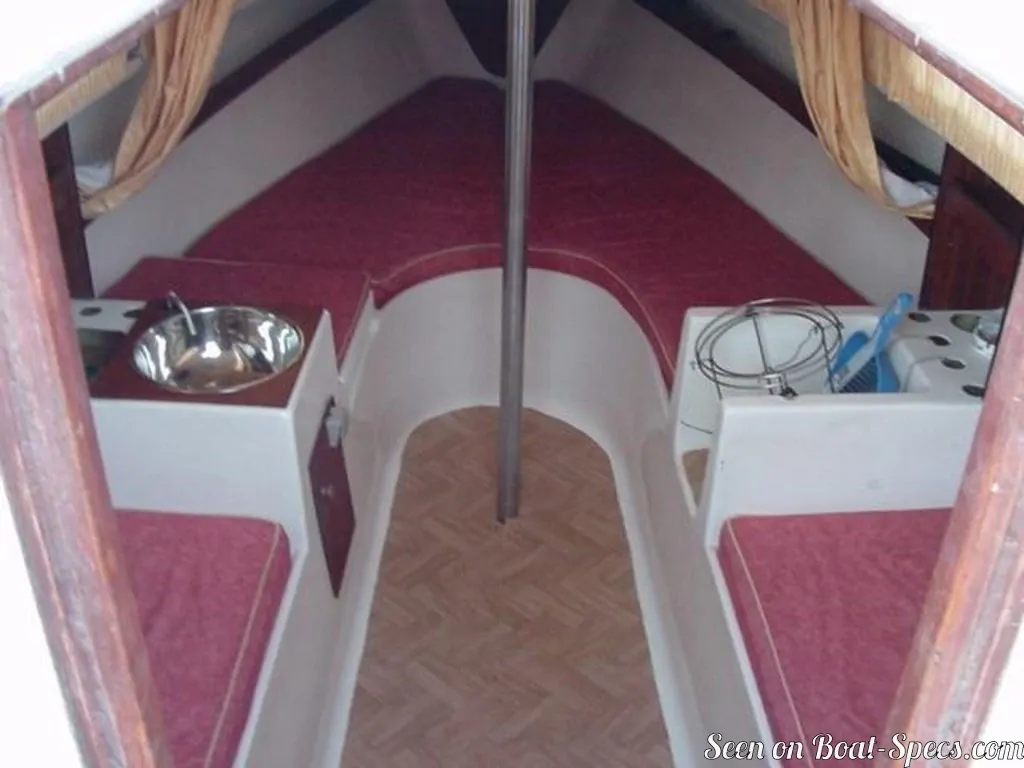

CNSO Constructions Nautique du Sud-Ouest Daïmio interior and accommodations - - 4/4
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest
Picture extracted from the commercial documentation © CNSO Constructions Nautique du Sud-Ouest
