Catana 70

Sailboat specifications

The Catana 70 is a 68’5” (20.86m) fast cruising catamaran designed by Marc Lombard Yacht Design Group (France). She is built since 2015 by Catana (France).

Catana 70's main features

Model: Catana 70
Hull type: Catamaran
Category: Offshore fast cruising catamaran
Sailboat builder: Catana
Sailboat designer: Marc Lombard Yacht Design Group
Country: France
Construction: GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester (vacuum infusion)
First built hull: 2015
Last built hull: Still in production
Appendages: Centerboard : twin daggerboards
Helm: Twin helm wheels
Rudder: Twin spade rudders
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Catana 70's main dimensions

Hull length: 68’ 5”20.86 m
Waterline length: 68’ 5”20.86 m
Beam (width): 31’ 1”9.49 m
Draft: 12’ 4”3.75 m
Draft when appendages up: 5’ 1”1.56 m
Mast height from D_WL: 94’ 4”28.75 m
Light displacement (M_LC): 58422 lb26500 kg

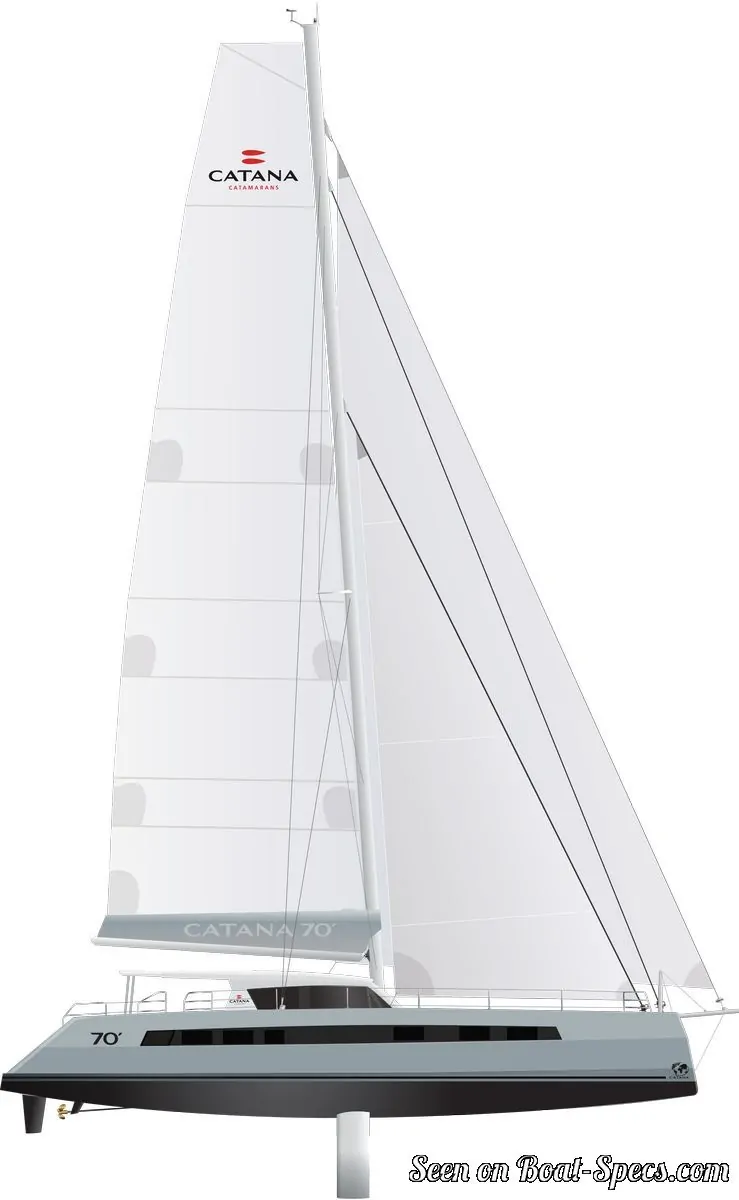

Catana 70's rig and sails

Upwind sail area: 2314 ft²215 m²
Downwind sail area: 2874 ft²267 m²
Mainsail area: 1313 ft²122 m²
Genoa area: 1001 ft²93 m²
Code 0 area: 1561 ft²145 m²
Rigging type: Sloop Marconi (square top mainsail) fractional
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: Swept-back (diamond)
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire discontinuous

Catana 70's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 260 ft²/T24.19 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 323 ft²/T30.04 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 83
