Catana 47
Sailboat specifications
The Catana 47 is a 46’ (14.03m) fast cruising catamaran designed by Christophe Barreau (France). She is built since 2010 by Catana (France).
Catana 47's main features
- Model
- Catana 47
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich foam fiberglass vinylester (vacuum infusion) - First built hull
- 2010
- Last built hull
- Still in production
- Appendages
- Centerboard : twin daggerboards
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About645 000 €(2018)
Catana 47's main dimensions
- Overall length
- 51’15.54 m
- Hull length
- 46’14.03 m
- Waterline length
- 45’ 6”13.88 m
- Beam (width)
- 25’ 1”7.64 m
- Draft
- 8’ 2”2.5 m
- Draft when appendages up
- 3’ 7”1.1 m
- Mast height from DWL
- 70’ 6”21.5 m
- Light displacement (MLC)
- 24030 lb10900 kg
Catana 47's rig and sails
- Upwind sail area
- 1496 ft²139 m²
- Downwind sail area
- 1830 ft²170 m²
- Mainsail area
- 926 ft²86 m²
- Genoa area
- 570 ft²53 m²
- Gennaker area
- 904 ft²84 m²
- Rigging type
- Sloop Marconi (square top mainsail) 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Catana 47's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 304 ft²/T28.27 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 372 ft²/T34.58 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 115
Catana 47's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 40 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 158.5 gal600 liters

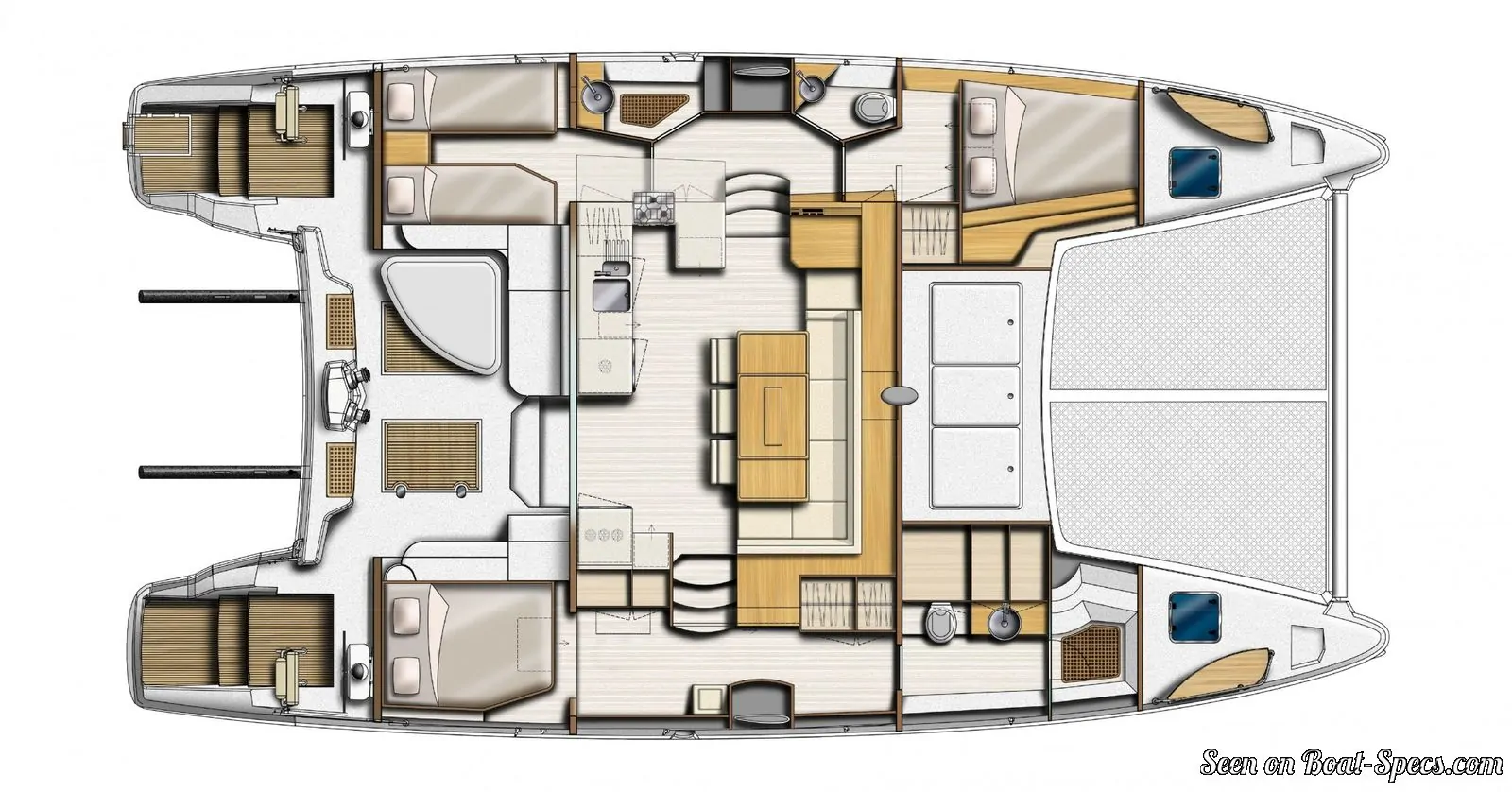

Catana 47's accommodations and layout

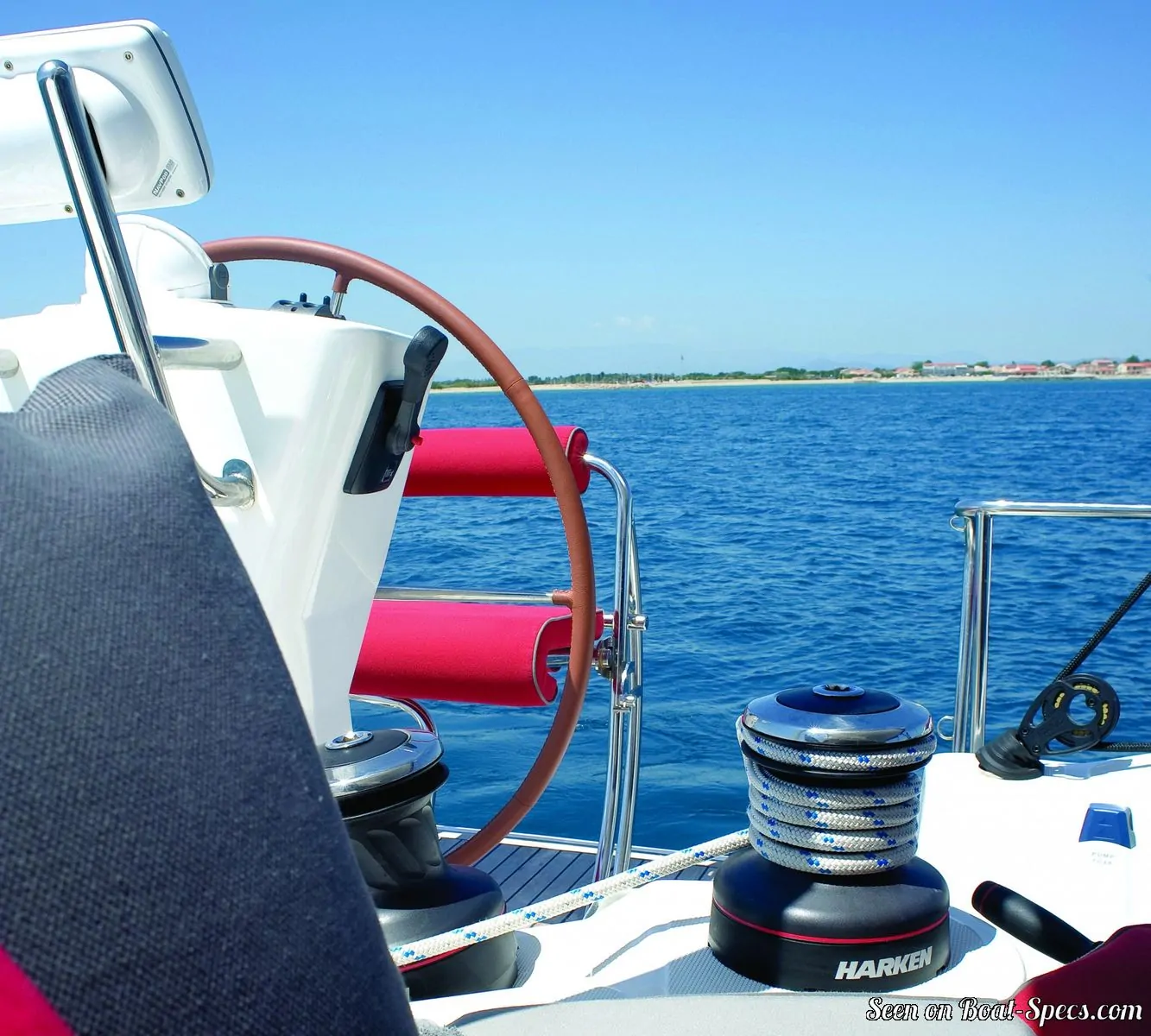

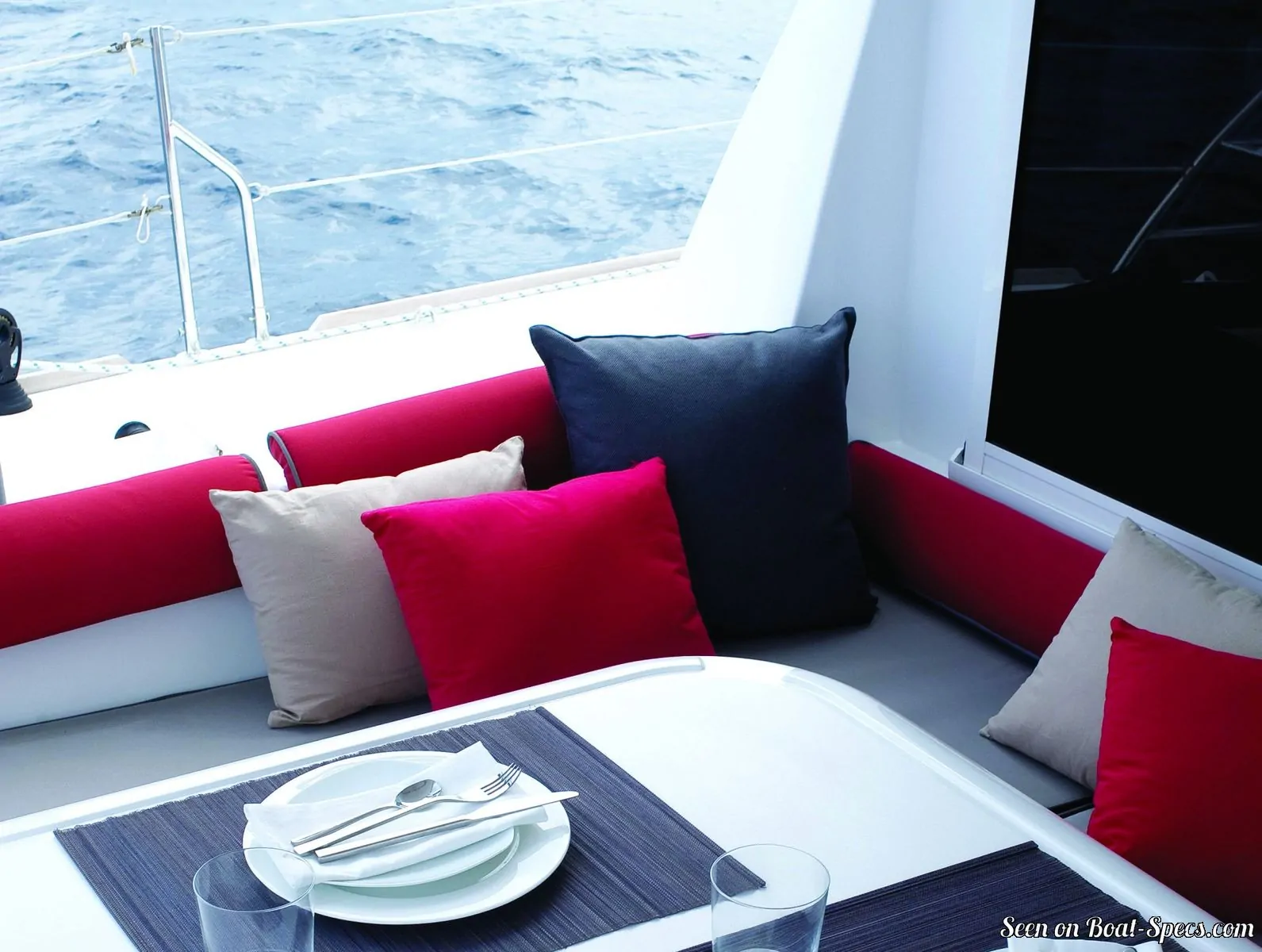

- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 10
- Head(s) (min./max.)
- 3 / 4
- Freshwater tank capacity
- 177 gal670 liters
- Holding tank capacity
- 14.5 gal55 liters
- Fridge/ice-box capacity
- 42.3 gal160 liters
- Boiler capacity
- 29.1 gal110 liters
- Maximum headroom
- 6’ 6”1.97 m

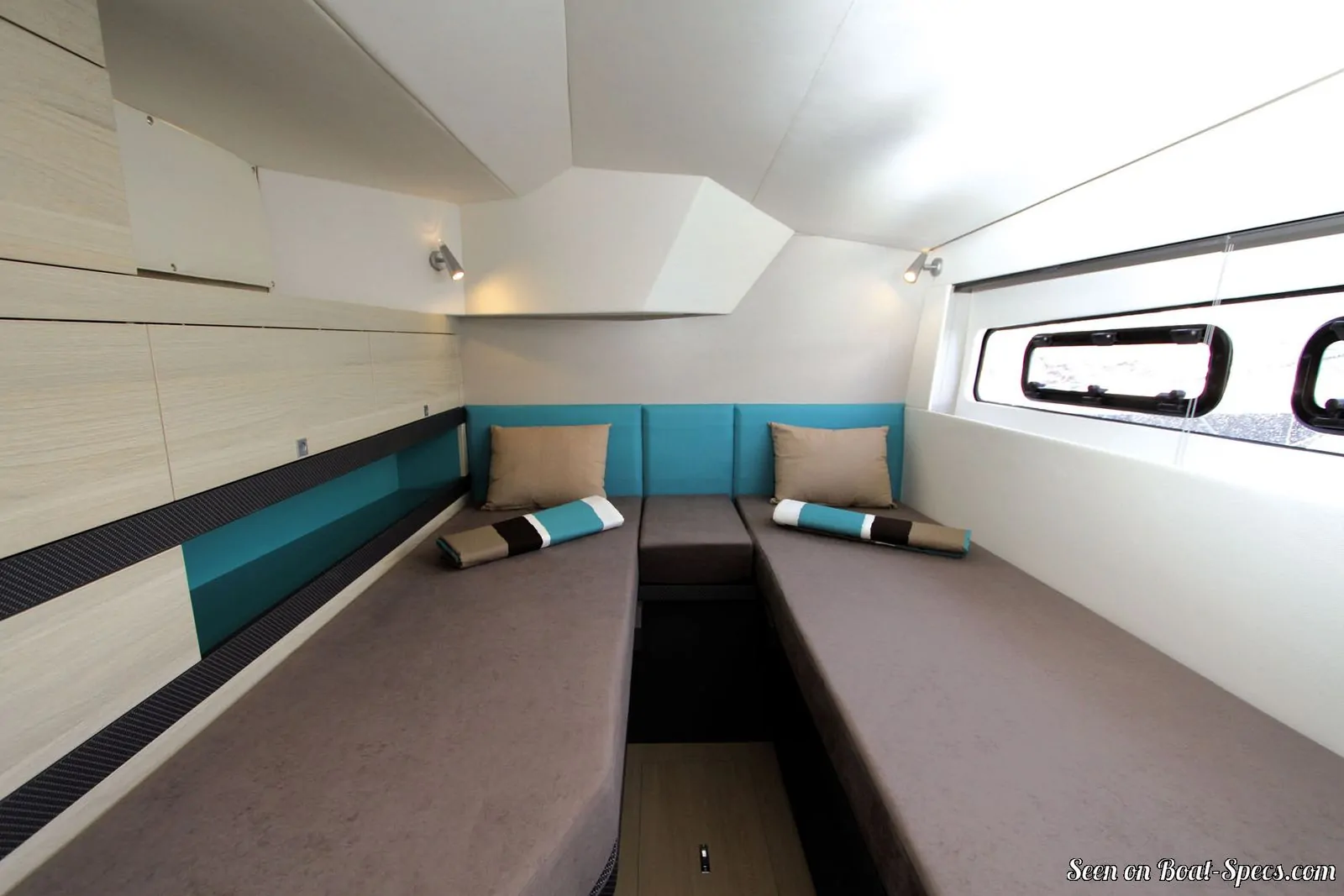

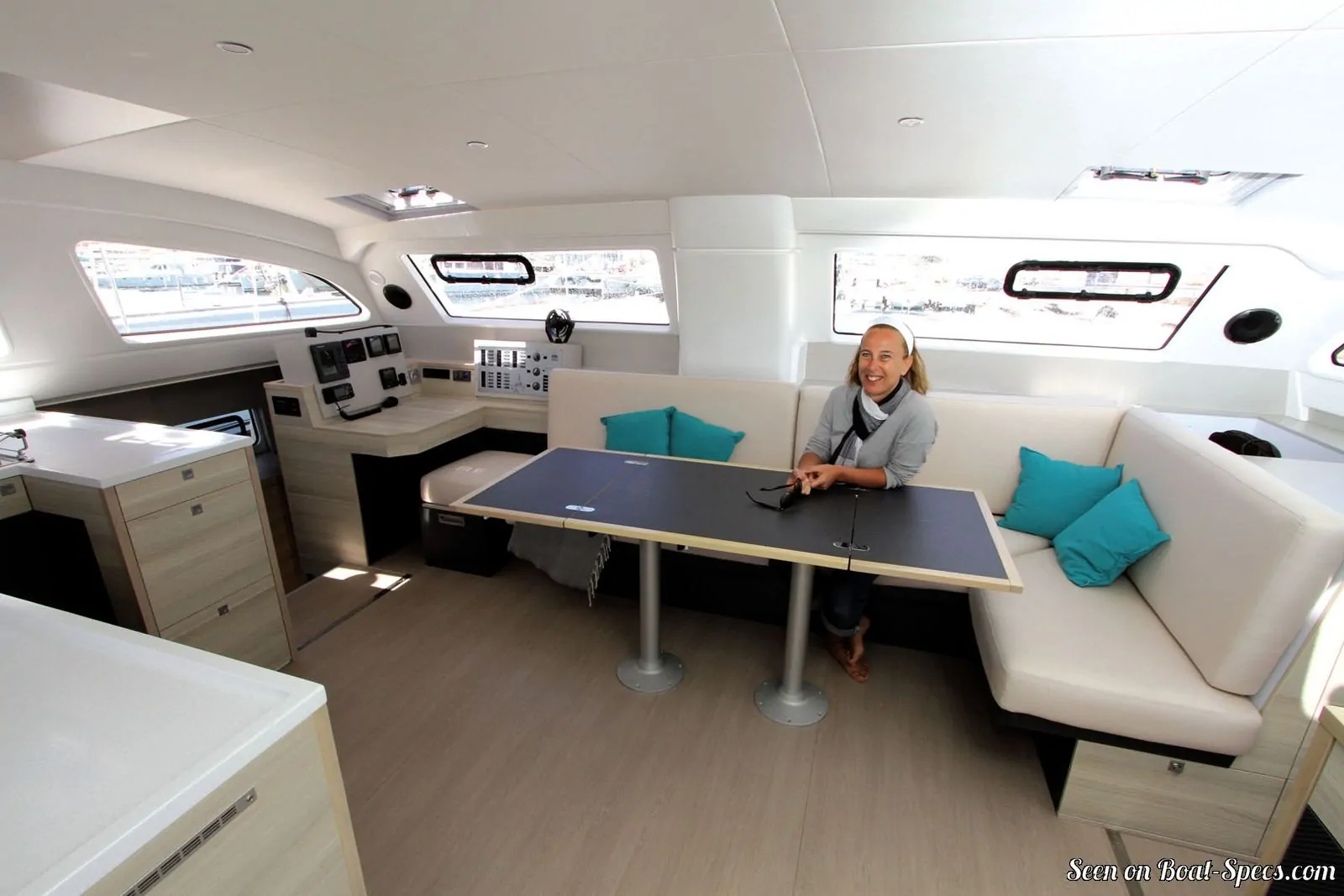

Catana 47 interior and accommodations - - 10/11
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 47 interior and accommodations - - 11/11
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
