Catalina Morgan 440 Wing keel

Sailboat specifications

The Catalina Morgan 440 is a 44’4” (13.51m) cruising sailboat designed by Gerry Douglas (United States). She was built since 2004 (and now discontinued) by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off. She has been awarded "2005 - Cruising World - Boat of the Year: Production Cruiser 40-45 ft".

Catalina Morgan 440's main features

Model
Catalina Morgan 440
Version
Wing keel
Hull type
Monohull
Category
Offshore deck saloon cruising sailboat
Sailboat builder
Sailboat designer
Country
United States
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2004
Last built hull
Discontinued
Award(s)
  • 2005: Cruising World - Boat of the Year: Production Cruiser 40-45 ft
    Appendages
    Keel : wing keel
    Helm
    Single helm wheel
    Rudder
    Single semi-spade rudder
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    N/A €

    Catalina Morgan 440's main dimensions

    Overall length
    45’ 11”14 m
    Hull length
    44’ 4”13.51 m
    Waterline length
    40’ 7”12.37 m
    Beam (width)
    14’4.27 m
    Draft
    4’ 11”1.5 m
    Mast height from DWL
    62’ 4”19 m
    Light displacement (MLC)
    25527 lb11579 kg
    Ballast weight
    8598 lb3900 kg
    Ballast type
    Lead

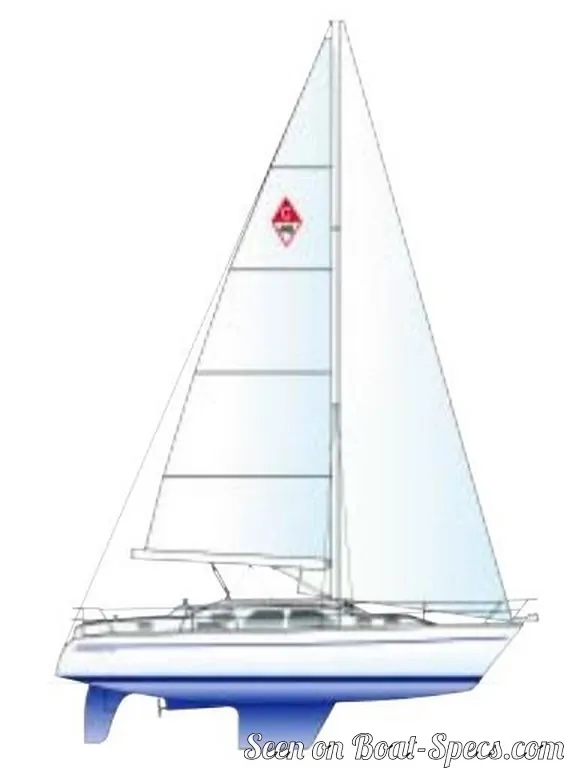

    Catalina Morgan 440's rig and sails

    Upwind sail area
    931 ft²86.49 m²
    Mainsail area
    450 ft²41.81 m²
    Genoa area
    481 ft²44.68 m²
    I
     iFore triangle height (from mast foot to fore stay top attachment)
    57’ 10”17.63 m
    J
     iFore triangle base (from mast foot to bottom of forestay)
    16’ 8”5.08 m
    P
     iMainsail hoist measurement (from tack to head)
    50’15.24 m
    E
     iMainsail foot measurement (from tack to clew)
    18’5.49 m
    Rigging type
    Sloop Marconi masthead
    Mast configuration
    Deck stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    2
    Spreaders angle
    0 °
    Spars construction
    Aluminum spars
    Standing rigging
    1x19 strand wire

    Catalina Morgan 440's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    182 ft²/T16.9 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    173
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    34 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    8.54 knots

    Catalina Morgan 440's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    75 HP
    Fuel type
    Diesel
    Fuel tank capacity
    100.1 gal379 liters

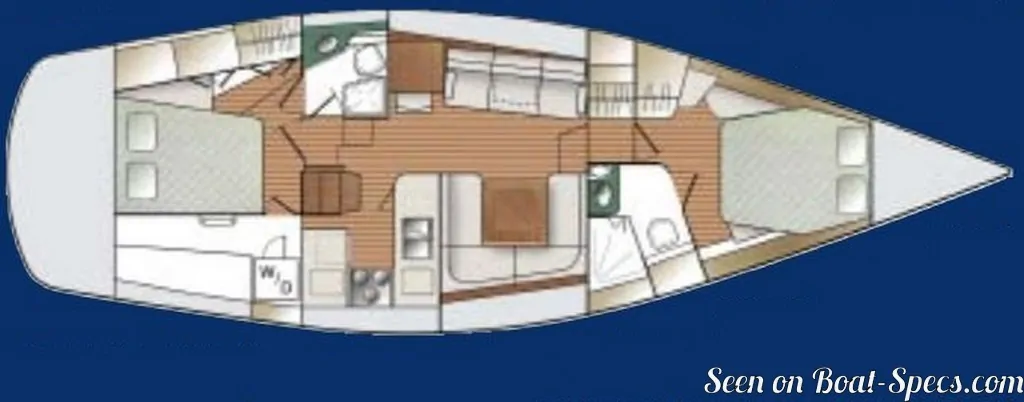

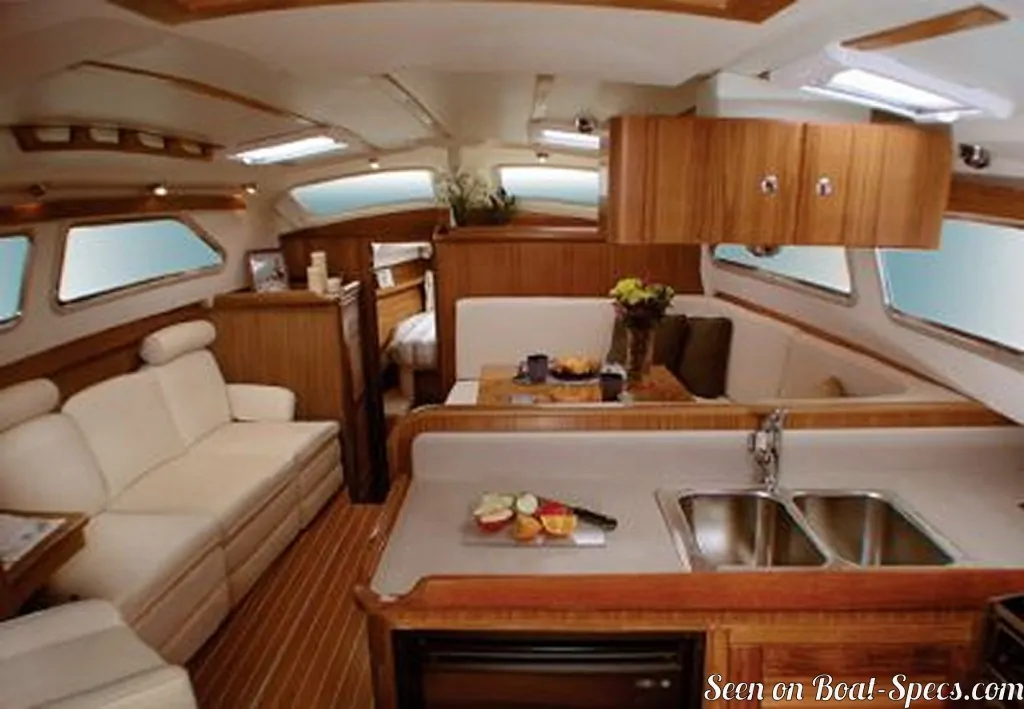

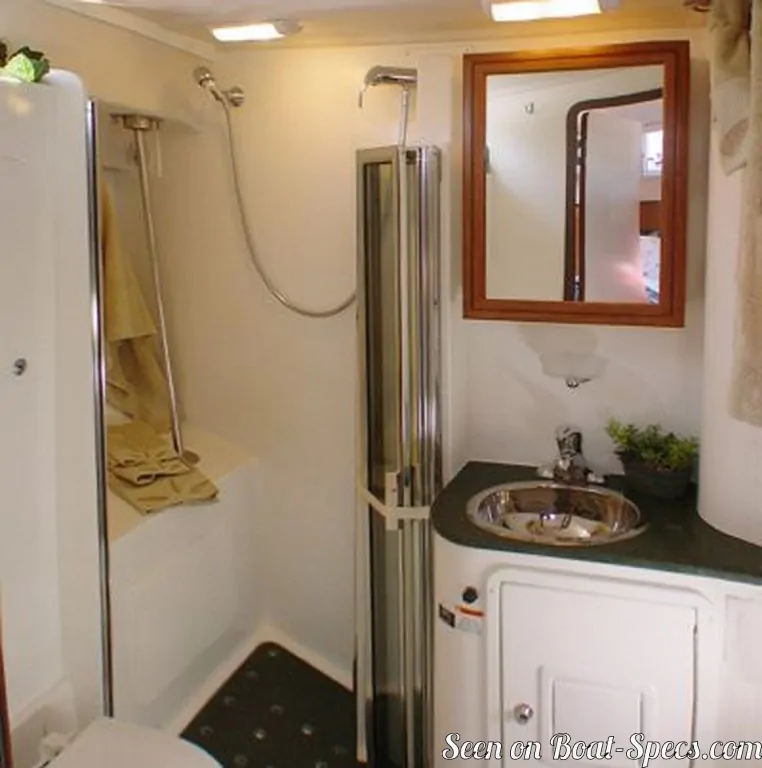

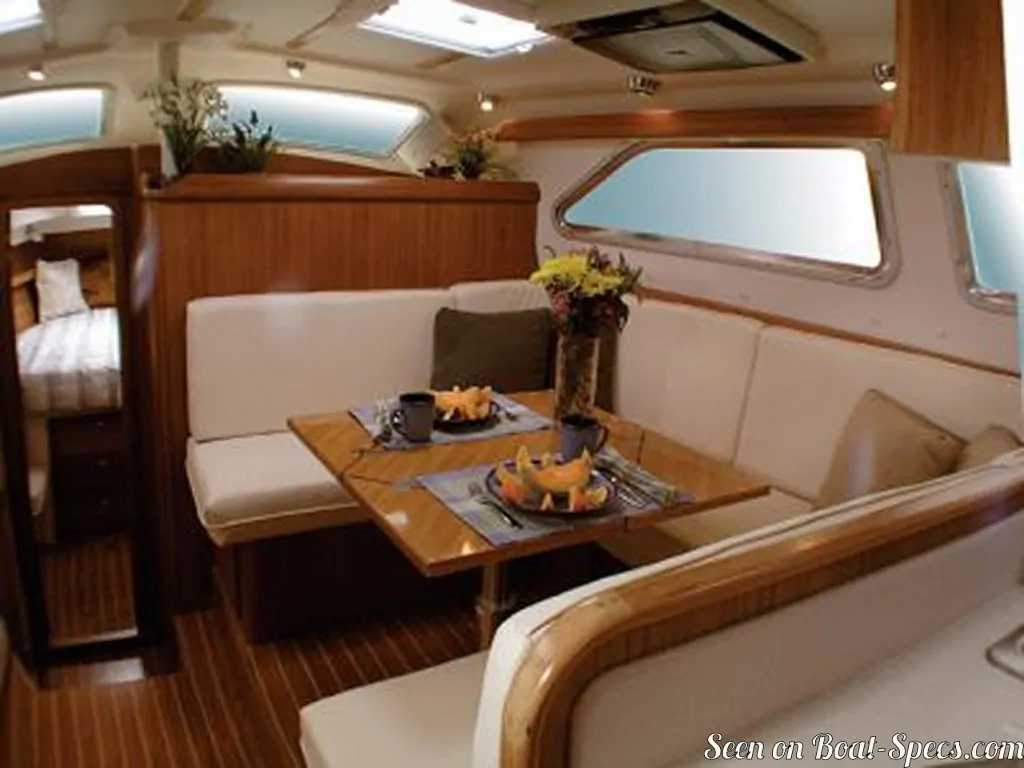

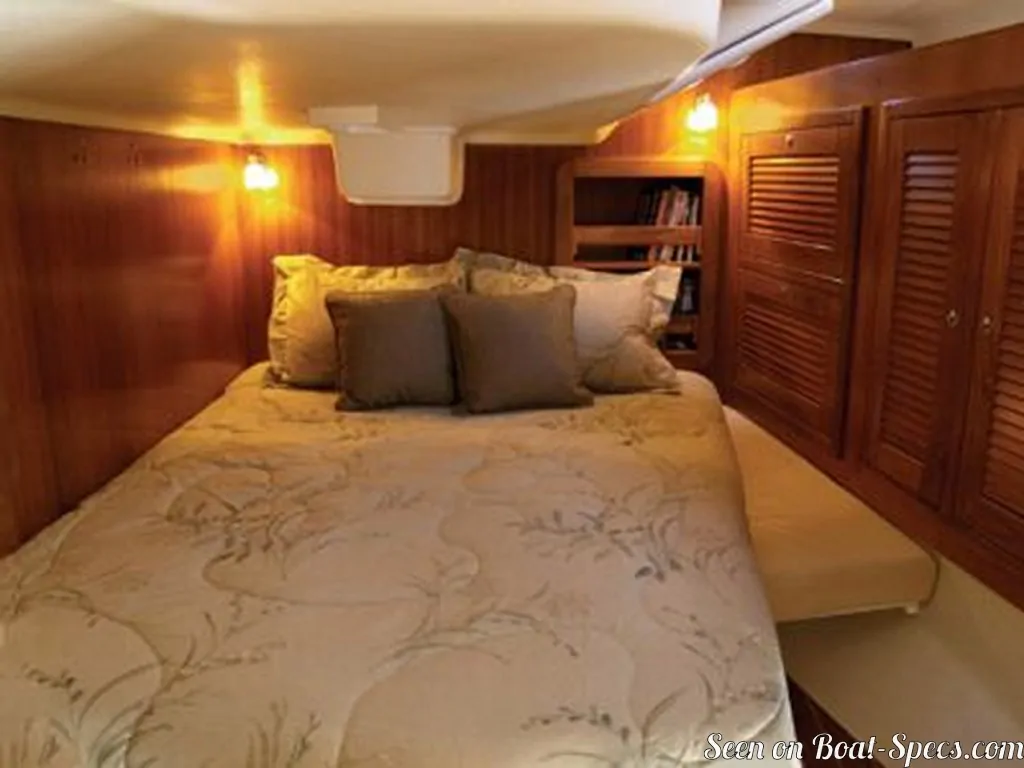

    Catalina Morgan 440's accommodations and layout

    Cockpit
    Closed aft cockpit
    Freshwater tank capacity
    175.9 gal666 liters
    Holding tank capacity
    54.9 gal208 liters
    Fridge/ice-box capacity
    55.5 gal210 liters
    Maximum headroom
    6’ 10”2.08 m
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
