Catalina 390 Wing keel

Sailboat specifications

The Catalina 390 is a 38’8” (11.79m) cruising sailboat designed by Gerry Douglas (United States). She was built since 2001 (and now discontinued) by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off. She has been awarded "2001 - Cruising World - Boat of the Year: Midsize Boat ".

The Catalina 390 is as well listed, on Boat-Specs.com, in Fin keel and Tall rig version (see all the versions compared).

Catalina 390's main features

Model

Catalina 390

Version

Wing keel

Hull type

Monohull

Category

Offshore cruising sailboat

Sailboat builder

Catalina Yachts

Sailboat designer

Gerry Douglas

Country

United States

Construction

GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester

First built hull

2001

Last built hull

Discontinued

Award(s)

2001: Cruising World - Boat of the Year: Midsize Boat

Appendages

Keel : wing keel

Helm

Single helm wheel

Rudder

Single spade rudder

Unsinkable

Trailerable

Standard public price ex. VAT (indicative only)

N/A €

Catalina 390's main dimensions

Hull length: 38’ 8”11.79 m
Waterline length: 32’ 5”9.88 m
Beam (width): 12’ 4”3.76 m
Draft: 4’ 11”1.48 m
Light displacement (M_LC): 19500 lb8845 kg
Ballast weight: 7300 lb3311 kg
Ballast type: Cast iron

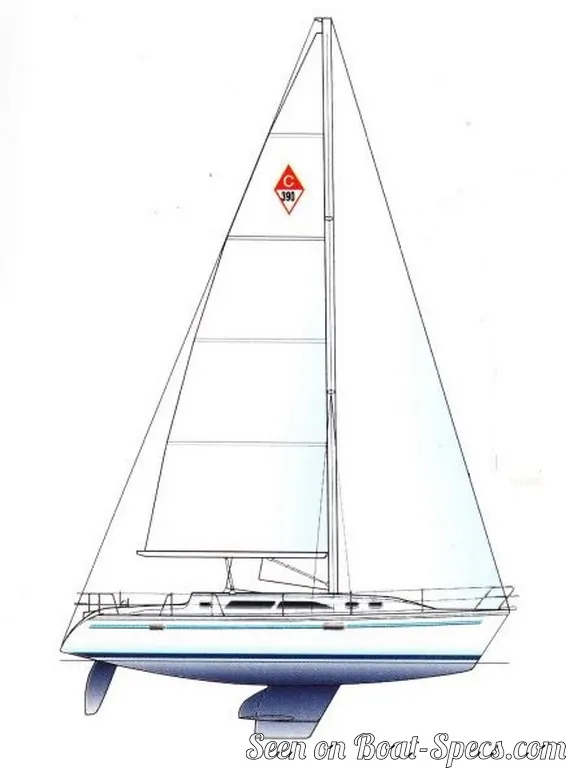

Catalina 390's rig and sails

Upwind sail area: 719 ft²66.82 m²
I iFore triangle height (from mast foot to fore stay top attachment): 51’15.53 m
J iFore triangle base (from mast foot to bottom of forestay): 14’ 8”4.47 m
P iMainsail hoist measurement (from tack to head): 44’ 2”13.46 m
E iMainsail foot measurement (from tack to clew): 15’ 7”4.77 m
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 0 °
Spars construction: Aluminum spars

Catalina 390's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 168 ft²/T15.62 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 260
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 37 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.63 knots
