Catalina 385 Wing keel
Sailboat specifications
The Catalina 385 is a 34’10” (10.6m) cruising sailboat designed by Gerry Douglas (United States). She is built since 2012 by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off. She has been awarded "2012 - Cruising World - Boat of the Year: Domestic Boat".
The Catalina 385 is as well listed, on Boat-Specs.com, in Fin keel version (see all the versions compared).
The Catalina 385 is as well listed, on Boat-Specs.com, in Fin keel version (see all the versions compared).
Catalina 385's main features
- Model
- Catalina 385
- Version
- Wing keel
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- United States
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2012
- Last built hull
- Still in production
- Award(s)
- 2012: Cruising World - Boat of the Year: Domestic Boat
- Appendages
- Keel : wing keel
- Helm
- Single helm wheel
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Catalina 385's main dimensions
- Overall length
- 35’ 10”10.9 m
- Hull length
- 34’ 10”10.6 m
- Waterline length
- 34’ 4”10.46 m
- Beam (width)
- 13’ 1”3.98 m
- Draft
- 4’ 8”1.42 m
- Mast height from DWL
- 53’ 11”16.42 m
- Light displacement (MLC)
- 16477 lb7474 kg
- Ballast weight
- 6191 lb2808 kg
- Ballast type
- Lead
Catalina 385's rig and sails
- Upwind sail area
- 869 ft²80.73 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 47’ 5”14.46 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 14’ 8”4.48 m
- PiMainsail hoist measurement (from tack to head)
- 43’ 5”13.22 m
- EiMainsail foot measurement (from tack to clew)
- 15’4.56 m
- Rigging type
- Sloop Marconi 19/20
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- 0 °
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Catalina 385's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 227 ft²/T21.12 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 185
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 38 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 7.85 knots
Catalina 385's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 40 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 38 gal144 liters
Catalina 385's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 6
- Head(s)
- 1
- Freshwater tank capacity
- 91.4 gal346 liters
- Holding tank capacity
- 31.2 gal118 liters
- Boiler capacity
- 5.8 gal22 liters
Catalina 385's saloon
- Berth length
- 6’ 7”2 m
- Berth width
- 2’ 5”0.74 m
Catalina 385's fore cabin
- Berth length
- 7’2.13 m
- Berth width
- 6’ 5”1.96 m
Catalina 385's aft cabin
- Berth length
- 6’ 6”1.98 m
- Berth width
- 4’ 4”1.3 m

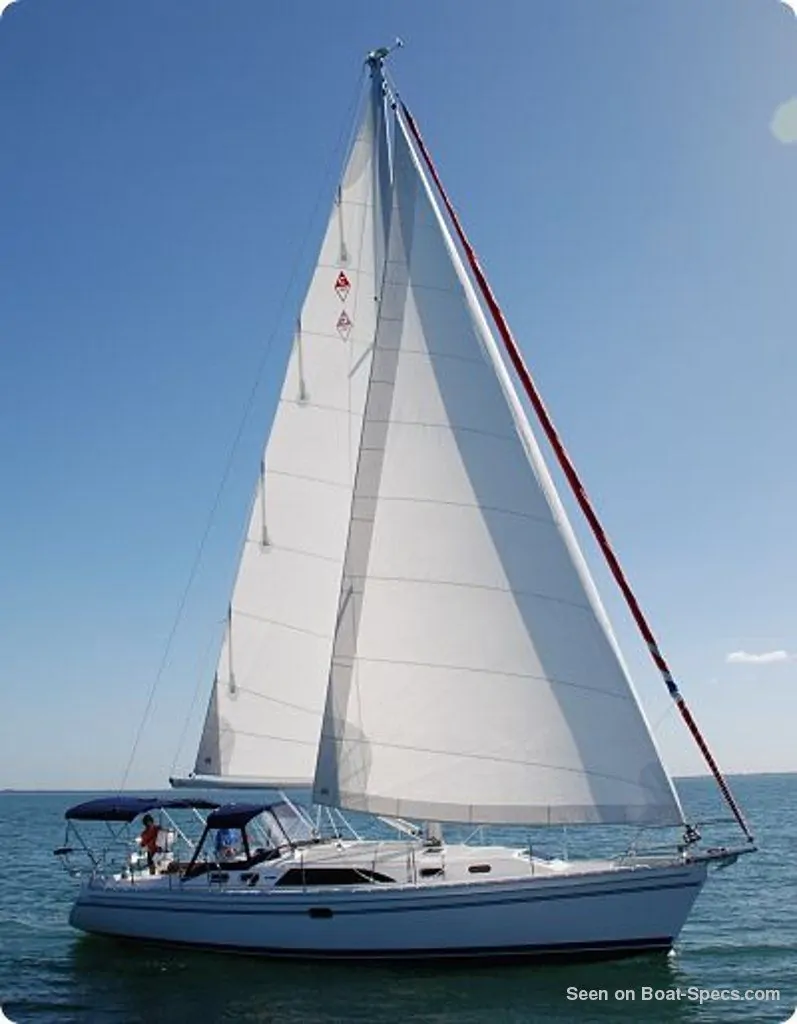

Catalina Yachts Catalina 385 - - 1/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

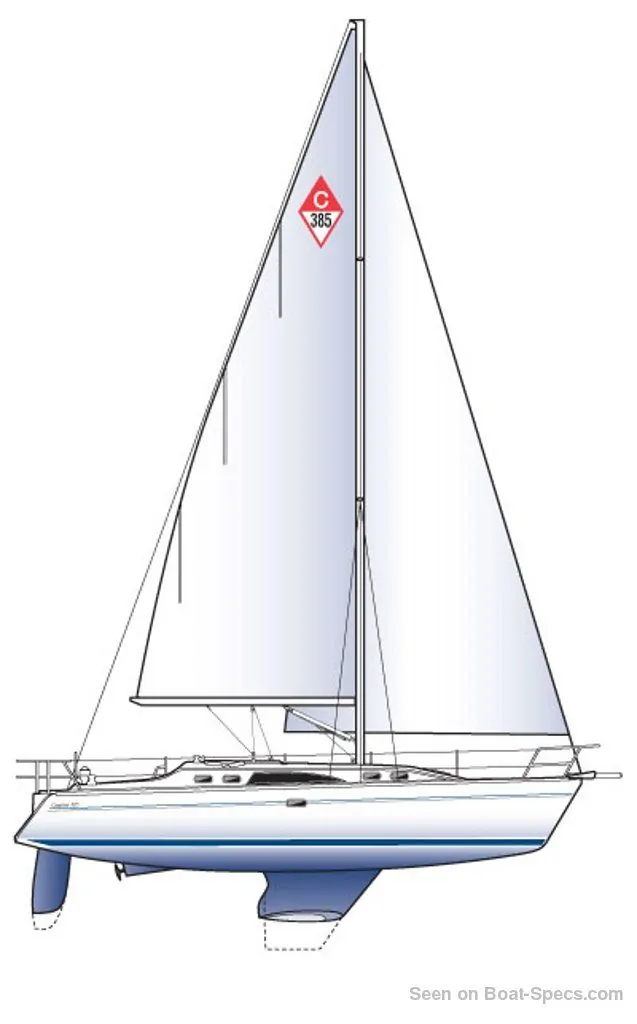

Catalina Yachts Catalina 385 sailplan - - 2/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

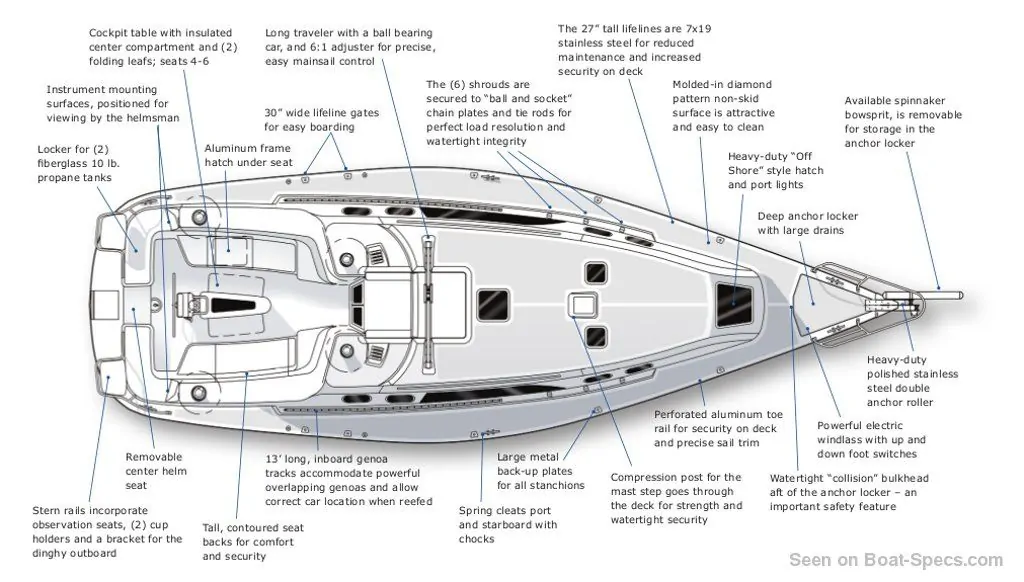

Catalina Yachts Catalina 385 layout - - 3/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

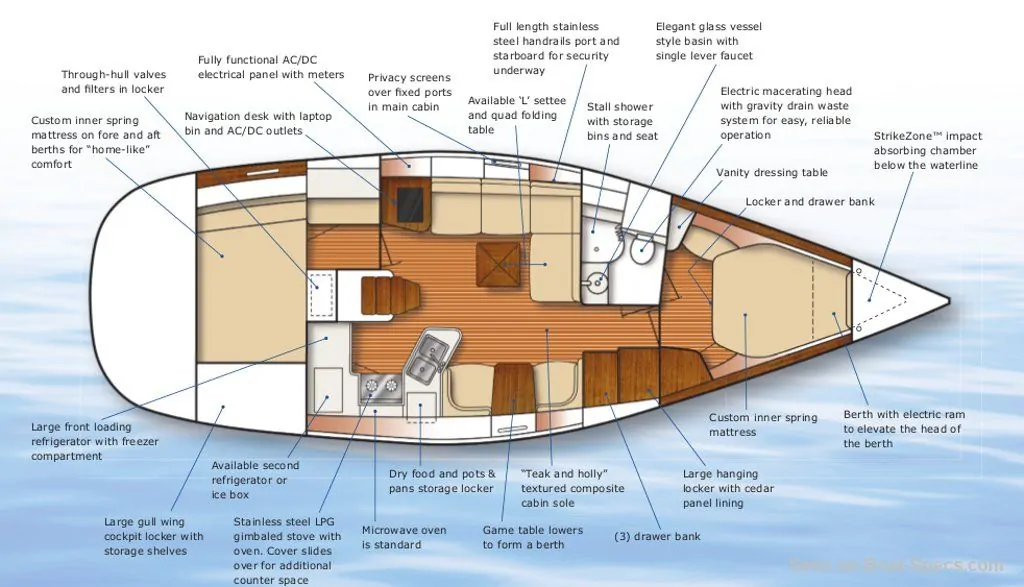

Catalina Yachts Catalina 385 layout - - 4/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

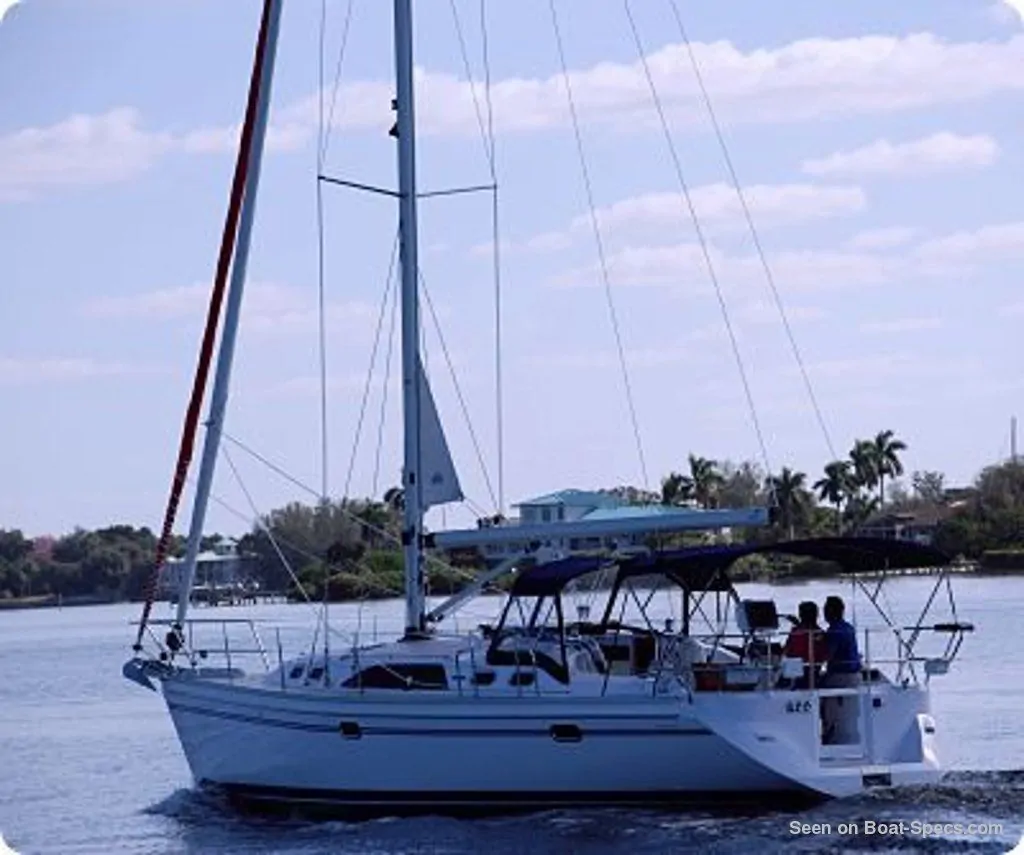

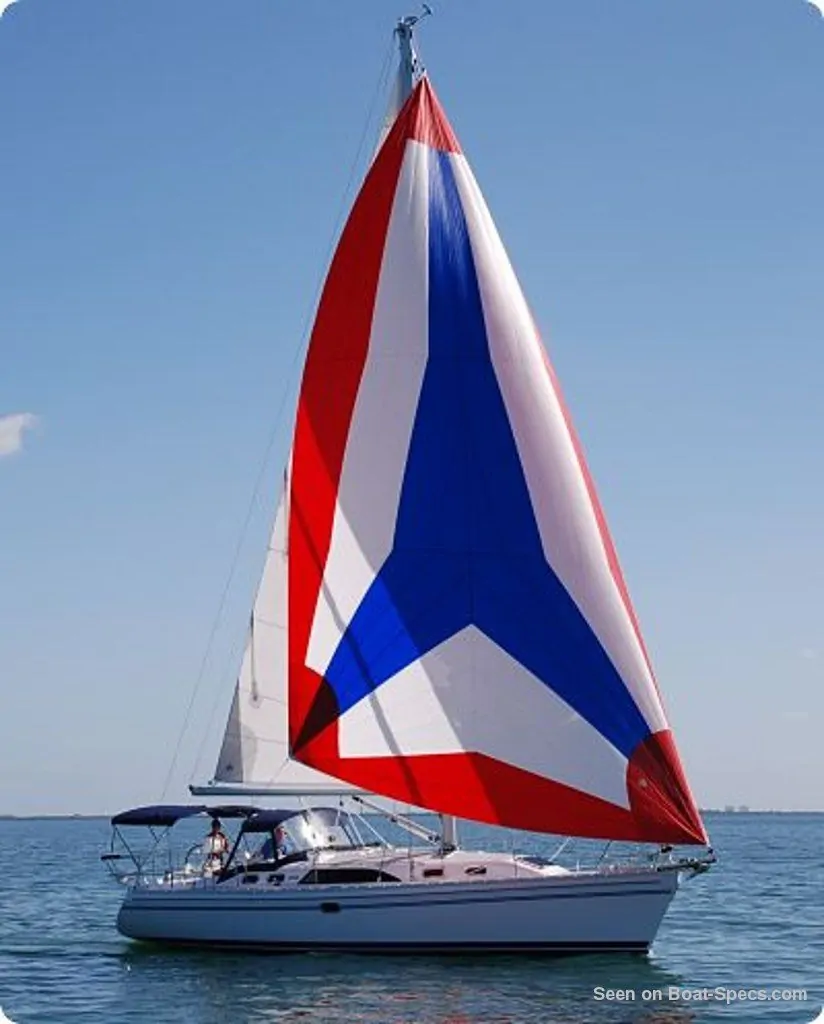

Catalina Yachts Catalina 385 sailing - - 5/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

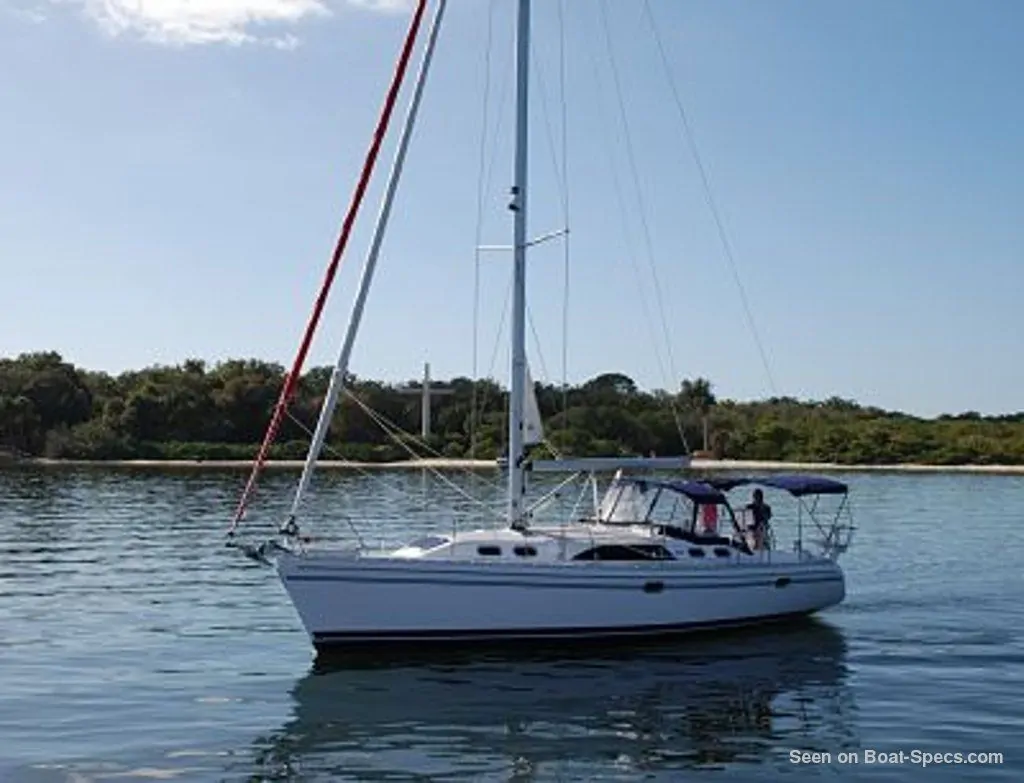

Catalina Yachts Catalina 385 sailing - - 6/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts
Catalina Yachts Catalina 385 sailing - - 7/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

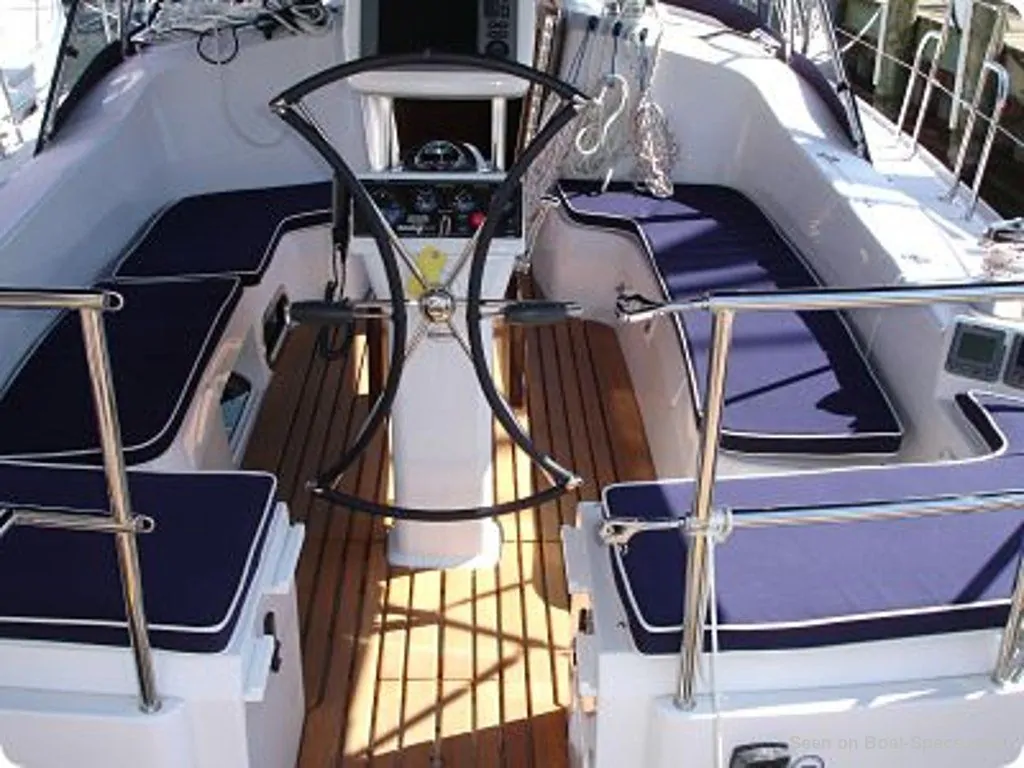

Catalina Yachts Catalina 385 cockpit - - 8/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

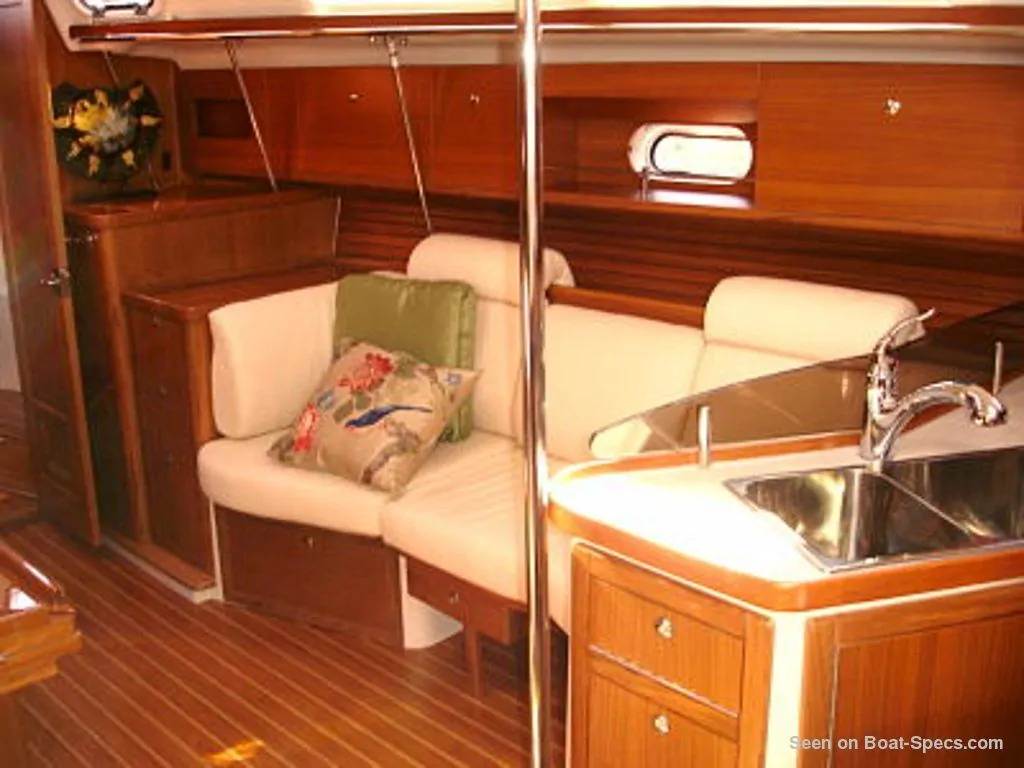

Catalina Yachts Catalina 385 interior and accommodations - - 9/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts

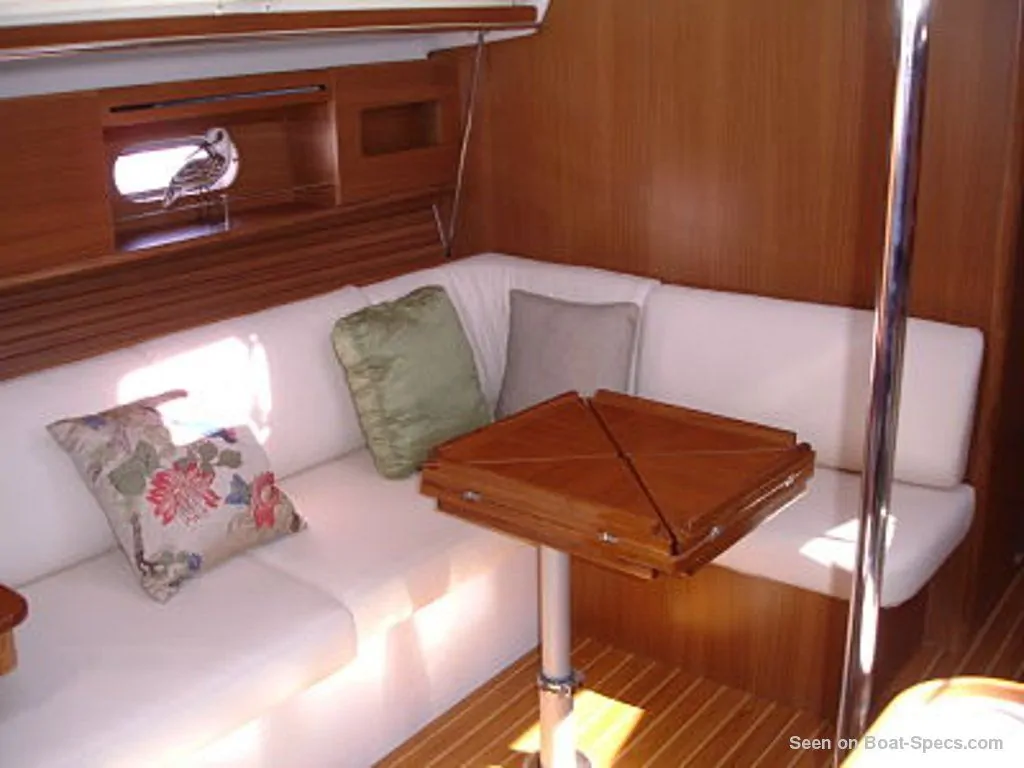

Catalina Yachts Catalina 385 interior and accommodations - - 10/10
Picture extracted from the commercial documentation © Catalina Yachts
Picture extracted from the commercial documentation © Catalina Yachts
