Catalina 375 Wing keel

Sailboat specifications

The Catalina 375 is a 37’4” (11.38m) cruising sailboat designed by Gerry Douglas (United States). She was built since 2008 (and now discontinued) by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off. She has been awarded "2011 - Cruising World - Boat of the Year: All purpose cruiser".

The Catalina 375 is as well listed, on Boat-Specs.com, in Fin keel version (see all the versions compared).

Catalina 375's main features

Model

Catalina 375

Version

Wing keel

Hull type

Monohull

Category

Offshore cruising sailboat

Sailboat builder

Catalina Yachts

Sailboat designer

Gerry Douglas

Sailboat range

Catalina 5 Series

Country

United States

Construction

Hull and deck: GRP (glass reinforced polyester)

First built hull

2008

Last built hull

Discontinued

Award(s)

2011: Cruising World - Boat of the Year: All purpose cruiser

Appendages

Keel : twin asymmetric fin with bulb

Helm

Single helm wheel

Rudder

Single spade rudder

Unsinkable

Trailerable

EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m

Standard public price ex. VAT (indicative only)

N/A €

Catalina 375's main dimensions

Overall length: 38’ 6”11.73 m
Hull length: 37’ 4”11.38 m
Waterline length: 34’ 5”10.49 m
Beam (width): 13’3.96 m
Draft: 4’ 8”1.42 m
Mast height from D_WL: 54’16.46 m
Light displacement (M_LC): 16499 lb7484 kg
Ballast weight: 6199 lb2812 kg
Ballast type: Lead

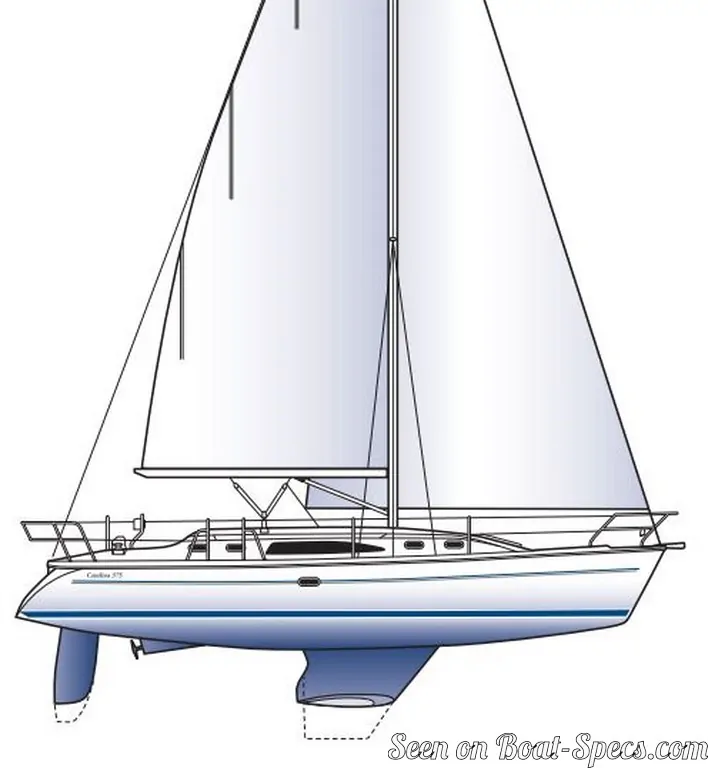

Catalina 375's rig and sails

Upwind sail area: 647 ft²60.11 m²
Rigging type: Sloop Marconi (in-mast furling mainsail) masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Catalina 375's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 169 ft²/T15.71 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 184
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 38 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.86 knots
