Grand Soleil 58 Standard
Sailboat specifications
The Grand Soleil 58 is a 57’5” (17.5m) fast cruising sailboat designed by Felci Yachts (Italy). She is built since 2016 by Del Pardo, Cantiere (Italy).
The Grand Soleil 58 is as well listed, on Boat-Specs.com, in Shoal draft and Deep draft version (see all the versions compared).
Find out more about the Grand Soleil 58 on Boat-Spec's blog: European Yacht of the Year 2017.
The Grand Soleil 58 is as well listed, on Boat-Specs.com, in Shoal draft and Deep draft version (see all the versions compared).
Find out more about the Grand Soleil 58 on Boat-Spec's blog: European Yacht of the Year 2017.
Grand Soleil 58's main features
- Model
- Grand Soleil 58
- Version
- Standard
- Hull type
- Monohull
- Category
- Offshore fast cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Italy
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester (vacuum infusion) - First built hull
- 2016
- Last built hull
- Still in production
- Appendages
- Keel : T-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About895 000 €(2020)
Grand Soleil 58's main dimensions
- Hull length
- 57’ 5”17.5 m
- Beam (width)
- 17’ 1”5.2 m
- Draft
- 9’ 6”2.9 m
- Light displacement (MLC)
- 41667 lb18900 kg
- Ballast weight
- 13007 lb5900 kg
- Ballast type
- Cast iron fin with lead bulb
Grand Soleil 58's rig and sails
- Upwind sail area
- 2056 ft²191 m²
- Mainsail area
- 1141 ft²106 m²
- Genoa area
- 915 ft²85 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
Grand Soleil 58's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 290 ft²/T26.92 m²/T
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 31 %
Grand Soleil 58's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 75 HP / 150 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 158.5 gal600 liters
Grand Soleil 58's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 10
- Head(s) (min./max.)
- 2 / 3
- Freshwater tank capacity
- 211.3 gal800 liters

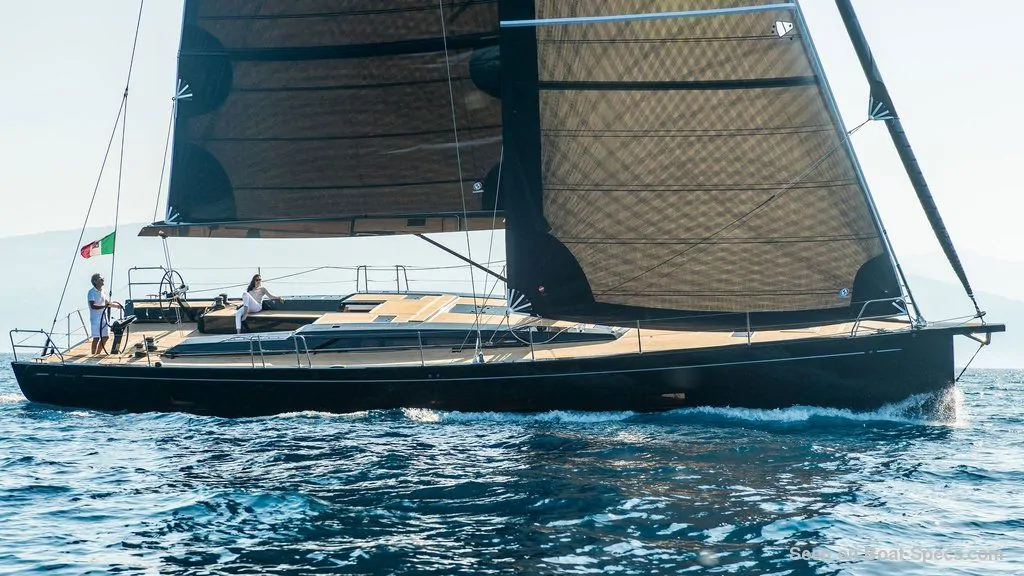

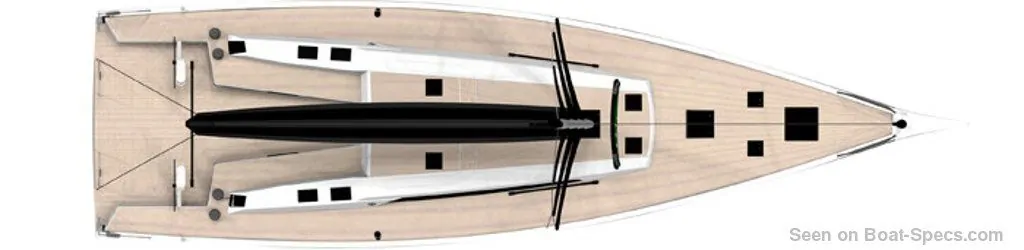

Cantiere Del Pardo Grand Soleil 58 - - 1/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

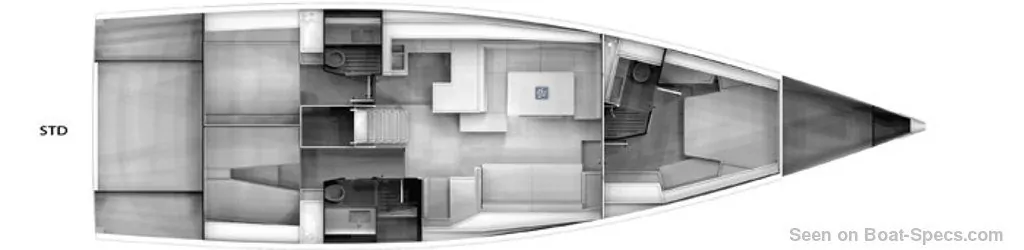

Cantiere Del Pardo Grand Soleil 58 layout - - 2/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

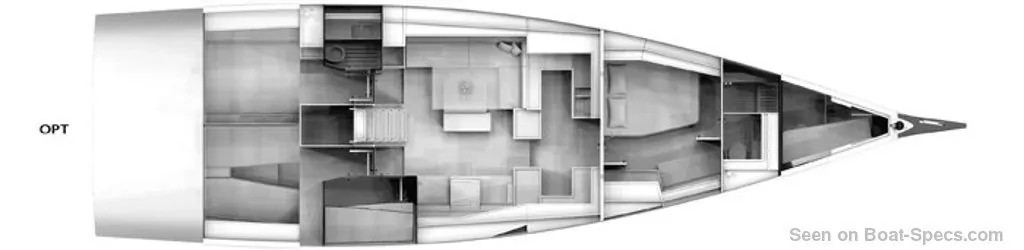

Cantiere Del Pardo Grand Soleil 58 layout - - 3/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 layout - - 4/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

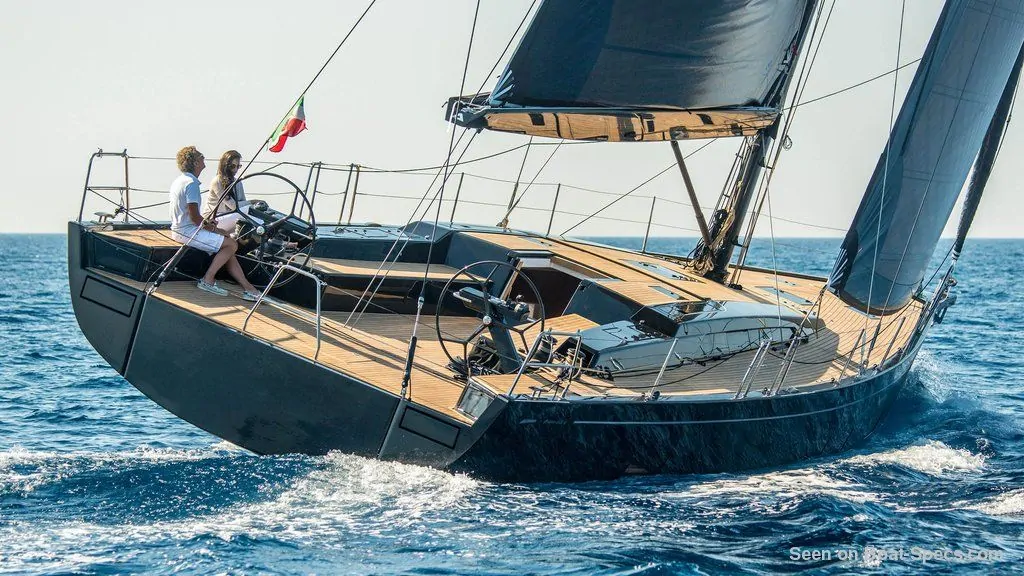

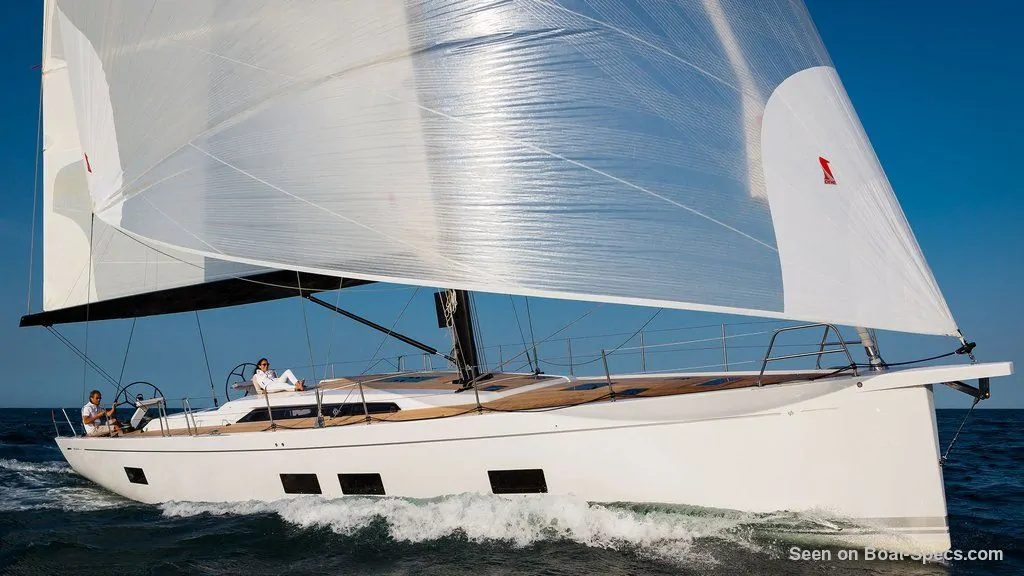

Cantiere Del Pardo Grand Soleil 58 sailing - - 5/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

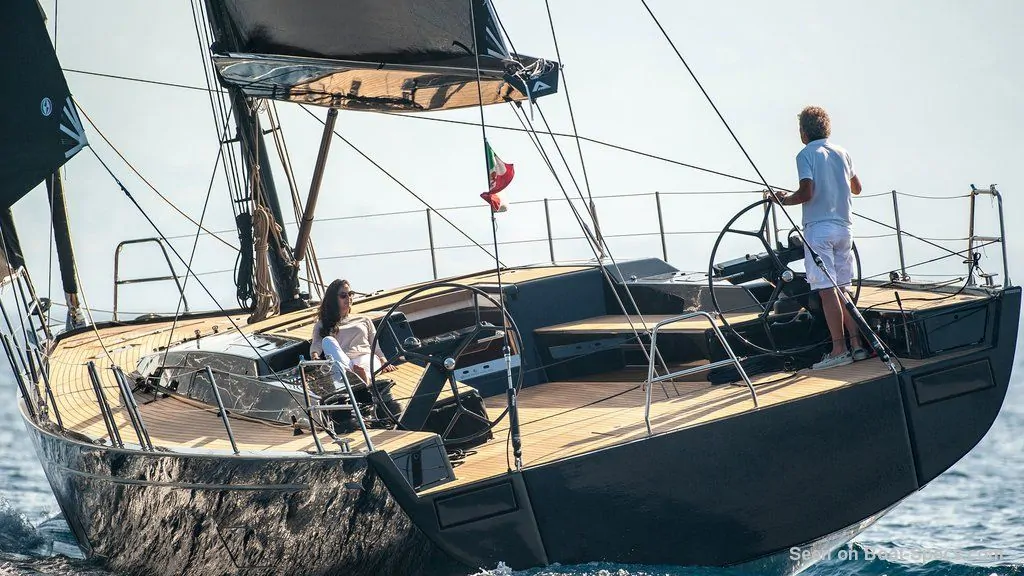

Cantiere Del Pardo Grand Soleil 58 sailing - - 6/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

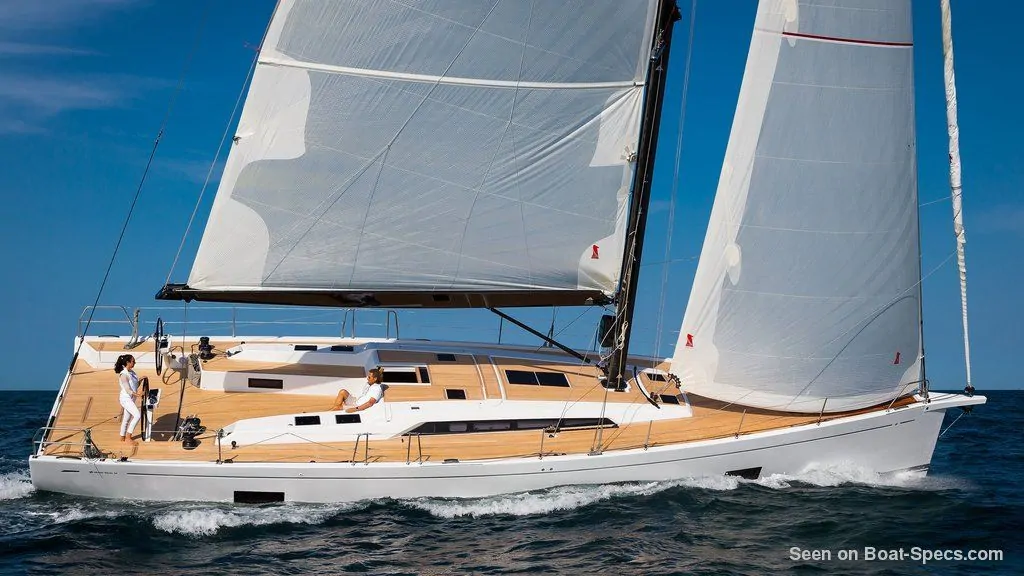

Cantiere Del Pardo Grand Soleil 58 sailing - - 7/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 sailing - - 8/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

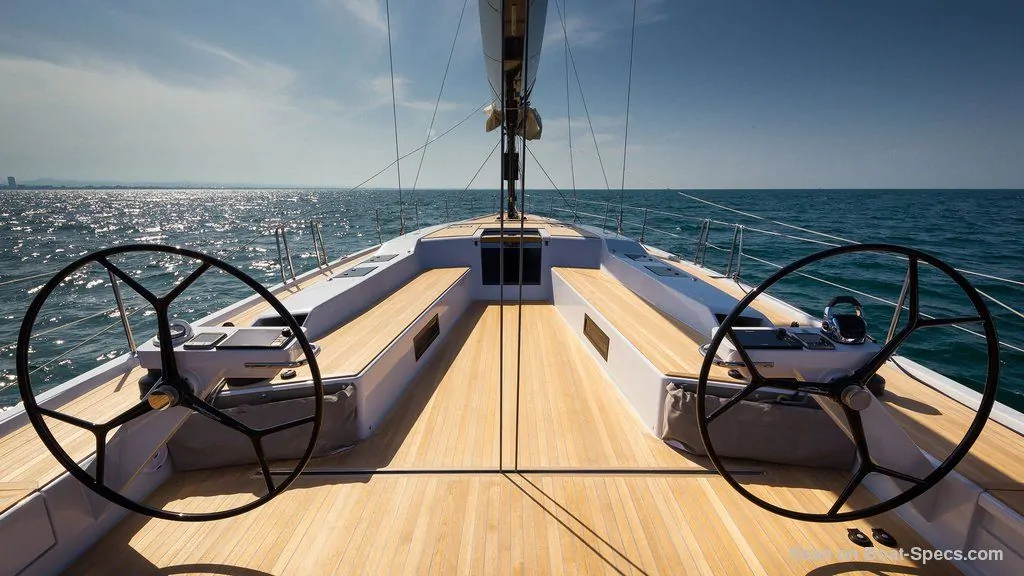

Cantiere Del Pardo Grand Soleil 58 cockpit - - 9/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

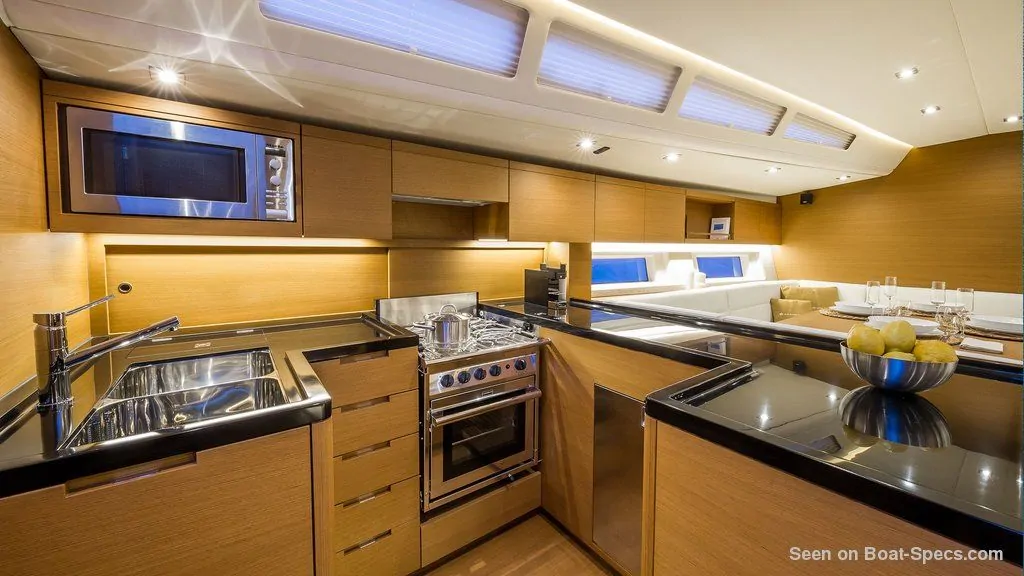

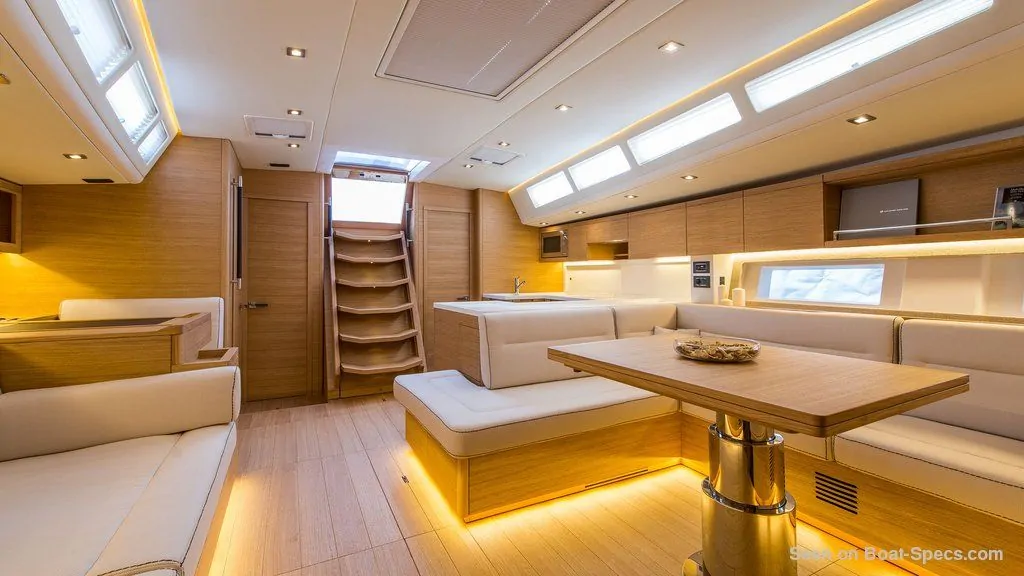

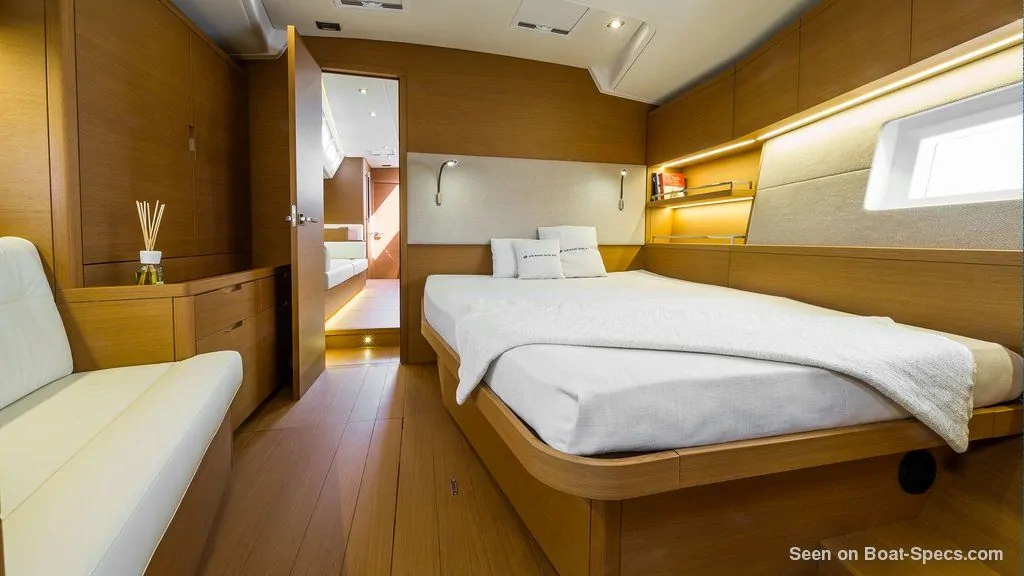

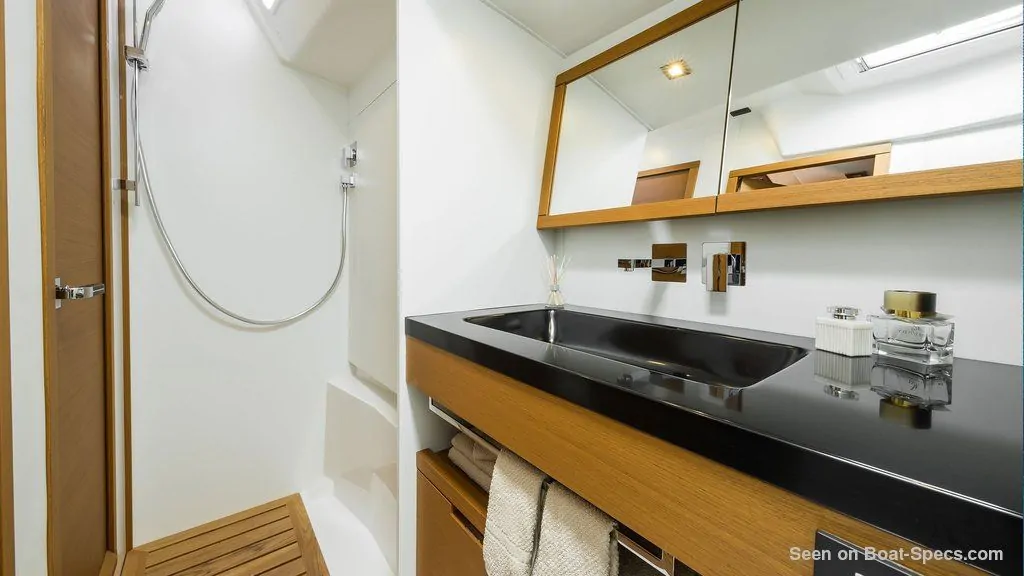

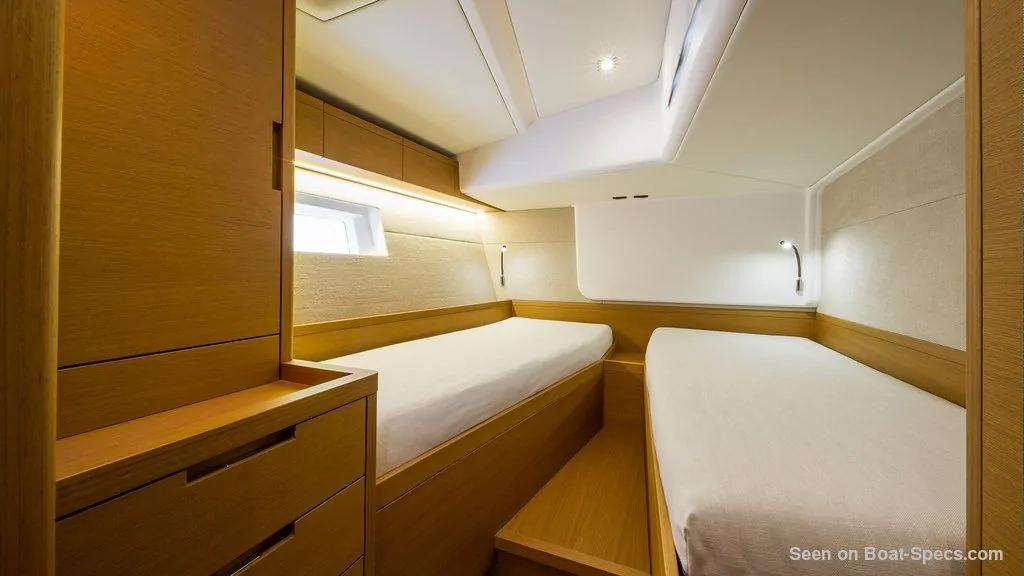

Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 10/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

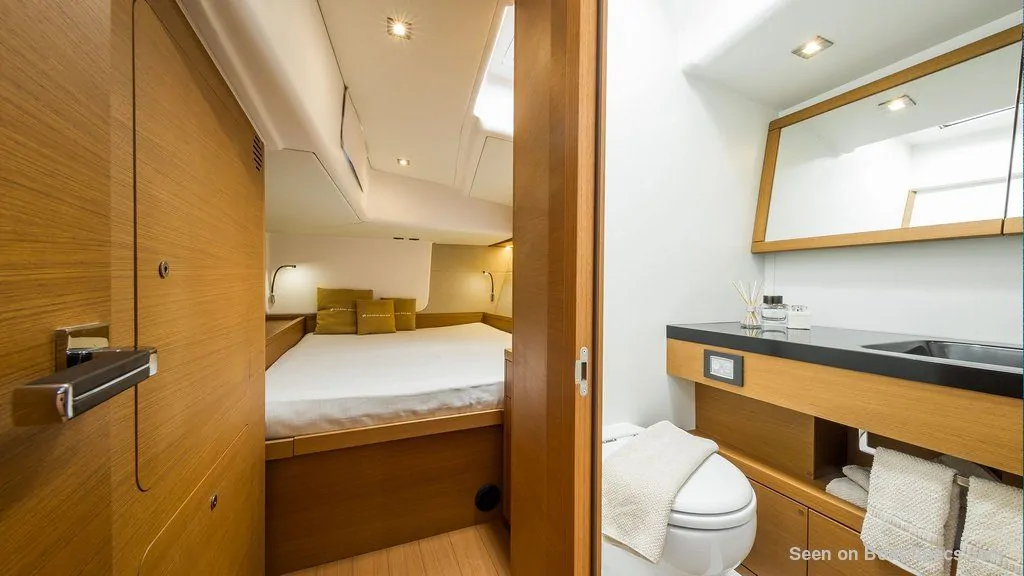

Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 11/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 12/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 13/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 58 interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
