Grand Soleil 50 - B&C Shoal draft
Sailboat specifications
The Grand Soleil 50 - B&C is a 49’8” (15.15m) cruiser-racer sailboat designed by Botin Carkeek (Spain). She is built since 2011 by Del Pardo, Cantiere (Italy). The Shoal draft version features a shorter keel to grant access to shallow areas.
The Grand Soleil 50 - B&C is as well listed, on Boat-Specs.com, in Standard and Race version (see all the versions compared).
The Grand Soleil 50 - B&C is as well listed, on Boat-Specs.com, in Standard and Race version (see all the versions compared).
Grand Soleil 50 - B&C's main features
- Model
- Grand Soleil 50 - B&C
- Version
- Shoal draft
- Hull type
- Monohull
- Category
- Offshore cruiser-racer sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Italy
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester (vacuum infusion) - First built hull
- 2011
- Last built hull
- Still in production
- Appendages
- Keel : T-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About469 000 €(2017)
Grand Soleil 50 - B&C's main dimensions
- Overall length
- 51’ 4”15.65 m
- Hull length
- 49’ 8”15.15 m
- Waterline length
- 44’13.42 m
- Beam (width)
- 15’4.58 m
- Draft
- 7’ 2”2.2 m
- Light displacement (MLC)
- 29762 lb13500 kg
- Ballast weight
- 10031 lb4550 kg
- Ballast type
- Cast iron fin with lead bulb
Grand Soleil 50 - B&C's rig and sails
- Upwind sail area
- 1496 ft²139 m²
- Mainsail area
- 775 ft²72 m²
- Genoa area
- 721 ft²67 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars (carbon fiber spars as an option)
Grand Soleil 50 - B&C's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 264 ft²/T24.52 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 158
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 34 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.89 knots
Grand Soleil 50 - B&C's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 75 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 81.9 gal310 liters
Grand Soleil 50 - B&C's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s)
- 3
- Berth(s) (min./max.)
- 6 / 8
- Head(s)
- 2
- Freshwater tank capacity
- 137.4 gal520 liters

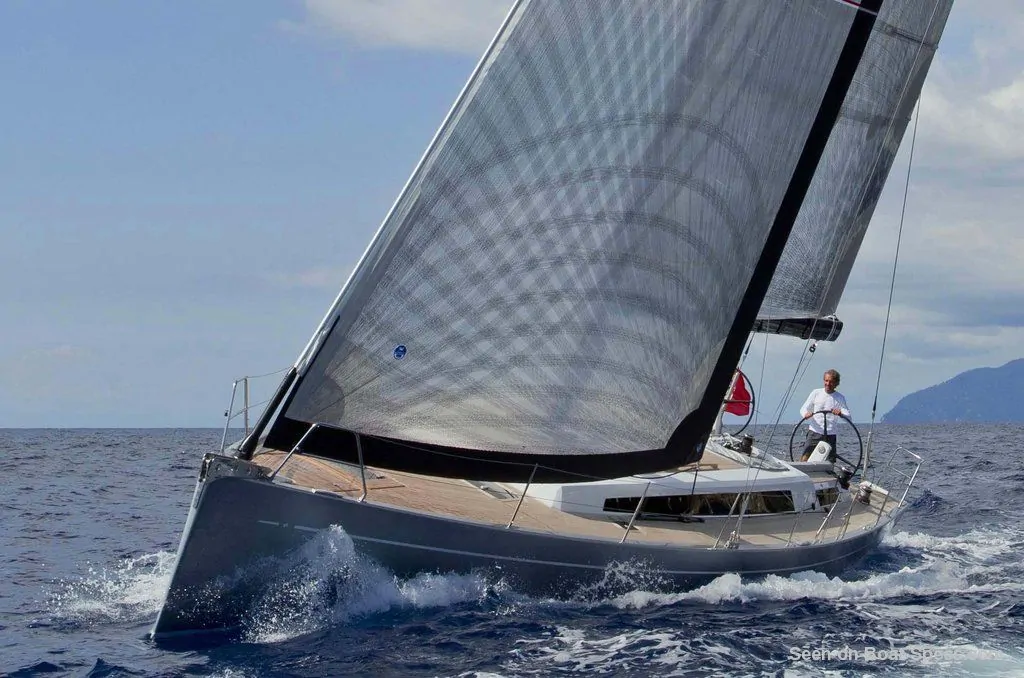

Cantiere Del Pardo Grand Soleil 50 - B&C - - 1/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

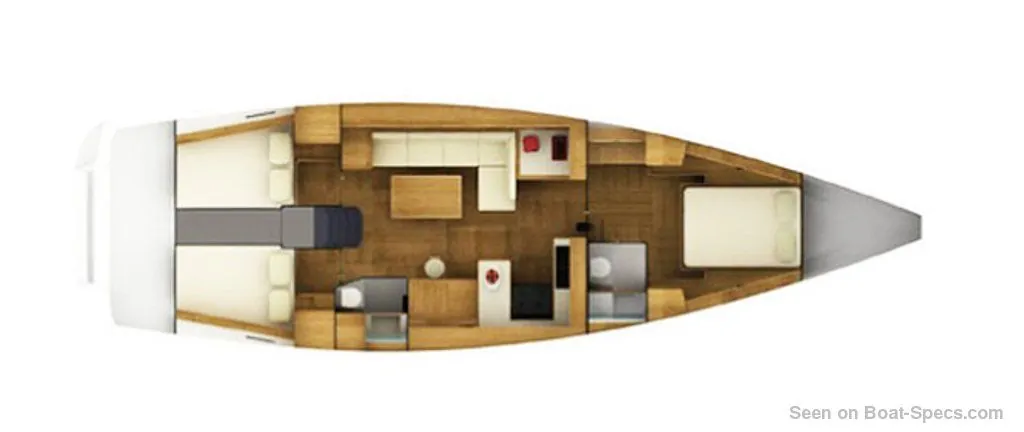

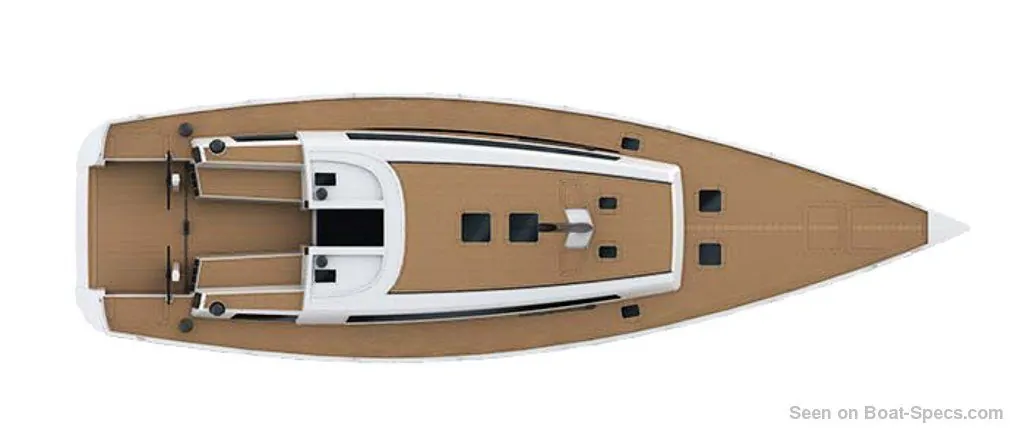

Cantiere Del Pardo Grand Soleil 50 - B&C layout - - 2/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C layout - - 3/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

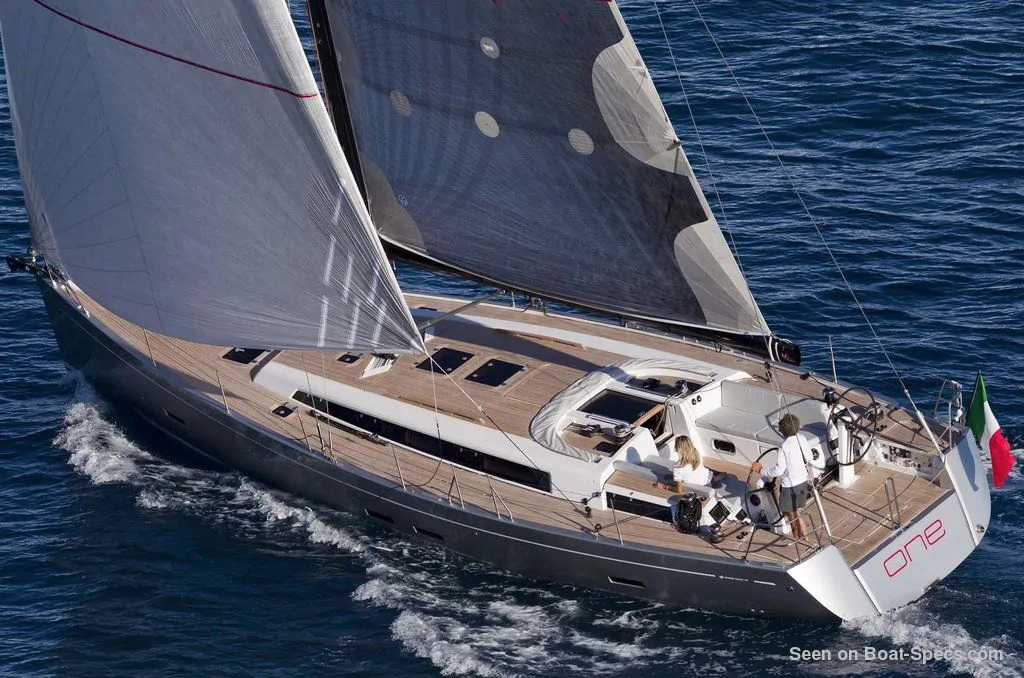

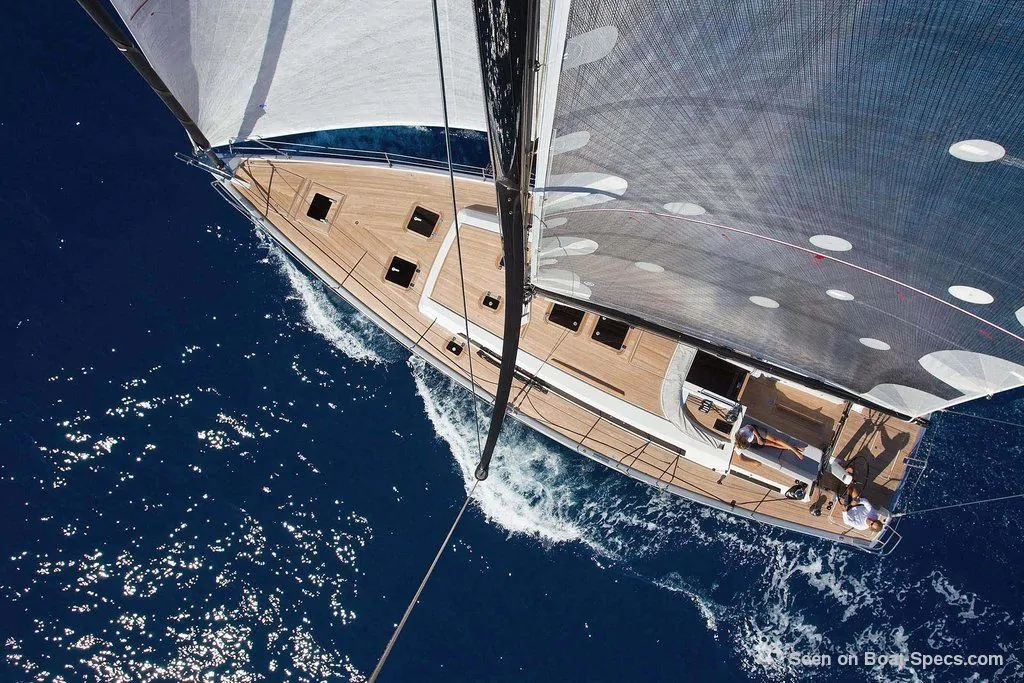

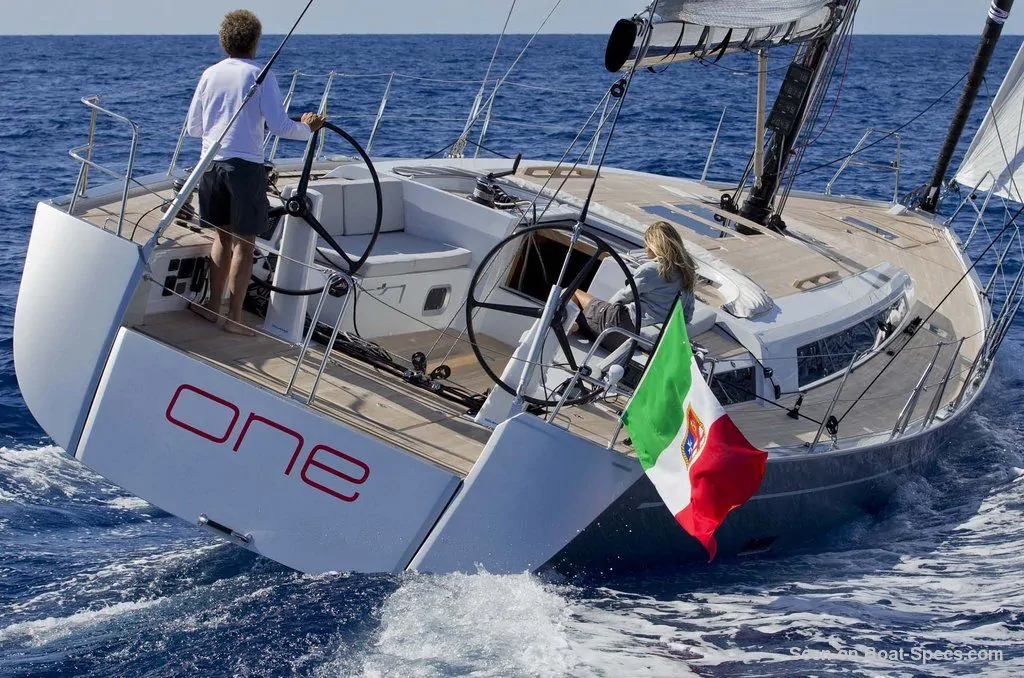

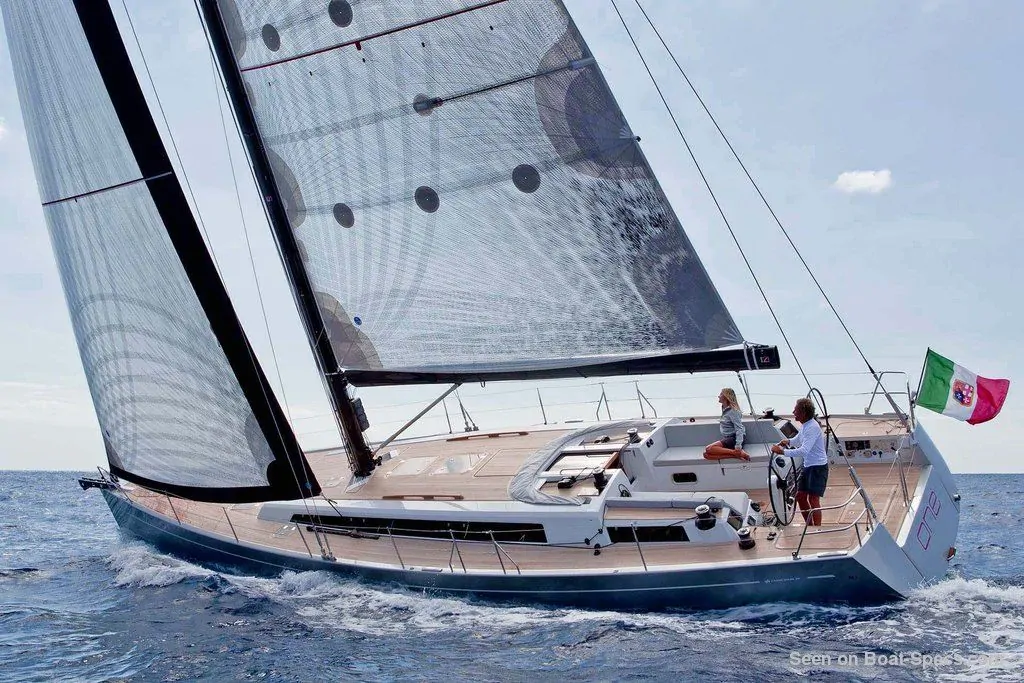

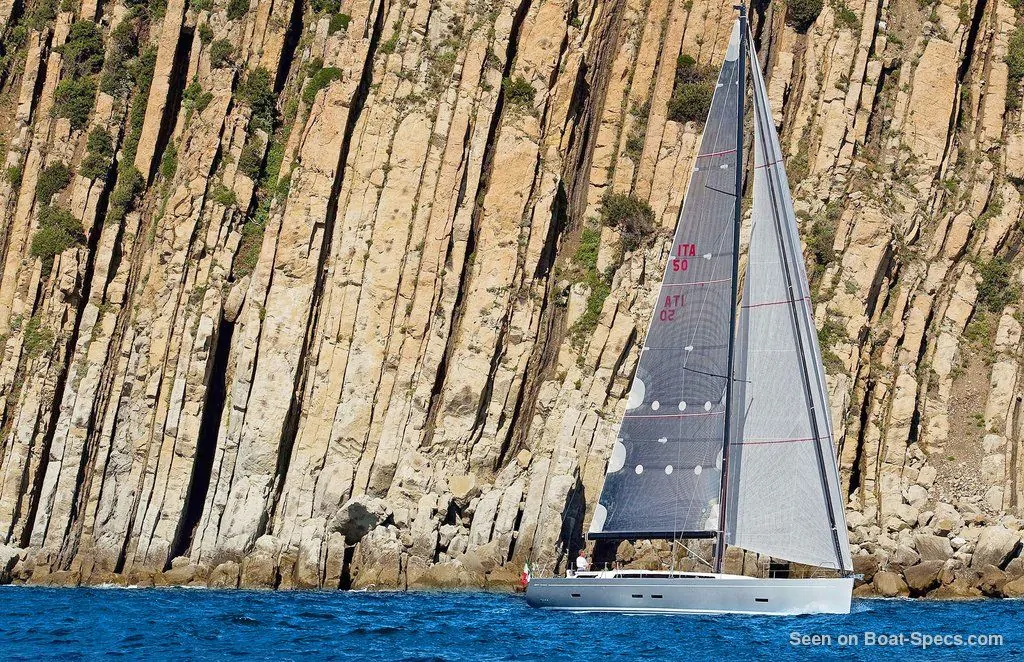

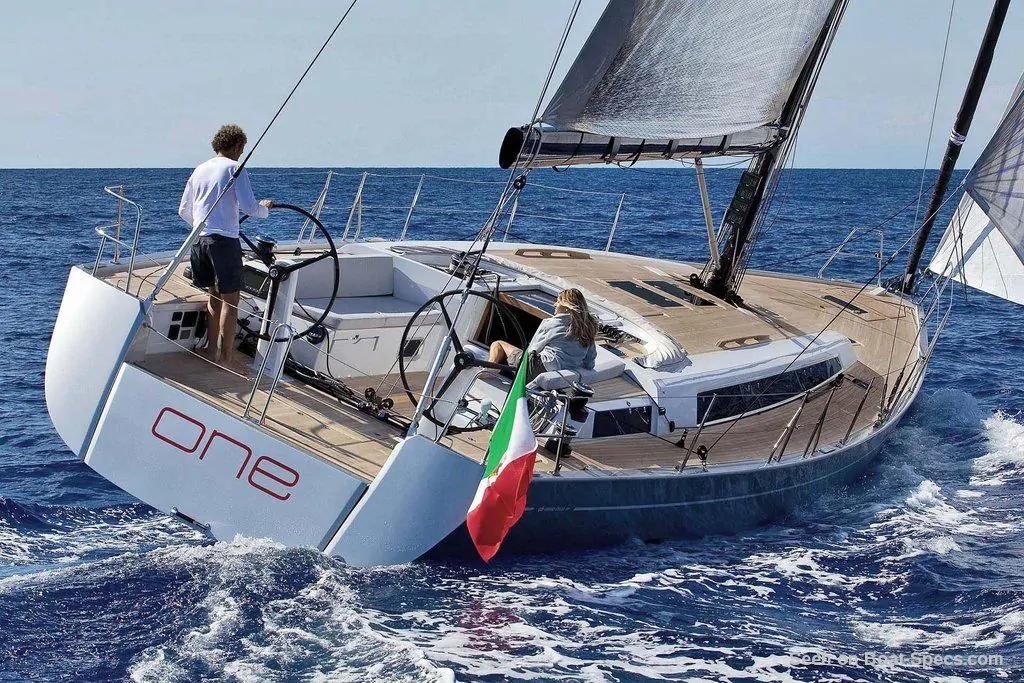

Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 4/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 5/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 6/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 7/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 8/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C sailing - - 9/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

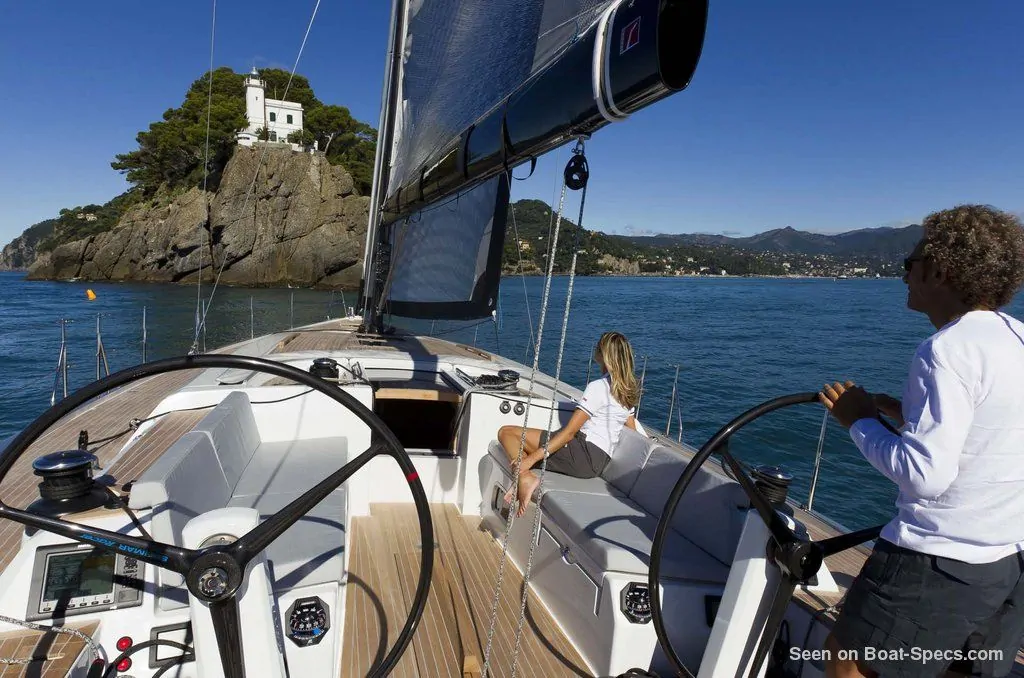

Cantiere Del Pardo Grand Soleil 50 - B&C cockpit - - 10/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo

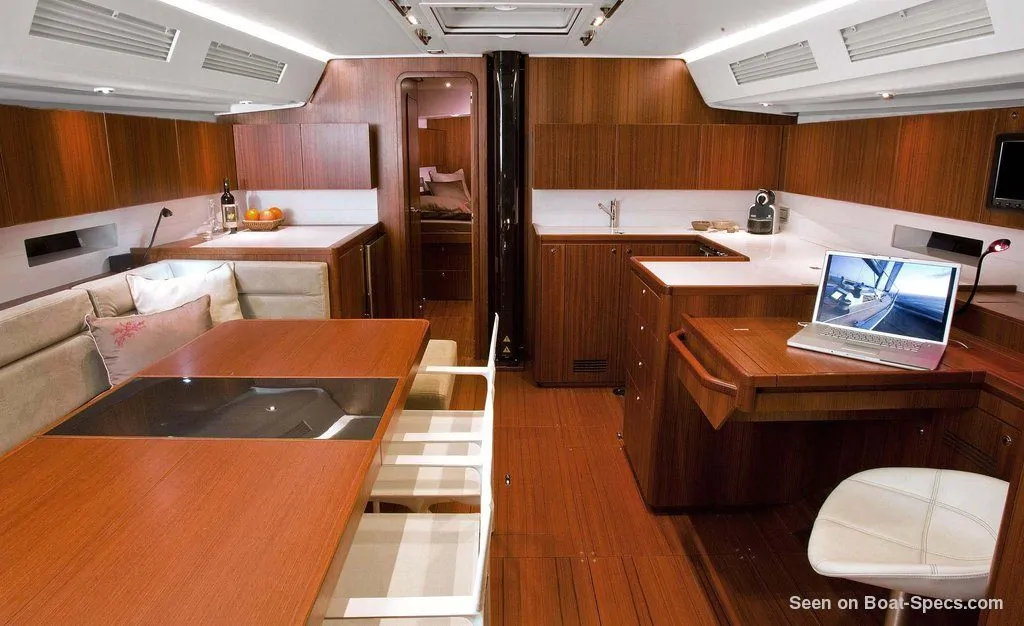

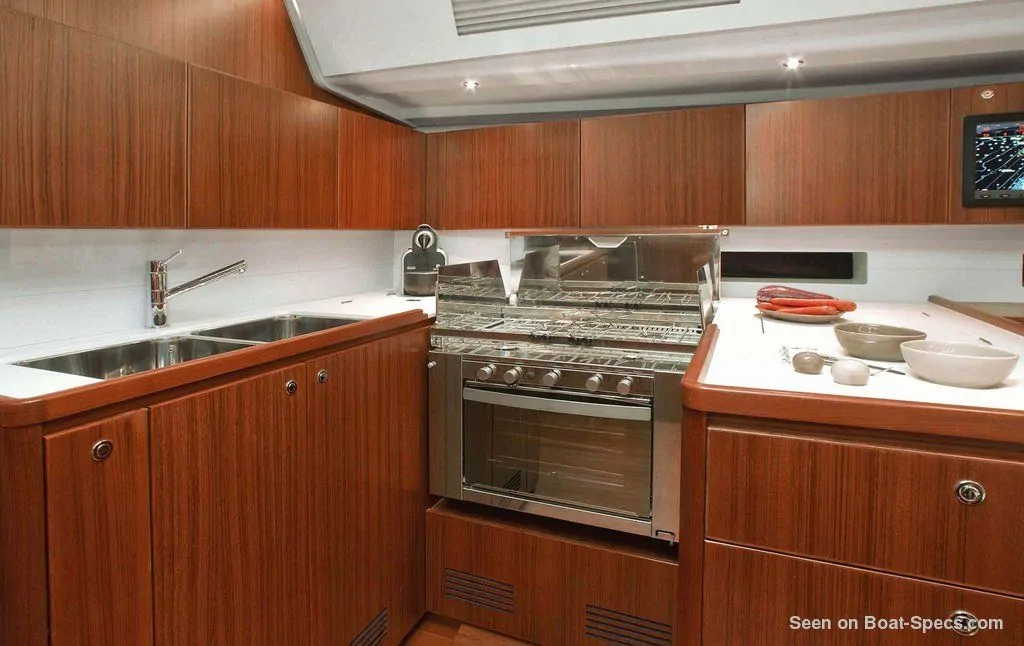

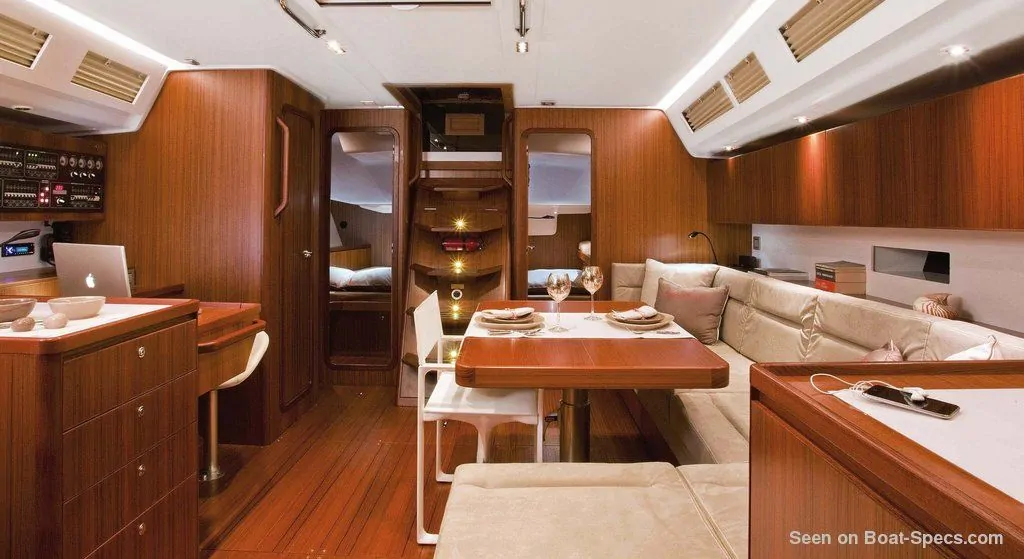

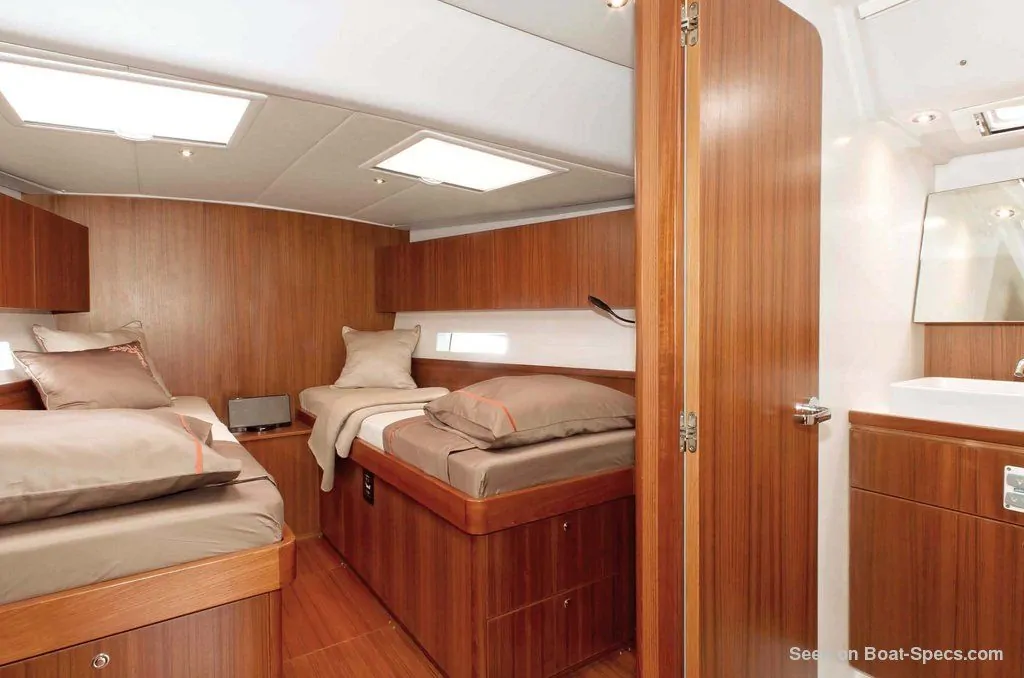

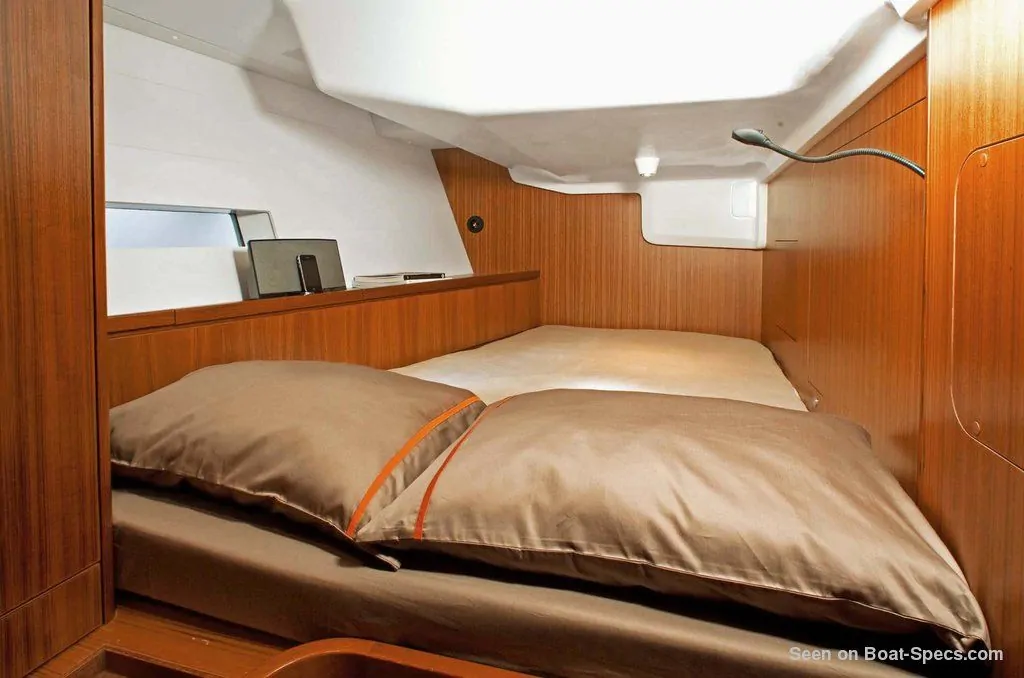

Cantiere Del Pardo Grand Soleil 50 - B&C interior and accommodations - - 11/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C interior and accommodations - - 12/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C interior and accommodations - - 13/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
Cantiere Del Pardo Grand Soleil 50 - B&C interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Cantiere Del Pardo
Picture extracted from the commercial documentation © Cantiere Del Pardo
