Grand Soleil 43 - B&C Deep draft

Sailboat specifications

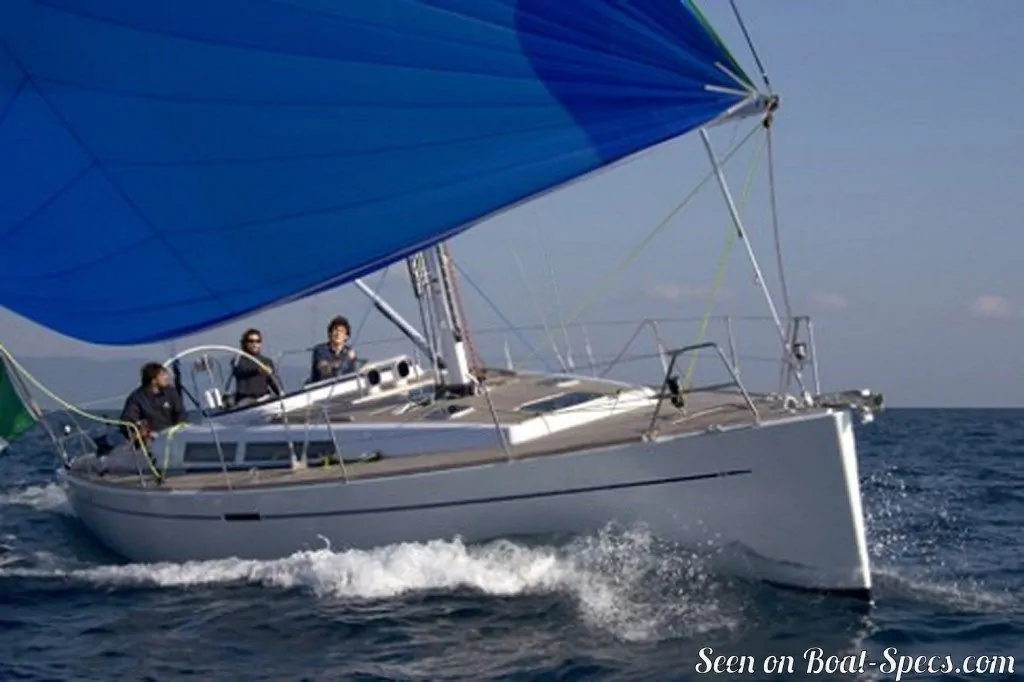

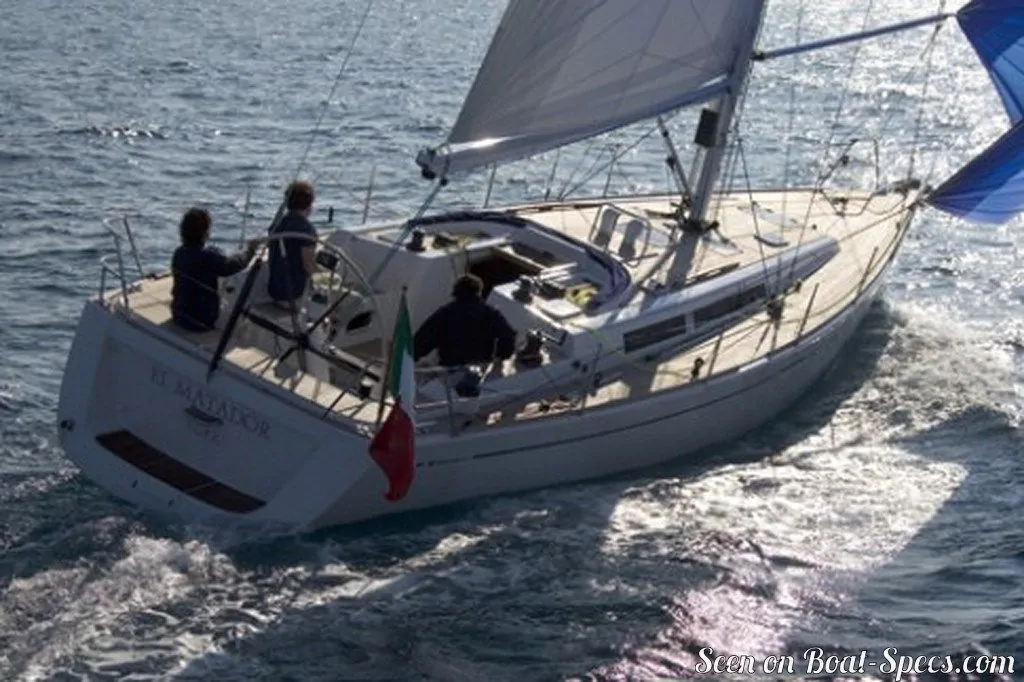

The Grand Soleil 43 - B&C is a 42’6” (12.95m) cruiser-racer sailboat designed by Botin Carkeek (Spain). She was built since 2006 (and now discontinued) by Del Pardo, Cantiere (Italy). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.

The Grand Soleil 43 - B&C is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).

Grand Soleil 43 - B&C's main features

Model: Grand Soleil 43 - B&C
Version: Deep draft
Hull type: Monohull
Category: Offshore cruiser-racer sailboat
Sailboat builder: Cantiere Del Pardo
Sailboat designer: Botin Carkeek
Sailboat range: Grand Soleil
Country: Italy
Construction: GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame
First built hull: 2006
Last built hull: Discontinued
Appendages: Keel : L-shaped keel (with bulb)

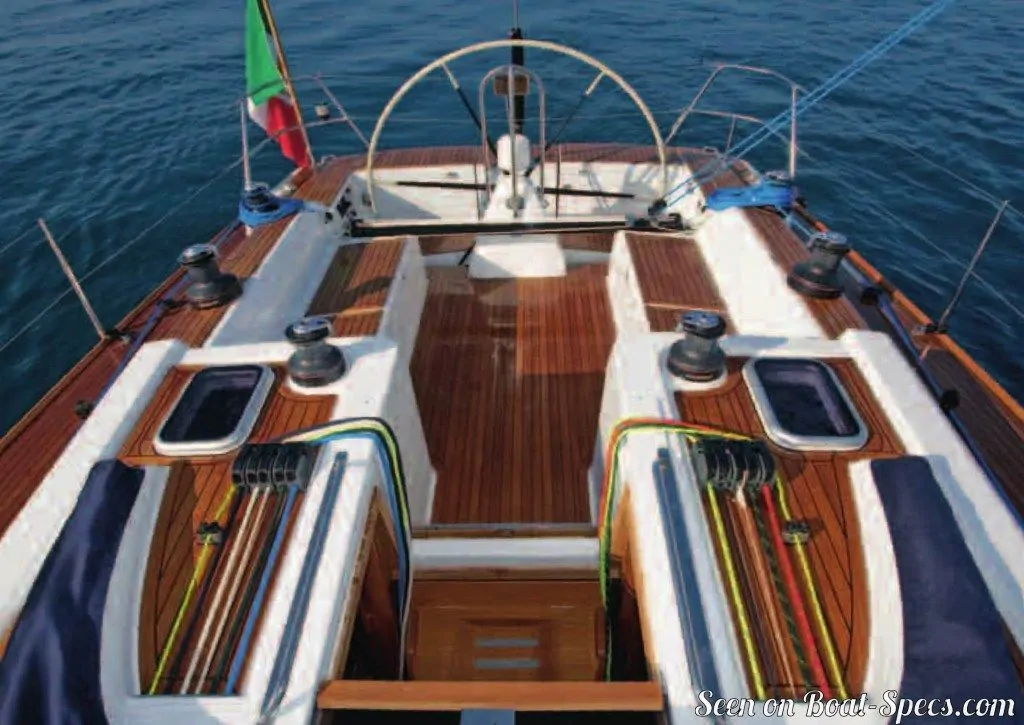

Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Grand Soleil 43 - B&C's main dimensions

Overall length: 43’ 6”13.25 m
Hull length: 42’ 6”12.95 m
Waterline length: 37’ 5”11.4 m
Beam (width): 13’3.95 m
Draft: 8’ 2”2.5 m
Light displacement (M_LC): 19621 lb8900 kg
Ballast weight: 6283 lb2850 kg
Ballast type: Cast iron fin with lead bulb

Grand Soleil 43 - B&C's rig and sails

Upwind sail area: 1130 ft²105 m²
Downwind sail area: 2045 ft²190 m²
Mainsail area: 592 ft²55 m²
Genoa area: 538 ft²50 m²
Symmetric spinnaker area: 1453 ft²135 m²
Rigging type: Sloop Marconi 9/10
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars (carbon fiber spars as an option)

Grand Soleil 43 - B&C's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 263 ft²/T24.45 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 476 ft²/T44.24 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 170
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 32 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.20 knots
