Sense 57 Deep draft
Sailboat specifications
The Sense 57 is a 55’1” (16.8m) cruising sailboat designed by Berret Racoupeau Yachts Design (France). She was built between 2016 and 2018 by Bénéteau (France). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.
The Sense 57 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
The Sense 57 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).
Sense 57's main features
- Model
- Sense 57
- Version
- Deep draft
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- France
- Construction
- GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester - First built hull
- 2016
- Last built hull
- 2018
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About404 000 €(2017)
Sense 57's main dimensions
- Overall length
- 58’ 4”17.78 m
- Hull length
- 55’ 1”16.8 m
- Waterline length
- 52’ 4”15.93 m
- Beam (width)
- 16’ 4”4.97 m
- Draft
- 7’ 11”2.4 m
- Mast height from DWL
- 78’ 5”23.91 m
- Light displacement (MLC)
- 41403 lb18780 kg
- Ballast weight
- 10803 lb4900 kg
- Ballast type
- Cast iron

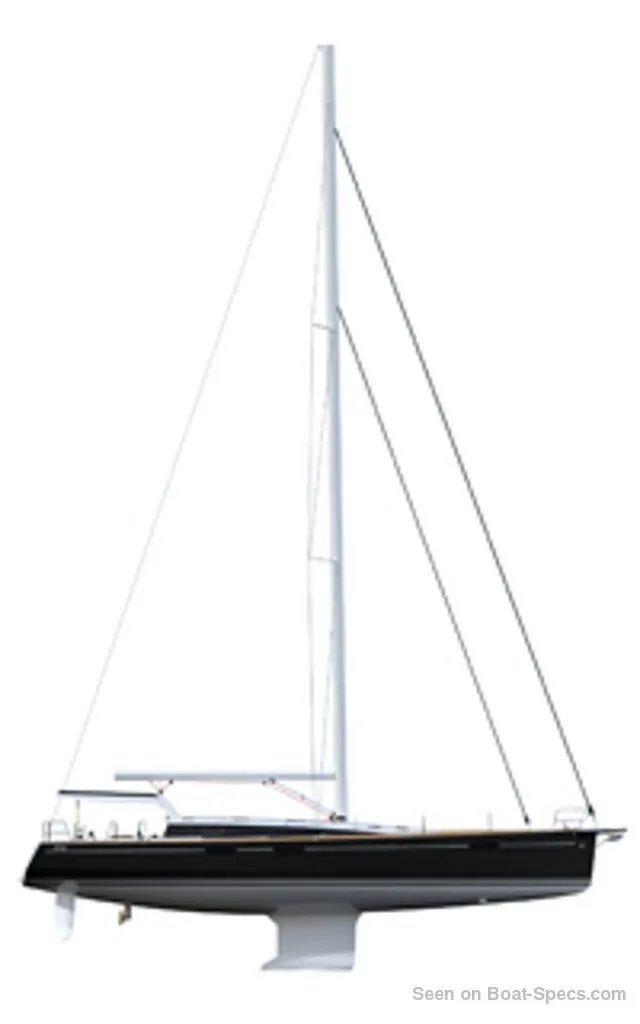

Sense 57's rig and sails
- Upwind sail area
- 1641 ft²152.5 m²
- Downwind sail area
- 3039 ft²282.3 m²
- Mainsail area
- 797 ft²74 m²
- Genoa area
- 845 ft²78.5 m²
- Jib area
- 635 ft²59 m²
- Staysail area
- 366 ft²34 m²
- Asymmetric spinnaker area
- 2242 ft²208.3 m²
- Code 0 area
- 1238 ft²115 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 69’ 8”21.25 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 24’7.31 m
- PiMainsail hoist measurement (from tack to head)
- 66’ 4”20.2 m
- EiMainsail foot measurement (from tack to clew)
- 20’ 10”6.35 m
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire
Sense 57's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 232 ft²/T21.58 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 430 ft²/T39.96 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 132
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 26 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 9.69 knots
Sense 57's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 80 HP / 110 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 109.6 gal415 liters

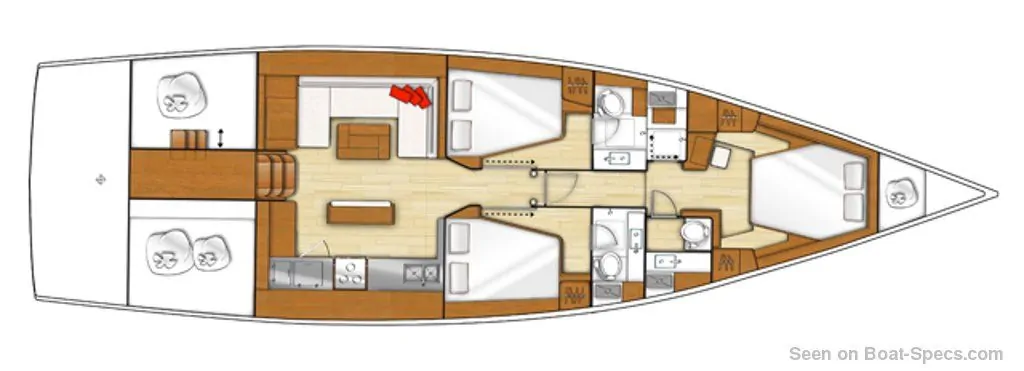

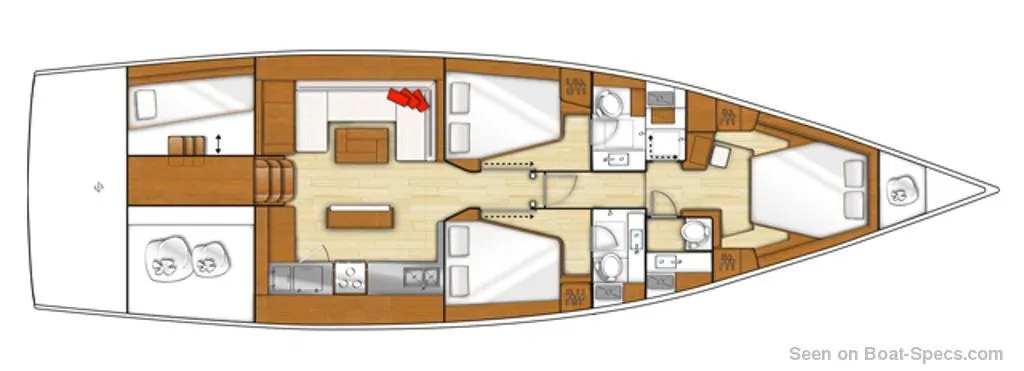

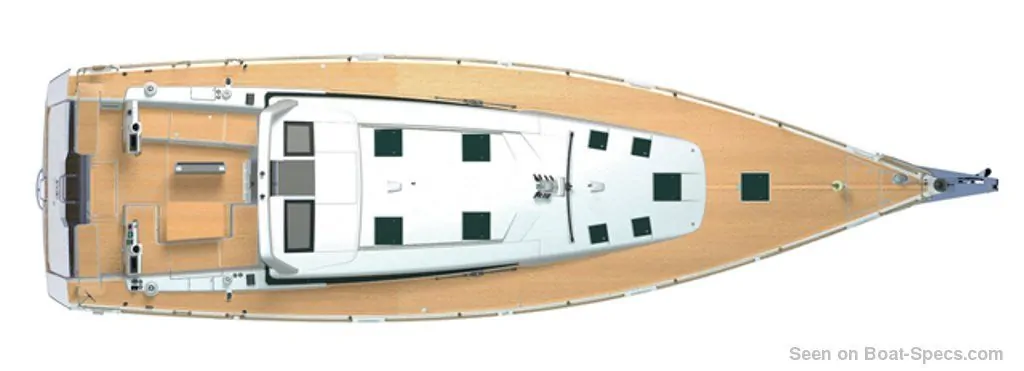

Sense 57's accommodations and layout
- Cockpit
- Closing aft cockpit with opening system
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 8
- Head(s)
- 3
- Freshwater tank capacity
- 169.1 gal640 liters
- Holding tank capacity
- 21.1 gal80 liters
- Fridge/ice-box capacity
- 79.3 gal300 liters
- Boiler capacity
- 10.6 gal40 liters
- Maximum headroom
- 6’ 7”2 m
- Galley headroom
- 6’ 6”1.97 m

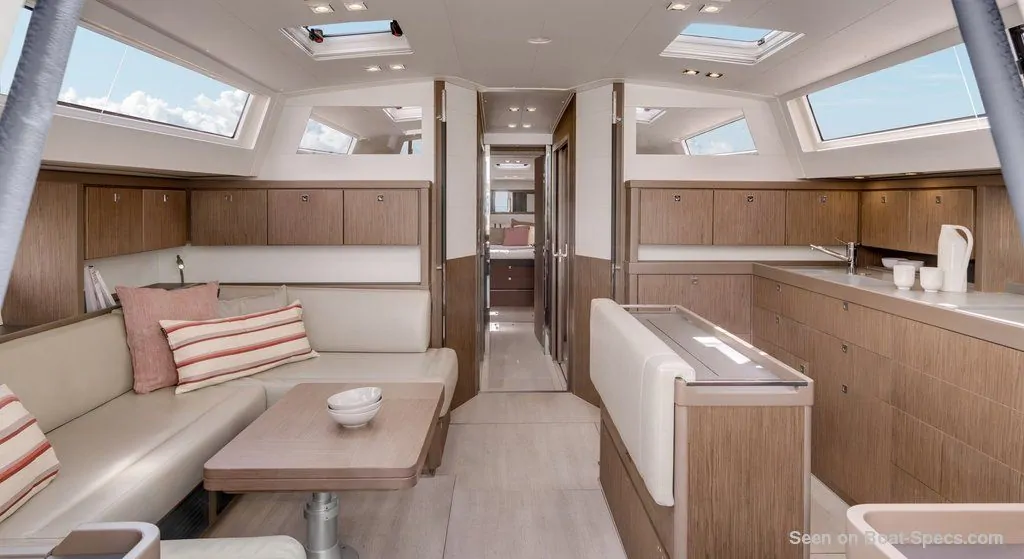

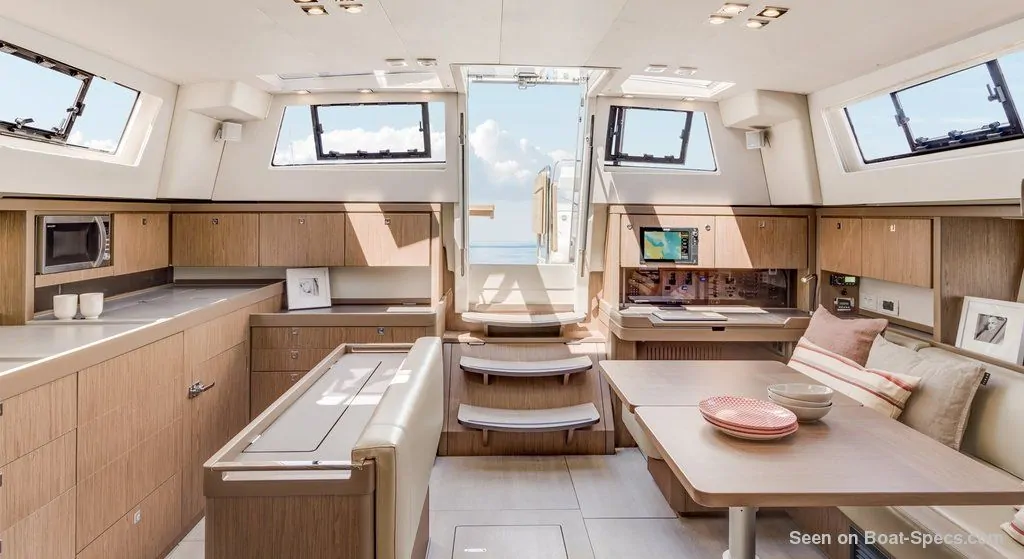

Sense 57's saloon
- Maximum headroom
- 6’ 6”1.98 m
Sense 57's fore cabin
- Maximum headroom
- 6’ 5”1.94 m
- Berth length
- 6’ 8”2.03 m
- Berth width (head/feet)
- 5’ 7”1.7 m / 4’1.21 m
Sense 57's aft cabin
- Maximum headroom
- 6’ 6”1.97 m
- Berth length
- 6’ 7”2 m
- Berth width (head/feet)
- 5’ 1”1.56 m / 3’ 4”1 m

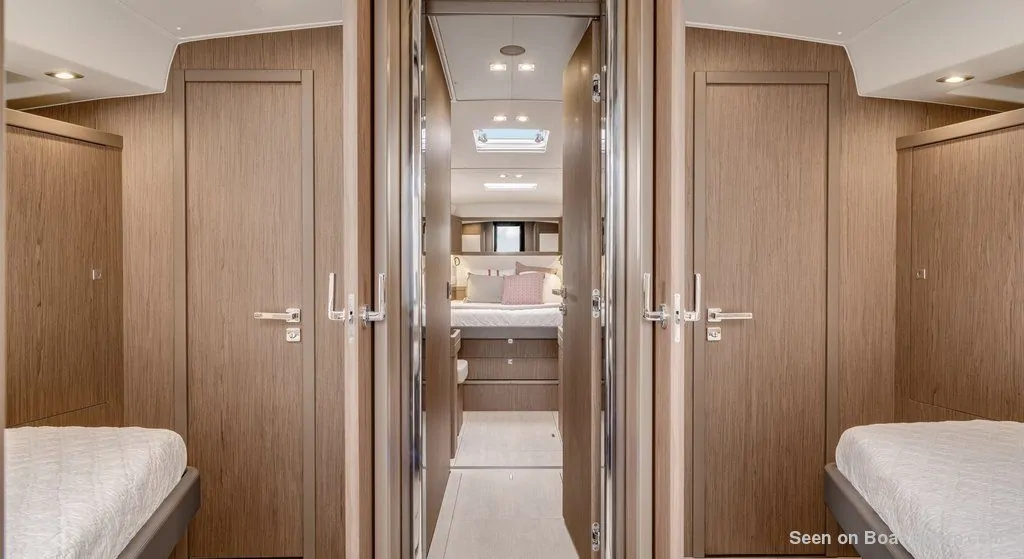

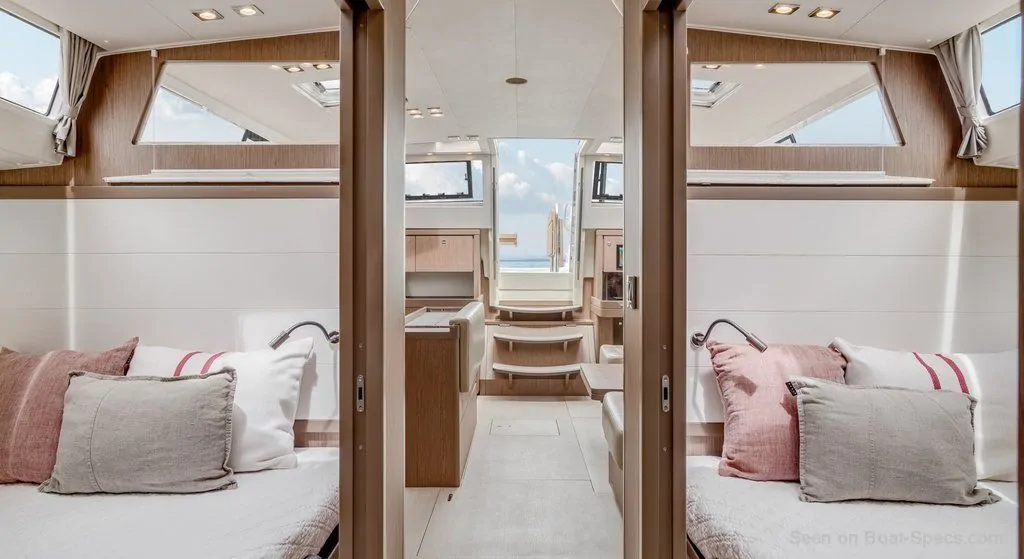

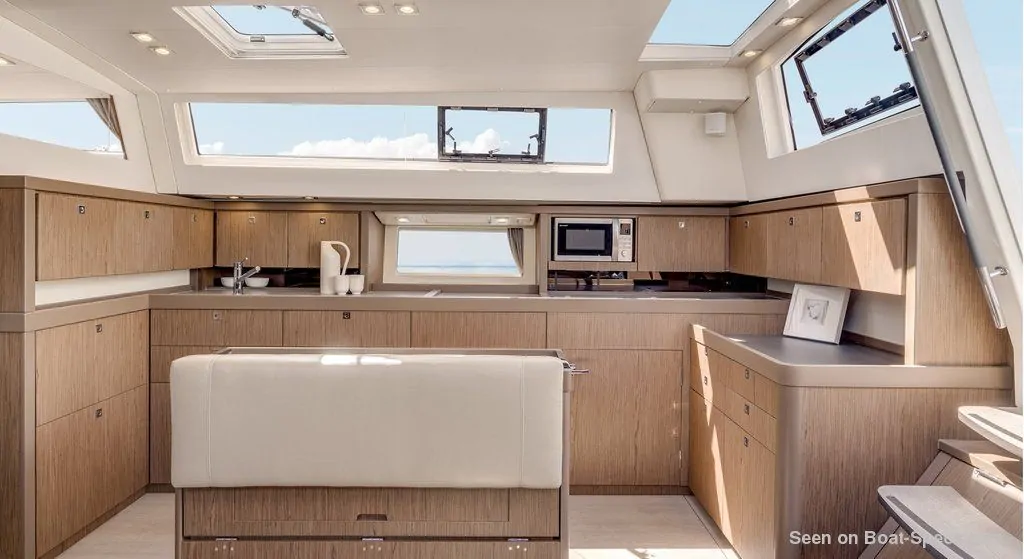

Bénéteau Sense 57 interior and accommodations - - 12/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
Bénéteau Sense 57 interior and accommodations - - 13/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
Bénéteau Sense 57 interior and accommodations - - 14/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
Bénéteau Sense 57 interior and accommodations - - 15/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
Bénéteau Sense 57 interior and accommodations - - 16/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
Bénéteau Sense 57 interior and accommodations - - 17/17
Picture extracted from the commercial documentation © Bénéteau
Picture extracted from the commercial documentation © Bénéteau
