Océanis 45 Deep draft

Sailboat specifications

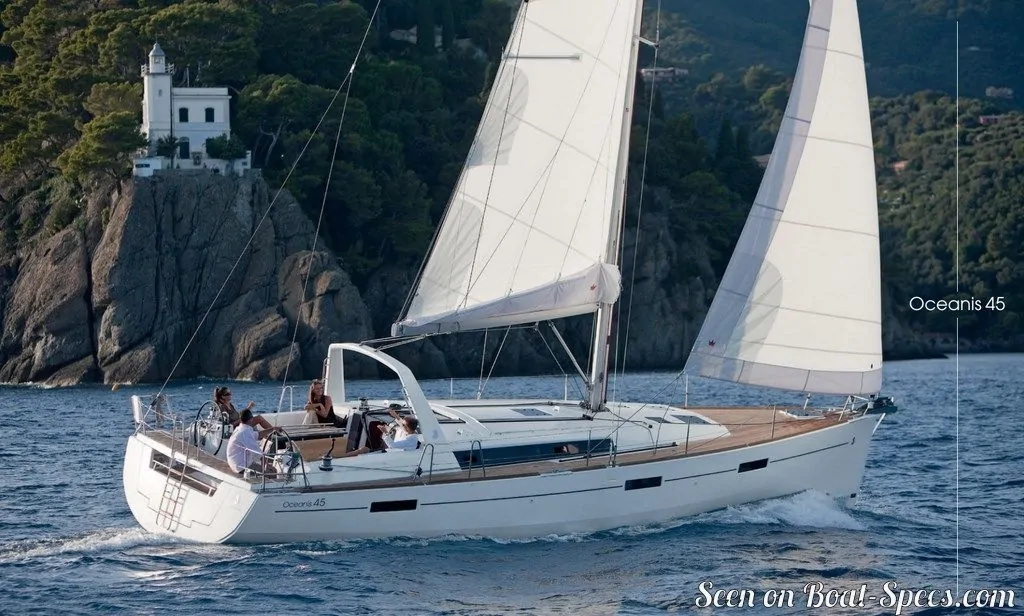

The Océanis 45 is a 44’4” (13.5m) cruising sailboat designed by Finot Conq Architectes (France). She was built between 2011 and 2018 by Bénéteau (France). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind. She has been awarded "2012 - European Yacht of the Year: Family Cruiser".

The Océanis 45 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Océanis 45's main features

Model

Océanis 45

Version

Deep draft

Hull type

Monohull

Category

Cruising sailboat

Sailboat builder

Bénéteau

Sailboat designer

Finot Conq Architectes

Sailboat range

Océanis

Country

France

Construction

GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester

First built hull

2011

Last built hull

2018

Award(s)

2012: European Yacht of the Year: Family Cruiser

Appendages

Keel : L-shaped keel (with bulb)

Helm

Twin helm wheels

Rudder

Single spade rudder

Unsinkable

Trailerable

EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m

Standard public price ex. VAT (indicative only)

About

213 000 €

(2017)

Océanis 45's main dimensions

Overall length: 45’ 8”13.94 m
Hull length: 44’ 4”13.5 m
Waterline length: 42’ 7”12.98 m
Beam (width): 14’ 10”4.5 m
Draft: 7’ 5”2.27 m
Mast height from D_WL: 67’ 7”20.6 m
Light displacement (M_LC): 23257 lb10549 kg
Ballast weight: 6191 lb2808 kg
Ballast type: Cast iron

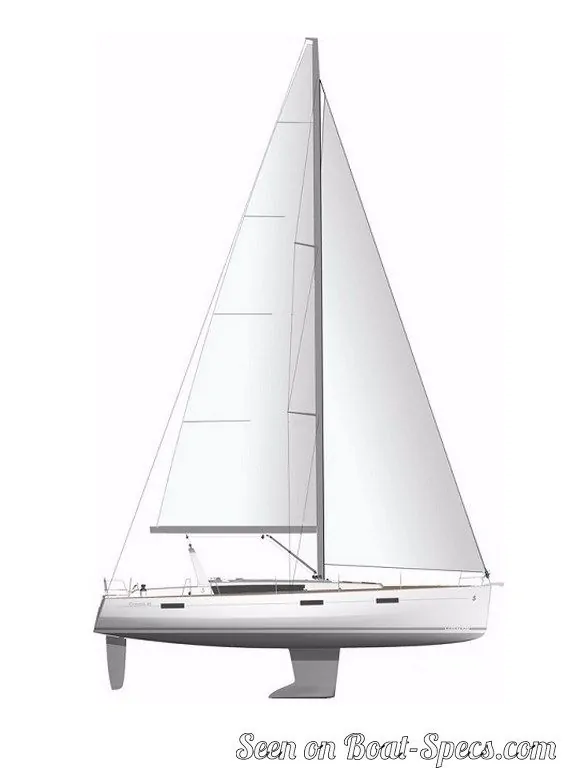

Océanis 45's rig and sails

Upwind sail area: 1076 ft²100 m²
Downwind sail area: 2217 ft²206 m²
Mainsail area: 538 ft²50 m²
Genoa area: 538 ft²50 m²
Asymmetric spinnaker area: 1679 ft²156 m²
I iFore triangle height (from mast foot to fore stay top attachment): 57’ 2”17.43 m
J iFore triangle base (from mast foot to bottom of forestay): 18’ 6”5.65 m
P iMainsail hoist measurement (from tack to head): 53’ 8”16.36 m
E iMainsail foot measurement (from tack to clew): 17’ 10”5.43 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Océanis 45's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 224 ft²/T20.79 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 461 ft²/T42.83 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 137
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 27 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.74 knots
