First 30E S / Deep draft

Sailboat specifications

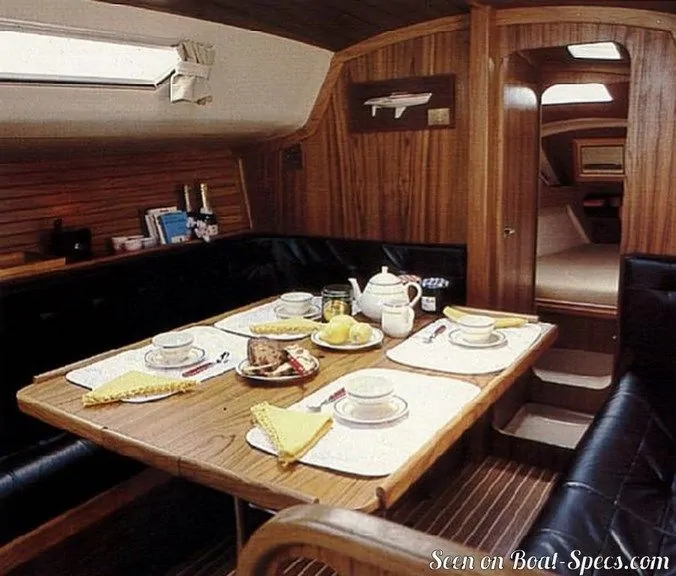

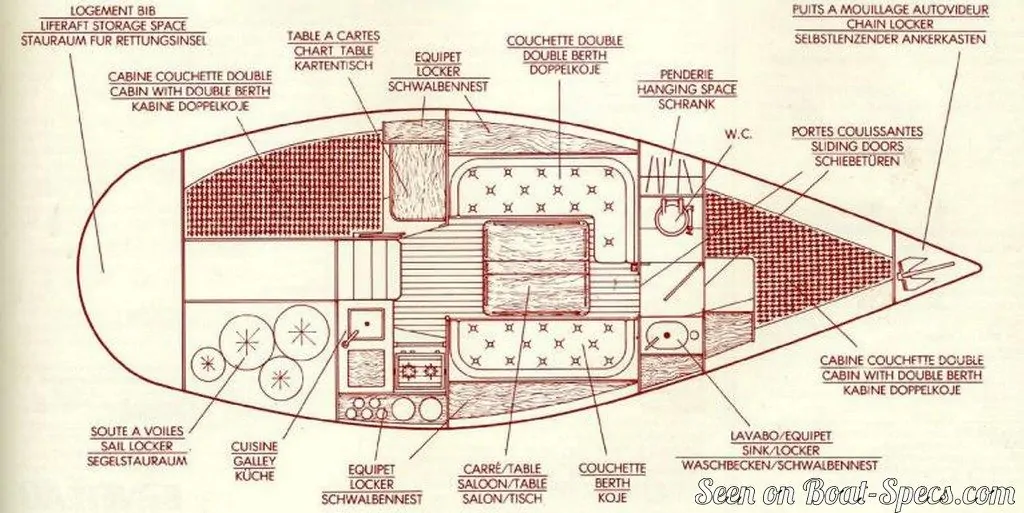

The First 30E is a 30’4” (9.25m) cruiser-racer sailboat designed by Jean Berret (France). She was built between 1981 and 1984 by Bénéteau (France) with 443 hulls completed. The S / Deep draft version is offered with simpler and more race-oriented accommodations to provide a lighter displacement. She adopts a 7/8 rig allowing finer trim option and ultimately more performance.

The First 30E is as well listed, on Boat-Specs.com, in Deep draft and Shoal draft version (see all the versions compared).

First 30E's main features

Model: First 30E
Version: S / Deep draft
Hull type: Monohull
Category: Cruiser-racer sailboat
Sailboat builder: Bénéteau
Sailboat designer: Jean Berret
Sailboat range: First
Sailboat collection: Half Ton class
Country: France

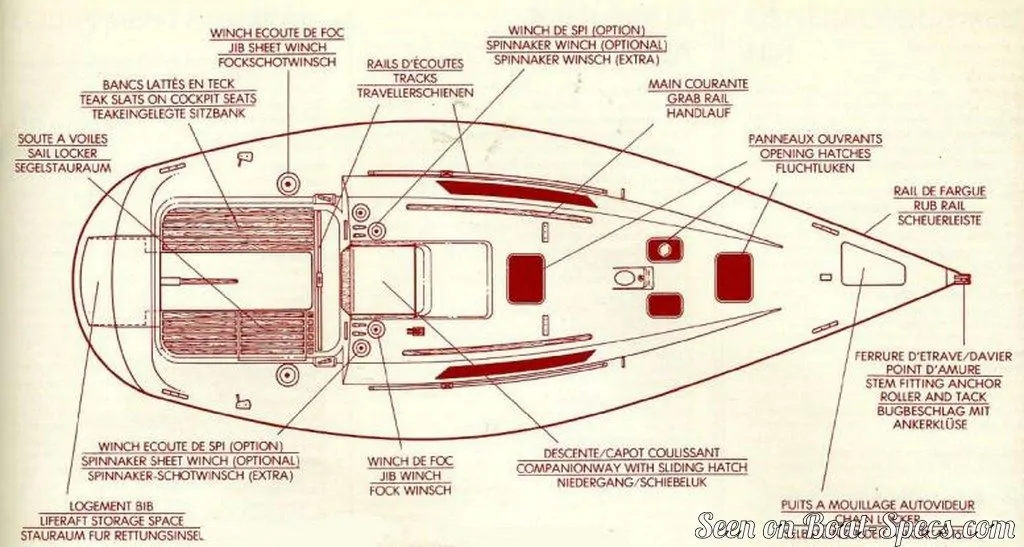

Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
Number of hulls built: 443
First built hull: 1981
Last built hull: 1984
Appendages: Keel : fin without bulb
Helm: Single tiller
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 2
Standard public price ex. VAT (indicative only): N/A €

First 30E's main dimensions

Overall length: 31’ 10”9.7 m
Hull length: 30’ 4”9.25 m
Waterline length: 25’ 4”7.71 m
Beam (width): 10’ 7”3.23 m
Waterline beam (width): 8’ 6”2.58 m
Draft: 5’ 10”1.77 m
Mast height from D_WL: 41’ 6”12.65 m
Fore freeboard: 3’ 6”1.08 m
Mid-ship freeboard: 3’0.9 m
Light displacement (M_LC): 6834 lb3100 kg
Maximum displacement (M_LDC): 8929 lb4050 kg
Ballast weight: 2976 lb1350 kg
Ballast type: Cast iron
French customs tonnage: 7.92 Tx

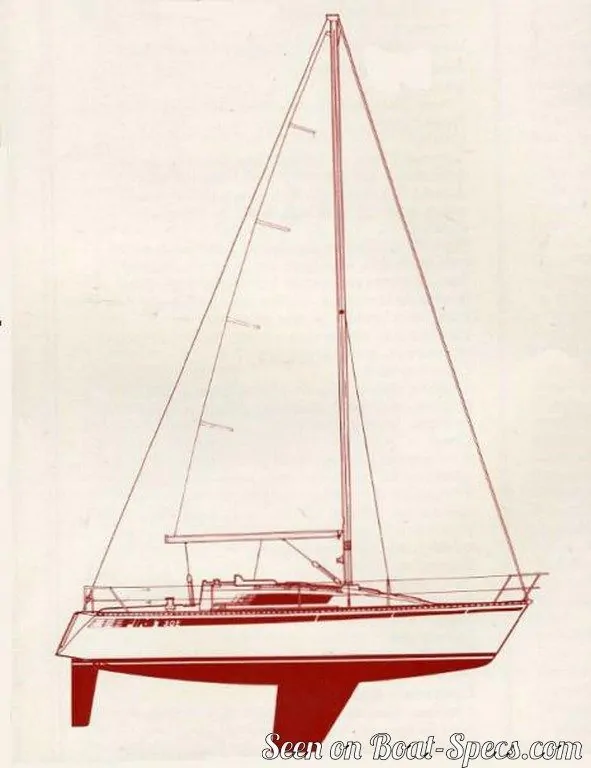

First 30E's rig and sails

Upwind sail area: 544 ft²50.5 m²
Downwind sail area: 906 ft²84.2 m²
Mainsail area: 250 ft²23.2 m²
Genoa area: 294 ft²27.3 m²
Solent area: 256 ft²23.8 m²
Jib area: 211 ft²19.6 m²
Symmetric spinnaker area: 657 ft²61 m²
I iFore triangle height (from mast foot to fore stay top attachment): 37’ 8”11.5 m
J iFore triangle base (from mast foot to bottom of forestay): 11’ 4”3.45 m
P iMainsail hoist measurement (from tack to head): 32’ 6”9.9 m
E iMainsail foot measurement (from tack to clew): 11’3.35 m
Rigging type: Sloop Marconi 7/8
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: 0 °
Running backstays: 2 set(s)
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

First 30E's performances

HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 16.0
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 256 ft²/T23.75 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 426 ft²/T39.6 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 192
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 44 %
Wetted area: 202 ft²18.8 m²
Righting moment @ 1° iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle. Higher the righting moment is for an angle, greater is the stability.: 439 lb.ft61 kg.m
Maximum transverse section: 12 ft²1.07 m²
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.74 knots
