First 29 Keel and centerboard

Sailboat specifications

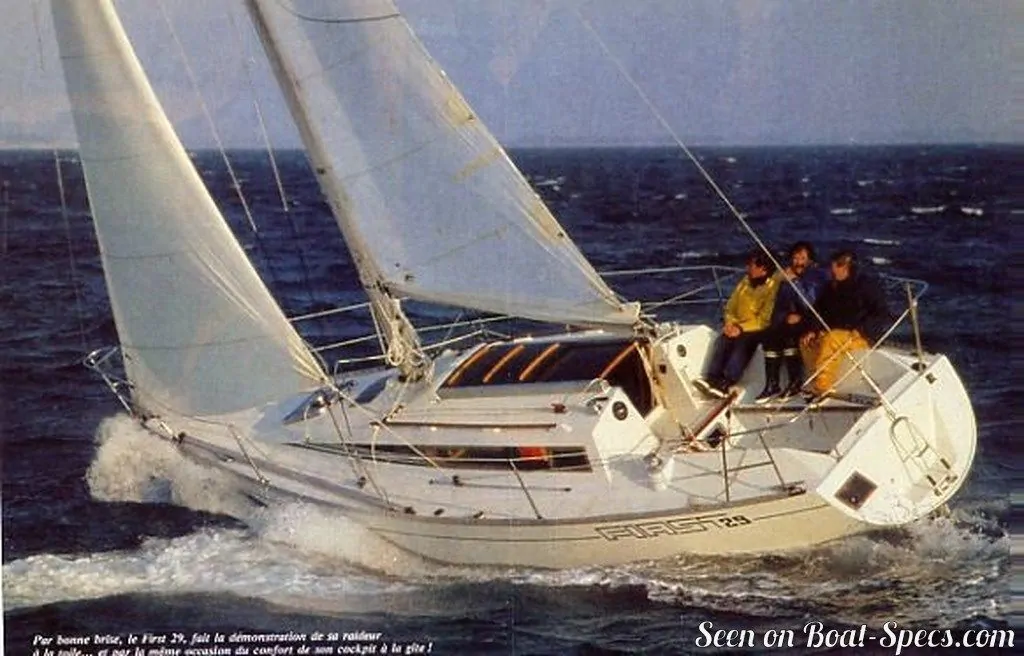

The First 29 is a 28’6” (8.7m) cruiser-racer sailboat designed by Groupe Finot (France). She was built between 1983 and 1989 by Bénéteau (France) with 520 hulls completed. The Keel and centerboard version features a centerboard inside of a short fin-keel allowing shoal draft while maintaining upwind capabilities.

The First 29 is as well listed, on Boat-Specs.com, in Deep draft and Shoal draft version (see all the versions compared).

First 29's main features

Model: First 29
Version: Keel and centerboard
Hull type: Monohull
Category: Cruiser-racer sailboat
Sailboat builder: Bénéteau
Sailboat designer: Groupe Finot
Sailboat range: First
Country: France
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
Number of hulls built: 520
First built hull: 1983
Last built hull: 1989
Appendages: Centerboard : pivoting centerboard in the keel
Helm: Single tiller
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 2
Standard public price ex. VAT (indicative only): N/A €

First 29's main dimensions

Overall length: 29’ 6”9 m
Hull length: 28’ 6”8.7 m
Waterline length: 24’ 7”7.5 m
Beam (width): 9’ 11”3.02 m
Draft: 6’ 7”2 m
Draft when appendages up: 2’ 5”0.72 m
Light displacement (M_LC): 6614 lb3000 kg
Ballast weight: 2205 lb1000 kg
Ballast type: Cast iron exterior ballast with steel centerboard
French customs tonnage: 7.40 Tx

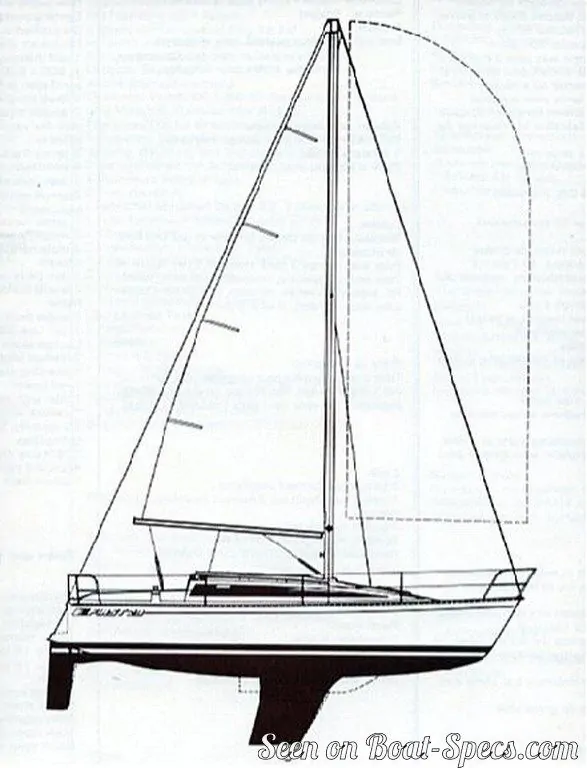

First 29's rig and sails

Upwind sail area: 501 ft²46.5 m²
Downwind sail area: 893 ft²83 m²
Mainsail area: 183 ft²17 m²
Genoa area: 318 ft²29.5 m²
Solent area: 251 ft²23.3 m²
Jib area: 167 ft²15.5 m²
Stormjib area: 46 ft²4.3 m²
Symmetric spinnaker area: 710 ft²66 m²
I iFore triangle height (from mast foot to fore stay top attachment): 34’ 5”10.5 m
J iFore triangle base (from mast foot to bottom of forestay): 11’ 10”3.6 m
P iMainsail hoist measurement (from tack to head): 29’ 11”9.12 m
E iMainsail foot measurement (from tack to clew): 10’ 10”3.28 m
Rigging type: Sloop Marconi masthead
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

First 29's performances

HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 16.0
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 241 ft²/T22.35 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 429 ft²/T39.9 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 201
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 33 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.65 knots
