Bénéteau R/C 42 S / Deep draft

Sailboat specifications

The Bénéteau R/C 42 is a 41’11” (12.77m) cruiser-racer sailboat designed by Frers Naval Architecture & Engineering (Argentina). She was built between 1981 and 1985 by Bénéteau (France). The S / Deep draft version offers a deeper keel, longer mast, and larger sail area.

The Bénéteau R/C 42 has also been marketed as First 42 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Bénéteau R/C 42's main features

Model: Bénéteau R/C 42
Version: S / Deep draft
Hull type: Monohull
Category: Offshore cruiser-racer sailboat
Sailboat builder: Bénéteau
Sailboat designer: Frers Naval Architecture & Engineering
Country: France
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
First built hull: 1981
Last built hull: 1985
Appendages: Keel : fin without bulb

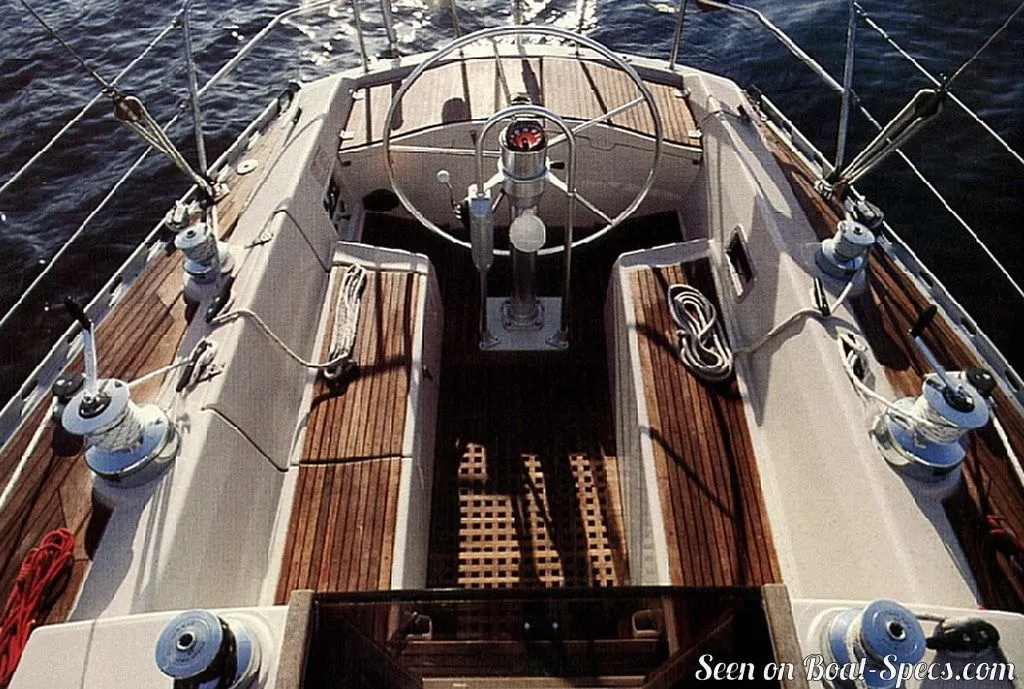

Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 1
Standard public price ex. VAT (indicative only): N/A €

Bénéteau R/C 42's main dimensions

Overall length: 43’ 4”13.2 m
Hull length: 41’ 11”12.77 m
Waterline length: 36’ 2”11.04 m
Beam (width): 13’ 1”4 m
Waterline beam (width): 11’ 2”3.4 m
Draft: 7’ 1”2.15 m
Mast height from D_WL: 57’ 4”17.45 m
Fore freeboard: 4’ 1”1.25 m
Mid-ship freeboard: 3’ 6”1.06 m
Light displacement (M_LC): 20944 lb9500 kg
Maximum displacement (M_LDC): 22377 lb10150 kg
Ballast weight: 7937 lb3600 kg
Ballast type: Cast iron
French customs tonnage: 16.14 Tx

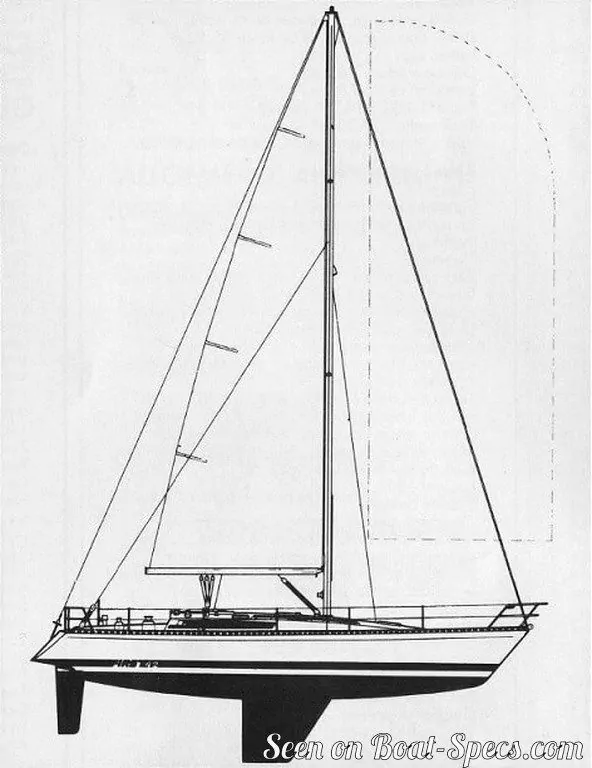

Bénéteau R/C 42's rig and sails

Upwind sail area: 1109 ft²103 m²
Downwind sail area: 1970 ft²183 m²
Mainsail area: 398 ft²37 m²
Genoa area: 710 ft²66 m²
Solent area: 484 ft²45 m²
Jib area: 353 ft²32.8 m²
Stormjib area: 154 ft²14.3 m²
Symmetric spinnaker area: 1572 ft²146 m²
I iFore triangle height (from mast foot to fore stay top attachment): 55’ 5”16.9 m
J iFore triangle base (from mast foot to bottom of forestay): 16’ 8”5.1 m
P iMainsail hoist measurement (from tack to head): 49’ 2”15 m
E iMainsail foot measurement (from tack to clew): 14’ 7”4.45 m
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Running backstays: 1 set(s)
Spars construction: Aluminum spars

Bénéteau R/C 42's performances

IOR rating iIOR, or International Offshore Rule, was a measurement rule system used internationally for ocean racing. It allows boats of different sizes and designs to race each other fairly. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 32.7
HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 25.5
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 247 ft²/T22.96 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 439 ft²/T40.8 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 200
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 38 %
Wetted area: 375 ft²34.8 m²
Maximum transverse section: 21 ft²1.95 m²
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.06 knots
