Bénéteau R/C 27 Deep draft

Sailboat specifications

The Bénéteau R/C 27 is a 26’1” (7.95m) cruiser-racer sailboat designed by Bureau Mauric (France). She was built between 1978 and 1980 by Bénéteau (France). The Deep draft version displays a deeper fin allowing a lower center of gravity and extra performance especially upwind.

The Bénéteau R/C 27 has also been marketed as First 27 and she is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Bénéteau R/C 27's main features

Model: Bénéteau R/C 27
Version: Deep draft
Hull type: Monohull
Category: Cruiser-racer sailboat
Sailboat builder: Bénéteau
Sailboat designer: Bureau Mauric
Country: France
Construction: GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
Number of hulls built: About 70
First built hull: 1978
Last built hull: 1980
Appendages: Keel : fin without bulb
Helm: Single tiller
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 2
Standard public price ex. VAT (indicative only): N/A €

Bénéteau R/C 27's main dimensions

Overall length: 27’ 7”8.4 m
Hull length: 26’ 1”7.95 m
Waterline length: 21’ 6”6.55 m
Beam (width): 9’ 10”3 m
Draft: 5’ 1”1.55 m
Mast height from D_WL: 37’ 1”11.3 m
Light displacement (M_LC): 5291 lb2400 kg
Ballast weight: 1984 lb900 kg
Ballast type: Cast iron
French customs tonnage: 5.90 Tx

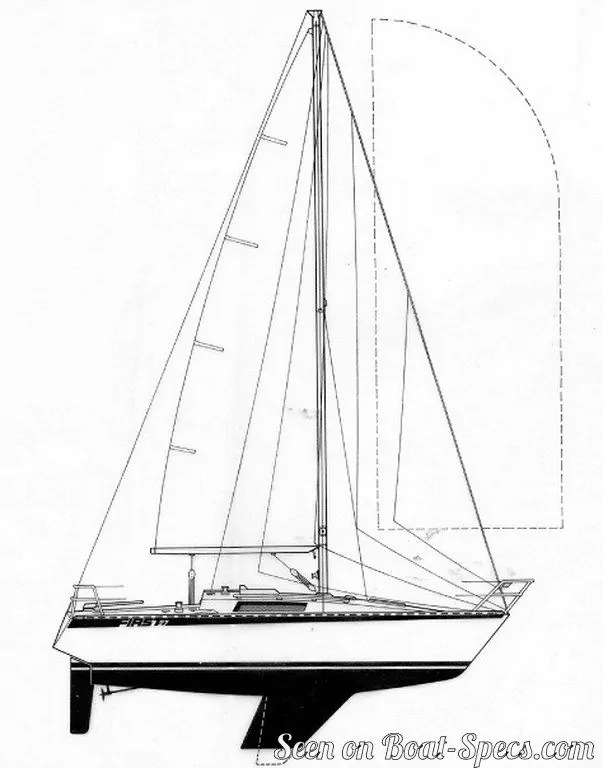

Bénéteau R/C 27's rig and sails

Upwind sail area: 436 ft²40.5 m²
Downwind sail area: 753 ft²70 m²
Mainsail area: 161 ft²15 m²
Genoa area: 274 ft²25.5 m²
Solent area: 215 ft²20 m²
Jib area: 161 ft²15 m²
Stormjib area: 32 ft²3 m²
Symmetric spinnaker area: 592 ft²55 m²
I iFore triangle height (from mast foot to fore stay top attachment): 34’10.36 m
J iFore triangle base (from mast foot to bottom of forestay): 10’3.05 m
P iMainsail hoist measurement (from tack to head): 29’ 6”9 m
E iMainsail foot measurement (from tack to clew): 9’ 2”2.8 m
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Bénéteau R/C 27's performances

IOR rating iIOR, or International Offshore Rule, was a measurement rule system used internationally for ocean racing. It allows boats of different sizes and designs to race each other fairly. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 18.5
HN (French rating) iHN or "Handicap Nationale" is an empirical rating system used in France allowing various monohulls, of different sizes and designs, to race each other fairly. It is particularly suitable for cruiser and cruiser-racer. Therefore, by comparing these values, we can have an indication of the relative speed of 2 boats.: 10.0
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 243 ft²/T22.59 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 420 ft²/T39.05 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 242
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 38 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.21 knots
