Vision 42 Standard

Sailboat specifications

The Vision 42 is a 41’ (12.5m) cruising sailboat designed by Farr Yacht Design (United States). She is built since 2012 by Bavaria Yachts (Germany).

The Vision 42 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Vision 42's main features

Model: Vision 42
Version: Standard
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: Bavaria Yachts
Sailboat designer: Farr Yacht Design
Sailboat range: Vision Line
Country: Germany
Construction: Hull and deck: GRP (glass reinforced polyester)
First built hull: 2012
Last built hull: Still in production
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
161 000 €
(2020)

Vision 42's main dimensions

Overall length: 42’12.8 m
Hull length: 41’12.5 m
Waterline length: 37’ 5”11.4 m
Beam (width): 13’ 4”4.05 m
Draft: 6’ 10”2.07 m
Mast height from D_WL: 62’ 1”18.93 m
Light displacement (M_LC): 21605 lb9800 kg
Ballast weight: 5401 lb2450 kg
Ballast type: Cast iron

Vision 42's rig and sails

Upwind sail area: 947 ft²88 m²
I iFore triangle height (from mast foot to fore stay top attachment): 52’ 6”16 m
J iFore triangle base (from mast foot to bottom of forestay): 14’ 5”4.4 m
P iMainsail hoist measurement (from tack to head): 50’15.25 m
E iMainsail foot measurement (from tack to clew): 18’ 2”5.55 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire

Vision 42's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 207 ft²/T19.22 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 187
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 25 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.20 knots

Vision 42's auxiliary engine

Engine(s): 1 inboard engine
Engine(s) power: 40 HP
Fuel type: Diesel
Fuel tank capacity: 55.5 gal210 liters

Vision 42's accommodations and layout

Cockpit: Closing aft cockpit with opening system
Cabin(s): 2
Berth(s): 4
Head(s): 1
Freshwater tank capacity: 55.5 gal210 liters

Vision 42's saloon

Maximum headroom: 6’ 7”2 m

Have you spotted incorrect data? You can report it in the forum or contact the webmaster

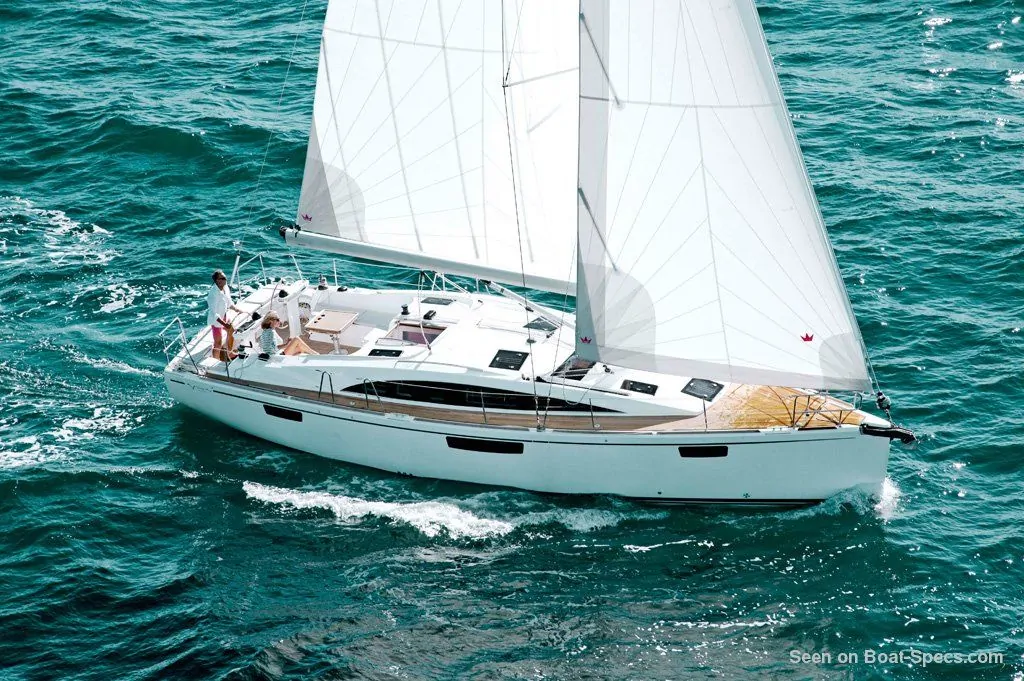

Bavaria Yachts Vision 42 Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 - - 1/15
Picture extracted from the commercial documentation © Bavaria Yachts

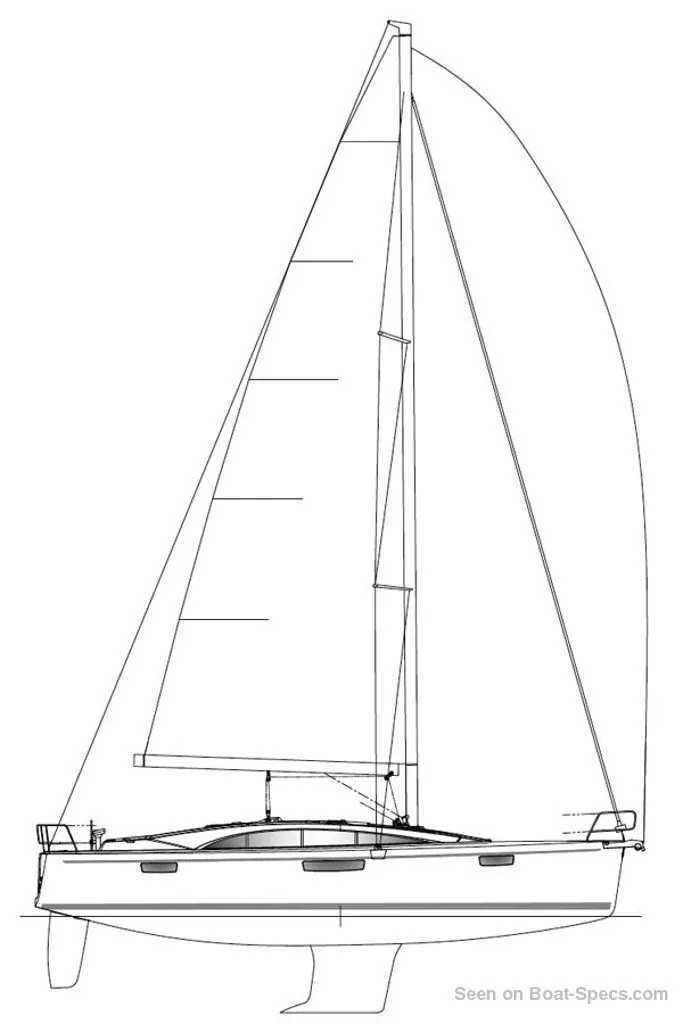

Bavaria Yachts Vision 42 sailplan Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 sailplan - - 2/15
Picture extracted from the commercial documentation © Bavaria Yachts

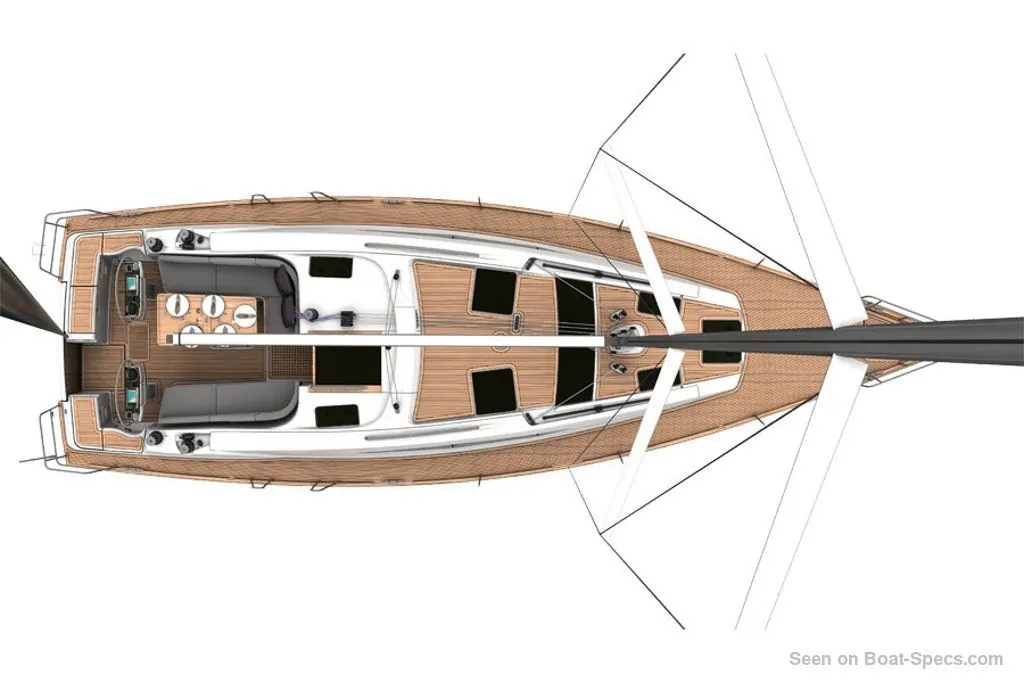

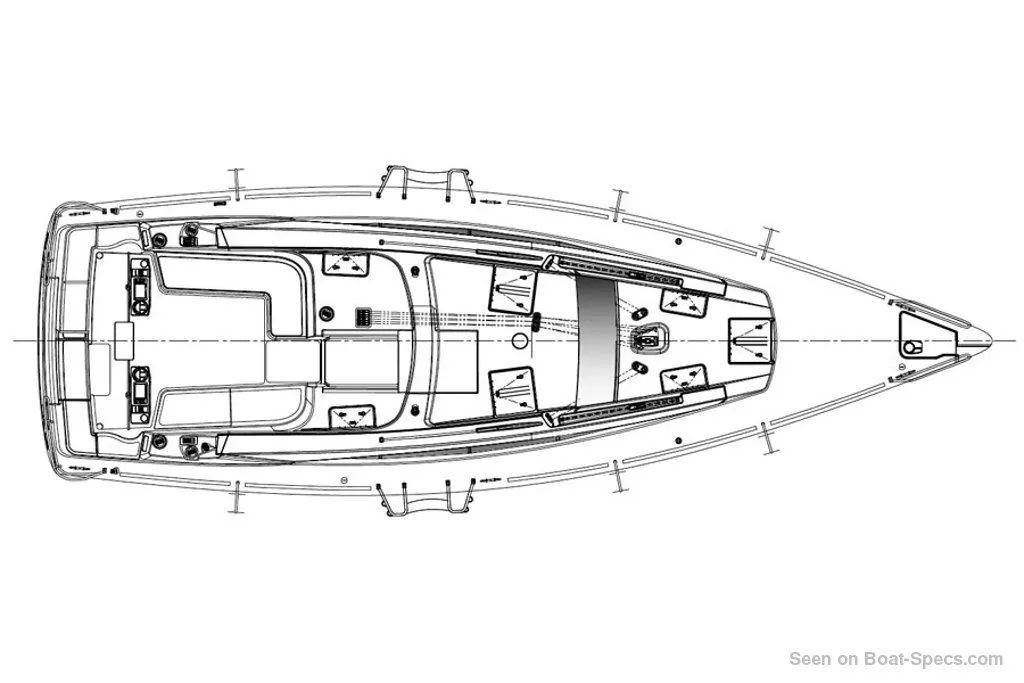

Bavaria Yachts Vision 42 layout Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 layout - - 3/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 layout - - 4/15
Picture extracted from the commercial documentation © Bavaria Yachts

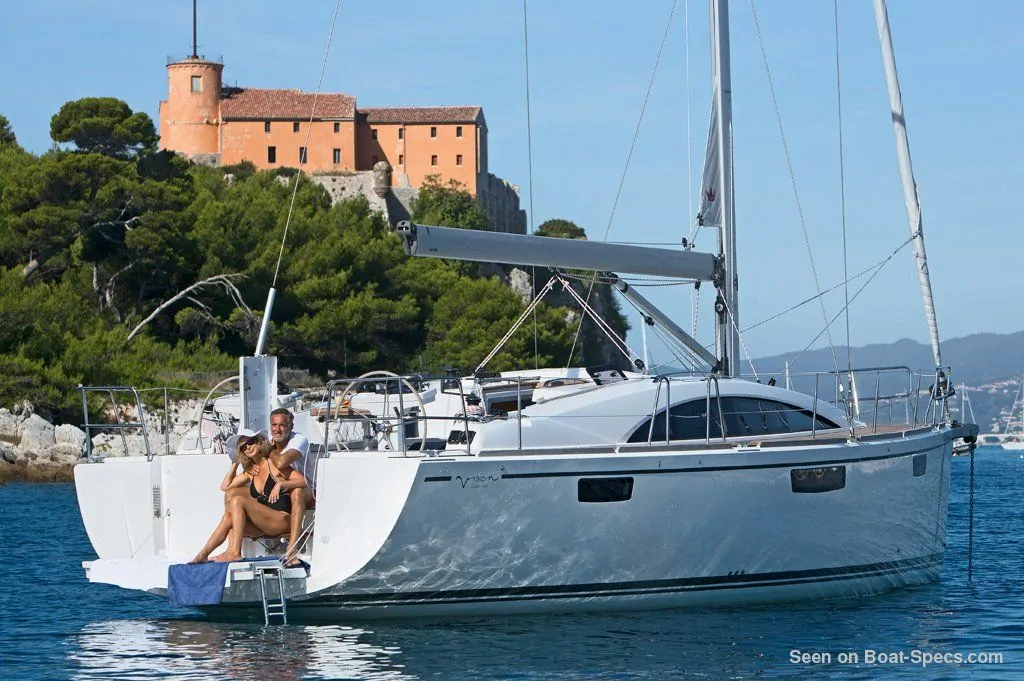

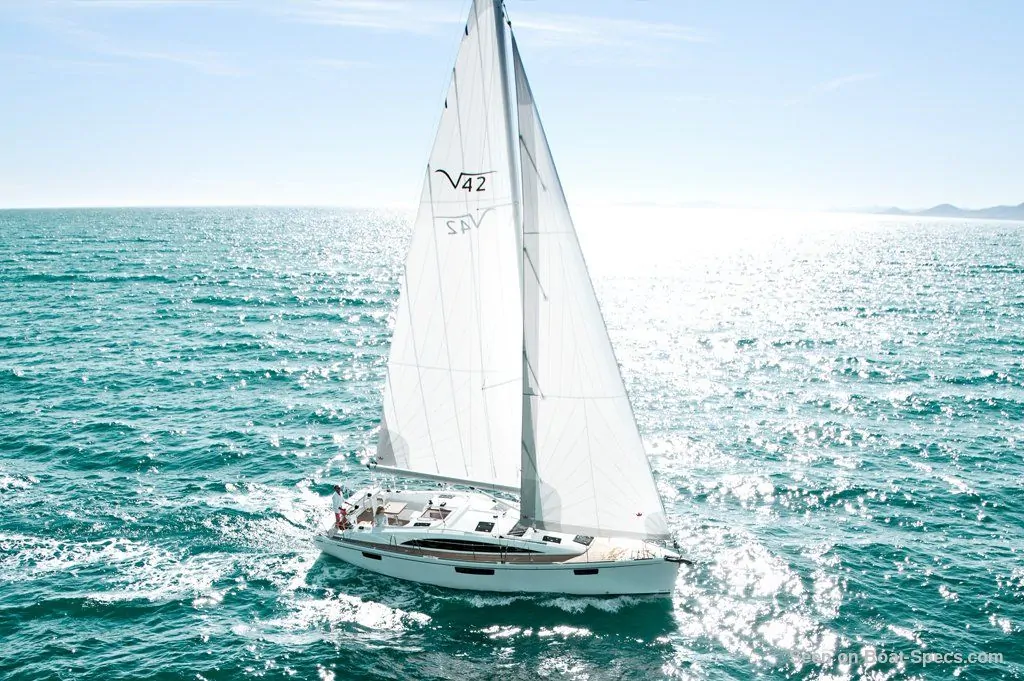

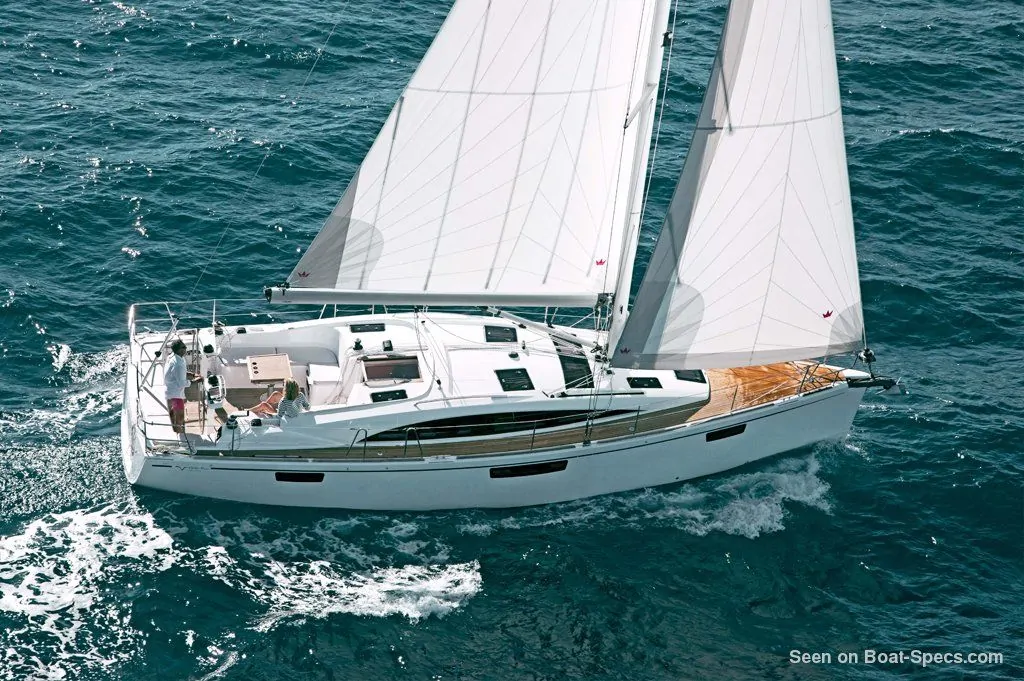

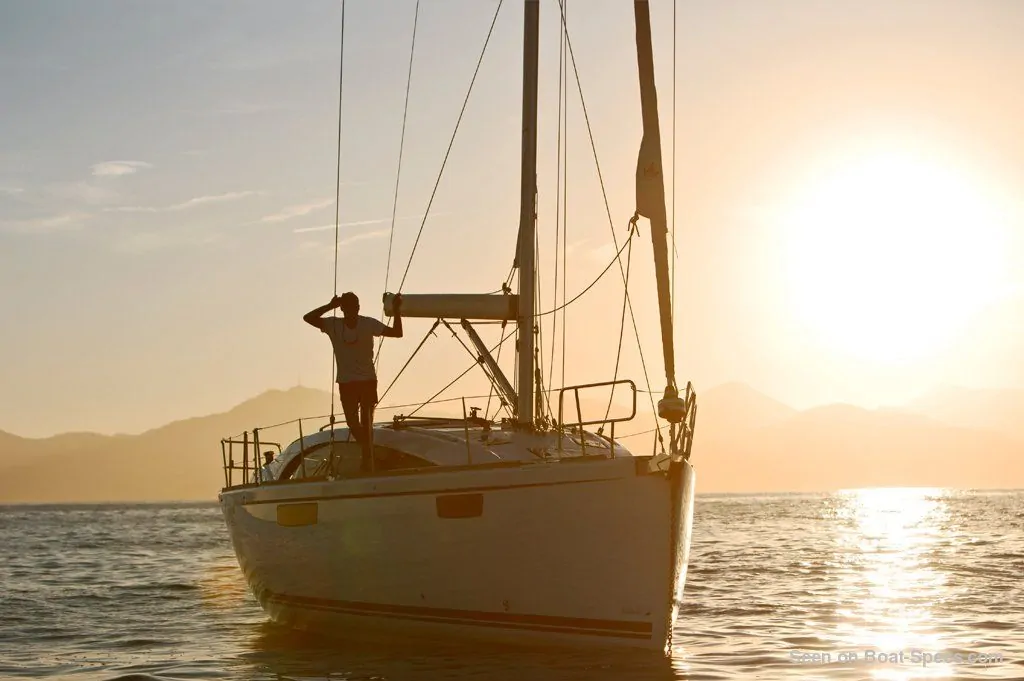

Bavaria Yachts Vision 42 sailing Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 sailing - - 5/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 sailing - - 6/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 sailing - - 7/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 sailing - - 8/15
Picture extracted from the commercial documentation © Bavaria Yachts

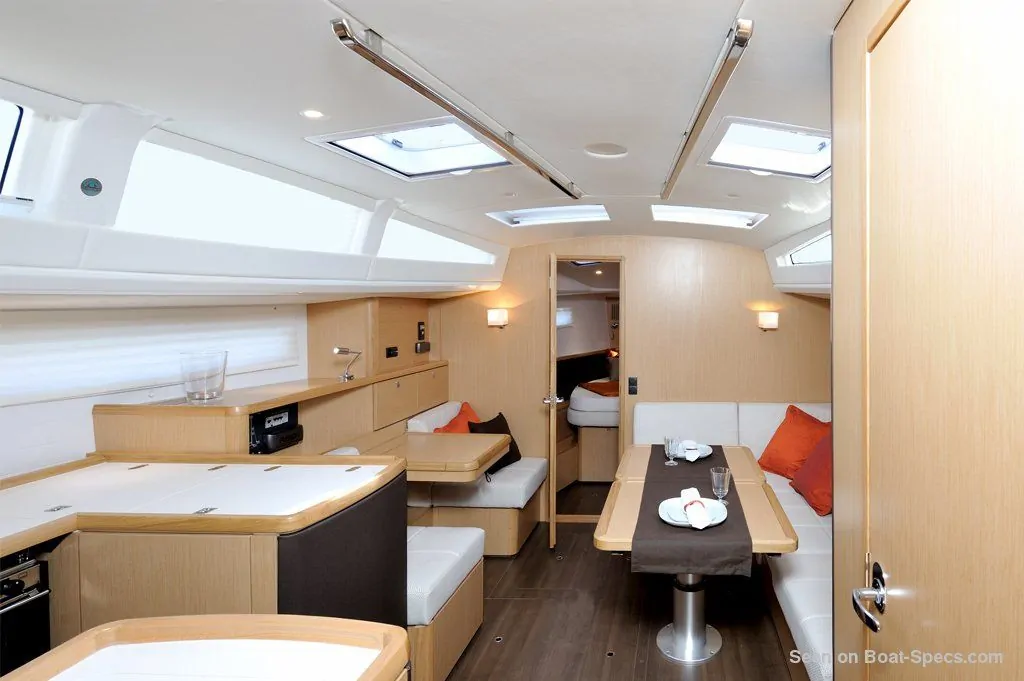

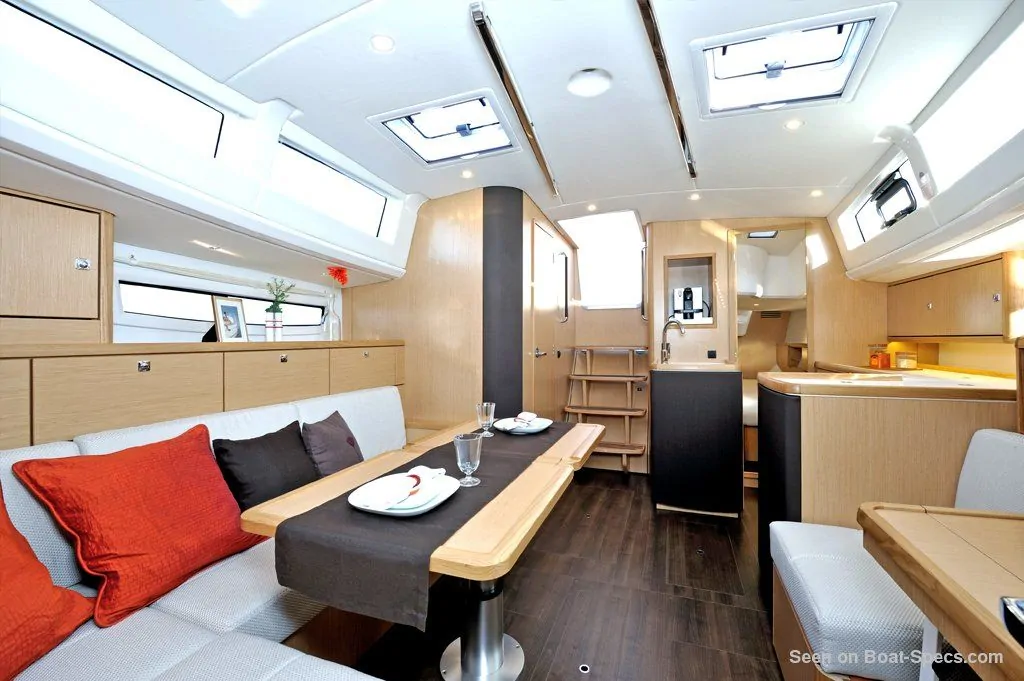

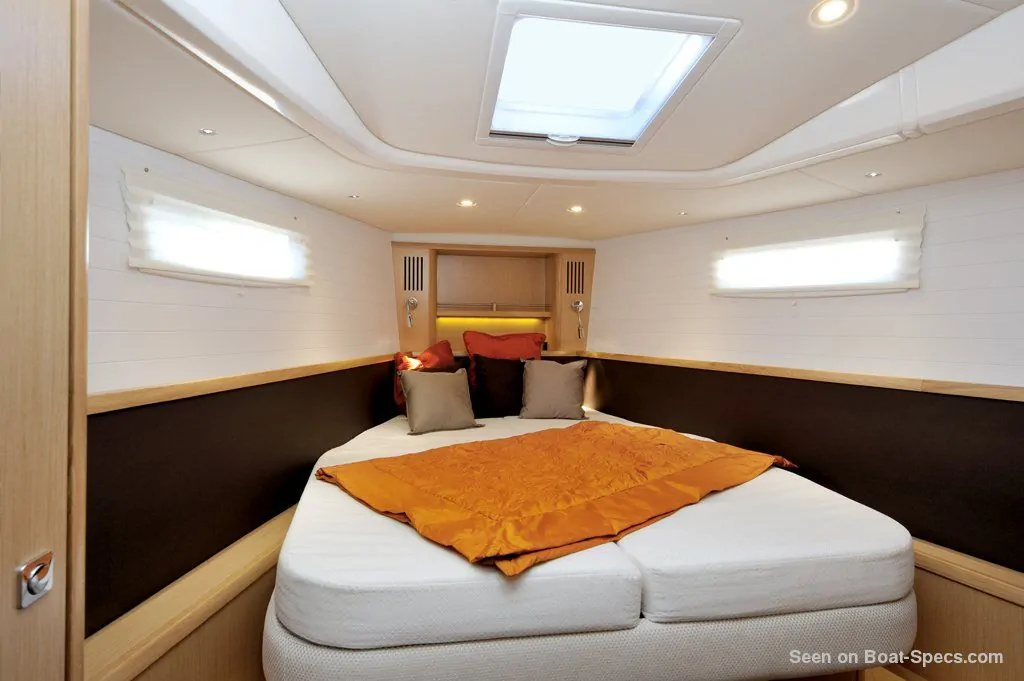

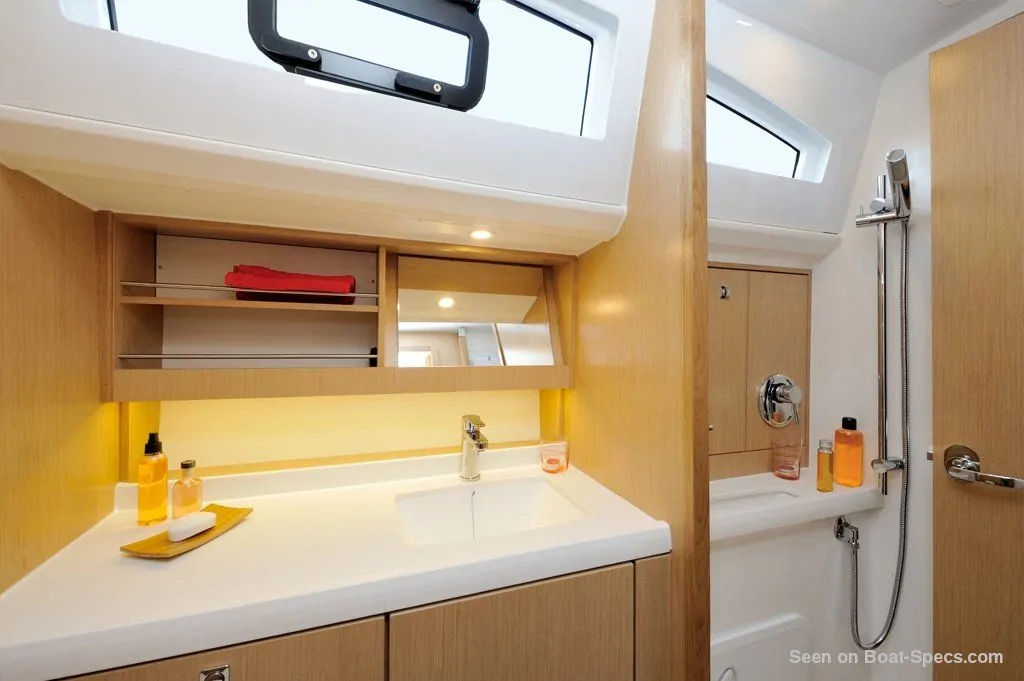

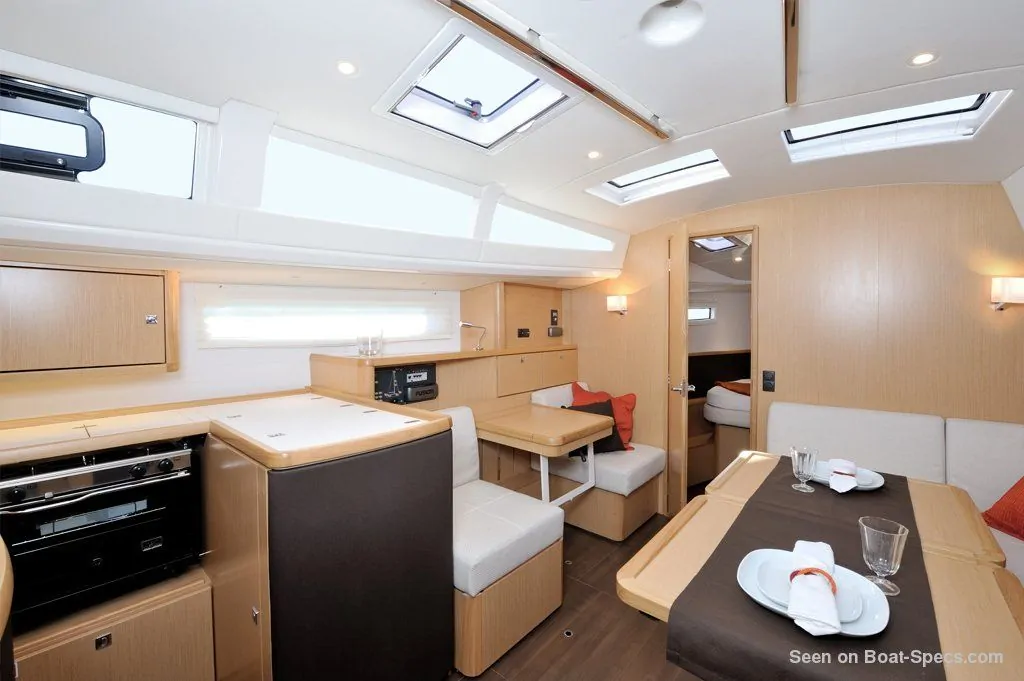

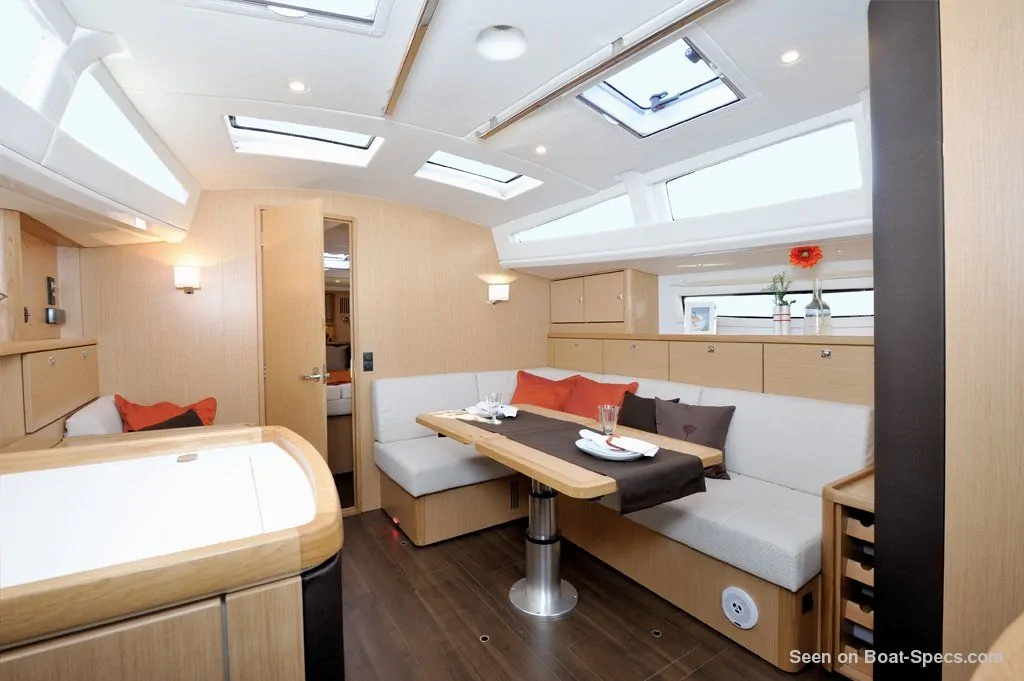

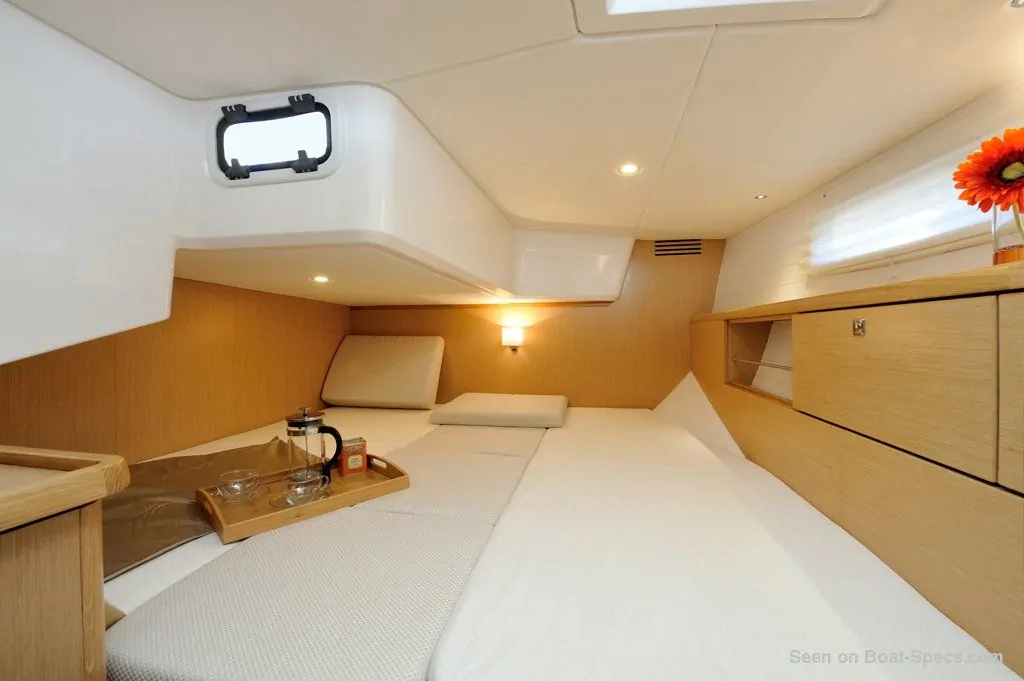

Bavaria Yachts Vision 42 interior and accommodations Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 9/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 10/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 11/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 12/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 13/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 14/15
Picture extracted from the commercial documentation © Bavaria Yachts

Bavaria Yachts Vision 42 interior and accommodations - - 15/15
Picture extracted from the commercial documentation © Bavaria Yachts
