Bavaria Cruiser 45 Shoal draft

Sailboat specifications

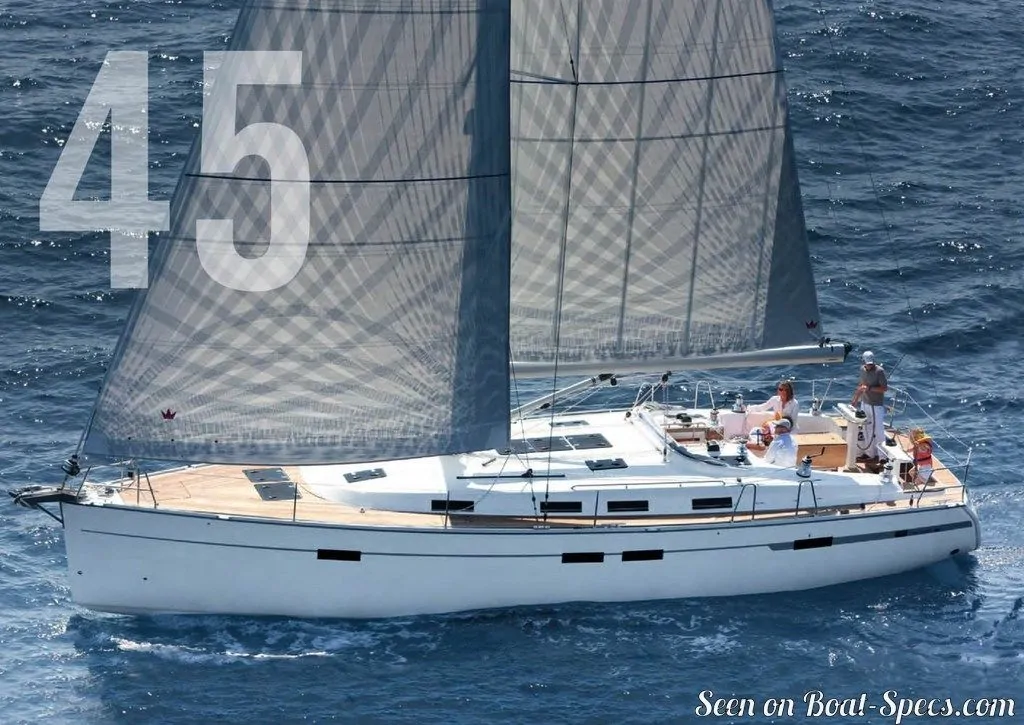

The Bavaria Cruiser 45 is a 44’7” (13.6m) cruising sailboat designed by Farr Yacht Design (United States). She was built since 2010 (and now discontinued) by Bavaria Yachts (Germany). The Shoal draft version features a shorter keel to grant access to shallow areas.

The Bavaria Cruiser 45 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Bavaria Cruiser 45's main features

Model: Bavaria Cruiser 45
Version: Shoal draft
Hull type: Monohull
Category: Offshore cruising sailboat
Sailboat builder: Bavaria Yachts
Sailboat designer: Farr Yacht Design
Country: Germany
Construction: Hull and deck: GRP (glass reinforced polyester)
First built hull: 2010
Last built hull: Discontinued
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Twin spade rudders
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

Bavaria Cruiser 45's main dimensions

Overall length: 46’ 10”14.27 m
Hull length: 44’ 7”13.6 m
Waterline length: 40’ 10”12.45 m
Beam (width): 14’ 4”4.35 m
Draft: 5’ 8”1.73 m
Mast height from D_WL: 68’ 1”20.75 m
Light displacement (M_LC): 27778 lb12600 kg
Ballast weight: 6834 lb3100 kg

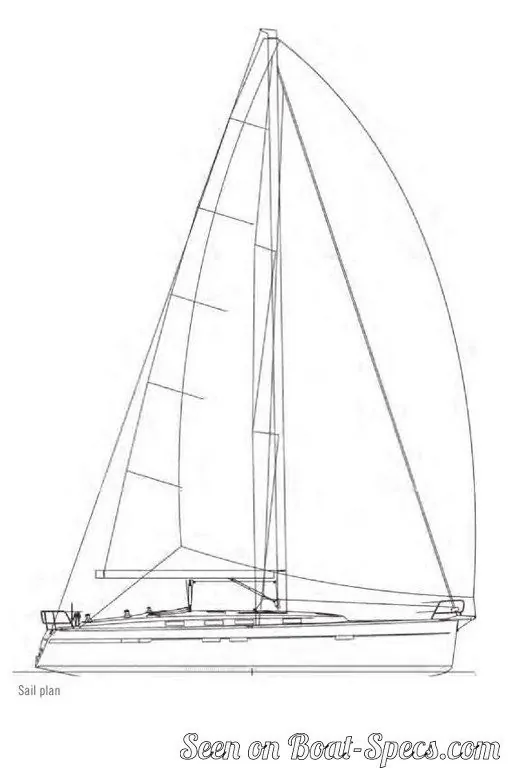

Bavaria Cruiser 45's rig and sails

Upwind sail area: 1152 ft²107 m²
Downwind sail area: 2217 ft²206 m²
Mainsail area: 603 ft²56 m²
Solent area: 549 ft²51 m²
Gennaker area: 1615 ft²150 m²
I iFore triangle height (from mast foot to fore stay top attachment): 58’ 10”17.91 m
J iFore triangle base (from mast foot to bottom of forestay): 18’ 1”5.53 m
P iMainsail hoist measurement (from tack to head): 56’ 5”17.19 m
E iMainsail foot measurement (from tack to clew): 18’ 2”5.55 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars

Bavaria Cruiser 45's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 213 ft²/T19.76 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 409 ft²/T38.04 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 185
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 25 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.56 knots
