Bavaria C57 Furling mainsail

Sailboat specifications

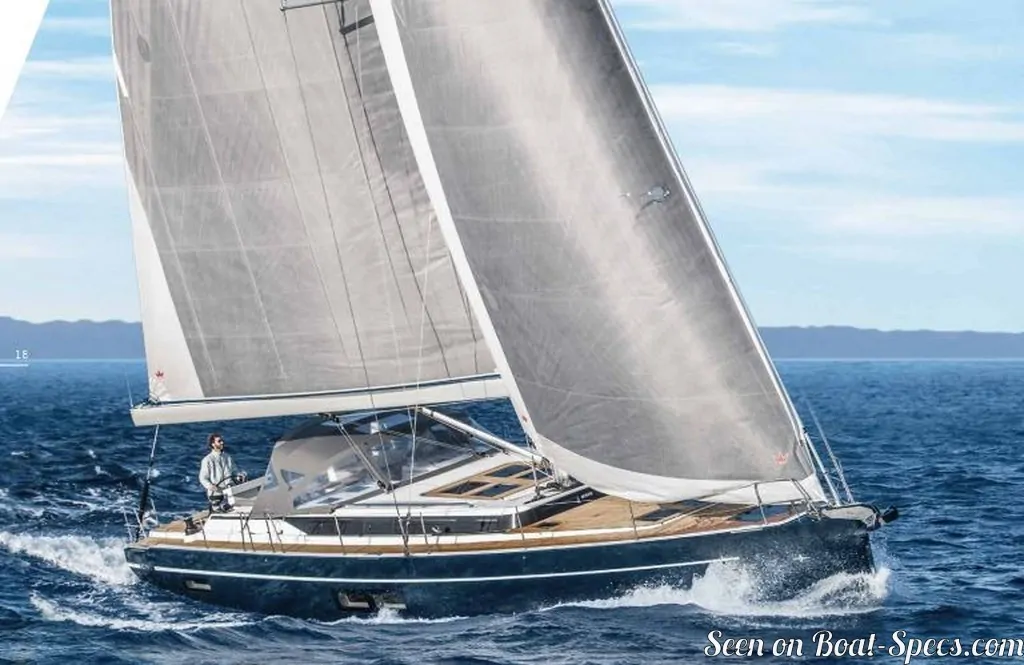

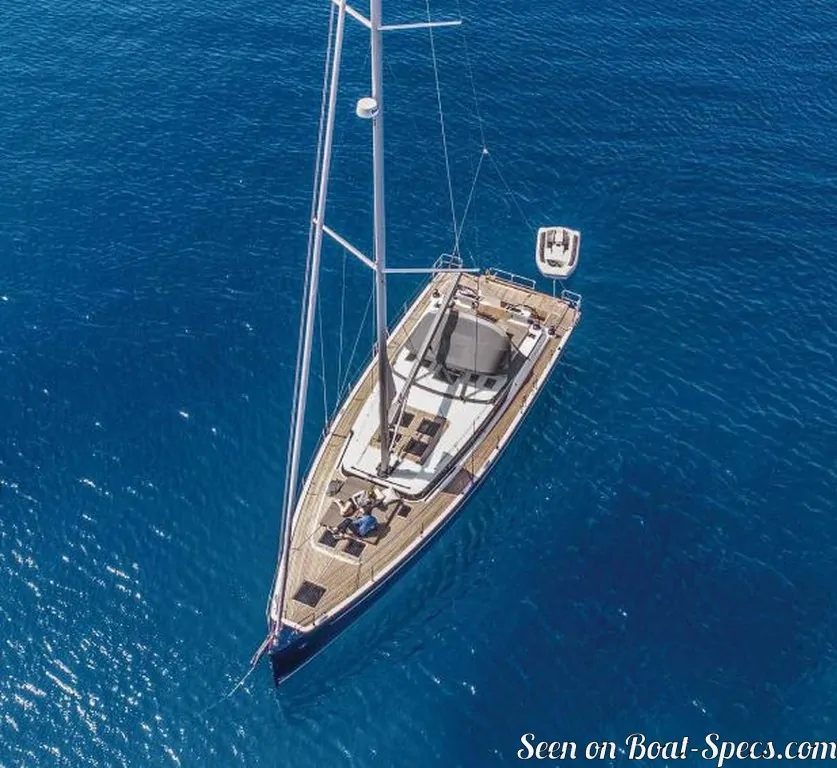

The Bavaria C57 is a 53’ (16.16m) cruising sailboat designed by Cossutti Yacht Design (Italy). She is built since 2017 by Bavaria Yachts (Germany). The Furling mainsail version is proposed with an in-mast furling system to ease the sailing.

The Bavaria C57 is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).

Bavaria C57's main features

Model: Bavaria C57
Version: Furling mainsail
Hull type: Monohull
Category: Offshore cruising sailboat
Sailboat builder: Bavaria Yachts
Sailboat designer: Cossutti Yacht Design
Sailboat range: Bavaria C Line
Country: Germany
Construction: Hull and deck: GRP (glass reinforced polyester)
First built hull: 2017
Last built hull: Still in production
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
Standard public price ex. VAT (indicative only): About
389 000 €
(2020)

Bavaria C57's main dimensions

Overall length: 54’ 11”16.73 m
Hull length: 53’16.16 m
Waterline length: 50’ 11”15.5 m
Beam (width): 17’ 4”5.28 m
Draft: 8’ 4”2.52 m
Mast height from D_WL: 79’ 7”24.26 m
Light displacement (M_LC): 37765 lb17130 kg
Ballast weight: 11707 lb5310 kg
Ballast type: Cast iron

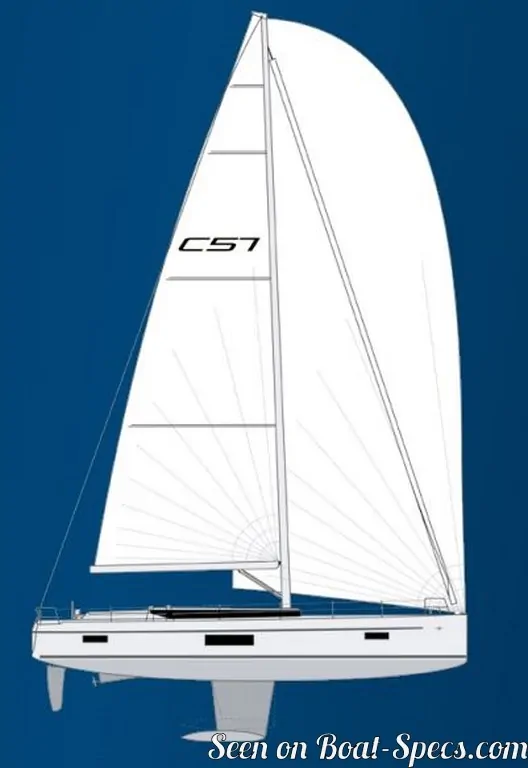

Bavaria C57's rig and sails

Upwind sail area: 1561 ft²145 m²
Downwind sail area: 3315 ft²308 m²
Mainsail area: 818 ft²76 m²
Genoa area: 743 ft²69 m²
Jib area: 614 ft²57 m²
Gennaker area: 2497 ft²232 m²
Code 0 area: 1324 ft²123 m²
I iFore triangle height (from mast foot to fore stay top attachment): 66’ 11”20.4 m
J iFore triangle base (from mast foot to bottom of forestay): 21’ 6”6.55 m
P iMainsail hoist measurement (from tack to head): 65’ 7”20 m
E iMainsail foot measurement (from tack to clew): 22’ 7”6.88 m
Rigging type: Sloop Marconi (in-mast furling mainsail) 19/20
Mast configuration: Deck stepped mast
Rotating spars: No
Spreaders angle: No spreader
Spars construction: Aluminum spars

Bavaria C57's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 235 ft²/T21.82 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 499 ft²/T46.35 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 130
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 31 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 9.56 knots
