Astus 24

Sailboat specifications

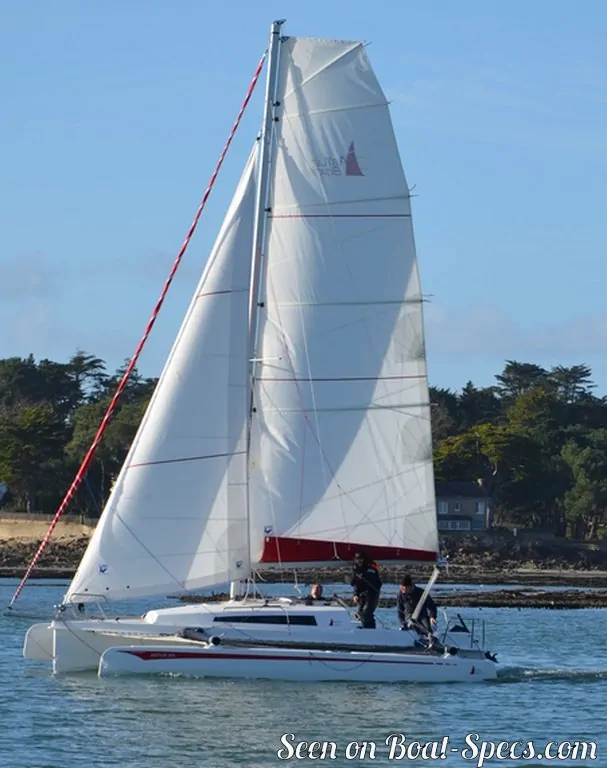

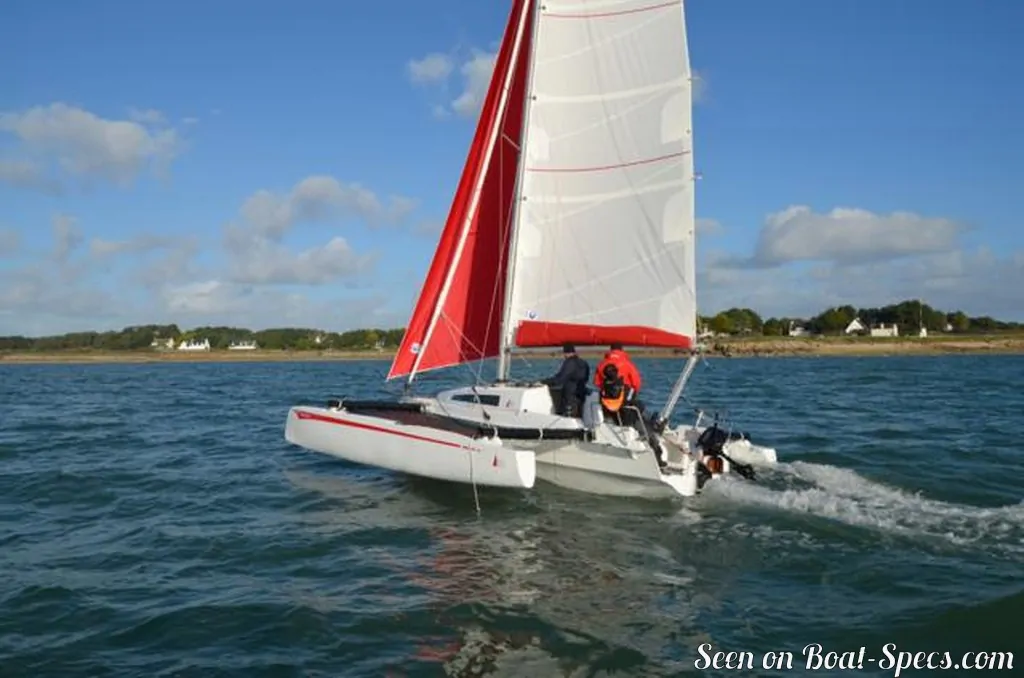

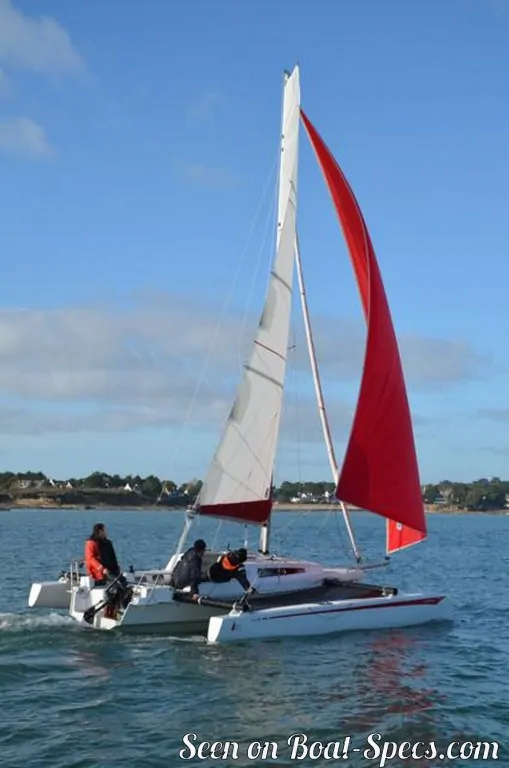

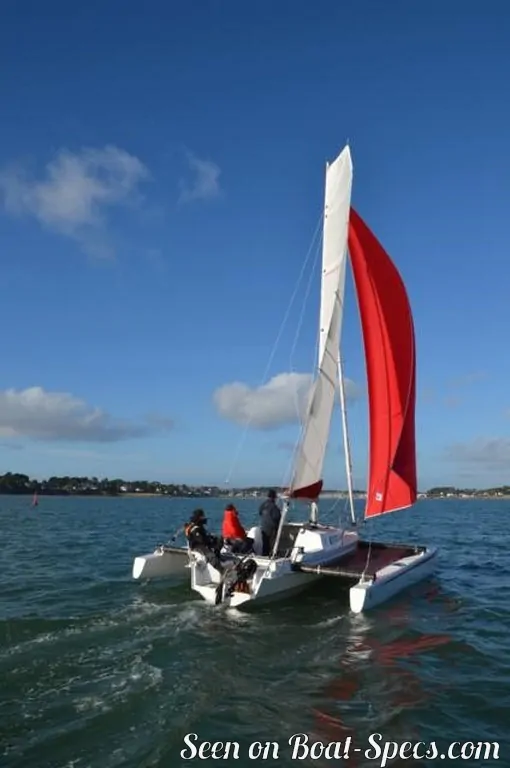

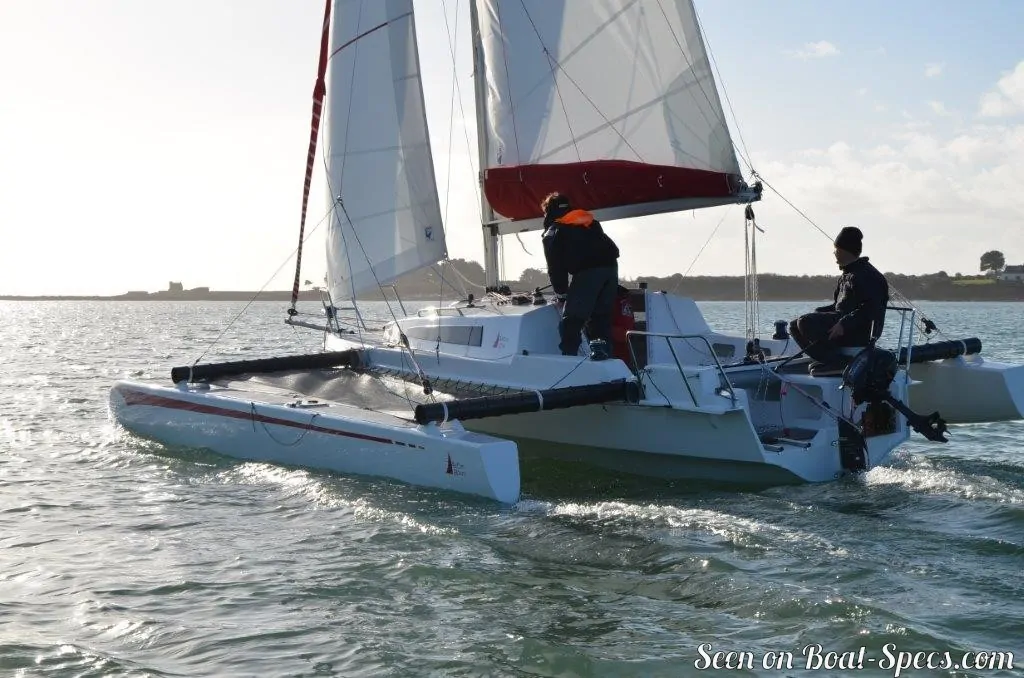

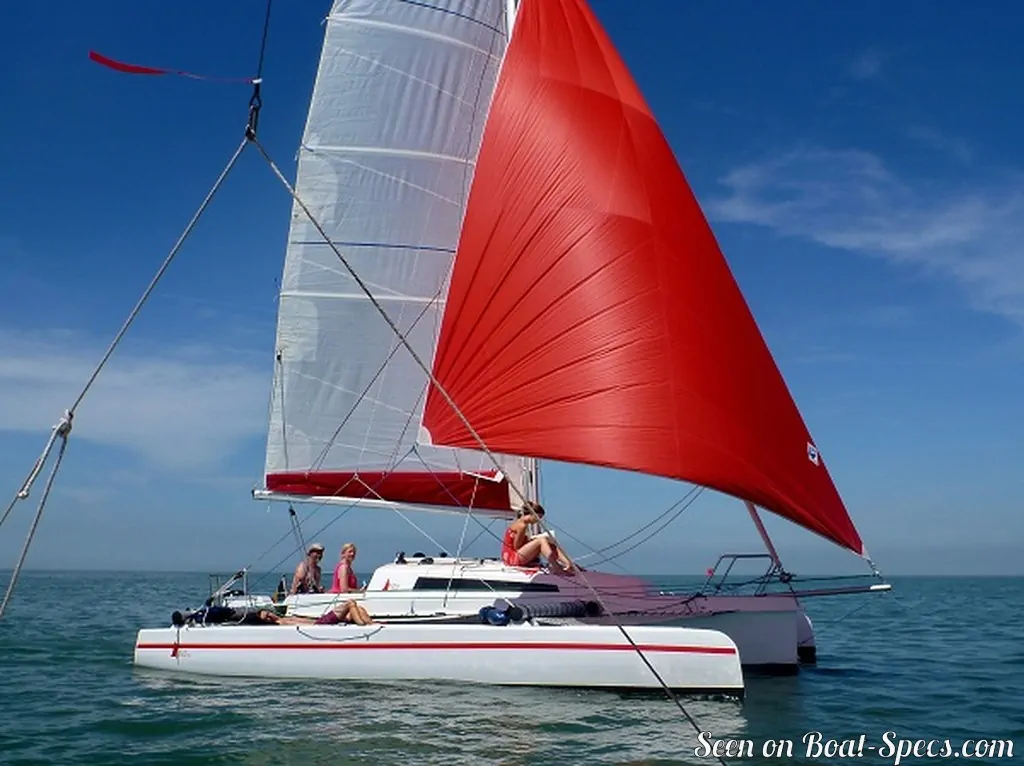

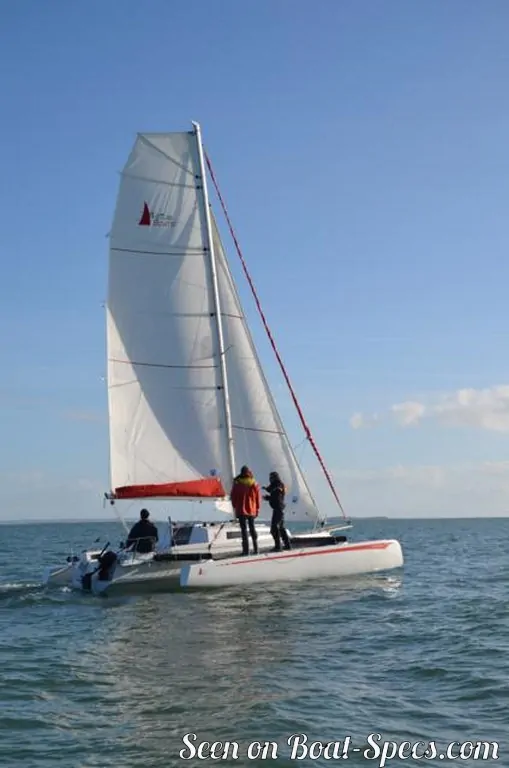

The Astus 24 is a 24’4” (7.4m) cruising trimaran designed by Henseval Yacht Design (France). She is built since 2014 by Astus Boats (France).

Astus 24's main features

Model
Astus 24
Hull type
Trimaran
Category
Coastal cruising trimaran
Sailboat builder
Sailboat designer
Country
France
Construction
GRP (glass reinforced polyester):
Single skin fiberglass polyester
First built hull
2014
Last built hull
Still in production

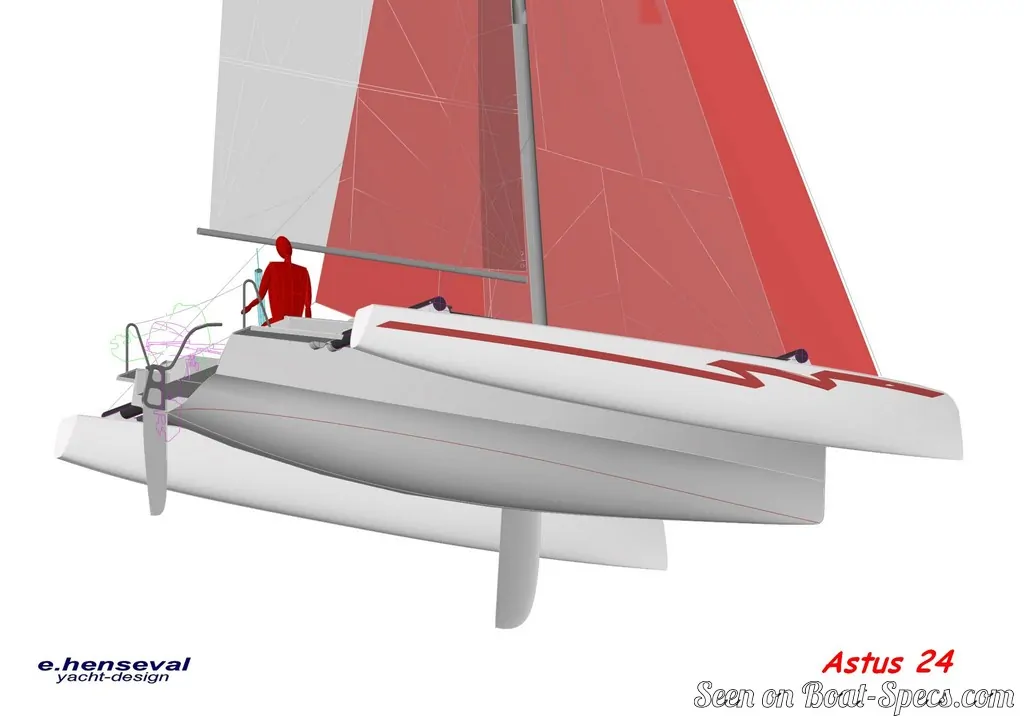

Appendages
Centerboard : pivoting centerboard (main hull)
Helm
Single tiller
Rudder
Single transom hung rudder (main hull)
Unsinkable
No
Trailerable
Yes
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
C
Standard public price ex. VAT (indicative only)
About
57 500 €
 (2020)

Astus 24's main dimensions

Hull length
24’ 4”7.4 m
Beam (width)
17’ 2”5.25 m
Draft
4’ 10”1.45 m
Draft when appendages up
1’ 1”0.34 m
Mast height from DWL
34’ 4”10.46 m
Overall width folded
8’ 5”2.55 m
Light displacement (MLC)
1874 lb850 kg

Astus 24's rig and sails

Upwind sail area
372 ft²34.6 m²
Downwind sail area
549 ft²51 m²
Mainsail area
237 ft²22 m²
Genoa area
136 ft²12.6 m²

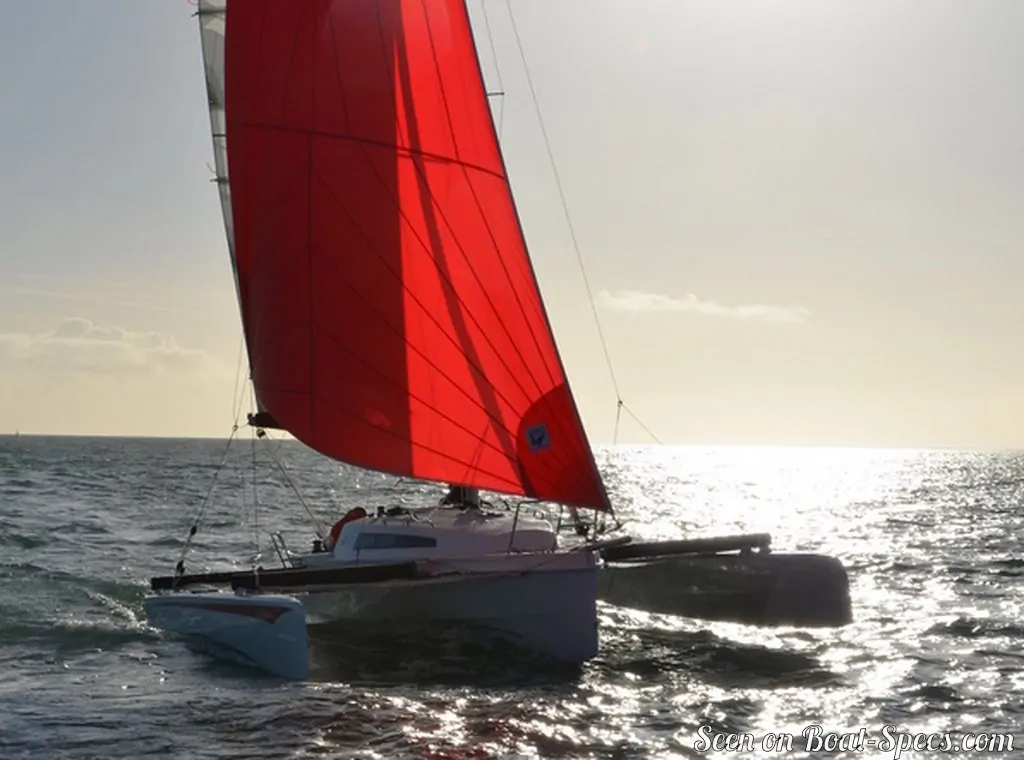

Gennaker area
312 ft²29 m²
Rigging type
Sloop Marconi (square top mainsail) fractional
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
1
Spreaders angle
Swept-back (diamond)
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire continuous

Astus 24's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
415 ft²/T38.56 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
612 ft²/T56.84 m²/T

Astus 24's auxiliary engine

Engine(s)
1 outboard engine
Engine(s) power
9 HP
Fuel type
Gas

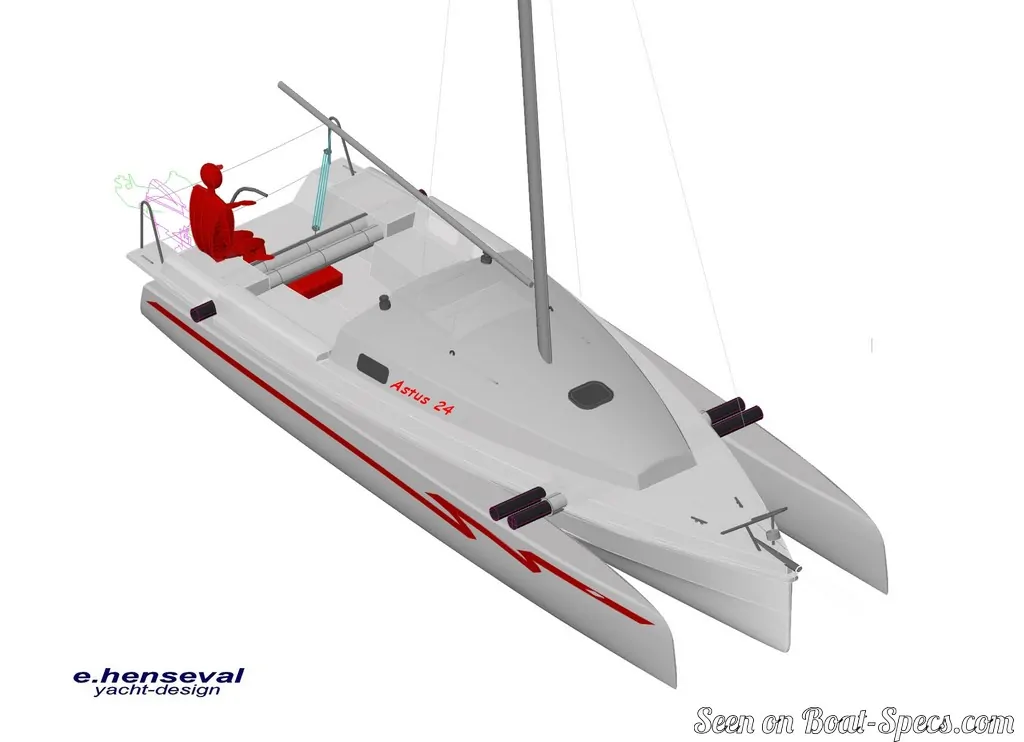

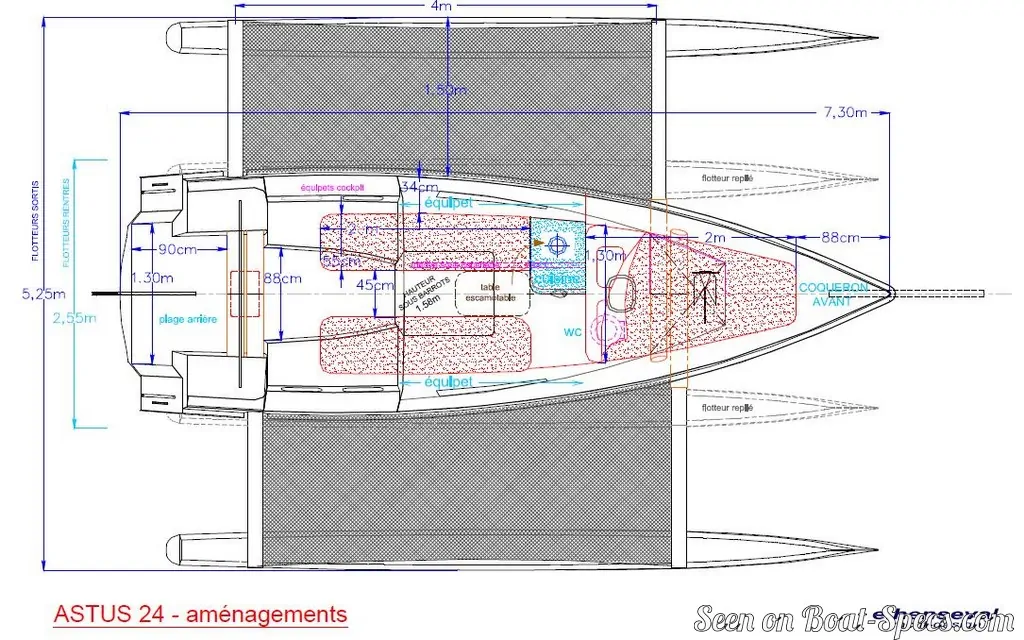

Astus 24's accommodations and layout

Cockpit
Open aft cockpit
Berth(s)
4
Maximum headroom
5’ 7”1.7 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
