Arcona 435 Race

Sailboat specifications

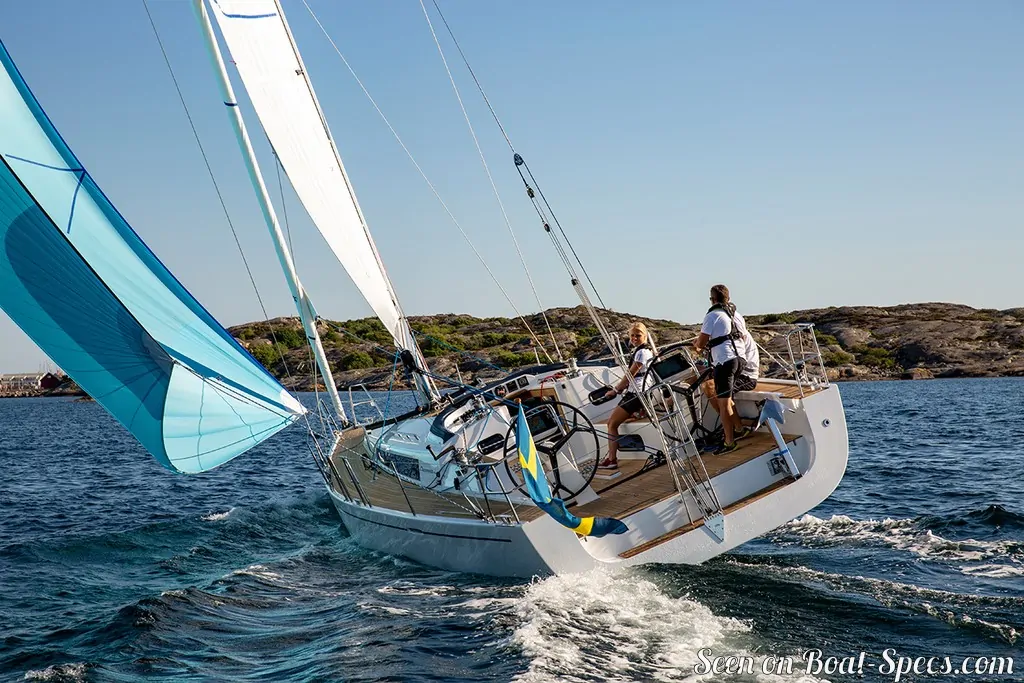

The Arcona 435 is a 43’4” (13.2m) cruiser-racer sailboat designed by SQ Yacht Design (Sweden). She is built since 2018 by Arcona Yachts (Sweden). The Race version offers a deeper L-shaped keel bringing extra performance especially upwind. She has been awarded "2019 - European Yacht of the Year: Performance Cruiser".

The Arcona 435 is as well listed, on Boat-Specs.com, in Standard and Shoal draft version (see all the versions compared).

Arcona 435's main features

Model
Arcona 435
Version
Race
Hull type
Monohull
Category
Offshore cruiser-racer sailboat
Sailboat builder
Sailboat designer
Country
Sweden
Construction
GRP (glass reinforced polyester):
- Hull: Sandwich Divinicell fiberglass vinylester (vacuum infusion)
- Deck: Sandwich Divinicell fiberglass vinylester (vacuum infusion)
First built hull
2018
Last built hull
Still in production
Award(s)
  • 2019: European Yacht of the Year: Performance Cruiser
    Appendages
    Keel : L-shaped keel (with bulb)
    Helm
    Twin helm wheels
    Rudder
    Single spade rudder
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    359 000 €
     (2020)

    Arcona 435's main dimensions

    Overall length
    43’ 4”13.2 m
    Hull length
    43’ 4”13.2 m
    Waterline length
    40’12.2 m
    Beam (width)
    13’ 1”3.98 m
    Draft
    8’ 6”2.6 m
    Mast height from DWL
    68’ 11”21 m
    Light displacement (MLC)
    19621 lb8900 kg
    Ballast weight
    7496 lb3400 kg
    Ballast type
    Cast iron fin with lead bulb

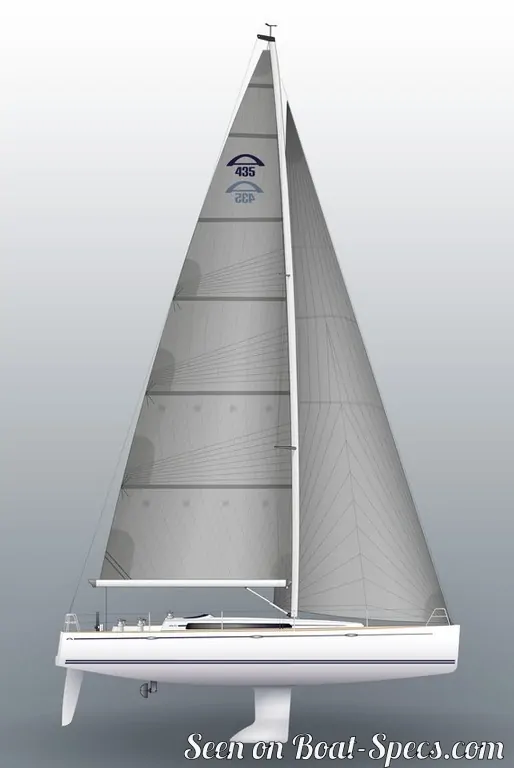

    Arcona 435's rig and sails

    Upwind sail area
    1378 ft²128 m²
    Downwind sail area
    2519 ft²234 m²
    Mainsail area
    667 ft²62 m²
    Genoa area
    710 ft²66 m²
    Solent area
    558 ft²51.8 m²
    Asymmetric spinnaker area
    1851 ft²172 m²
    I
     iFore triangle height (from mast foot to fore stay top attachment)
    58’ 5”17.8 m
    J
     iFore triangle base (from mast foot to bottom of forestay)
    16’ 6”5.04 m
    P
     iMainsail hoist measurement (from tack to head)
    56’ 5”17.2 m
    E
     iMainsail foot measurement (from tack to clew)
    19’ 8”6 m
    Rigging type
    Sloop Marconi 7/8
    Mast configuration
    Deck stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    2
    Spreaders angle
    Swept-back
    Spars construction
    Aluminum spars (carbon fiber spars as an option)
    Standing rigging
    Dyform discontinuous

    Arcona 435's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    321 ft²/T29.8 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    587 ft²/T54.49 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    139
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    38 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    8.48 knots

    Arcona 435's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    45 HP
    Fuel type
    Diesel
    Fuel tank capacity
    47.6 gal180 liters

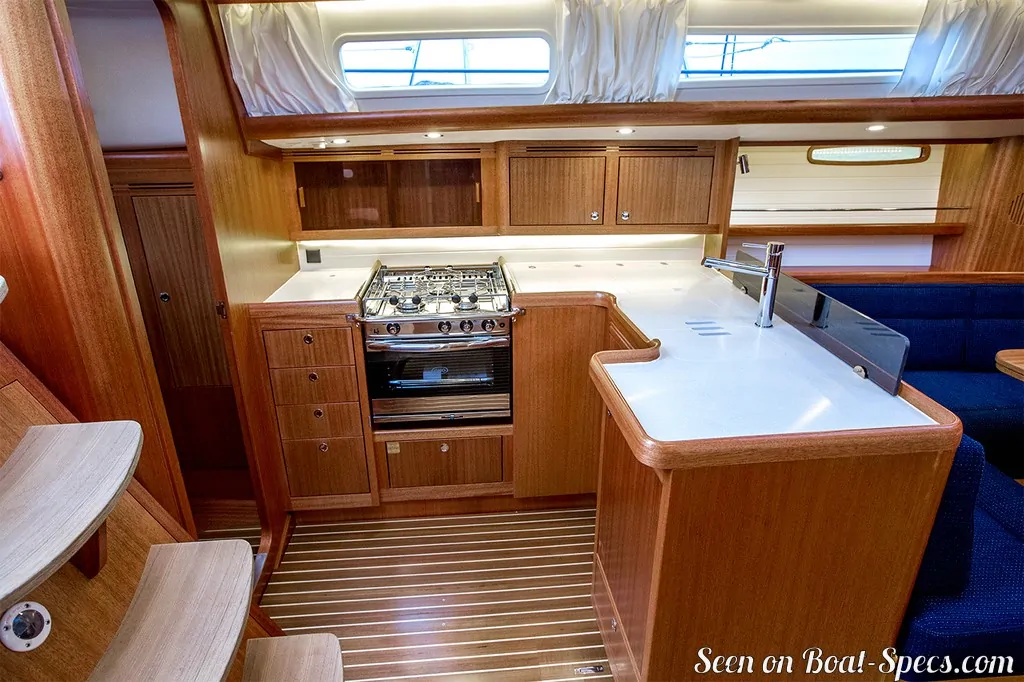

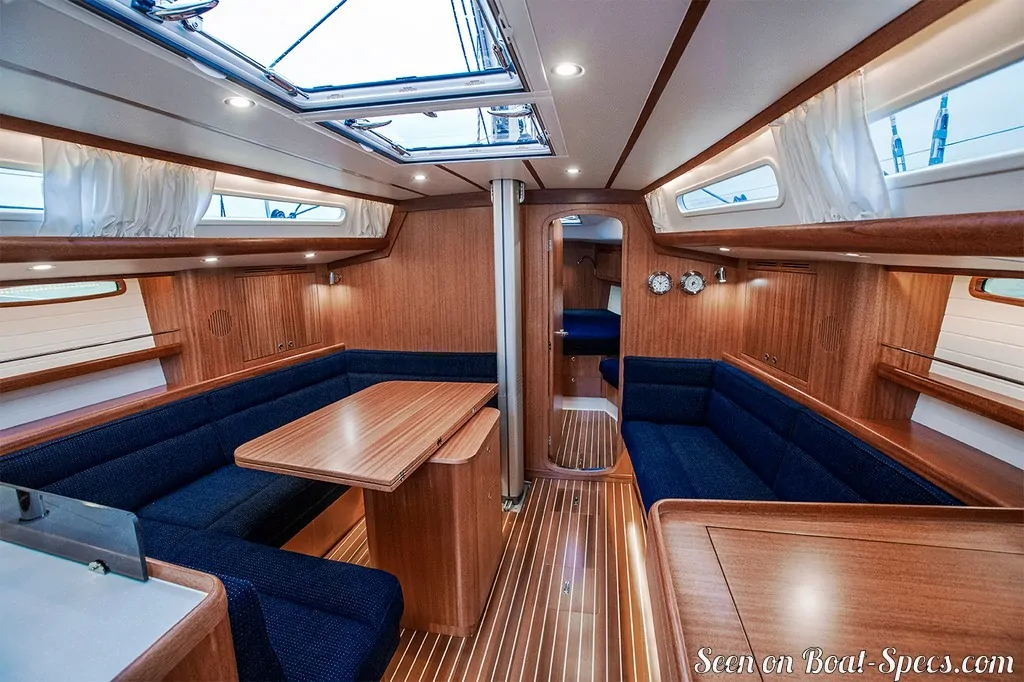

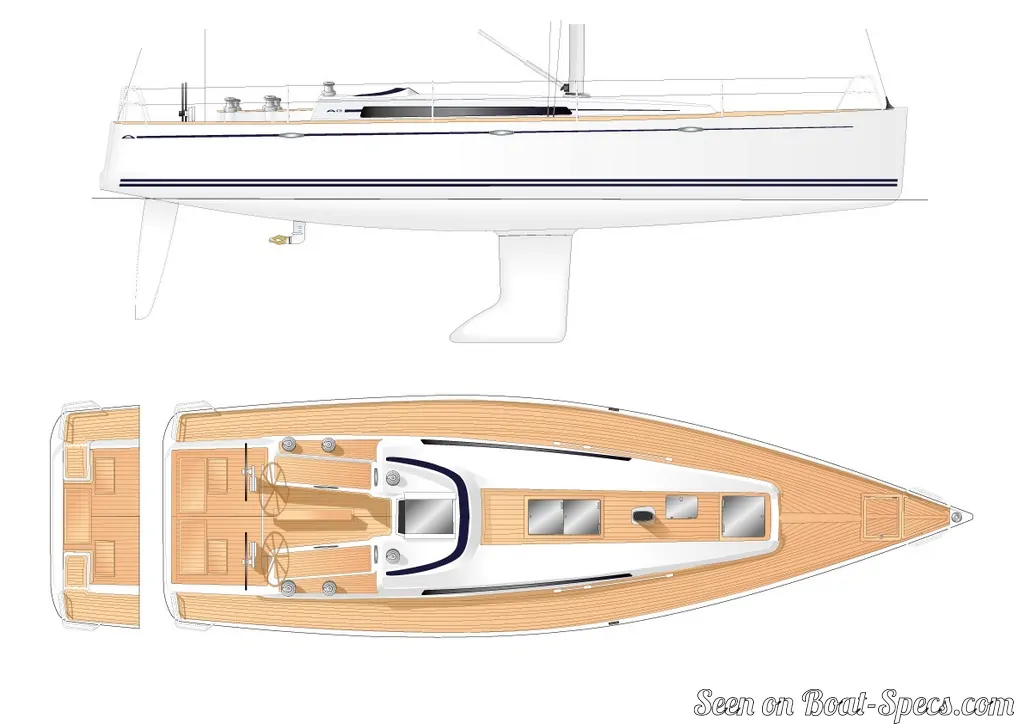

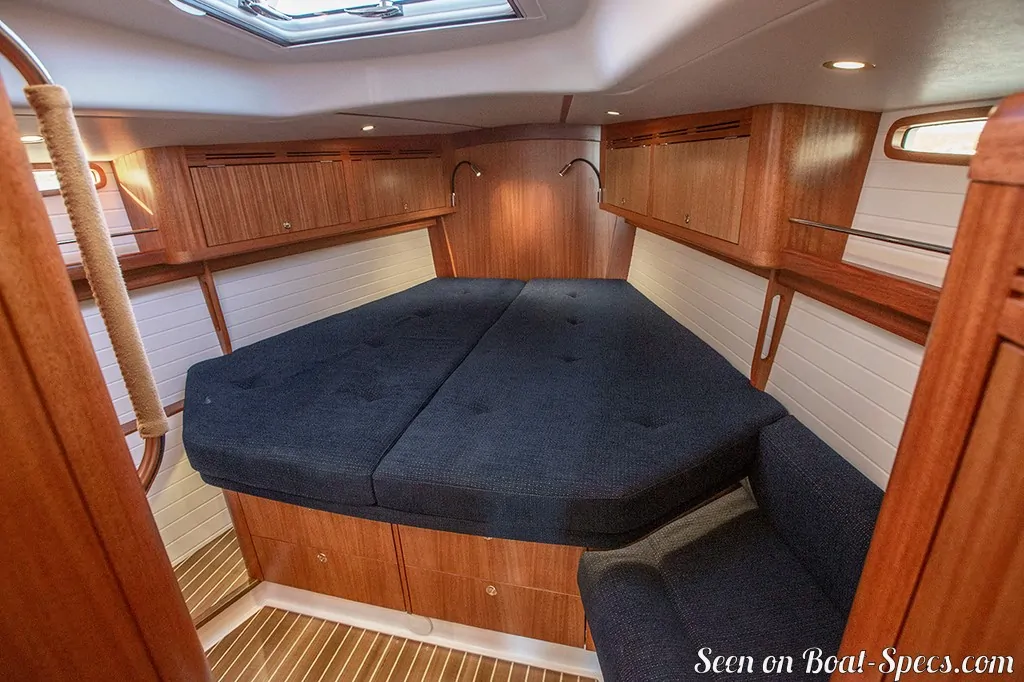

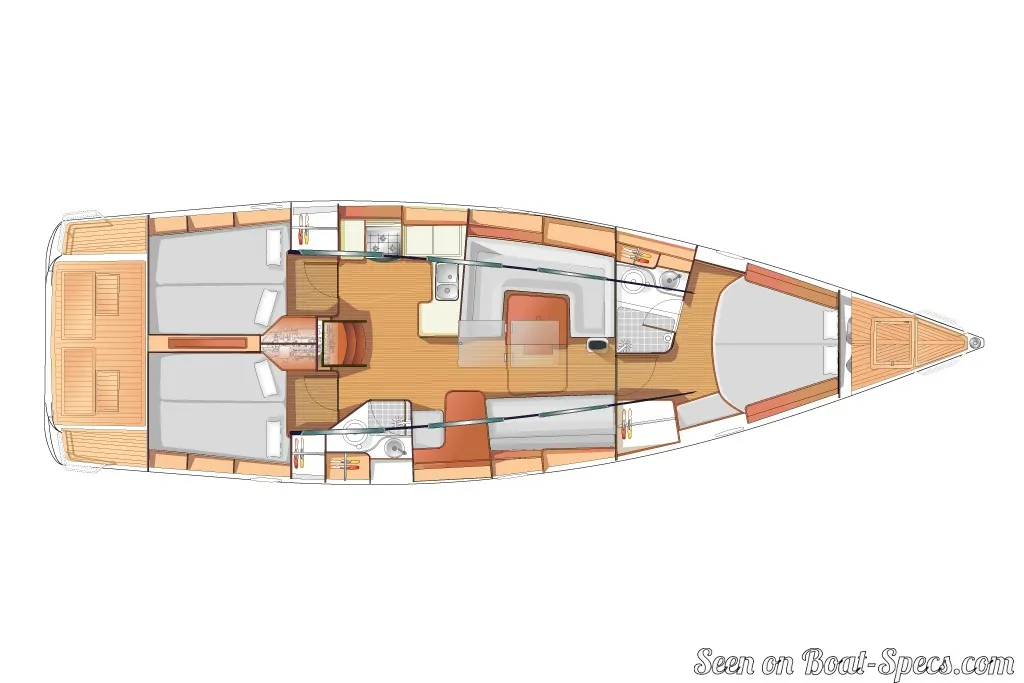

    Arcona 435's accommodations and layout

    Cockpit
    Open aft cockpit

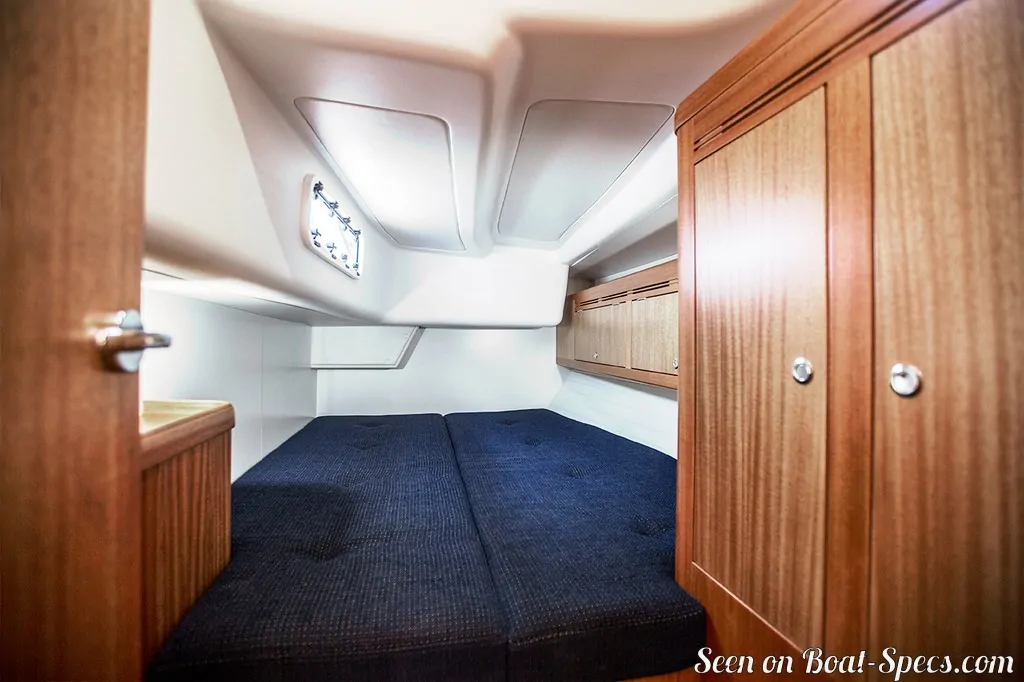

    Cabin(s)
    3
    Berth(s) (min./max.)
    6 / 8

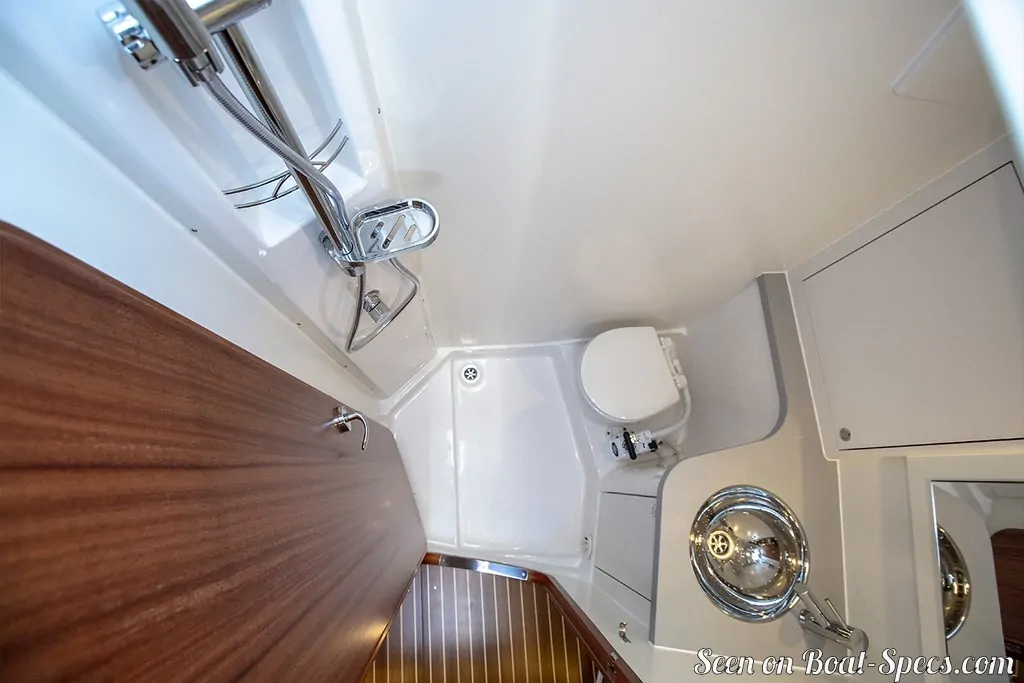

    Head(s)
    2
    Freshwater tank capacity
    79.3 gal300 liters
    Holding tank capacity
    31.7 gal120 liters
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
