Arcona 410 Standard

Sailboat specifications

The Arcona 410 is a 40’ (12.2m) cruiser-racer sailboat designed by SQ Yacht Design (Sweden). She is built since 2011 by Arcona Yachts (Sweden).

The Arcona 410 is as well listed, on Boat-Specs.com, in Shoal draft and Race version (see all the versions compared).

Arcona 410's main features

Model: Arcona 410
Version: Standard
Hull type: Monohull
Category: Offshore cruiser-racer sailboat
Sailboat builder: Arcona Yachts
Sailboat designer: SQ Yacht Design
Country: Sweden
Construction: GRP (glass reinforced polyester):
Sandwich Divinicell fiberglass vinylester (vacuum infusion)
First built hull: 2011
Last built hull: Still in production
Appendages: Keel : L-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
240 000 €
(2020)

Arcona 410's main dimensions

Hull length: 40’12.2 m
Waterline length: 36’ 8”11.2 m
Beam (width): 12’ 10”3.9 m
Draft: 7’ 2”2.2 m
Mast height from D_WL: 65’19.8 m
Light displacement (M_LC): 17196 lb7800 kg
Ballast weight: 5732 lb2600 kg

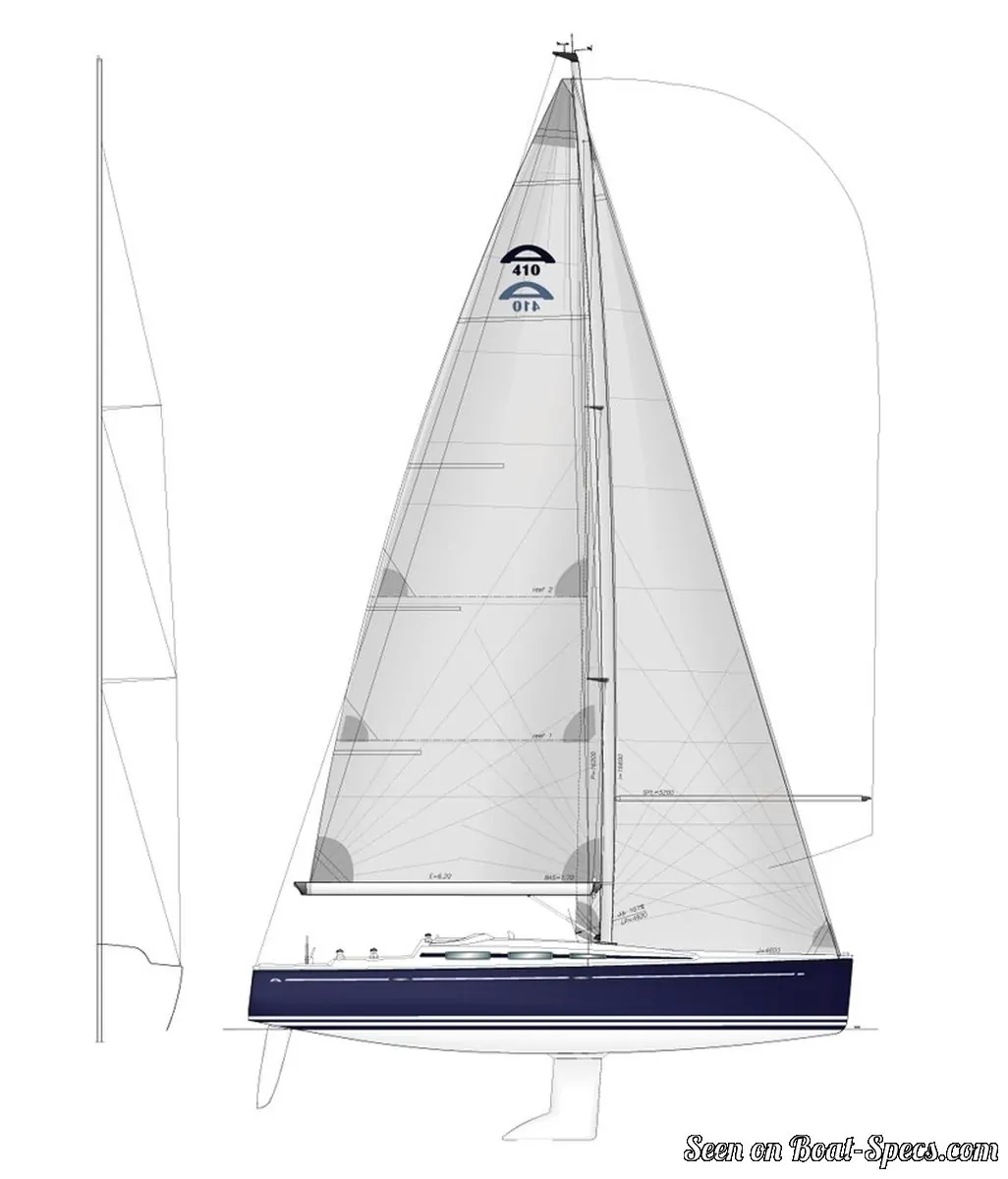

Arcona 410's rig and sails

Upwind sail area: 1098 ft²102 m²
Downwind sail area: 2207 ft²205 m²
Mainsail area: 614 ft²57 m²
Genoa area: 484 ft²45 m²
Symmetric spinnaker area: 1593 ft²148 m²
Gennaker area: 1421 ft²132 m²
I iFore triangle height (from mast foot to fore stay top attachment): 54’ 6”16.6 m
J iFore triangle base (from mast foot to bottom of forestay): 14’ 11”4.55 m
P iMainsail hoist measurement (from tack to head): 53’ 1”16.2 m
E iMainsail foot measurement (from tack to clew): 19’ 2”5.85 m
Rigging type: Sloop Marconi 19/20
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire discontinuous

Arcona 410's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 279 ft²/T25.93 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 561 ft²/T52.12 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 157
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 33 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.12 knots
