Amel 64
Sailboat specifications

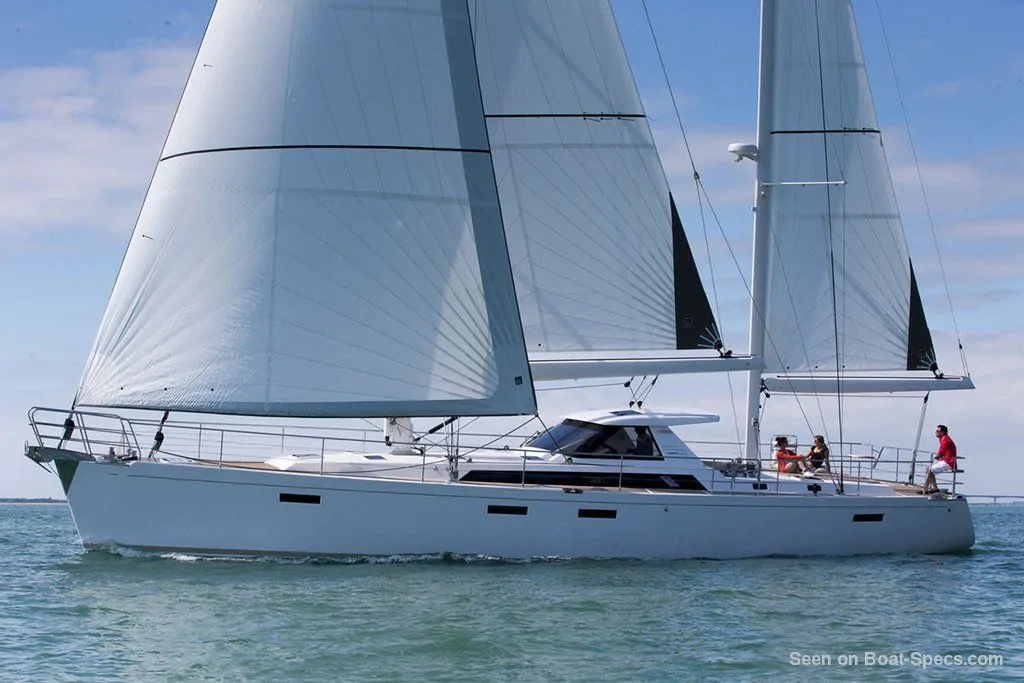

The Amel 64 is a 63’1” (19.22m) cruising sailboat designed by Berret Racoupeau Yachts Design (France). She was built between 2010 and 2018 by Amel (France).
Amel 64's main features
- Model
- Amel 64
- Hull type
- Monohull
- Category
- Offshore cruising sailboat
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- Hull and deck: GRP (glass reinforced polyester)
- First built hull
- 2010
- Last built hull
- 2018
- Appendages
- Keel : L-shaped keel (with bulb)
- Helm
- Single helm wheel
- Rudder
- Single rudder on skeg
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About2 150 000 €(2017)
Amel 64's main dimensions
- Overall length
- 64’ 4”19.6 m
- Hull length
- 63’ 1”19.22 m
- Waterline length
- 56’ 6”17.21 m
- Beam (width)
- 18’ 5”5.6 m
- Draft
- 7’ 11”2.4 m
- Mast height from DWL
- 77’ 1”23.5 m
- Light displacement (MLC)
- 75178 lb34100 kg
- Maximum displacement (MLDC)
- 85539 lb38800 kg
- Capacity
- 10362 lb4700 kg
- Ballast weight
- 18739 lb8500 kg

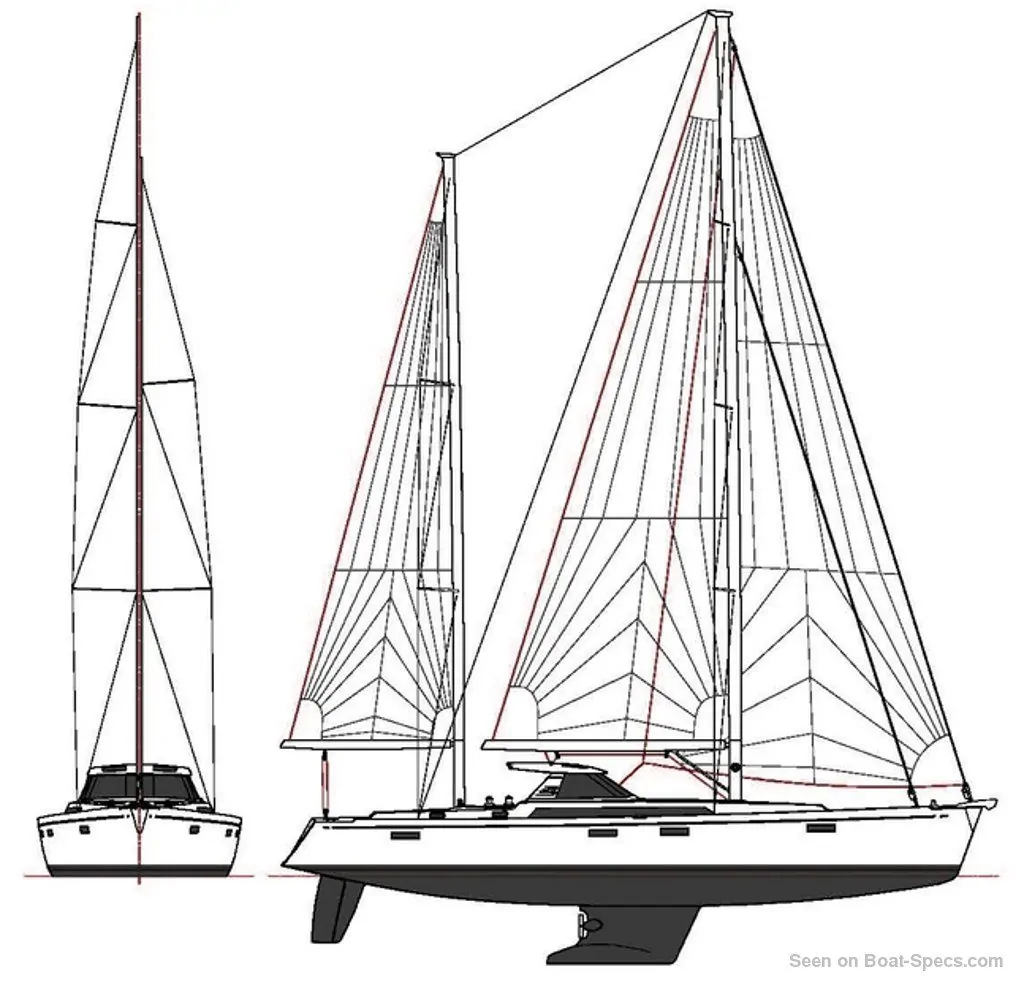

Amel 64's rig and sails
- Upwind sail area
- 1894 ft²176 m²
- Downwind sail area
- 3078 ft²286 m²
- Mainsail area
- 624 ft²58 m²
- Mizzen sail area
- 323 ft²30 m²
- Genoa area
- 947 ft²88 m²
- Staysail area
- 377 ft²35 m²
- Gennaker area
- 1399 ft²130 m²
- Code 0 area
- 1399 ft²130 m²
- Code 5 area
- 2131 ft²198 m²
- Rigging type
- Ketch Marconi (in-mast furling mainsail) masthead
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
Amel 64's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 180 ft²/T16.74 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 293 ft²/T27.2 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 189
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 25 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 10.07 knots
Amel 64's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power
- 180 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 369.8 gal1400 liters

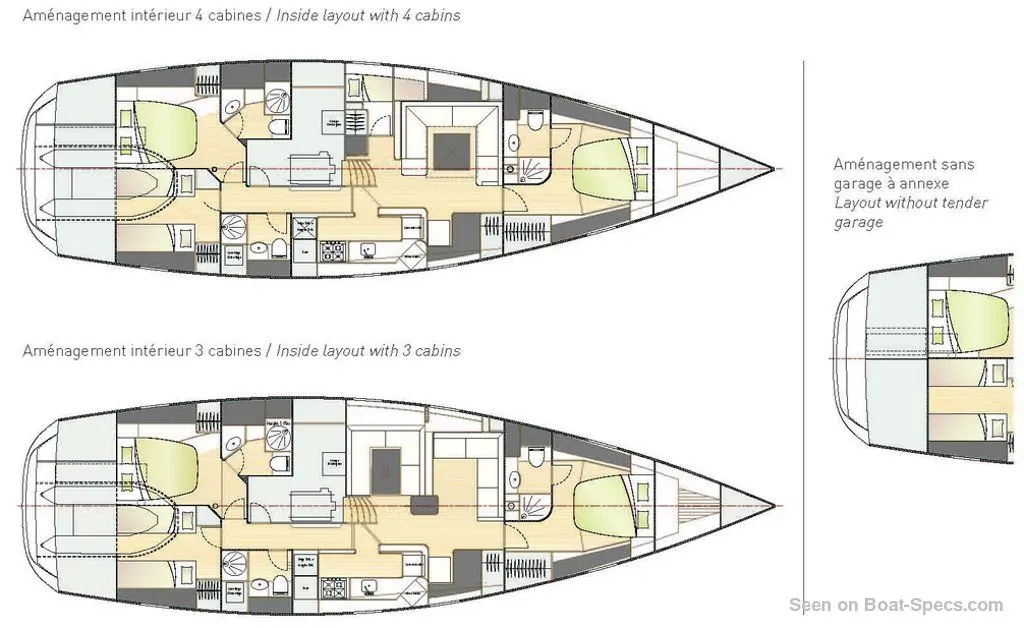

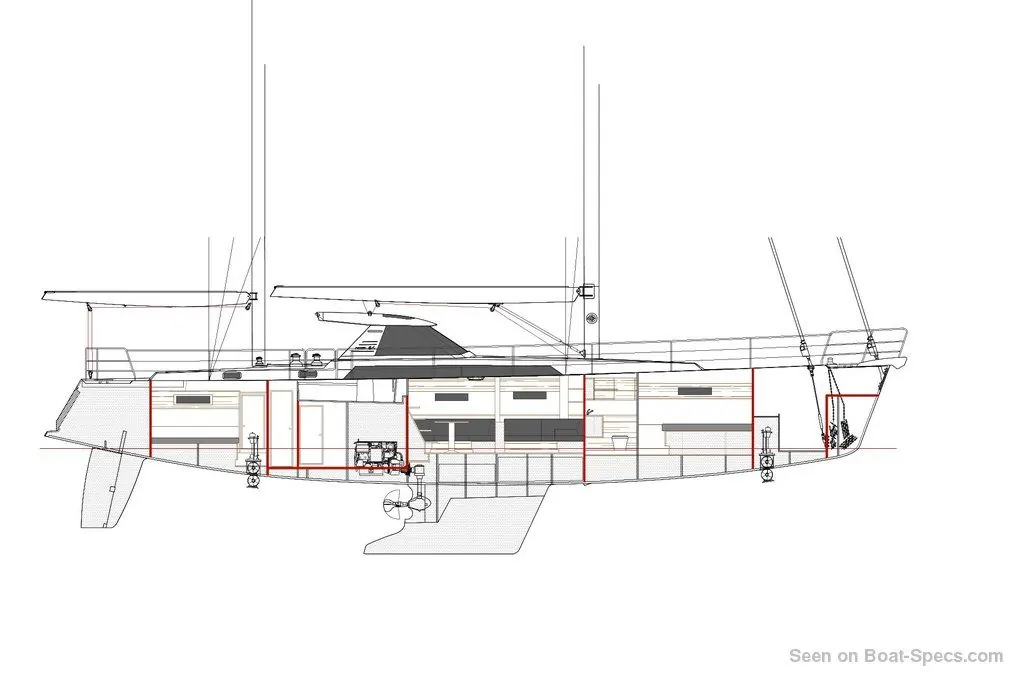

Amel 64's accommodations and layout
- Cockpit
- Center cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 7
- Head(s)
- 3
- Freshwater tank capacity
- 237.8 gal900 liters

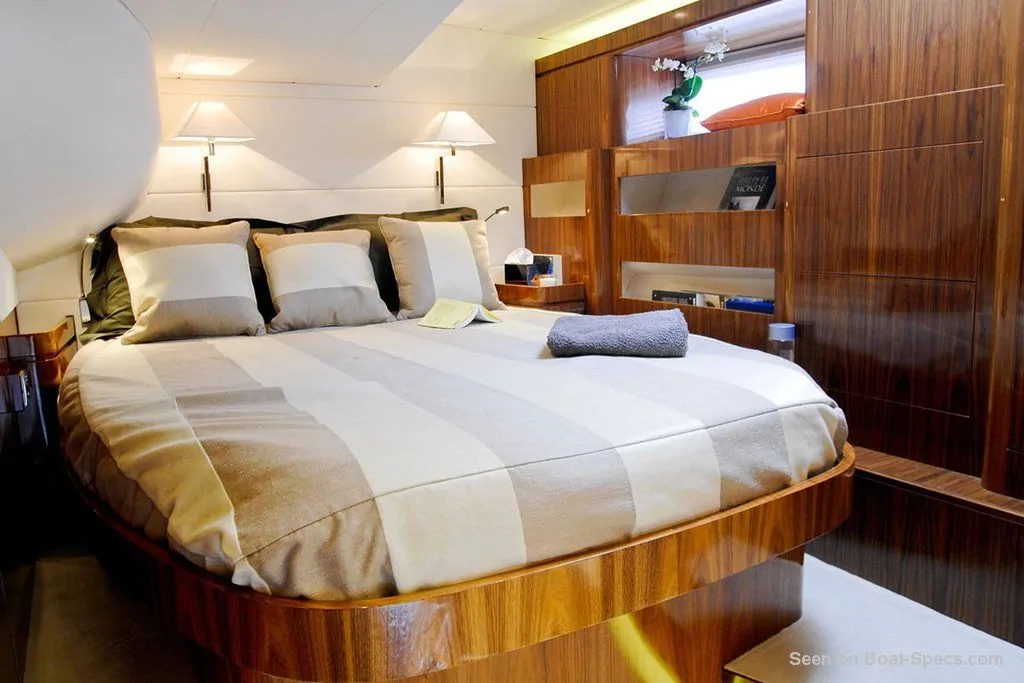

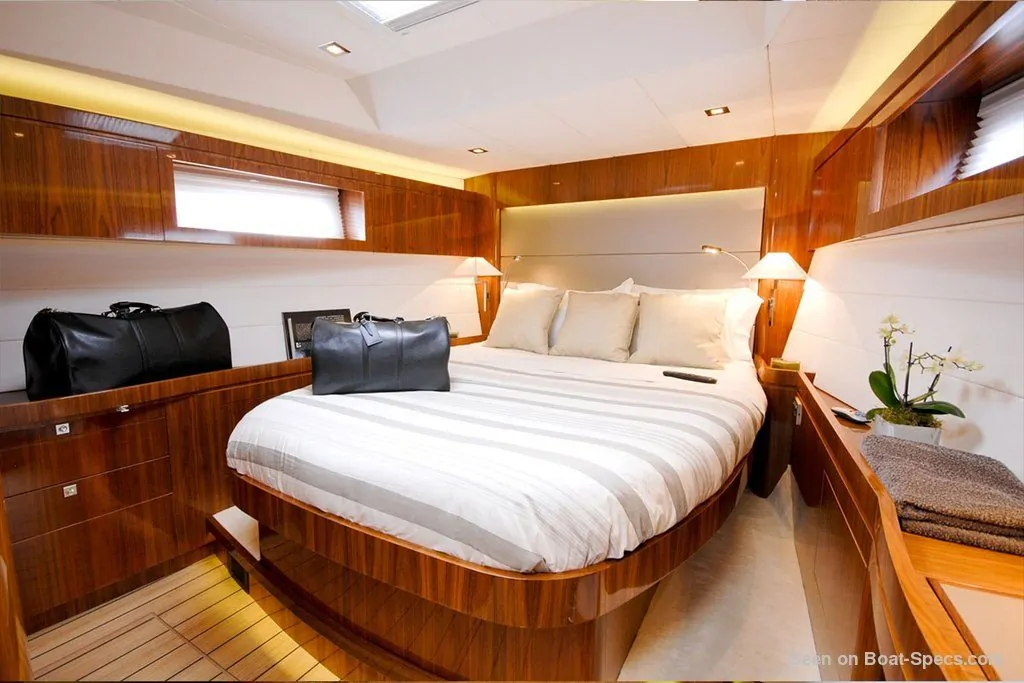

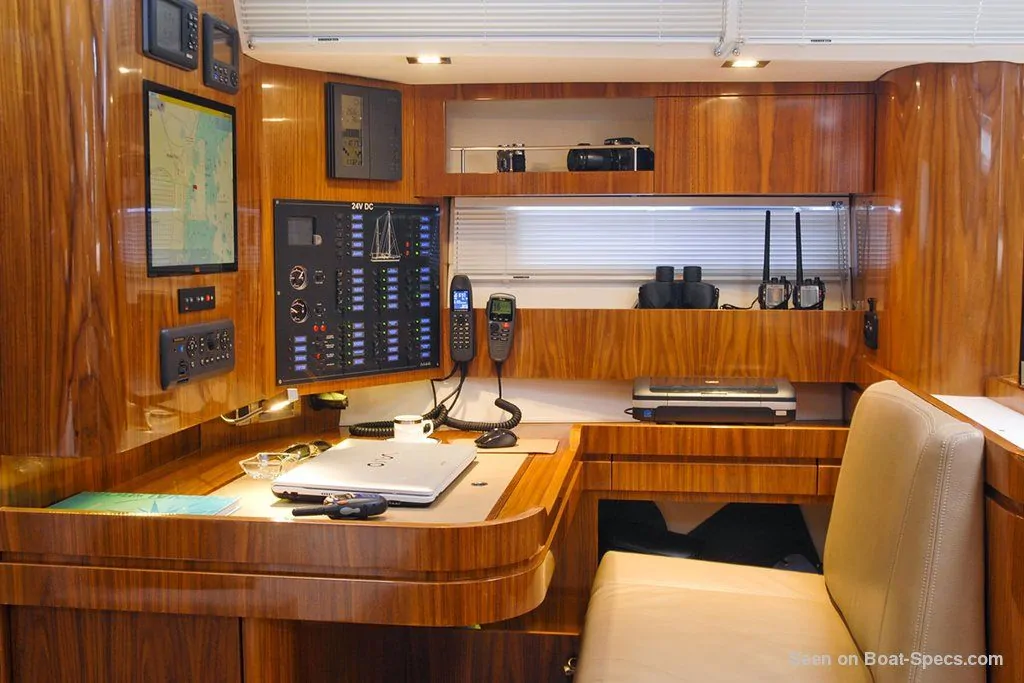

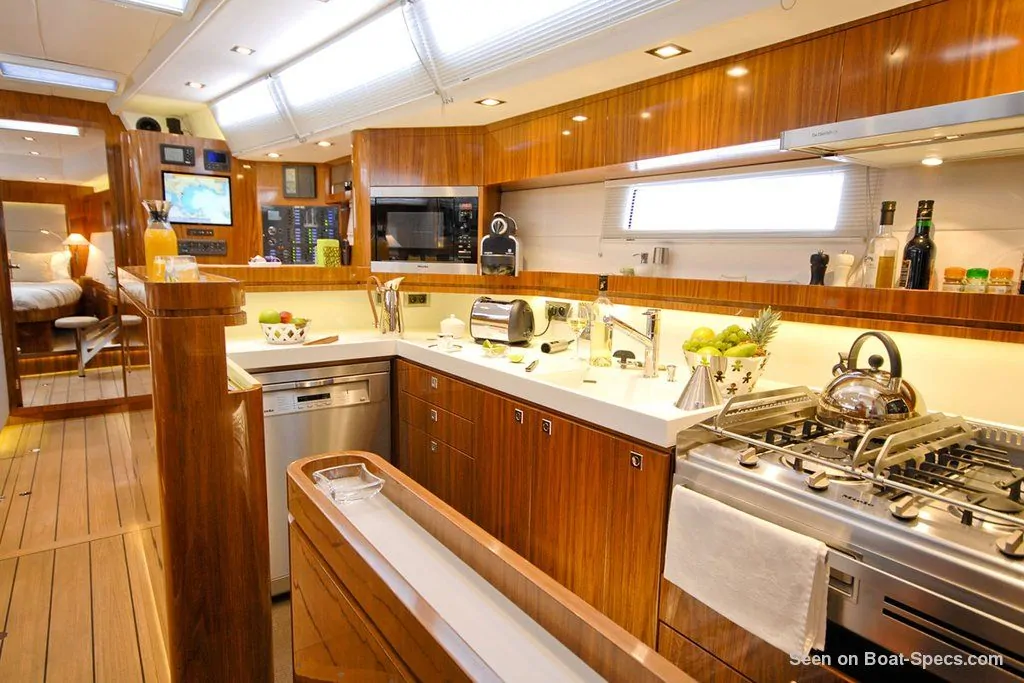

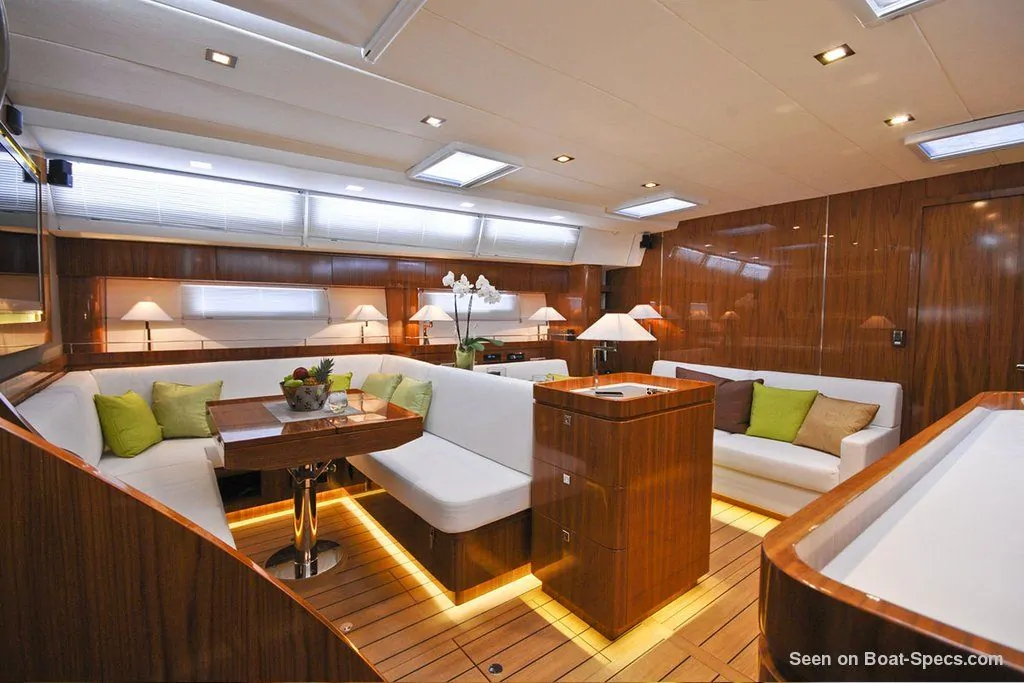

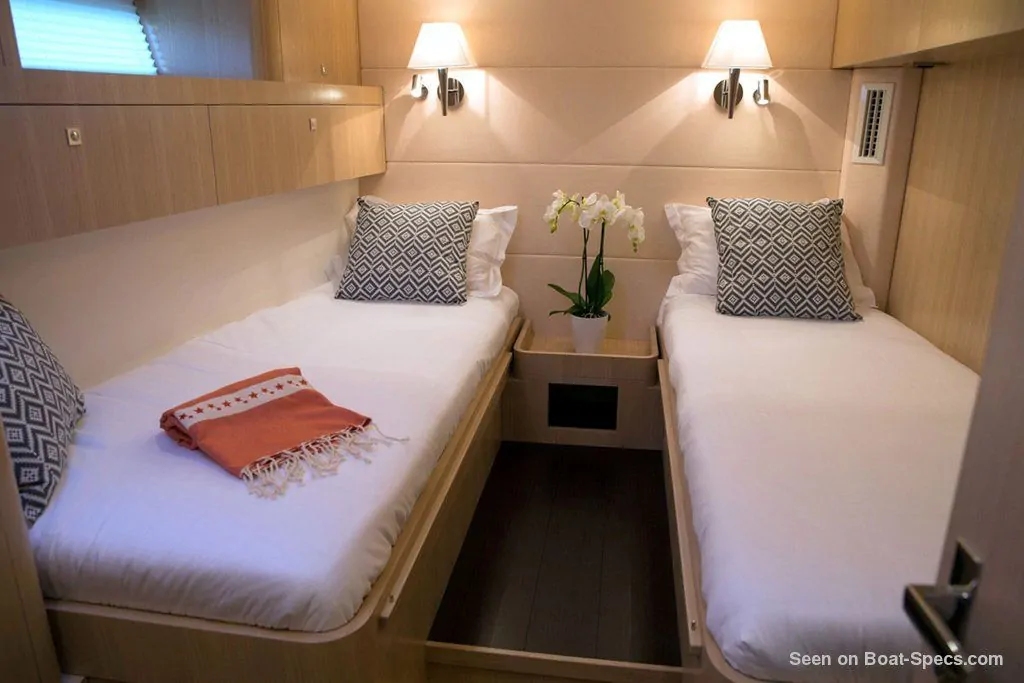

Amel 64 interior and accommodations - - 10/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
Amel 64 interior and accommodations - - 11/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
Amel 64 interior and accommodations - - 12/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
Amel 64 interior and accommodations - - 13/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
Amel 64 interior and accommodations - - 14/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
Amel 64 interior and accommodations - - 15/16
Picture extracted from the commercial documentation © Amel
Picture extracted from the commercial documentation © Amel
